Interfacing MAX30100 Pulse Oximeter Sensor with Arduino
In this project we will be Interfacing MAX30100 Pulse Oximeter Sensor with Arduino. The MAX30100 Sensor is capable of measuring Blood Oxygen & Heart Rate. We can use any display like a 16×2 LCD Display to view the value of SpO2 and BPM. The blood Oxygen Concentration termed SpO2 is measured in Percentage and Heart Beat/Pulse Rate is measured in BPM.
The MAX30100 is a Pulse Oximetry and heart rate monitor sensor solution. It combines two LEDs, a photodetector, optimized optics, and low-noise analog signal processing to detect pulse oximetry and heart-rate signals. You can use this sensor with any microcontroller like Arduino, ESP8266, or ESP32 and easily measure the patient’s health parameters. This cheap DIY Pulse Oximeter sensor just cost around 5$ and can be used in multiple applications if you are a beginner or an Electronics enthusiast.
You can go through some of the projects made using this sensor:
1. Blood Oxygen & Heart Rate Measurement on OLED Display
2. IoT Pulse Oximeter using Blynk & ESP8266
3. Measure SpO2 & BPM on Blynk using ESP32
4. MAX30102 & Arduino: Heart Rate + Blood Oxygen Monitoring
5. IoT Based Patient Health Monitoring System
Bill of Materials
Following are the components that you need for Interfacing MAX30100 Pulse Oximeter Sensor with Arduino. You can purchase all the components online from Amazon. The components name as well as purchased link is given below.
| S.N. | Components | Quantity |  |
|---|---|---|---|
| 1 | Arduino UNO Board | 1 | Amazon | AliExpress |
| 2 | MAX30100 Pulse Oximeter Sensor | 1 | Amazon | AliExpress |
| 4 | 16x2 LCD Display | 1 | Amazon | AliExpress |
| 5 | Potentiometer 10K | 1 | Amazon | AliExpress |
| 6 | Connecting Wires | 10 | Amazon | AliExpress |
| 7 | Breadboard | 1 | Amazon | AliExpress |
How does Pulse Oximeter Works?
Oxygen enters the lungs and then is passed on into blood. The blood carries oxygen to the various organs in our body. The main way oxygen is carried in our blood is by means of hemoglobin. During a pulse oximetry reading, a small clamp-like device is placed on a finger, earlobe, or toe.
Small beams of light pass through the blood in the finger, measuring the amount of oxygen. It does this by measuring changes in light absorption in oxygenated or deoxygenated blood.
MAX30100 Pulse Oximeter
The sensor is integrated pulse oximetry and heart-rate monitor sensor solution. It combines two LED’s, a photodetector, optimized optics, and low-noise analog signal processing to detect pulse and heart-rate signals. It operates from 1.8V and 3.3V power supplies and can be powered down through software with negligible standby current, permitting the power supply to remain connected at all times.
Features
1. Consumes very low power (operates from 1.8V and 3.3V)
2. Ultra-Low Shutdown Current (0.7µA, typ)
3. Fast Data Output Capability
4. Interface Type: I2C
Working of MAX30100 Pulse Oximeter and Heart-Rate Sensor
The device has two LEDs, one emitting red light, another emitting infrared light. For pulse rate, only infrared light is needed. Both red light and infrared light are used to measure oxygen levels in the blood.
When the heart pumps blood, there is an increase in oxygenated blood as a result of having more blood. As the heart relaxes, the volume of oxygenated blood also decreases. By knowing the time between the increase and decrease of oxygenated blood, the pulse rate is determined.
It turns out, oxygenated blood absorbs more infrared light and passes more red light while deoxygenated blood absorbs red light and passes more infrared light. This is the main function of the MAX30100: it reads the absorption levels for both light sources and stores them in a buffer that can be read via I2C communication protocol.
Interfacing MAX30100 Pulse Oximeter Sensor with Arduino
Now let us interface MAX30100 Pulse Oximeter Sensor with Arduino and display the value in serial monitor.The circuit diagram and connection is very simple. You can follow the same.
Connect the Vin pin of MAX30100 to Arduino 5V or 3.3V pin, GND to GND. Connect the I2C Pin of MAX30100, i.e SCL & SDA to A5 & A4 of Arduino.
Source Code/Program
The source Code/program for interfacing MAX30100 Pulse Oximeter with Arduino is written in C programm for Arduino IDE. This code will display the value in serial monitor. Copy this code and upload it to Arduino Board.
But before that downloaded the MAX30100 Library from here:
Arduino MAX30100 Library
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 |
#include <Wire.h> #include "MAX30100_PulseOximeter.h" #define REPORTING_PERIOD_MS 1000 PulseOximeter pox; uint32_t tsLastReport = 0; void onBeatDetected() { Serial.println("Beat!"); } void setup() { Serial.begin(115200); Serial.print("Initializing pulse oximeter.."); // Initialize the PulseOximeter instance // Failures are generally due to an improper I2C wiring, missing power supply // or wrong target chip if (!pox.begin()) { Serial.println("FAILED"); for(;;); } else { Serial.println("SUCCESS"); } pox.setIRLedCurrent(MAX30100_LED_CURR_7_6MA); // Register a callback for the beat detection pox.setOnBeatDetectedCallback(onBeatDetected); } void loop() { // Make sure to call update as fast as possible pox.update(); if (millis() - tsLastReport > REPORTING_PERIOD_MS) { Serial.print("Heart rate:"); Serial.print(pox.getHeartRate()); Serial.print("bpm / SpO2:"); Serial.print(pox.getSpO2()); Serial.println("%"); tsLastReport = millis(); } } |
After uploading the code, open the serial monitor to see the values as shown in the image. Initially the the BPM & SpO2 value appears as incorrect value but soon you can observe the correct stable reading.
Displaying MAX30100 SpO2 & BPM Value on LCD Display
Now let us use the 16X2 LCD Display to see the value of BPM & SpO2 instead of Serial Monitor. Assemble the circuit as per the circuit diagram below.
Connect the Vin pin of MAX30100 to Arduino 5V or 3.3V pin, GND to GND. Connect the I2C Pin, SCL & SDA of MAX30100 to A5 & A4 of Arduino. Similarly connect the LCD pin 1, 5, 16 to GND of Arduino and 2, 15 to 5V VCC. Similarly connect LCD pin 4, 6, 11, 12, 13, 14 to Arduino pin 13, 12, 11, 10, 9, 8. Use 10K Potentiometer at pin 3 of LCD to adjust the contrast of LCD.
Source Code/Program
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 |
#include <LiquidCrystal.h> #include <Wire.h> #include "MAX30100_PulseOximeter.h" LiquidCrystal lcd(13, 12, 11, 10, 9, 8); #define REPORTING_PERIOD_MS 1000 PulseOximeter pox; uint32_t tsLastReport = 0; void onBeatDetected() { Serial.println("Beat!"); } void setup() { Serial.begin(115200); Serial.print("Initializing pulse oximeter.."); lcd.begin(16,2); lcd.print("Initializing..."); delay(3000); lcd.clear(); // Initialize the PulseOximeter instance // Failures are generally due to an improper I2C wiring, missing power supply // or wrong target chip if (!pox.begin()) { Serial.println("FAILED"); for(;;); } else { Serial.println("SUCCESS"); } pox.setIRLedCurrent(MAX30100_LED_CURR_7_6MA); // Register a callback for the beat detection pox.setOnBeatDetectedCallback(onBeatDetected); } void loop() { // Make sure to call update as fast as possible pox.update(); if (millis() - tsLastReport > REPORTING_PERIOD_MS) { Serial.print("Heart rate:"); Serial.print(pox.getHeartRate()); Serial.print("bpm / SpO2:"); Serial.print(pox.getSpO2()); Serial.println("%"); lcd.clear(); lcd.setCursor(0,0); lcd.print("BPM : "); lcd.print(pox.getHeartRate()); lcd.setCursor(0,1); lcd.print("SpO2: "); lcd.print(pox.getSpO2()); lcd.print("%"); tsLastReport = millis(); } } |
After uploading the code, you can put the finger on MAX30100 Sensor and LCD will start displaying the Oxygen percentage and BPM Value.
MAX30100 Not Working Troubleshooting
If you purchased the MAX30100 Module shown below, then it might not work as it has a serious design problem. The MAX30100 IC uses 1.8V for VDD and this particular module uses two regulators to achieve this voltage.

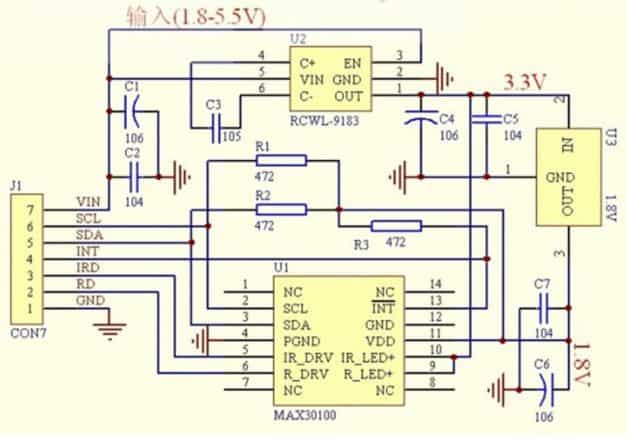

Nothing wrong with that. However, if you look closely, the SCL and SDA pins are pulled up via the 4.7k ohm resistors to 1.8V! This means it won’t work well with microcontrollers with higher logic levels.
There are two methods to fix this issue and make MAX30100 WORK.
1st Method
The solution is to remove the resistors from the board (encircled on the image below) and attach external 4.7k ohms resistors to SDA, SCL and INT Pin instead.
After removing all 4.7K Resistors, connect the INT, SDA, SCL pin to the external 4.7K Pull-up resistor.
2nd Method
In case if don’t like the first one, you can use the second method to fix this issue. It is enough to cut the path in the place of the red cross and make a jumper as shown by the yellow line. The jumper does not need an insulated wire. You can take a tinned strand from the stranded wire. The board is covered with a protective mask and there is no short circuit to the copper pour.
Video Demonstration & Explanation
A better upgraded version of MAX30100 is MAX30102 Pulse Oximeter Sensor which has all the design upgradation.
