Overview
In this IoT project, we will learn how to build a Fingerprint Biometric Attendance System using ESP32, R503 Fingerprint Sensor, 0.96” OLED Display, and a professional web dashboard. The ESP32 Wi-Fi module is used to connect the system to a local network and host a real-time dashboard directly from the device. The R503 fingerprint sensor is used to enroll and verify users, while the OLED display shows system status, scan instructions, user name, entry status, exit status, and registration messages.
This ESP32-based biometric attendance system allows users to register their fingerprint along with personal details such as name, college ID, role, and department. Once a registered fingerprint is scanned, the system automatically marks the user’s attendance and updates the dashboard with entry and exit records. The dashboard displays live attendance activity, registered user records, fingerprint IDs, login time, logout time, and attendance history. The attendance data can also be exported as a CSV file for use in Excel or record-keeping.
The professional dashboard makes this project more advanced by providing a user-friendly interface for fingerprint registration, attendance monitoring, record management, and fingerprint deletion. This project is a practical and low-cost solution for building a smart biometric attendance system with real-time monitoring and secure user verification.
Overview

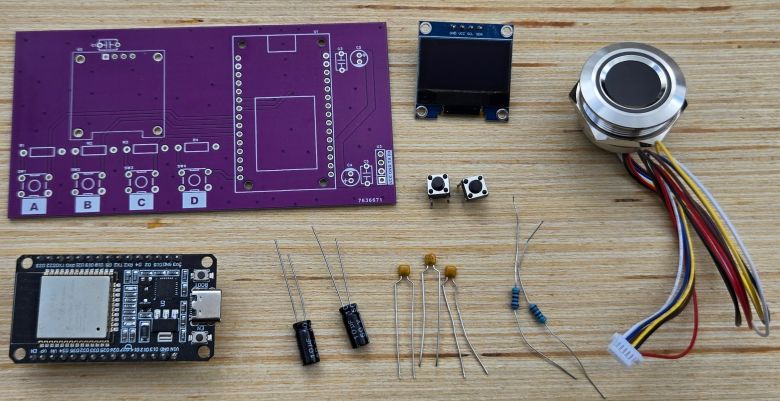

Following are the components required to making ESP32 Fingerprint Attendance System. All these components can be purchased from the given links.
| S.N. | Components Name | Quantity | Purchase Link |
|---|---|---|---|
| 1 | ESP32 Board | 1 | Amazon | AliExpress |
| 2 | R503 Fingerprint Sensor | 1 | Amazon | AliExpress |
| 3 | OLED Display 0.96" | 1 | Amazon | AliExpress |
| 4 | 10uF Electrolytic Capacitor | 2 | Amazon | AliExpress |
| 5 | 0.1uF Ceramic Capacitor | 4 | Amazon | AliExpress |
| 6 | Jumper Wires | 4 | Amazon | AliExpress |
Block Diagram of ESP32 Fingerprint Biometric Attendance System

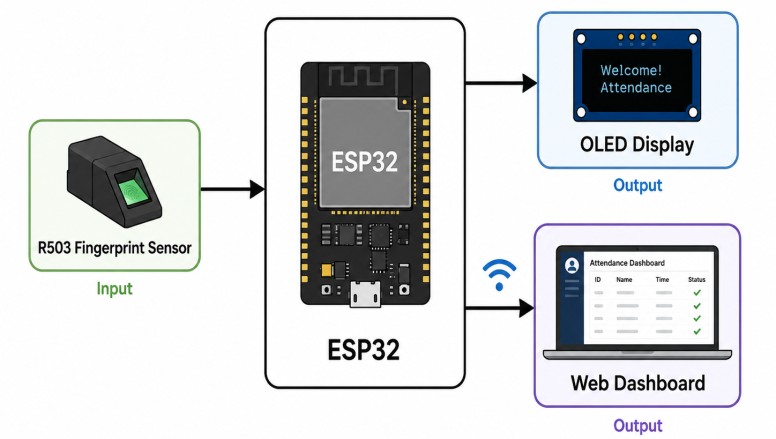

Let’s take a look at the block diagram of the ESP32-based Fingerprint Biometric Attendance System.
In this system, the R503 fingerprint sensor works as the input device and sends fingerprint data to the ESP32 for processing and verification. After the fingerprint is verified, the ESP32 displays the result on the OLED screen and updates the web dashboard for real-time attendance monitoring.
The dashboard can show registered users, entry and exit records, attendance history, and other important details in a simple and organized way.
Circuit Diagram

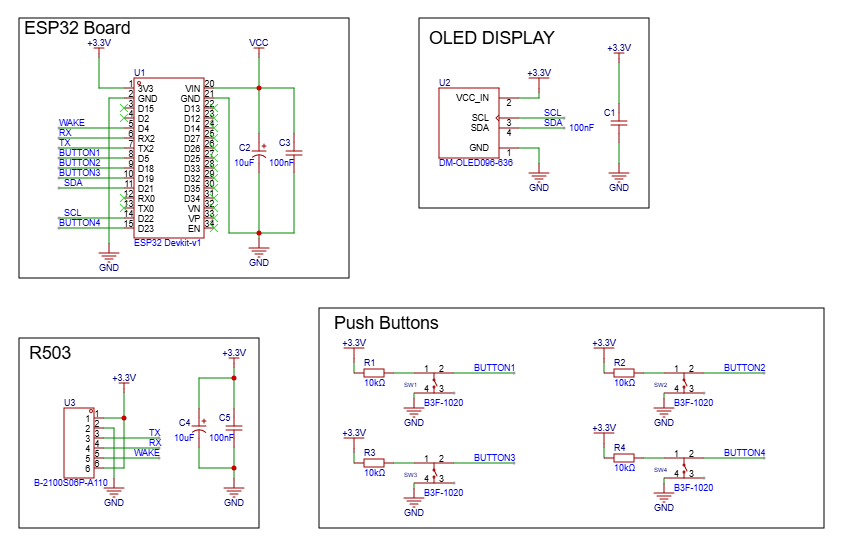

Let’s take a look at the schematic of the ESP32-based Fingerprint Biometric Attendance System.
In this circuit, the ESP32 works as the main controller and is connected with the R503 fingerprint sensor, OLED display, and push buttons. The R503 fingerprint sensor communicates with the ESP32 through UART pins, while the OLED display uses the I2C pins for showing scan status, user name, entry, exit, and system messages.
The push buttons are connected as input controls and can be used for functions like enrollment, cancel, or other menu actions. But in this project, we are not using the push buttons. Pull-up resistors are used with the buttons, so the ESP32 can read a stable HIGH or LOW signal when a button is pressed. Capacitors are also added near the modules to make the power supply more stable and reduce noise in the circuit.
PCB Designing & Gerber Files
The schematic of the ESP32 Fingerprint Attendance System was created in EasyEDA, and from there it was converted into a compact PCB layout.

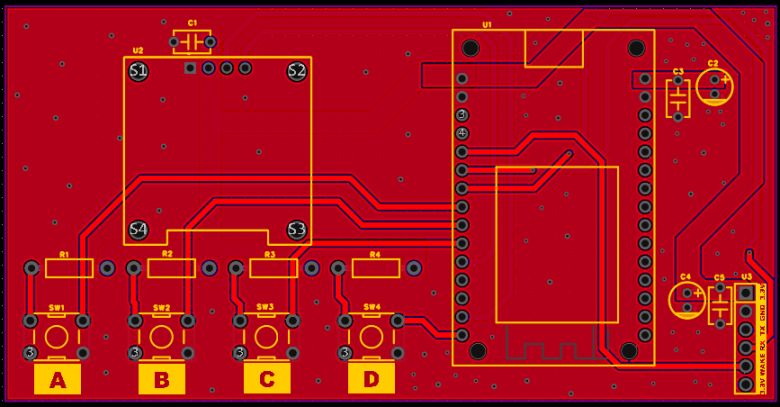

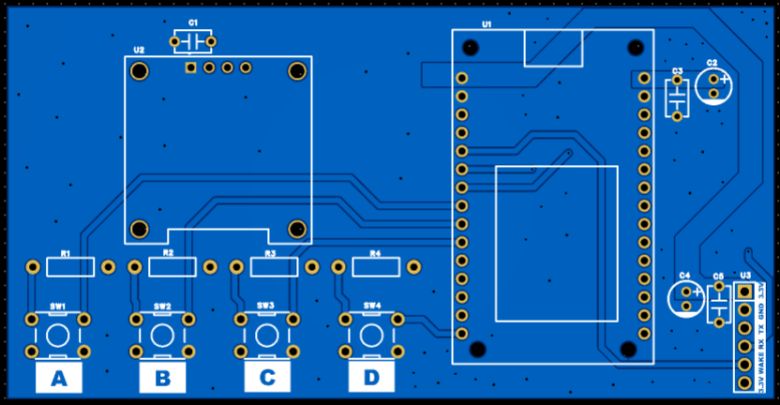

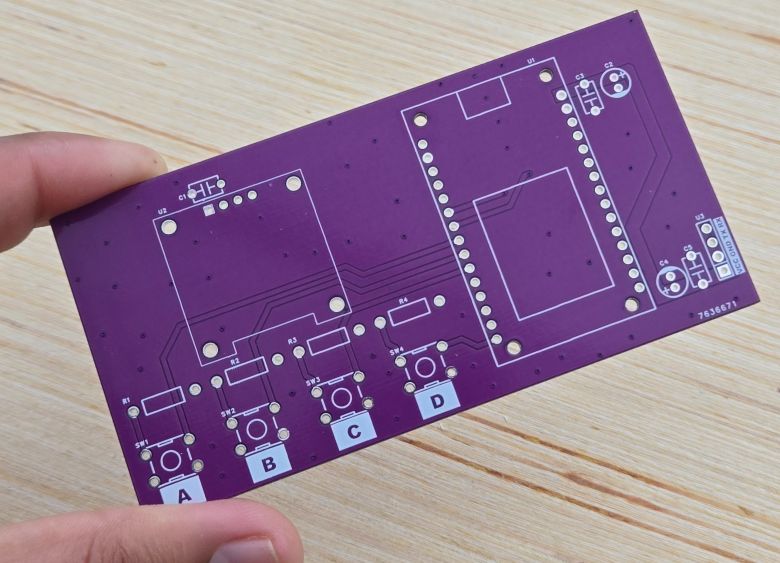

The board is designed with mostly through-hole components to make easier assembly. You can view the 2D view of the PCB.
All of the critical components, including the ESP32 module, are placed on the front side of the PCB, which makes assembly easier and more reliable.
Here are the link of files that you can download for PCB manufacturing and PCB assembly services.
- Download: Schematic PDF
- Download: Gerber File
PCB Ordering Online & Assembly
The Gerber file for this ESP32, PMS7003, BME680 Air Quality Monitor is provided above. You can download the Gerber file and place an order with a PCB manufacturer like AIVON for as low as $1 for a PCB Prototype.
To order the PCB, visit the AIVON Official Website and upload the Gerber file using the Quote Now option. You can then choose your required parameters, such as Material Type, Dimensions, Quantity, Thickness, and Solder Mask Color.
AIVON is making PCB prototyping and assembly more affordable for new users by offering $1 PCB Prototype and $35 PCB Assembly with Shipping fee $30 OFF on your first PCB order. With this promotion, you can enjoy free shipping on your first order and affordable assembly service for your project.
Here is the promotion link: AIVON PCB/PCBA Promotion Offer
Once all the details are filled in, select your country and shipping method. After confirming everything, you can place the order and wait for your boards to arrive.
Assembly of the ESP32 Fingerprint Attendance System
After I ordered the custom PCB, I received it within just 3 days. The PCB quality was very good, and it looked clean and professional. It is a double-sided PCB, which makes the circuit compact and neat.
Then I started soldering and assembling all the components on the board. For the ESP32 board, OLED display, and Fingerprint sensor, I used female header pins. This makes it easy to remove or replace the modules later if needed.
I also soldered the required capacitors on different parts of the PCB. These capacitors help to keep the power supply stable and reduce noise in the circuit. For the R503 Fingerprint sensor, I used 6 jumper wires to connect it to the PCB board terminal.

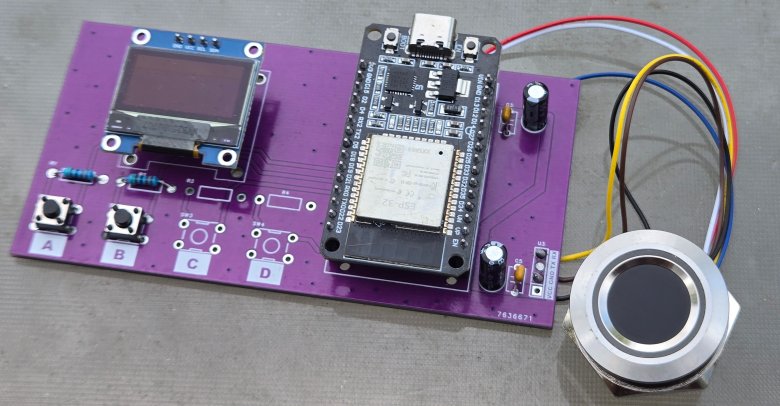

After soldering all the parts, I connected the all the modules and completed the final assembly of the IoT ESP32 Fingerprint Attendance System device.
Source Code/program
Let us take a look at the programming part of this project.
The code starts by including the required libraries for Wi-Fi, web server, fingerprint sensor, OLED display, and ESP32 memory storage. The WiFi and WebServer libraries are used to connect the ESP32 to the local network and host the attendance dashboard. The Adafruit Fingerprint library is used to communicate with the R503 fingerprint sensor, while the Adafruit GFX library and Adafruit SSD1306 library are used to display messages on the OLED screen.
In the Wi-Fi section, the SSID and password are added so the ESP32 can connect to the network. After connecting, the ESP32 shows its IP address on the OLED display and Serial Monitor. This IP address can be opened in a browser to access the professional web dashboard.
The main loop checks for fingerprint scans, enrollment requests, and button inputs. When a registered finger is scanned, the ESP32 verifies the fingerprint, marks entry or exit, shows the user’s first name on the OLED, and updates the attendance records on the dashboard. New users can also be registered from the dashboard by entering their name, college ID, role, and department.
The code is divided into two main parts: the main .ino file for ESP32 control and the dashboard.h file for the web dashboard interface.
Main .ino code
Copy the following code and paste it to your Arduino IDE editor window.
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 218 219 220 221 222 223 224 225 226 227 228 229 230 231 232 233 234 235 236 237 238 239 240 241 242 243 244 245 246 247 248 249 250 251 252 253 254 255 256 257 258 259 260 261 262 263 264 265 266 267 268 269 270 271 272 273 274 275 276 277 278 279 280 281 282 283 284 285 286 287 288 289 290 291 292 293 294 295 296 297 298 299 300 301 302 303 304 305 306 307 308 309 310 311 312 313 314 315 316 317 318 319 320 321 322 323 324 325 326 327 328 329 330 331 332 333 334 335 336 337 338 339 340 341 342 343 344 345 346 347 348 349 350 351 352 353 354 355 356 357 358 359 360 361 362 363 364 365 366 367 368 369 370 371 372 373 374 375 376 377 378 379 380 381 382 383 384 385 386 387 388 389 390 391 392 393 394 395 396 397 398 399 400 401 402 403 404 405 406 407 408 409 410 411 412 413 414 415 416 417 418 419 420 421 422 423 424 425 426 427 428 429 430 431 432 433 434 435 436 437 438 439 440 441 442 443 444 445 446 447 448 449 450 451 452 453 454 455 456 457 458 459 460 461 462 463 464 465 466 467 468 469 470 471 472 473 474 475 476 477 478 479 480 481 482 483 484 485 486 487 488 489 490 491 492 493 494 495 496 497 498 499 500 501 502 503 504 505 506 507 508 509 510 511 512 513 514 515 516 517 518 519 520 521 522 523 524 525 526 527 528 529 530 531 532 533 534 535 536 537 538 539 540 541 542 543 544 545 546 547 548 549 550 551 552 553 554 555 556 557 558 559 560 561 562 563 564 565 566 567 568 569 570 571 572 573 574 575 576 577 578 579 580 581 582 583 584 585 586 587 588 589 590 591 592 593 594 595 596 597 598 599 600 601 602 603 604 605 606 607 608 609 610 611 612 613 614 615 616 617 618 619 620 621 622 623 624 625 626 627 628 629 630 631 632 633 634 635 636 637 638 639 640 641 642 643 644 645 646 647 648 649 650 651 652 653 654 655 656 657 658 659 660 661 662 663 664 665 666 667 668 669 670 671 672 673 674 675 676 677 678 679 680 681 682 683 684 685 686 687 688 689 690 691 692 693 694 695 696 697 698 699 700 701 702 703 704 705 706 707 708 709 710 711 712 713 714 715 716 717 718 719 720 721 722 723 724 725 726 727 728 729 730 731 732 733 734 735 736 737 738 739 740 741 742 743 744 745 746 747 748 749 750 751 752 753 754 755 756 757 758 759 760 761 762 763 764 765 766 767 768 769 770 771 772 773 774 775 776 777 778 779 780 781 782 783 784 785 786 787 788 789 790 791 792 793 794 795 796 797 798 799 800 801 802 803 804 805 806 807 808 809 810 811 812 813 814 815 816 817 818 819 820 821 822 823 824 825 826 827 828 829 830 831 832 833 834 835 836 837 838 839 840 841 842 843 844 845 846 847 848 849 850 851 852 853 854 855 856 857 858 859 860 861 862 863 864 865 866 867 868 869 870 871 872 873 874 875 876 877 878 879 880 881 882 883 884 885 886 887 888 889 890 891 892 893 894 895 896 897 898 899 900 901 902 903 904 905 906 907 908 909 910 911 912 913 914 915 916 917 918 919 920 921 922 923 924 925 926 927 928 929 930 931 932 933 934 935 936 937 938 939 940 941 942 943 944 945 946 947 948 949 950 951 952 953 954 955 956 957 958 959 960 961 962 963 964 965 966 967 968 969 970 971 972 973 974 975 976 977 978 979 980 981 982 983 984 985 986 987 988 989 990 991 992 993 994 995 996 997 998 999 1000 1001 1002 1003 1004 1005 1006 1007 1008 1009 1010 1011 1012 1013 1014 1015 1016 1017 1018 1019 1020 1021 1022 1023 1024 1025 1026 1027 1028 1029 1030 1031 1032 1033 1034 1035 1036 1037 1038 1039 1040 1041 1042 1043 1044 1045 1046 1047 1048 1049 1050 1051 1052 1053 1054 1055 1056 1057 1058 1059 1060 1061 1062 1063 1064 1065 1066 1067 1068 1069 1070 1071 1072 1073 1074 1075 1076 1077 1078 1079 1080 1081 1082 1083 1084 1085 1086 1087 1088 1089 1090 1091 1092 1093 1094 1095 1096 1097 1098 1099 1100 1101 1102 1103 1104 1105 1106 1107 1108 1109 1110 1111 1112 1113 1114 1115 1116 1117 1118 1119 1120 1121 1122 1123 1124 1125 1126 1127 1128 1129 1130 1131 1132 1133 1134 1135 1136 1137 1138 1139 1140 1141 1142 1143 1144 1145 1146 1147 1148 1149 1150 1151 1152 1153 1154 1155 1156 1157 1158 1159 1160 1161 1162 1163 1164 1165 1166 1167 1168 1169 1170 1171 1172 1173 1174 1175 1176 1177 1178 1179 1180 1181 1182 1183 1184 1185 1186 1187 1188 1189 1190 1191 1192 1193 1194 1195 1196 1197 1198 1199 1200 1201 1202 1203 1204 1205 1206 1207 1208 1209 1210 1211 1212 1213 1214 1215 1216 1217 1218 1219 1220 1221 1222 1223 1224 1225 1226 1227 1228 1229 1230 1231 1232 1233 1234 1235 1236 1237 1238 1239 1240 1241 1242 1243 1244 1245 1246 1247 1248 1249 1250 1251 1252 1253 1254 1255 1256 1257 1258 1259 1260 1261 1262 1263 1264 1265 1266 1267 1268 1269 1270 1271 1272 1273 1274 1275 1276 1277 1278 1279 1280 1281 1282 1283 1284 1285 1286 1287 1288 1289 1290 1291 1292 1293 1294 1295 1296 1297 1298 1299 1300 1301 1302 1303 1304 1305 1306 1307 1308 1309 1310 1311 1312 1313 1314 1315 1316 1317 1318 1319 1320 1321 1322 1323 1324 1325 1326 1327 1328 1329 1330 1331 1332 1333 1334 1335 1336 1337 1338 1339 1340 1341 1342 1343 1344 1345 1346 1347 1348 1349 1350 1351 1352 1353 1354 1355 1356 1357 1358 1359 1360 1361 1362 1363 1364 1365 1366 1367 1368 1369 1370 1371 1372 1373 1374 1375 1376 1377 1378 1379 1380 1381 1382 1383 1384 1385 1386 1387 1388 1389 1390 1391 1392 1393 1394 1395 1396 1397 1398 1399 1400 1401 1402 1403 1404 1405 1406 1407 1408 1409 1410 1411 1412 1413 1414 1415 1416 1417 1418 1419 1420 1421 1422 1423 1424 1425 1426 1427 1428 1429 1430 1431 1432 1433 1434 1435 1436 1437 1438 1439 1440 1441 1442 1443 1444 1445 1446 1447 1448 1449 1450 1451 1452 1453 1454 1455 1456 1457 1458 1459 1460 1461 1462 1463 1464 1465 1466 1467 1468 1469 1470 1471 1472 1473 1474 1475 1476 1477 1478 1479 1480 1481 1482 1483 1484 1485 1486 1487 1488 1489 1490 1491 1492 1493 1494 1495 1496 1497 1498 1499 1500 1501 1502 1503 1504 1505 1506 1507 1508 1509 1510 1511 1512 1513 1514 1515 1516 1517 1518 1519 1520 1521 1522 1523 1524 1525 1526 1527 1528 1529 1530 1531 1532 1533 1534 1535 1536 1537 1538 1539 1540 1541 1542 1543 1544 1545 1546 1547 1548 1549 1550 1551 1552 1553 1554 1555 1556 |
#include <Wire.h> #include <WiFi.h> #include <WebServer.h> #include <Preferences.h> #include <time.h> #include <Adafruit_GFX.h> #include <Adafruit_SSD1306.h> #include <Adafruit_Fingerprint.h> #include "dashboard.h" // ===================================================== // WIFI SETTINGS // ===================================================== const char* WIFI_SSID = "****************"; const char* WIFI_PASSWORD = "***************"; // Ontario / Toronto timezone const char* TIME_ZONE = "EST5EDT,M3.2.0/2,M11.1.0/2"; WebServer server(80); Preferences prefs; // ===================================================== // OLED SETTINGS // ===================================================== #define SCREEN_WIDTH 128 #define SCREEN_HEIGHT 64 #define OLED_RESET -1 #define OLED_ADDR 0x3C #define OLED_SDA 21 #define OLED_SCL 22 Adafruit_SSD1306 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET); // ===================================================== // R503 FINGERPRINT SENSOR UART // ===================================================== #define FINGER_RX 16 #define FINGER_TX 17 HardwareSerial fingerSerial(2); Adafruit_Fingerprint finger = Adafruit_Fingerprint(&fingerSerial); // ===================================================== // BUTTONS // ===================================================== #define BTN_ENROLL 18 #define BTN_CANCEL 5 #define DEBOUNCE_MS 250 unsigned long lastEnrollBtnTime = 0; unsigned long lastCancelBtnTime = 0; // ===================================================== // MATCH SETTINGS // ===================================================== #define MATCH_SECURITY_LEVEL 2 #define MAX_FINGERPRINTS 200 // ===================================================== // PROFILE STORAGE // ===================================================== struct PersonProfile { String name; String collegeId; String role; String department; String note; }; // ===================================================== // LOGGING // ===================================================== #define MAX_LOGS 80 struct AttendanceLog { String timeText; String event; int id; String name; String collegeId; String role; String department; String message; }; AttendanceLog logs[MAX_LOGS]; int logCount = 0; int logWriteIndex = 0; // ===================================================== // APP STATE // ===================================================== uint16_t nextEnrollID = 1; unsigned long lastIdleRefresh = 0; bool isEnrolling = false; bool cancelEnroll = false; bool duplicateFound = false; bool dashboardEnrollRequest = false; uint16_t cachedTemplateCount = 0; String cachedRegisteredJson = "{\"fingerprints\":[]}"; int entryCount = 0; int exitCount = 0; int lastEntryId = -1; bool insideState[MAX_FINGERPRINTS + 1]; // Dashboard form values String pendingName = ""; String pendingCollegeId = ""; String pendingRole = ""; String pendingDepartment = ""; String pendingNote = ""; // ===================================================== // FUNCTION DECLARATIONS // ===================================================== void connectWiFi(); void setupTime(); void setupDashboardRoutes(); void smartDelay(unsigned long ms); String uptimeText(); String currentDateTimeText(); String jsonEscape(String s); String firstNameOnly(String fullName); void addLog(String event, int id, String message); AttendanceLog getLogByDisplayIndex(int i); String profileKey(uint16_t id, const char* field); void saveProfile(uint16_t id, PersonProfile p); PersonProfile loadProfile(uint16_t id); void deleteProfile(uint16_t id); void oledScreen(String title, String line1 = "", String line2 = "", String line3 = ""); void oledBig(String title, String line1 = "", String line2 = ""); void oledScanScreen(); void oledScanAnimation(String title, String line1, uint16_t durationMs); void oledProgressBar(String title, String line1, uint8_t percent); void oledSuccessAnimation(String line1, String line2 = ""); void oledErrorAnimation(String line1, String line2 = ""); String clipText(String text, uint8_t maxChars); void drawCenteredText(String text, int y, uint8_t textSize); void drawTitleBar(String title); void drawMiniFingerprint(int x, int y); void drawLoadingDots(int x, int y, uint8_t frame); void drawMovingBar(int y, uint8_t frame); void drawProgress(uint8_t percent); void drawWiFiIcon(bool connected); bool buttonPressed(uint8_t pin, unsigned long &lastTime); bool enrollButtonPressed(); bool cancelButtonPressed(); bool checkCancelDuringEnroll(); void scanFingerprint(); uint8_t enrollFingerprint(uint16_t id); void waitForFingerRemove(); uint16_t findNextFreeID(uint16_t startID); void printSensorParameters(); void refreshTemplateCountSerialOnly(); void refreshTemplateCountCache(); void rebuildRegisteredCache(); void setMatchingSecuritySerialOnly(); // ===================================================== // SETUP // ===================================================== void setup() { Serial.begin(115200); delay(1000); pinMode(BTN_ENROLL, INPUT); pinMode(BTN_CANCEL, INPUT); for (int i = 0; i <= MAX_FINGERPRINTS; i++) { insideState[i] = false; } prefs.begin("fps_db", false); Wire.begin(OLED_SDA, OLED_SCL); if (!display.begin(SSD1306_SWITCHCAPVCC, OLED_ADDR)) { Serial.println("OLED not found"); while (1) { delay(1000); } } display.clearDisplay(); display.setTextWrap(false); display.display(); oledBig("STARTING", "Fingerprint", "System"); smartDelay(900); connectWiFi(); setupTime(); setupDashboardRoutes(); fingerSerial.begin(57600, SERIAL_8N1, FINGER_RX, FINGER_TX); finger.begin(57600); smartDelay(500); oledScanAnimation("CHECKING", "Sensor", 900); if (finger.verifyPassword()) { Serial.println("Fingerprint sensor found!"); addLog("INFO", -1, "Fingerprint sensor ready"); oledSuccessAnimation("Sensor ready"); smartDelay(900); } else { Serial.println("Fingerprint sensor not found!"); addLog("ERROR", -1, "Fingerprint sensor not found"); oledErrorAnimation("Sensor not found", "Check wiring"); while (1) { server.handleClient(); delay(10); } } printSensorParameters(); setMatchingSecuritySerialOnly(); refreshTemplateCountSerialOnly(); rebuildRegisteredCache(); nextEnrollID = findNextFreeID(1); Serial.print("Next enroll ID: "); Serial.println(nextEnrollID); addLog("INFO", -1, "System ready"); smartDelay(500); oledScanScreen(); } // ===================================================== // LOOP // ===================================================== void loop() { server.handleClient(); if ((enrollButtonPressed() || dashboardEnrollRequest) && !isEnrolling) { dashboardEnrollRequest = false; if (pendingName.length() > 0) { addLog("ENROLL", -1, "Enrollment started for " + pendingName); } else { addLog("ENROLL", -1, "Enrollment started"); } isEnrolling = true; cancelEnroll = false; duplicateFound = false; uint8_t result = enrollFingerprint(nextEnrollID); if (cancelEnroll) { addLog("CANCEL", -1, "Enrollment cancelled"); oledBig("CANCELLED", "Back to scan"); smartDelay(1200); } else if (duplicateFound) { addLog("DUPLICATE", finger.fingerID, "Fingerprint already exists"); smartDelay(1200); } else if (result == FINGERPRINT_OK) { PersonProfile p; p.name = pendingName; p.collegeId = pendingCollegeId; p.role = pendingRole; p.department = pendingDepartment; p.note = pendingNote; saveProfile(nextEnrollID, p); String savedName = firstNameOnly(p.name); if (savedName.length() == 0) { savedName = "ID " + String(nextEnrollID); } String enrollMsg = "Fingerprint enrolled successfully"; if (p.name.length() > 0) { enrollMsg = p.name + " enrolled successfully"; } addLog("ENROLLED", nextEnrollID, enrollMsg); oledSuccessAnimation("Saved", savedName); Serial.print("Enrollment successful. ID: "); Serial.println(nextEnrollID); smartDelay(1200); refreshTemplateCountSerialOnly(); rebuildRegisteredCache(); nextEnrollID = findNextFreeID(nextEnrollID + 1); } else { addLog("ERROR", -1, "Enrollment failed"); oledErrorAnimation("Not saved", "Try again"); smartDelay(1600); } pendingName = ""; pendingCollegeId = ""; pendingRole = ""; pendingDepartment = ""; pendingNote = ""; isEnrolling = false; cancelEnroll = false; duplicateFound = false; oledScanScreen(); } if (cancelButtonPressed() && !isEnrolling) { oledScanScreen(); smartDelay(300); } if (!isEnrolling) { scanFingerprint(); } delay(30); } // ===================================================== // SMART DELAY // ===================================================== void smartDelay(unsigned long ms) { unsigned long start = millis(); while (millis() - start < ms) { server.handleClient(); delay(5); } } // ===================================================== // WIFI + TIME + DASHBOARD ROUTES // ===================================================== void connectWiFi() { WiFi.mode(WIFI_STA); WiFi.begin(WIFI_SSID, WIFI_PASSWORD); unsigned long start = millis(); uint8_t frame = 0; while (WiFi.status() != WL_CONNECTED && millis() - start < 15000) { display.clearDisplay(); drawTitleBar("WIFI"); drawCenteredText("Connecting", 24, 1); drawLoadingDots(28, 42, frame); display.display(); frame++; delay(300); } if (WiFi.status() == WL_CONNECTED) { Serial.print("WiFi connected. IP: "); Serial.println(WiFi.localIP()); oledBig("WIFI OK", "IP Address", WiFi.localIP().toString()); smartDelay(5000); } else { Serial.println("WiFi not connected."); oledBig("WIFI OFF", "Dashboard offline"); smartDelay(1800); } } void setupTime() { if (WiFi.status() != WL_CONNECTED) { Serial.println("WiFi not connected. NTP skipped."); return; } configTzTime(TIME_ZONE, "pool.ntp.org", "time.nist.gov", "time.google.com"); Serial.print("Syncing time"); struct tm timeinfo; int retry = 0; while (!getLocalTime(&timeinfo, 1000) && retry < 12) { Serial.print("."); retry++; server.handleClient(); } Serial.println(); if (retry < 12) { Serial.print("Time synced: "); Serial.println(currentDateTimeText()); } else { Serial.println("Time sync failed. Using uptime fallback."); } } void setupDashboardRoutes() { server.on("/", HTTP_GET, []() { server.send_P(200, "text/html", DASHBOARD_HTML); }); server.on("/api/status", HTTP_GET, []() { String lastJson = "null"; if (logCount > 0) { AttendanceLog l = getLogByDisplayIndex(logCount - 1); lastJson = "{"; lastJson += "\"time\":\"" + jsonEscape(l.timeText) + "\","; lastJson += "\"event\":\"" + jsonEscape(l.event) + "\","; lastJson += "\"id\":" + String(l.id) + ","; lastJson += "\"name\":\"" + jsonEscape(l.name) + "\","; lastJson += "\"collegeId\":\"" + jsonEscape(l.collegeId) + "\","; lastJson += "\"role\":\"" + jsonEscape(l.role) + "\","; lastJson += "\"department\":\"" + jsonEscape(l.department) + "\","; lastJson += "\"message\":\"" + jsonEscape(l.message) + "\""; lastJson += "}"; } String lastEntryJson = "null"; if (lastEntryId >= 1) { PersonProfile p = loadProfile(lastEntryId); lastEntryJson = "{"; lastEntryJson += "\"id\":" + String(lastEntryId) + ","; lastEntryJson += "\"name\":\"" + jsonEscape(p.name) + "\","; lastEntryJson += "\"collegeId\":\"" + jsonEscape(p.collegeId) + "\","; lastEntryJson += "\"department\":\"" + jsonEscape(p.department) + "\","; lastEntryJson += "\"message\":\"Last entry\""; lastEntryJson += "}"; } String json = "{"; json += "\"wifi\":" + String(WiFi.status() == WL_CONNECTED ? "true" : "false") + ","; json += "\"ip\":\"" + String(WiFi.status() == WL_CONNECTED ? WiFi.localIP().toString() : "") + "\","; json += "\"templates\":" + String(cachedTemplateCount) + ","; json += "\"nextId\":" + String(nextEnrollID) + ","; json += "\"logCount\":" + String(logCount) + ","; json += "\"entryCount\":" + String(entryCount) + ","; json += "\"exitCount\":" + String(exitCount) + ","; json += "\"isEnrolling\":" + String(isEnrolling ? "true" : "false") + ","; json += "\"sensor\":\"Ready\","; json += "\"last\":" + lastJson + ","; json += "\"lastEntry\":" + lastEntryJson; json += "}"; server.send(200, "application/json", json); }); server.on("/api/logs", HTTP_GET, []() { String json = "{\"logs\":["; for (int i = 0; i < logCount; i++) { AttendanceLog l = getLogByDisplayIndex(i); if (i > 0) { json += ","; } json += "{"; json += "\"time\":\"" + jsonEscape(l.timeText) + "\","; json += "\"event\":\"" + jsonEscape(l.event) + "\","; json += "\"id\":" + String(l.id) + ","; json += "\"name\":\"" + jsonEscape(l.name) + "\","; json += "\"collegeId\":\"" + jsonEscape(l.collegeId) + "\","; json += "\"role\":\"" + jsonEscape(l.role) + "\","; json += "\"department\":\"" + jsonEscape(l.department) + "\","; json += "\"message\":\"" + jsonEscape(l.message) + "\""; json += "}"; } json += "]}"; server.send(200, "application/json", json); }); server.on("/api/registered", HTTP_GET, []() { server.send(200, "application/json", cachedRegisteredJson); }); server.on("/api/enroll", HTTP_POST, []() { if (isEnrolling || dashboardEnrollRequest) { server.send(409, "application/json", "{\"ok\":false,\"message\":\"Enrollment already running\"}"); return; } pendingName = server.arg("name"); pendingCollegeId = server.arg("collegeId"); pendingRole = server.arg("role"); pendingDepartment = server.arg("department"); pendingNote = server.arg("note"); dashboardEnrollRequest = true; String msg = "Enroll requested from dashboard"; if (pendingName.length() > 0) { msg += " for " + pendingName; } addLog("ENROLL REQUEST", -1, msg); server.send(200, "application/json", "{\"ok\":true,\"message\":\"Enrollment requested\"}"); }); server.on("/api/cancel", HTTP_POST, []() { cancelEnroll = true; dashboardEnrollRequest = false; addLog("CANCEL", -1, "Cancel requested from dashboard"); server.send(200, "application/json", "{\"ok\":true,\"message\":\"Cancel requested\"}"); }); server.on("/api/fingerprint", HTTP_DELETE, []() { if (!server.hasArg("id")) { server.send(400, "application/json", "{\"ok\":false,\"message\":\"Missing ID\"}"); return; } int id = server.arg("id").toInt(); if (id < 1 || id > MAX_FINGERPRINTS) { server.send(400, "application/json", "{\"ok\":false,\"message\":\"Invalid ID\"}"); return; } if (isEnrolling) { server.send(409, "application/json", "{\"ok\":false,\"message\":\"Enrollment running. Try again later.\"}"); return; } uint8_t p = finger.deleteModel(id); smartDelay(150); uint8_t verify = finger.loadModel(id); if (p == FINGERPRINT_OK && verify != FINGERPRINT_OK) { deleteProfile(id); if (id >= 0 && id <= MAX_FINGERPRINTS) { insideState[id] = false; } addLog("DELETE", id, "Fingerprint deleted from sensor memory"); refreshTemplateCountSerialOnly(); rebuildRegisteredCache(); nextEnrollID = findNextFreeID(1); server.send(200, "application/json", "{\"ok\":true,\"message\":\"Fingerprint deleted from sensor memory\"}"); } else if (p == FINGERPRINT_OK && verify == FINGERPRINT_OK) { addLog("ERROR", id, "Delete command sent but fingerprint still exists"); server.send(500, "application/json", "{\"ok\":false,\"message\":\"Delete command sent but fingerprint still exists in sensor\"}"); } else { addLog("ERROR", id, "Delete failed"); server.send(500, "application/json", "{\"ok\":false,\"message\":\"Delete failed. Fingerprint may not exist or sensor rejected command\"}"); } }); server.on("/api/export", HTTP_GET, []() { String csv = "time,event,fingerprint_id,name,college_id,role,department,message\n"; for (int i = 0; i < logCount; i++) { AttendanceLog l = getLogByDisplayIndex(i); csv += "\"" + l.timeText + "\","; csv += "\"" + l.event + "\","; csv += String(l.id) + ","; csv += "\"" + l.name + "\","; csv += "\"" + l.collegeId + "\","; csv += "\"" + l.role + "\","; csv += "\"" + l.department + "\","; csv += "\"" + l.message + "\"\n"; } server.sendHeader("Content-Disposition", "attachment; filename=attendance_logs.csv"); server.send(200, "text/csv", csv); }); server.begin(); Serial.println("Dashboard server started."); } // ===================================================== // PROFILE STORAGE FUNCTIONS // ===================================================== String profileKey(uint16_t id, const char* field) { return String(id) + "_" + String(field); } void saveProfile(uint16_t id, PersonProfile p) { prefs.putString(profileKey(id, "name").c_str(), p.name); prefs.putString(profileKey(id, "cid").c_str(), p.collegeId); prefs.putString(profileKey(id, "role").c_str(), p.role); prefs.putString(profileKey(id, "dept").c_str(), p.department); prefs.putString(profileKey(id, "note").c_str(), p.note); } PersonProfile loadProfile(uint16_t id) { PersonProfile p; p.name = prefs.getString(profileKey(id, "name").c_str(), ""); p.collegeId = prefs.getString(profileKey(id, "cid").c_str(), ""); p.role = prefs.getString(profileKey(id, "role").c_str(), ""); p.department = prefs.getString(profileKey(id, "dept").c_str(), ""); p.note = prefs.getString(profileKey(id, "note").c_str(), ""); return p; } void deleteProfile(uint16_t id) { prefs.remove(profileKey(id, "name").c_str()); prefs.remove(profileKey(id, "cid").c_str()); prefs.remove(profileKey(id, "role").c_str()); prefs.remove(profileKey(id, "dept").c_str()); prefs.remove(profileKey(id, "note").c_str()); } // ===================================================== // LOG + TIME FUNCTIONS // ===================================================== String uptimeText() { return currentDateTimeText(); } String currentDateTimeText() { struct tm timeinfo; if (getLocalTime(&timeinfo, 1000)) { char buf[24]; strftime(buf, sizeof(buf), "%Y-%m-%d %H:%M:%S", &timeinfo); return String(buf); } unsigned long total = millis() / 1000; unsigned long h = total / 3600; unsigned long m = (total % 3600) / 60; unsigned long s = total % 60; char buf[24]; snprintf(buf, sizeof(buf), "UPTIME %02lu:%02lu:%02lu", h, m, s); return String(buf); } String jsonEscape(String s) { s.replace("\\", "\\\\"); s.replace("\"", "\\\""); s.replace("\n", "\\n"); s.replace("\r", ""); return s; } String firstNameOnly(String fullName) { fullName.trim(); if (fullName.length() == 0) { return ""; } int spaceIndex = fullName.indexOf(' '); if (spaceIndex > 0) { return fullName.substring(0, spaceIndex); } return fullName; } void addLog(String event, int id, String message) { logs[logWriteIndex].timeText = uptimeText(); logs[logWriteIndex].event = event; logs[logWriteIndex].id = id; logs[logWriteIndex].message = message; logs[logWriteIndex].name = ""; logs[logWriteIndex].collegeId = ""; logs[logWriteIndex].role = ""; logs[logWriteIndex].department = ""; if (id >= 1 && id <= MAX_FINGERPRINTS) { PersonProfile p = loadProfile(id); logs[logWriteIndex].name = p.name; logs[logWriteIndex].collegeId = p.collegeId; logs[logWriteIndex].role = p.role; logs[logWriteIndex].department = p.department; } logWriteIndex = (logWriteIndex + 1) % MAX_LOGS; if (logCount < MAX_LOGS) { logCount++; } Serial.print("[LOG] "); Serial.print(event); Serial.print(" ID="); Serial.print(id); Serial.print(" "); Serial.println(message); } AttendanceLog getLogByDisplayIndex(int i) { int start = (logWriteIndex - logCount + MAX_LOGS) % MAX_LOGS; int idx = (start + i) % MAX_LOGS; return logs[idx]; } // ===================================================== // OLED DISPLAY FUNCTIONS // ===================================================== String clipText(String text, uint8_t maxChars) { text.trim(); if (text.length() <= maxChars) { return text; } if (maxChars <= 1) { return text.substring(0, maxChars); } return text.substring(0, maxChars - 1) + "."; } void drawCenteredText(String text, int y, uint8_t textSize) { text.trim(); uint8_t maxChars = (textSize == 2) ? 10 : 21; text = clipText(text, maxChars); int charWidth = 6 * textSize; int textWidth = text.length() * charWidth; int x = (SCREEN_WIDTH - textWidth) / 2; if (x < 0) { x = 0; } display.setTextSize(textSize); display.setTextColor(SSD1306_WHITE, SSD1306_BLACK); display.setCursor(x, y); display.print(text); } void drawWiFiIcon(bool connected) { int x = 113; int y = 2; if (connected) { display.drawCircle(x + 7, y + 11, 1, SSD1306_WHITE); display.drawLine(x + 2, y + 8, x + 7, y + 4, SSD1306_WHITE); display.drawLine(x + 7, y + 4, x + 12, y + 8, SSD1306_WHITE); display.drawLine(x + 4, y + 10, x + 7, y + 8, SSD1306_WHITE); display.drawLine(x + 7, y + 8, x + 10, y + 10, SSD1306_WHITE); } else { display.drawRect(x + 1, y + 3, 12, 9, SSD1306_WHITE); display.drawLine(x, y + 2, x + 14, y + 13, SSD1306_WHITE); display.drawLine(x + 14, y + 2, x, y + 13, SSD1306_WHITE); } } void drawTitleBar(String title) { display.fillRect(0, 0, 128, 16, SSD1306_BLACK); String shortTitle = clipText(title, 16); int textWidth = shortTitle.length() * 6; int x = (112 - textWidth) / 2; if (x < 0) { x = 0; } display.setTextSize(1); display.setTextColor(SSD1306_WHITE, SSD1306_BLACK); display.setCursor(x, 2); display.print(shortTitle); drawWiFiIcon(WiFi.status() == WL_CONNECTED); display.drawLine(0, 15, 127, 15, SSD1306_WHITE); } void oledScreen(String title, String line1, String line2, String line3) { display.clearDisplay(); display.setTextWrap(false); drawTitleBar(title); if (line1.length() > 0) { drawCenteredText(line1, 22, 1); } if (line2.length() > 0) { drawCenteredText(line2, 36, 1); } if (line3.length() > 0) { drawCenteredText(line3, 50, 1); } display.display(); } void oledBig(String title, String line1, String line2) { display.clearDisplay(); display.setTextWrap(false); drawTitleBar(title); if (line1.length() > 0) { drawCenteredText(line1, 24, 1); } if (line2.length() > 0) { drawCenteredText(line2, 42, 1); } display.display(); } void drawMiniFingerprint(int x, int y) { display.drawCircle(x + 18, y + 18, 17, SSD1306_WHITE); display.drawCircle(x + 18, y + 18, 12, SSD1306_WHITE); display.drawCircle(x + 18, y + 18, 7, SSD1306_WHITE); display.fillRect(x - 2, y + 28, 42, 14, SSD1306_BLACK); display.fillRect(x - 2, y - 2, 7, 44, SSD1306_BLACK); display.fillRect(x + 32, y - 2, 8, 44, SSD1306_BLACK); display.drawLine(x + 18, y + 18, x + 18, y + 36, SSD1306_WHITE); display.drawLine(x + 12, y + 21, x + 10, y + 35, SSD1306_WHITE); display.drawLine(x + 24, y + 21, x + 28, y + 34, SSD1306_WHITE); } void drawLoadingDots(int x, int y, uint8_t frame) { display.setTextSize(1); display.setTextColor(SSD1306_WHITE, SSD1306_BLACK); display.setCursor(x, y); display.print("Please wait"); for (uint8_t i = 0; i < frame % 4; i++) { display.print("."); } } void drawMovingBar(int y, uint8_t frame) { int boxX = 12; int boxW = 104; int fillW = 22; int pos = (frame * 8) % (boxW - fillW); display.drawRect(boxX, y, boxW, 8, SSD1306_WHITE); display.fillRect(boxX + 2 + pos, y + 2, fillW, 4, SSD1306_WHITE); } void drawProgress(uint8_t percent) { if (percent > 100) { percent = 100; } int barX = 10; int barY = 52; int barW = 108; int barH = 9; display.drawRect(barX, barY, barW, barH, SSD1306_WHITE); int fillW = map(percent, 0, 100, 0, barW - 4); display.fillRect(barX + 2, barY + 2, fillW, barH - 4, SSD1306_WHITE); display.setTextSize(1); display.setTextColor(SSD1306_WHITE, SSD1306_BLACK); display.setCursor(52, 41); display.print(percent); display.print("%"); } void oledScanScreen() { static uint8_t idleFrame = 0; idleFrame++; display.clearDisplay(); display.setTextWrap(false); drawTitleBar("SCAN MODE"); drawMiniFingerprint(8, 22); display.setTextSize(1); display.setTextColor(SSD1306_WHITE, SSD1306_BLACK); display.setCursor(56, 24); display.print("Place finger"); display.setCursor(56, 38); display.print("Waiting"); for (uint8_t i = 0; i < idleFrame % 4; i++) { display.print("."); } int r = 3 + (idleFrame % 4); display.drawCircle(103, 50, r, SSD1306_WHITE); display.display(); } void oledScanAnimation(String title, String line1, uint16_t durationMs) { unsigned long startTime = millis(); uint8_t frame = 0; while (millis() - startTime < durationMs) { server.handleClient(); display.clearDisplay(); display.setTextWrap(false); drawTitleBar(title); drawMiniFingerprint(8, 21); display.setTextSize(1); display.setTextColor(SSD1306_WHITE, SSD1306_BLACK); display.setCursor(56, 24); display.print(clipText(line1, 11)); drawLoadingDots(56, 38, frame); int scanY = 22 + ((frame * 4) % 32); display.drawLine(8, scanY, 45, scanY, SSD1306_WHITE); display.drawLine(8, scanY + 1, 45, scanY + 1, SSD1306_WHITE); drawMovingBar(54, frame); display.display(); frame++; delay(100); } } void oledProgressBar(String title, String line1, uint8_t percent) { display.clearDisplay(); display.setTextWrap(false); drawTitleBar(title); drawCenteredText(line1, 24, 1); drawProgress(percent); display.display(); } void oledSuccessAnimation(String line1, String line2) { for (int r = 3; r <= 14; r += 3) { server.handleClient(); display.clearDisplay(); display.setTextWrap(false); drawTitleBar("SUCCESS"); display.drawCircle(64, 34, r, SSD1306_WHITE); if (r >= 9) { display.drawLine(56, 34, 62, 41, SSD1306_WHITE); display.drawLine(62, 41, 74, 27, SSD1306_WHITE); display.drawLine(56, 35, 62, 42, SSD1306_WHITE); display.drawLine(62, 42, 74, 28, SSD1306_WHITE); } display.display(); smartDelay(120); } smartDelay(300); if (line2.length() > 0) { oledBig("SUCCESS", line1, line2); } else { oledBig("SUCCESS", line1); } } void oledErrorAnimation(String line1, String line2) { for (int i = 0; i < 3; i++) { server.handleClient(); display.clearDisplay(); display.setTextWrap(false); drawTitleBar("NOTICE"); display.drawCircle(64, 34, 13, SSD1306_WHITE); display.drawLine(56, 26, 72, 42, SSD1306_WHITE); display.drawLine(72, 26, 56, 42, SSD1306_WHITE); display.drawLine(57, 26, 73, 42, SSD1306_WHITE); display.drawLine(73, 26, 57, 42, SSD1306_WHITE); display.display(); smartDelay(180); display.clearDisplay(); drawTitleBar("NOTICE"); display.display(); smartDelay(100); } if (line2.length() > 0) { oledBig("TRY AGAIN", line1, line2); } else { oledBig("TRY AGAIN", line1); } } // ===================================================== // BUTTON HANDLING // ===================================================== bool buttonPressed(uint8_t pin, unsigned long &lastTime) { if (digitalRead(pin) == LOW) { if (millis() - lastTime > DEBOUNCE_MS) { lastTime = millis(); return true; } } return false; } bool enrollButtonPressed() { if (buttonPressed(BTN_ENROLL, lastEnrollBtnTime)) { while (digitalRead(BTN_ENROLL) == LOW) { server.handleClient(); delay(10); } return true; } return false; } bool cancelButtonPressed() { if (buttonPressed(BTN_CANCEL, lastCancelBtnTime)) { while (digitalRead(BTN_CANCEL) == LOW) { server.handleClient(); delay(10); } return true; } return false; } bool checkCancelDuringEnroll() { server.handleClient(); if (buttonPressed(BTN_CANCEL, lastCancelBtnTime) || cancelEnroll) { cancelEnroll = true; while (digitalRead(BTN_CANCEL) == LOW) { server.handleClient(); delay(10); } oledBig("CANCELLED", "Back to scan"); smartDelay(800); return true; } return false; } // ===================================================== // SCAN FINGERPRINT - STABLE VERSION // ===================================================== void scanFingerprint() { uint8_t p = finger.getImage(); if (p == FINGERPRINT_NOFINGER) { if (millis() - lastIdleRefresh > 700) { lastIdleRefresh = millis(); oledScanScreen(); } return; } if (p != FINGERPRINT_OK) { addLog("ERROR", -1, "Could not read fingerprint"); oledErrorAnimation("Could not read", "Place properly"); smartDelay(800); waitForFingerRemove(); oledScanScreen(); return; } oledScreen("SCANNING", "Hold finger", "Reading..."); p = finger.image2Tz(1); if (p != FINGERPRINT_OK) { addLog("ERROR", -1, "Fingerprint image not clear"); oledErrorAnimation("Finger not clear", "Try again"); smartDelay(800); waitForFingerRemove(); oledScanScreen(); return; } refreshTemplateCountSerialOnly(); if (finger.templateCount == 0) { addLog("NOT FOUND", -1, "No fingerprints stored"); oledBig("NOT FOUND", "No saved print"); smartDelay(1600); waitForFingerRemove(); oledScanScreen(); return; } oledScreen("SEARCHING", "Please wait", "Checking..."); // IMPORTANT: // fingerSearch(1) is more reliable for your R503. // If it fails, fastSearch is tried as fallback. p = finger.fingerSearch(1); if (p != FINGERPRINT_OK) { p = finger.fingerFastSearch(); } if (p == FINGERPRINT_OK) { int id = finger.fingerID; PersonProfile profile = loadProfile(id); String fullName = profile.name; String displayName = firstNameOnly(fullName); if (displayName.length() == 0) { displayName = "ID " + String(id); } String logName = fullName; if (logName.length() == 0) { logName = "ID " + String(id); } if (id >= 1 && id <= MAX_FINGERPRINTS) { if (insideState[id] == false) { insideState[id] = true; entryCount++; lastEntryId = id; addLog("ENTRY", id, logName + " entered"); oledSuccessAnimation("Entry", displayName); } else { insideState[id] = false; exitCount++; addLog("EXIT", id, logName + " exited"); oledSuccessAnimation("Exit", displayName); } } else { addLog("MATCH", id, logName + " matched"); oledSuccessAnimation("Matched", displayName); } smartDelay(1500); waitForFingerRemove(); oledScanScreen(); return; } if (p == FINGERPRINT_NOTFOUND) { addLog("NOT FOUND", -1, "No matching fingerprint"); oledErrorAnimation("Not found", "No match"); smartDelay(1200); waitForFingerRemove(); oledScanScreen(); return; } addLog("ERROR", -1, "Fingerprint search failed"); oledErrorAnimation("Search failed", "Try again"); smartDelay(1200); waitForFingerRemove(); oledScanScreen(); } // ===================================================== // ENROLL FINGERPRINT // ===================================================== uint8_t enrollFingerprint(uint16_t id) { int p = -1; oledProgressBar("ENROLLING", "Place finger", 10); while (p != FINGERPRINT_OK) { server.handleClient(); if (checkCancelDuringEnroll()) { return 255; } p = finger.getImage(); if (p == FINGERPRINT_OK) { oledProgressBar("ENROLLING", "Checking", 20); smartDelay(500); break; } else if (p == FINGERPRINT_NOFINGER) { // waiting } else { oledErrorAnimation("Could not read", "Try again"); return p; } delay(100); } if (checkCancelDuringEnroll()) { return 255; } p = finger.image2Tz(1); if (p != FINGERPRINT_OK) { oledErrorAnimation("Finger not clear", "Try again"); return p; } refreshTemplateCountSerialOnly(); if (finger.templateCount > 0) { oledProgressBar("CHECKING", "Existing", 30); uint8_t searchResult = finger.fingerSearch(1); if (searchResult != FINGERPRINT_OK) { searchResult = finger.fingerFastSearch(); } if (searchResult == FINGERPRINT_OK) { duplicateFound = true; PersonProfile existingProfile = loadProfile(finger.fingerID); String existingName = firstNameOnly(existingProfile.name); if (existingName.length() == 0) { existingName = "ID " + String(finger.fingerID); } addLog("DUPLICATE", finger.fingerID, "Already enrolled"); oledBig("ALREADY", existingName); smartDelay(2500); waitForFingerRemove(); return 255; } } oledProgressBar("ENROLLING", "First scan OK", 40); smartDelay(600); oledProgressBar("ENROLLING", "Remove finger", 50); smartDelay(1200); while (finger.getImage() != FINGERPRINT_NOFINGER) { server.handleClient(); if (checkCancelDuringEnroll()) { return 255; } delay(100); } smartDelay(500); p = -1; oledProgressBar("ENROLLING", "Same finger", 65); while (p != FINGERPRINT_OK) { server.handleClient(); if (checkCancelDuringEnroll()) { return 255; } p = finger.getImage(); if (p == FINGERPRINT_OK) { oledProgressBar("ENROLLING", "Second OK", 75); smartDelay(500); break; } else if (p == FINGERPRINT_NOFINGER) { // waiting } else { oledErrorAnimation("Could not read", "Try again"); return p; } delay(100); } if (checkCancelDuringEnroll()) { return 255; } p = finger.image2Tz(2); if (p != FINGERPRINT_OK) { oledErrorAnimation("Finger not clear", "Try again"); return p; } oledProgressBar("PROCESSING", "Creating", 85); p = finger.createModel(); if (p == FINGERPRINT_OK) { // model created } else if (p == FINGERPRINT_ENROLLMISMATCH) { oledErrorAnimation("Mismatch", "Use same finger"); return p; } else { oledErrorAnimation("Could not save", "Try again"); return p; } oledProgressBar("SAVING", "Please wait", 95); p = finger.storeModel(id); if (p == FINGERPRINT_OK) { oledProgressBar("SAVING", "Complete", 100); smartDelay(500); return FINGERPRINT_OK; } else { oledErrorAnimation("Memory problem", "Not saved"); return p; } } // ===================================================== // HELPERS // ===================================================== void waitForFingerRemove() { uint8_t p = finger.getImage(); while (p != FINGERPRINT_NOFINGER) { server.handleClient(); delay(100); p = finger.getImage(); } } uint16_t findNextFreeID(uint16_t startID) { if (startID < 1) { startID = 1; } for (uint16_t id = startID; id <= MAX_FINGERPRINTS; id++) { server.handleClient(); uint8_t p = finger.loadModel(id); if (p != FINGERPRINT_OK) { return id; } } return MAX_FINGERPRINTS; } void refreshTemplateCountSerialOnly() { uint8_t p = finger.getTemplateCount(); if (p == FINGERPRINT_OK) { cachedTemplateCount = finger.templateCount; Serial.print("Stored fingerprints: "); Serial.println(cachedTemplateCount); } else { Serial.println("Could not read template count."); } delay(20); } void refreshTemplateCountCache() { uint8_t p = finger.getTemplateCount(); if (p == FINGERPRINT_OK) { cachedTemplateCount = finger.templateCount; } delay(20); } void rebuildRegisteredCache() { String json = "{\"fingerprints\":["; bool first = true; for (uint16_t id = 1; id <= MAX_FINGERPRINTS; id++) { server.handleClient(); uint8_t p = finger.loadModel(id); if (p == FINGERPRINT_OK) { PersonProfile profile = loadProfile(id); if (!first) { json += ","; } json += "{"; json += "\"id\":" + String(id) + ","; json += "\"name\":\"" + jsonEscape(profile.name) + "\","; json += "\"collegeId\":\"" + jsonEscape(profile.collegeId) + "\","; json += "\"role\":\"" + jsonEscape(profile.role) + "\","; json += "\"department\":\"" + jsonEscape(profile.department) + "\""; json += "}"; first = false; } } json += "]}"; cachedRegisteredJson = json; } void setMatchingSecuritySerialOnly() { Serial.print("Setting security level to "); Serial.println(MATCH_SECURITY_LEVEL); uint8_t p = finger.setSecurityLevel(MATCH_SECURITY_LEVEL); if (p == FINGERPRINT_OK) { Serial.println("Security level updated."); } else { Serial.println("Could not update security level."); } delay(100); finger.getParameters(); Serial.print("Current security level: "); Serial.println(finger.security_level); } void printSensorParameters() { finger.getParameters(); Serial.println(); Serial.println("Sensor parameters:"); Serial.print("Status: 0x"); Serial.println(finger.status_reg, HEX); Serial.print("System ID: 0x"); Serial.println(finger.system_id, HEX); Serial.print("Capacity: "); Serial.println(finger.capacity); Serial.print("Security level: "); Serial.println(finger.security_level); Serial.print("Device address: "); Serial.println(finger.device_addr, HEX); Serial.print("Packet length: "); Serial.println(finger.packet_len); Serial.print("Baud rate: "); Serial.println(finger.baud_rate); Serial.println(); } |
dashboard.h code
Here is the header file for the project. You need to create another tab on Arduino IDE editor window and paste the following code that consist of webpage files.
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 218 219 220 221 222 223 224 225 226 227 228 229 230 231 232 233 234 235 236 237 238 239 240 241 242 243 244 245 246 247 248 249 250 251 252 253 254 255 256 257 258 259 260 261 262 263 264 265 266 267 268 269 270 271 272 273 274 275 276 277 278 279 280 281 282 283 284 285 286 287 288 289 290 291 292 293 294 295 296 297 298 299 300 301 302 303 304 305 306 307 308 309 310 311 312 313 314 315 316 317 318 319 320 321 322 323 324 325 326 327 328 329 330 331 332 333 334 335 336 337 338 339 340 341 342 343 344 345 346 347 348 349 350 351 352 353 354 355 356 357 358 359 360 361 362 363 364 365 366 367 368 369 370 371 372 373 374 375 376 377 378 379 380 381 382 383 384 385 386 387 388 389 390 391 392 393 394 395 396 397 398 399 400 401 402 403 404 405 406 407 408 409 410 411 412 413 414 415 416 417 418 419 420 421 422 423 424 425 426 427 428 429 430 431 432 433 434 435 436 437 438 439 440 441 442 443 444 445 446 447 448 449 450 451 452 453 454 455 456 457 458 459 460 461 462 463 464 465 466 467 468 469 470 471 472 473 474 475 476 477 478 479 480 481 482 483 484 485 486 487 488 489 490 491 492 493 494 495 496 497 498 499 500 501 502 503 504 505 506 507 508 509 510 511 512 513 514 515 516 517 518 519 520 521 522 523 524 525 526 527 528 529 530 531 532 533 534 535 536 537 538 539 540 541 542 543 544 545 546 547 548 549 550 551 552 553 554 555 556 557 558 559 560 561 562 563 564 565 566 567 568 569 570 571 572 573 574 575 576 577 578 579 580 581 582 583 584 585 586 587 588 589 590 591 592 593 594 595 596 597 598 599 600 601 602 603 604 605 606 607 608 609 610 611 612 613 614 615 616 617 618 619 620 621 622 623 624 625 626 627 628 629 630 631 632 633 634 635 636 637 638 639 640 641 642 643 644 645 646 647 648 649 650 651 652 653 654 655 656 657 658 659 660 661 662 663 664 665 666 667 668 669 670 671 672 673 674 675 676 677 678 679 680 681 682 683 684 685 686 687 688 689 690 691 692 693 694 695 696 697 698 699 700 701 702 703 704 705 706 707 708 709 710 711 712 713 714 715 716 717 718 719 720 721 722 723 724 725 726 727 728 729 730 731 732 733 734 735 736 737 738 739 740 741 742 743 744 745 746 747 748 749 750 751 752 753 754 755 756 757 758 759 760 761 762 763 764 765 766 767 768 769 770 771 772 773 774 775 776 777 778 779 780 781 782 783 784 785 786 787 788 789 790 791 792 793 794 795 796 797 798 799 800 801 802 803 804 805 806 807 808 809 810 811 812 813 814 815 816 817 818 819 820 821 822 823 824 825 826 827 828 829 830 831 832 833 834 835 836 837 838 839 840 841 842 843 844 845 846 847 848 849 850 851 852 853 854 855 856 857 858 859 860 861 862 863 864 865 866 867 868 869 870 871 872 873 874 875 876 877 878 879 880 881 882 883 884 885 886 887 888 889 890 891 892 893 894 895 896 897 898 899 900 901 902 |
#ifndef DASHBOARD_H #define DASHBOARD_H #include <Arduino.h> const char DASHBOARD_HTML[] PROGMEM = R"rawliteral( <!DOCTYPE html> <html> <head> <meta charset="UTF-8"> <meta name="viewport" content="width=device-width,initial-scale=1.0"> <title>Fingerprint Attendance Dashboard</title> <style> :root{--bg:#eef3fb;--card:#fff;--text:#0f172a;--muted:#64748b;--line:#dbe3ef;--blue:#2563eb;--green:#16a34a;--red:#dc2626;--amber:#f59e0b;--dark:#0f172a;--shadow:0 20px 60px rgba(15,23,42,.12)} *{box-sizing:border-box} body{margin:0;font-family:Inter,system-ui,-apple-system,BlinkMacSystemFont,"Segoe UI",Arial,sans-serif;background:radial-gradient(circle at 0% 0%,rgba(37,99,235,.13),transparent 30rem),radial-gradient(circle at 100% 0%,rgba(22,163,74,.10),transparent 28rem),var(--bg);color:var(--text)} .app{display:grid;grid-template-columns:270px 1fr;min-height:100vh} .sidebar{background:#0f172a;color:#fff;padding:24px 18px} .brand{display:flex;align-items:center;gap:12px;margin-bottom:28px} .logo{width:48px;height:48px;border-radius:16px;background:linear-gradient(135deg,#38bdf8,#2563eb);display:grid;place-items:center;font-size:26px;box-shadow:0 16px 34px rgba(37,99,235,.35)} .brand h1{font-size:19px;margin:0;line-height:1.1}.brand p{margin:4px 0 0;color:#94a3b8;font-size:12px} .nav button{width:100%;display:flex;gap:10px;align-items:center;background:transparent;color:#cbd5e1;border:0;border-radius:14px;padding:13px 14px;font-weight:800;cursor:pointer;margin:6px 0;text-align:left} .nav button:hover,.nav button.active{background:rgba(255,255,255,.12);color:#fff} .device{margin-top:28px;padding:16px;border-radius:18px;background:rgba(255,255,255,.08);border:1px solid rgba(255,255,255,.10);color:#cbd5e1;font-size:13px;line-height:1.7} .dot{display:inline-block;width:10px;height:10px;border-radius:50%;background:var(--red);box-shadow:0 0 0 5px rgba(220,38,38,.12)}.dot.ok{background:var(--green);box-shadow:0 0 0 5px rgba(22,163,74,.14)} .main{padding:28px}.topbar{display:flex;align-items:center;justify-content:space-between;gap:16px;margin-bottom:20px}.topbar h2{margin:0;font-size:34px;letter-spacing:-.04em}.topbar p{margin:6px 0 0;color:var(--muted)} .actions{display:flex;gap:10px;flex-wrap:wrap} button,.btn{border:0;border-radius:14px;padding:12px 16px;font-weight:900;cursor:pointer;text-decoration:none;display:inline-flex;align-items:center;justify-content:center;gap:8px} .btn-primary{background:var(--blue);color:white}.btn-green{background:var(--green);color:white}.btn-red{background:var(--red);color:white}.btn-mini-red{background:var(--red);color:white;border-radius:10px;padding:8px 10px;font-size:12px}.btn-mini-red:hover{background:#b91c1c} .btn-dark{background:var(--dark);color:white}.btn-soft{background:white;color:var(--text);border:1px solid var(--line)} .grid{display:grid;grid-template-columns:repeat(12,1fr);gap:18px}.card{background:var(--card);border:1px solid rgba(255,255,255,.65);border-radius:24px;box-shadow:var(--shadow);overflow:hidden}.pad{padding:20px} .metric{grid-column:span 3}.metric small{display:block;color:var(--muted);font-weight:900;text-transform:uppercase;letter-spacing:.1em;margin-bottom:10px}.metric strong{display:block;font-size:38px;letter-spacing:-.05em}.metric span{color:var(--muted);font-size:13px} .hero{grid-column:span 12;min-height:260px;background:linear-gradient(135deg,#0f172a,#1e3a8a 55%,#2563eb);color:#fff}.control{grid-column:span 4} .hero-inner{display:flex;align-items:center;gap:28px;height:100%}.finger{width:150px;height:150px;border-radius:42px;background:rgba(255,255,255,.12);border:1px solid rgba(255,255,255,.18);display:grid;place-items:center;position:relative;overflow:hidden;flex:0 0 auto} .finger:before{content:"";position:absolute;left:20px;right:20px;height:4px;border-radius:999px;background:#22c55e;box-shadow:0 0 24px rgba(34,197,94,.8);animation:scan 1.3s linear infinite}@keyframes scan{0%{top:22px}50%{top:124px}100%{top:22px}} .finger .icon{font-size:74px;z-index:1}.hero h3{font-size:32px;margin:0 0 8px;letter-spacing:-.04em}.hero p{margin:0;color:#cbd5e1;line-height:1.6} .pills{display:flex;gap:10px;flex-wrap:wrap;margin-top:18px}.pill{background:rgba(255,255,255,.12);border:1px solid rgba(255,255,255,.12);border-radius:999px;padding:8px 11px;font-size:13px;color:#e2e8f0;font-weight:800} .form-group{margin-bottom:13px}.form-group label{display:block;font-size:12px;text-transform:uppercase;letter-spacing:.1em;color:var(--muted);font-weight:900;margin-bottom:6px} input,select,textarea{width:100%;border:1px solid var(--line);border-radius:14px;padding:12px 13px;font-size:14px;outline:none;background:#fff}textarea{min-height:72px;resize:vertical}input:focus,select:focus,textarea:focus{border-color:var(--blue);box-shadow:0 0 0 4px rgba(37,99,235,.12)} .table-card{grid-column:span 12}.table-header{display:flex;justify-content:space-between;align-items:center;gap:12px;padding:18px 20px;border-bottom:1px solid var(--line);flex-wrap:wrap}.table-header h3{margin:0}.table-header p{margin:4px 0 0;color:var(--muted);font-size:13px} .table-wrap{overflow:auto;max-height:460px}table{width:100%;border-collapse:collapse;min-width:850px}th,td{padding:14px 18px;border-bottom:1px solid var(--line);text-align:left;font-size:14px}th{background:#f8fafc;color:var(--muted);font-size:12px;text-transform:uppercase;letter-spacing:.08em}tbody tr:hover{background:#f8fafc} .badge{display:inline-flex;align-items:center;gap:6px;padding:6px 10px;border-radius:999px;font-size:12px;font-weight:900}.b-entry{background:#dcfce7;color:#166534}.b-exit{background:#dbeafe;color:#1e40af}.b-enrolled{background:#ede9fe;color:#5b21b6}.b-error{background:#fee2e2;color:#991b1b}.b-info{background:#fef3c7;color:#92400e} .status-strip{margin-top:16px;padding:12px 14px;border-radius:16px;background:#f8fafc;border:1px solid var(--line);color:var(--muted);font-size:13px}.page{display:none}.page.active{display:block} .live-modal{position:fixed;inset:0;z-index:1000;display:none;align-items:center;justify-content:center;padding:22px;background:rgba(15,23,42,.40);backdrop-filter:blur(10px)}.live-modal.show{display:flex;animation:fadeIn .18s ease} .live-card{width:min(560px,96vw);background:white;border-radius:32px;box-shadow:0 40px 110px rgba(15,23,42,.35);padding:34px;text-align:center;position:relative;overflow:hidden}.live-card:before{content:"";position:absolute;width:210px;height:210px;border-radius:50%;right:-80px;top:-90px;background:rgba(22,163,74,.12)}.live-card.error:before{background:rgba(220,38,38,.12)}.live-card.info:before{background:rgba(37,99,235,.12)} .big-icon{width:118px;height:118px;border-radius:50%;margin:0 auto 18px;display:grid;place-items:center;font-size:56px;font-weight:950;color:white;background:var(--green);position:relative;animation:pop .34s ease}.live-card.error .big-icon{background:var(--red)}.live-card.info .big-icon{background:var(--blue)} .big-icon:after{content:"";position:absolute;inset:-10px;border-radius:50%;border:3px solid rgba(22,163,74,.20);animation:pulse 1.25s ease infinite}.live-card.error .big-icon:after{border-color:rgba(220,38,38,.20)}.live-card.info .big-icon:after{border-color:rgba(37,99,235,.20)} .live-card h2{margin:0 0 8px;font-size:32px;letter-spacing:-.05em}.live-card p{margin:0;color:var(--muted);line-height:1.6} .detail-grid{display:grid;grid-template-columns:1fr 1fr;gap:10px;margin-top:20px;text-align:left}.detail{border:1px solid var(--line);background:#f8fafc;border-radius:16px;padding:12px 14px}.detail span{display:block;color:var(--muted);font-size:12px;text-transform:uppercase;letter-spacing:.08em;font-weight:900;margin-bottom:4px}.detail strong{color:var(--text)} .confetti{position:absolute;width:8px;height:14px;border-radius:3px;animation:fall 1.35s ease forwards}@keyframes fadeIn{from{opacity:0}to{opacity:1}}@keyframes pop{from{transform:scale(.72);opacity:0}to{transform:scale(1);opacity:1}}@keyframes pulse{from{transform:scale(.9);opacity:1}to{transform:scale(1.25);opacity:0}}@keyframes fall{from{transform:translateY(-100px) rotate(0deg);opacity:1}to{transform:translateY(260px) rotate(260deg);opacity:0}} .banner{position:fixed;right:22px;top:22px;z-index:1001;width:min(430px,calc(100vw - 44px));display:none;align-items:center;gap:14px;background:white;border-radius:22px;border:1px solid var(--line);border-left:6px solid var(--blue);box-shadow:0 24px 70px rgba(15,23,42,.20);padding:16px 18px}.banner.show{display:flex;animation:slide .2s ease}.banner.success{border-left-color:var(--green)}.banner.error{border-left-color:var(--red)}.banner-icon{width:48px;height:48px;border-radius:16px;display:grid;place-items:center;background:#eff6ff;color:var(--blue);font-size:24px;font-weight:950}.banner.success .banner-icon{background:#dcfce7;color:var(--green)}.banner.error .banner-icon{background:#fee2e2;color:var(--red)}.banner strong{display:block;margin-bottom:3px}.banner span{display:block;color:var(--muted);font-size:13px;line-height:1.35}@keyframes slide{from{transform:translateY(-12px);opacity:0}to{transform:translateY(0);opacity:1}} /* ===== Improved Register Fingerprint UI ===== */ .register-layout{ display:grid; grid-template-columns:1fr; gap:10px; grid-column:span 12; } .register-hero-card{ background: radial-gradient(circle at 12% 0%,rgba(37,99,235,.16),transparent 36%), linear-gradient(135deg,#ffffff,#f8fbff); border:1px solid rgba(255,255,255,.78); border-radius:28px; box-shadow:var(--shadow); overflow:hidden; } .register-head{ display:flex; align-items:center; justify-content:space-between; gap:16px; padding:16px 20px; border-bottom:1px solid var(--line); } .register-title-wrap{ display:flex; align-items:center; gap:14px; } .register-icon{ width:56px; height:56px; border-radius:18px; display:grid; place-items:center; background:linear-gradient(135deg,#2563eb,#38bdf8); color:white; font-size:28px; box-shadow:0 16px 36px rgba(37,99,235,.22); } .register-head h2{ margin:0; font-size:26px; letter-spacing:-.04em; } .register-head p{ margin:5px 0 0; color:var(--muted); line-height:1.45; } .enroll-status-pill{ display:inline-flex; align-items:center; gap:8px; border-radius:999px; background:#eff6ff; color:#1d4ed8; border:1px solid #bfdbfe; padding:9px 12px; font-size:13px; font-weight:900; white-space:nowrap; } .enroll-status-dot{ width:9px; height:9px; border-radius:50%; background:#2563eb; box-shadow:0 0 0 5px rgba(37,99,235,.12); } .register-steps{ display:grid; grid-template-columns:repeat(3,1fr); gap:10px; padding:12px 20px 0; } .reg-step{ display:flex; align-items:center; gap:10px; padding:12px; border-radius:16px; border:1px solid var(--line); background:#f8fafc; color:var(--muted); font-size:13px; font-weight:900; } .reg-step-num{ width:28px; height:28px; border-radius:10px; display:grid; place-items:center; background:#e2e8f0; color:#475569; } .reg-step.active{ background:#eff6ff; color:#1d4ed8; border-color:#bfdbfe; } .reg-step.active .reg-step-num{ background:#2563eb; color:white; } .reg-step.done{ background:#f0fdf4; color:#166534; border-color:#bbf7d0; } .reg-step.done .reg-step-num{ background:#16a34a; color:white; } .register-form{ padding:14px 20px 18px; } .form-grid-register{ display:grid; grid-template-columns:repeat(4,minmax(0,1fr)); gap:10px; } .form-group.full{ grid-column:1/-1; } .input-with-icon{ position:relative; } .input-with-icon .field-icon{ position:absolute; left:13px; top:50%; transform:translateY(-50%); color:#94a3b8; font-size:16px; pointer-events:none; } .input-with-icon input, .input-with-icon select{ padding-left:40px; } .register-form textarea{ min-height:64px; } .form-help{ display:flex; align-items:flex-start; gap:10px; margin-top:10px; padding:13px 14px; border-radius:18px; background:#f8fafc; border:1px solid var(--line); color:var(--muted); font-size:13px; line-height:1.45; } .form-help b{color:var(--text)} .register-actions{ display:flex; gap:10px; flex-wrap:wrap; margin-top:12px; } .register-actions button{ min-width:170px; } .preview-card{ background:linear-gradient(180deg,#ffffff,#f8fafc); border:1px solid rgba(255,255,255,.78); border-radius:28px; box-shadow:var(--shadow); overflow:hidden; } .preview-top{ padding:22px; background:linear-gradient(135deg,#0f172a,#1e3a8a); color:white; } .preview-top h3{ margin:0; font-size:22px; letter-spacing:-.03em; } .preview-top p{ margin:7px 0 0; color:#cbd5e1; line-height:1.5; } .student-card-preview{ margin:22px; padding:20px; border:1px solid var(--line); border-radius:22px; background:white; } .avatar-large{ width:74px; height:74px; border-radius:24px; display:grid; place-items:center; background:linear-gradient(135deg,#dbeafe,#e0e7ff); color:#1d4ed8; font-size:25px; font-weight:950; margin-bottom:14px; } .preview-name{ font-size:22px; font-weight:950; letter-spacing:-.035em; margin-bottom:4px; } .preview-sub{ color:var(--muted); font-size:14px; margin-bottom:14px; } .preview-row{ display:flex; justify-content:space-between; gap:12px; padding:10px 0; border-top:1px solid var(--line); color:var(--muted); font-size:13px; } .preview-row strong{ color:var(--text); text-align:right; } .sensor-guide{ margin:0 22px 22px; padding:18px; border-radius:22px; background:#ecfdf5; border:1px solid #bbf7d0; } .sensor-guide-title{ display:flex; align-items:center; gap:10px; font-weight:950; color:#166534; margin-bottom:8px; } .sensor-guide p{ margin:0; color:#166534; line-height:1.55; font-size:13px; } .scan-mini{ width:44px; height:44px; border-radius:14px; display:grid; place-items:center; background:#dcfce7; position:relative; overflow:hidden; flex:0 0 auto; } .scan-mini:before{ content:""; position:absolute; left:7px; right:7px; height:3px; border-radius:99px; background:#16a34a; animation:miniScan 1.25s linear infinite; } @keyframes miniScan{ 0%{top:9px} 50%{top:33px} 100%{top:9px} } .register-warning{ display:none; margin-top:12px; padding:12px 14px; border-radius:16px; background:#fff7ed; border:1px solid #fed7aa; color:#9a3412; font-size:13px; line-height:1.45; } .register-warning.show{display:block} @media(max-width:1050px){ .register-layout{grid-template-columns:1fr} } @media(max-width:1100px){.form-grid-register{grid-template-columns:repeat(2,minmax(0,1fr))}} @media(max-width:650px){ .register-head{align-items:flex-start;flex-direction:column} .register-steps{grid-template-columns:1fr} .form-grid-register{grid-template-columns:1fr} .register-actions button{width:100%} } .sensor-sync-card{ margin:14px 20px 0; padding:14px 16px; border-radius:18px; background:#eff6ff; border:1px solid #bfdbfe; color:#1e40af; display:flex; align-items:center; justify-content:space-between; gap:12px; flex-wrap:wrap; font-size:13px; } .sensor-sync-card strong{color:#1e3a8a} @media(max-width:950px){.app{grid-template-columns:1fr}.metric,.hero,.control{grid-column:span 12}.hero-inner{flex-direction:column;text-align:center}}@media(max-width:560px){.main{padding:18px}.topbar{flex-direction:column;align-items:stretch}.actions button,.actions .btn{width:100%}.detail-grid{grid-template-columns:1fr}} </style> </head> <body> <div class="app"> <aside class="sidebar"> <div class="brand"><div class="logo">⌁</div><div><h1>BioTrack Pro</h1><p>Fingerprint attendance system</p></div></div> <nav class="nav"> <button class="active" onclick="showPage('dashboard',this)">📊 Dashboard</button> <button onclick="showPage('register',this)">➕ Register</button> <button onclick="showPage('history',this)">🕒 Attendance History</button> <button onclick="showPage('records',this)">👥 Records</button> </nav> <div class="device"> <b>ESP32 Dashboard</b><br> WiFi: <span id="wifiText">Checking...</span> <span id="wifiDot" class="dot"></span><br> IP: <span id="ipText">--</span><br> Last API update: <span id="apiTime">--</span> </div> </aside> <main class="main"> <header class="topbar"> <div><h2 id="pageTitle">Attendance Dashboard</h2><p id="pageSubtitle">Live fingerprint registration, entry, exit, and records.</p></div> <div class="actions"> <button id="soundToggleBtn" class="btn-soft" onclick="toggleSound()">🔇 Enable Sound</button> <button class="btn-green" onclick="exportAttendanceCsv()">Export Attendance CSV</button> </div> </header> <section id="page-dashboard" class="page active"> <div class="grid"> <div class="card pad hero"> <div class="hero-inner"> <div class="finger"><div class="icon">⌁</div></div> <div> <h3 id="heroTitle">Waiting for fingerprint scan</h3> <p id="heroMessage">When someone scans or when registration completes, this dashboard will show a popup, update this display, and play a sound.</p> <div class="pills"><span class="pill" id="lastEventPill">No event yet</span><span class="pill" id="lastPersonPill">No user</span><span class="pill" id="lastTimePill">--:--:--</span></div> </div> </div> </div> <div class="card table-card"> <div class="table-header"><div><h3>Live Attendance Feed</h3><p>Newest scans and registration events.</p></div><button class="btn-soft" onclick="refreshNow(true)">Refresh Now</button></div> <div class="table-wrap"><table><thead><tr><th>Time</th><th>Event</th><th>Finger ID</th><th>Name</th><th>College ID</th><th>Message</th></tr></thead><tbody id="liveBody"></tbody></table></div> <div class="status-strip" id="debugStrip">Waiting for dashboard data...</div> </div> </div> </section> <section id="page-register" class="page"> <div class="grid"> <div class="card pad metric"><small>Total Enrolled</small><strong id="totalEnrolled">--</strong><span>Fingerprints stored</span></div> <div class="card pad metric"><small>Entries</small><strong id="entryCount">0</strong><span>People entered</span></div> <div class="card pad metric"><small>Exits</small><strong id="exitCount">0</strong><span>People exited</span></div> <div class="card pad metric"><small>Next ID</small><strong id="nextId">--</strong><span>Next enrollment slot</span></div> <div class="register-layout"> <div class="register-hero-card"> <div class="register-head"> <div class="register-title-wrap"> <div class="register-icon">⌁</div> <div> <h2>Register Fingerprint</h2> <p>Add student/staff details, then enroll their finger on the R503 sensor.</p> </div> </div> <div class="enroll-status-pill"><span class="enroll-status-dot"></span><span id="registerStatusText">Ready</span></div> </div> <div class="register-steps"> <div class="reg-step active" id="regStepInfo"><span class="reg-step-num">1</span>Person Details</div> <div class="reg-step" id="regStepScan"><span class="reg-step-num">2</span>Finger Scan</div> <div class="reg-step" id="regStepSave"><span class="reg-step-num">3</span>Save Record</div> </div> <div class="register-form"> <div class="form-grid-register"> <div class="form-group"> <label>Name</label> <div class="input-with-icon"><span class="field-icon">👤</span><input id="enrollName" placeholder="Full name" oninput="updateRegisterPreview()"></div> </div> <div class="form-group"> <label>College ID</label> <div class="input-with-icon"><span class="field-icon">🪪</span><input id="enrollCollegeId" placeholder="Student / staff ID" oninput="updateRegisterPreview()"></div> </div> <div class="form-group"> <label>Role</label> <div class="input-with-icon"> <span class="field-icon">🎓</span> <select id="enrollRole" onchange="updateRegisterPreview()"> <option>Student</option> <option>Staff</option> <option>Faculty</option> <option>Visitor</option> </select> </div> </div> <div class="form-group"> <label>Department</label> <div class="input-with-icon"><span class="field-icon">🏫</span><input id="enrollDept" placeholder="Department / Program" oninput="updateRegisterPreview()"></div> </div> <div class="form-group full"> <label>Notes</label> <textarea id="enrollNote" placeholder="Optional notes, class, lab group, or remarks" oninput="updateRegisterPreview()"></textarea> </div> </div> <div id="registerWarning" class="register-warning">Please enter at least a name or college ID before starting registration.</div> <div class="register-actions"> <button class="btn-green" onclick="startEnroll('full')">Start Registration</button> <button class="btn-soft" onclick="clearRegisterForm()">Clear Form</button> <button class="btn-red" onclick="cancelEnroll()">Cancel Enrollment</button> </div> </div> </div> </div> </div> </section> <section id="page-history" class="page"> <div class="card table-card"> <div class="table-header"> <div> <h3>Attendance History</h3> <p>Student/staff in and out records generated from fingerprint scans.</p> </div> </div> <div class="table-wrap"> <table> <thead> <tr> <th>Name</th> <th>College ID</th> <th>Role</th> <th>Department</th> <th>Finger ID</th> <th>Login Time</th> <th>Logout Time</th> <th>Status</th> </tr> </thead> <tbody id="historyBody"></tbody> </table> </div> </div> </section> <section id="page-records" class="page"> <div class="card table-card"> <div class="table-header"> <div> <h3>Student / Staff Records</h3> <p>Registered people and their assigned fingerprint IDs.</p> </div> <button class="btn-soft" onclick="refreshNow(true)">Refresh</button> </div> <div class="sensor-sync-card"> <div><strong>Sensor Sync:</strong> Records are loaded from the R503 sensor memory through ESP32. IDs without saved names are shown as unassigned fingerprints.</div> <div>Registered IDs found: <strong id="registeredCount">--</strong></div> </div> <div class="table-wrap"> <table> <thead> <tr> <th>Finger ID</th> <th>Name</th> <th>College ID</th> <th>Role</th> <th>Department</th> <th>Action</th> </tr> </thead> <tbody id="recordsBody"></tbody> </table> </div> </div> </section> </main> </div> <div id="banner" class="banner"><div id="bannerIcon" class="banner-icon">i</div><div><strong id="bannerTitle">Message</strong><span id="bannerText">Details</span></div></div> <div id="liveModal" class="live-modal"><div id="liveCard" class="live-card"><div id="modalIcon" class="big-icon">✓</div><h2 id="modalTitle">Success</h2><p id="modalMessage">Action completed successfully.</p><div class="detail-grid"><div class="detail"><span>Name</span><strong id="modalName">-</strong></div><div class="detail"><span>Finger ID</span><strong id="modalId">-</strong></div><div class="detail"><span>College ID</span><strong id="modalCollege">-</strong></div><div class="detail"><span>Department</span><strong id="modalDept">-</strong></div></div><div style="margin-top:22px"><button class="btn-primary" onclick="closeModal()">Done</button></div></div></div> <script> let state={},logs=[],registeredFingerprints=[],lastSeenKey="",firstLoad=true,soundEnabled=false; function showPage(name,btn){ document.querySelectorAll(".page").forEach(p=>p.classList.remove("active")); document.getElementById("page-"+name).classList.add("active"); document.querySelectorAll(".nav button").forEach(b=>b.classList.remove("active")); if(btn)btn.classList.add("active"); if(name==="dashboard"){ pageTitle.textContent="Attendance Dashboard"; pageSubtitle.textContent="Live fingerprint registration, entry, exit, and records."; }else if(name==="register"){ pageTitle.textContent="Register Fingerprint"; pageSubtitle.textContent="Register a person and enroll their fingerprint."; }else if(name==="history"){ pageTitle.textContent="Attendance History"; pageSubtitle.textContent="View student/staff in and out attendance records."; }else{ pageTitle.textContent="Student / Staff Records"; pageSubtitle.textContent="Registered people and their assigned fingerprint IDs."; } } async function api(path,options={}){const res=await fetch(path,options);if(!res.ok){const txt=await res.text();throw new Error(txt||("HTTP "+res.status))}return res.json()} function toggleSound(){ soundEnabled = !soundEnabled; const btn = document.getElementById("soundToggleBtn"); if(soundEnabled){ if(btn) btn.textContent = "🔊 Disable Sound"; beep("info"); showBanner("info", "Sound Enabled", "Dashboard sounds are now active."); }else{ if(btn) btn.textContent = "🔇 Enable Sound"; showBanner("info", "Sound Disabled", "Dashboard sounds are now off."); } } function beep(type="info"){if(!soundEnabled)return;try{const C=window.AudioContext||window.webkitAudioContext;const ctx=new C();const osc=ctx.createOscillator();const gain=ctx.createGain();osc.connect(gain);gain.connect(ctx.destination);osc.frequency.value=type==="success"?880:type==="error"?180:520;gain.gain.setValueAtTime(.0001,ctx.currentTime);gain.gain.exponentialRampToValueAtTime(.15,ctx.currentTime+.02);gain.gain.exponentialRampToValueAtTime(.0001,ctx.currentTime+.18);osc.start();osc.stop(ctx.currentTime+.2)}catch(e){}} function showBanner(type,title,text){bannerTitle.textContent=title;bannerText.textContent=text||"";bannerIcon.textContent=type==="success"?"✓":type==="error"?"!":"i";banner.className="banner show "+(type==="success"?"success":type==="error"?"error":"");setTimeout(()=>banner.className="banner",4500)} function showModal(type,title,message,data={}){liveCard.className="live-card "+(type==="error"?"error":type==="info"?"info":"");modalIcon.textContent=type==="error"?"!":type==="info"?"i":"✓";modalTitle.textContent=title;modalMessage.textContent=message||"";modalName.textContent=data.name||"-";modalId.textContent=data.id>=0?data.id:"-";modalCollege.textContent=data.collegeId||"-";modalDept.textContent=data.department||"-";createConfetti(type);liveModal.classList.add("show");setTimeout(()=>closeModal(),6000)} function closeModal(){liveModal.classList.remove("show")} function createConfetti(type){liveCard.querySelectorAll(".confetti").forEach(e=>e.remove());if(type==="error")return;const colors=["#2563eb","#16a34a","#f59e0b","#7c3aed","#ef4444","#06b6d4"];for(let i=0;i<24;i++){const c=document.createElement("div");c.className="confetti";c.style.left=(15+Math.random()*80)+"%";c.style.top=(-10-Math.random()*40)+"px";c.style.background=colors[i%colors.length];c.style.animationDelay=(Math.random()*0.35)+"s";liveCard.appendChild(c)}} function eventType(event){event=(event||"").toUpperCase();if(event.includes("ENTRY")||event.includes("MATCH"))return"entry";if(event.includes("EXIT"))return"exit";if(event.includes("ENROLLED")||event.includes("SAVED"))return"enrolled";if(event.includes("ERROR")||event.includes("NOT")||event.includes("DUPLICATE"))return"error";return"info"} function eventBadge(event){const t=eventType(event);if(t==="entry")return"b-entry";if(t==="exit")return"b-exit";if(t==="enrolled")return"b-enrolled";if(t==="error")return"b-error";return"b-info"} function eventKey(l){if(!l)return"";return[l.time,l.event,l.id,l.message].join("|")} function personName(l){return l.name||(l.id>=0?("ID "+l.id):"System")} function handleNewEvent(l){if(!l)return;const type=eventType(l.event);const name=personName(l);const msg=l.message||"";lastEventPill.textContent=l.event||"INFO";lastPersonPill.textContent=name;lastTimePill.textContent=l.time||"--:--:--";if(type==="enrolled"){setRegisterStep(3);if(typeof registerStatusText!=="undefined")registerStatusText.textContent="Saved successfully";heroTitle.textContent="Registration Successful";heroMessage.textContent=name+" has been enrolled successfully.";showBanner("success","Registration Successful",name+" has been enrolled successfully.");showModal("success","Registration Successful",name+" has been enrolled successfully.",l);beep("success")}else if(type==="entry"){heroTitle.textContent="Welcome, "+name;heroMessage.textContent=msg||"Attendance entry logged successfully.";showBanner("success","Welcome, "+name,msg||"Attendance entry logged.");showModal("success","Welcome, "+name,msg||"Attendance entry logged successfully.",l);beep("success")}else if(type==="exit"){heroTitle.textContent="Goodbye, "+name;heroMessage.textContent=msg||"Exit logged successfully.";showBanner("info","Exit Logged",name+" exited.");showModal("info","Exit Logged",name+" exited.",l);beep("info")}else if(type==="error"){if(typeof registerStatusText!=="undefined")registerStatusText.textContent="Needs attention";heroTitle.textContent="Attention Required";heroMessage.textContent=msg||l.event||"Something went wrong.";showBanner("error",l.event||"Error",msg||"Please try again.");showModal("error",l.event||"Error",msg||"Please try again.",l);beep("error")}else if((l.event||"").toUpperCase().includes("ENROLL")){setRegisterStep(2);if(typeof registerStatusText!=="undefined")registerStatusText.textContent="Scanning finger";heroTitle.textContent="Enrollment In Progress";heroMessage.textContent="Place finger on the sensor and follow the OLED instructions.";showBanner("info","Enrollment Started","Place finger on the R503 sensor.");beep("info")}else{heroTitle.textContent=l.event||"System Update";heroMessage.textContent=msg||"Dashboard received a new event.";showBanner("info",l.event||"System Update",msg||"New dashboard event.")}} function escapeHtml(v){ return String(v ?? "").replace(/[&<>"']/g, ch => ({ "&":"&", "<":"<", ">":">", "\"":""", "'":"'" }[ch])); } function buildPeopleRecords(){ const people = {}; // IMPORTANT: // Records page must be based ONLY on fingerprints currently stored in the R503 sensor. // Old logs are used only to enrich name/college/role/department for those existing IDs. // This prevents a deleted fingerprint from reappearing just because old logs still exist. registeredFingerprints.forEach(fp => { const id = Number(fp.id); if(id < 0) return; people[id] = { id:id, name:fp.name || "", collegeId:fp.collegeId || "", role:fp.role || "", department:fp.department || "", lastSeen:"", status:fp.name || fp.collegeId ? "Registered" : "Unassigned" }; }); logs.forEach(l => { const id = Number(l.id); if(id < 0) return; // Do not recreate deleted fingerprints from old logs. if(!people[id]) return; if(l.name) people[id].name = l.name; if(l.collegeId) people[id].collegeId = l.collegeId; if(l.role) people[id].role = l.role; if(l.department) people[id].department = l.department; const ev = (l.event || "").toUpperCase(); if(ev.includes("ENROLLED") || ev.includes("SAVED")){ people[id].status = "Registered"; people[id].lastSeen = l.time || people[id].lastSeen; } if(ev.includes("ENTRY") || ev.includes("MATCH")){ people[id].status = "Inside"; people[id].lastSeen = l.time || people[id].lastSeen; } if(ev.includes("EXIT")){ people[id].status = "Exited"; people[id].lastSeen = l.time || people[id].lastSeen; } }); return Object.values(people).sort((a,b)=>a.id-b.id); } function buildAttendanceHistory(){ const openEntries = {}; const rows = []; logs.forEach(l => { const id = Number(l.id); if(id < 0) return; const ev = (l.event || "").toUpperCase(); const base = { id:id, name:l.name || ("ID " + id), collegeId:l.collegeId || "-", role:l.role || "-", department:l.department || "-", inTime:"", outTime:"", status:"" }; // Every new ENTRY/MATCH is treated as a new attendance line. // If there was already an open entry without an exit, keep that old line // instead of overwriting it. if(ev.includes("ENTRY") || ev.includes("MATCH")){ if(openEntries[id]){ rows.push(openEntries[id]); } openEntries[id] = {...base, inTime:l.time || "", outTime:"", status:"Inside"}; }else if(ev.includes("EXIT")){ if(openEntries[id]){ openEntries[id].outTime = l.time || ""; openEntries[id].status = "Completed"; rows.push(openEntries[id]); delete openEntries[id]; }else{ rows.push({...base, inTime:"-", outTime:l.time || "", status:"Exit only"}); } } }); Object.keys(openEntries).forEach(id => rows.push(openEntries[id])); // Newest attendance line first. return rows.reverse(); } function renderTables(){ const liveRows = logs.slice().reverse().map(l => ` <tr> <td>${escapeHtml(l.time || "")}</td> <td><span class="badge ${eventBadge(l.event)}">${escapeHtml(l.event || "INFO")}</span></td> <td>${l.id >= 0 ? l.id : "-"}</td> <td>${escapeHtml(l.name || "-")}</td> <td>${escapeHtml(l.collegeId || "-")}</td> <td>${escapeHtml(l.message || "")}</td> </tr> `).join(""); liveBody.innerHTML = liveRows || `<tr><td colspan="6">No logs received yet.</td></tr>`; const historyRows = buildAttendanceHistory().map(r => ` <tr> <td>${escapeHtml(r.name)}</td> <td>${escapeHtml(r.collegeId)}</td> <td>${escapeHtml(r.role)}</td> <td>${escapeHtml(r.department)}</td> <td>${r.id}</td> <td>${escapeHtml(r.inTime || "-")}</td> <td>${escapeHtml(r.outTime || "-")}</td> <td><span class="badge ${r.status==="Inside" ? "b-entry" : r.status==="Completed" ? "b-exit" : "b-info"}">${escapeHtml(r.status)}</span></td> </tr> `).join(""); if(typeof historyBody !== "undefined"){ historyBody.innerHTML = historyRows || `<tr><td colspan="8">No login/logout attendance history yet.</td></tr>`; } const peopleRows = buildPeopleRecords().map(p => ` <tr> <td>${p.id}</td> <td>${escapeHtml(p.name || "-")}</td> <td>${escapeHtml(p.collegeId || "-")}</td> <td>${escapeHtml(p.role || "-")}</td> <td>${escapeHtml(p.department || "-")}</td> <td><button class="btn-mini-red" onclick="deleteFingerprint(${p.id})">Delete</button></td> </tr> `).join(""); recordsBody.innerHTML = peopleRows || `<tr><td colspan="6">No registered fingerprints found in the sensor yet.</td></tr>`; if(typeof registeredCount !== "undefined") registeredCount.textContent = registeredFingerprints.length; } function csvEscape(value){ value = String(value ?? ""); value = value.replace(/"/g, '""'); return '"' + value + '"'; } function exportAttendanceCsv(){ const rows = buildAttendanceHistory(); if(!rows.length){ showBanner("error", "No Attendance Data", "There is no login/logout attendance history to export yet."); return; } let csv = "name,college_id,role,department,fingerprint_id,login_time,logout_time,status\n"; rows.slice().reverse().forEach(r => { csv += [ csvEscape(r.name), csvEscape(r.collegeId), csvEscape(r.role), csvEscape(r.department), csvEscape(r.id), csvEscape(r.inTime || "-"), csvEscape(r.outTime || "-"), csvEscape(r.status) ].join(",") + "\n"; }); const blob = new Blob([csv], {type:"text/csv;charset=utf-8;"}); const url = URL.createObjectURL(blob); const a = document.createElement("a"); a.href = url; a.download = "attendance_history.csv"; document.body.appendChild(a); a.click(); document.body.removeChild(a); URL.revokeObjectURL(url); showBanner("success", "Export Complete", "Attendance login/logout history was exported."); } function updateStatusUi(){const wifi=!!state.wifi;wifiText.textContent=wifi?"Connected":"Offline";wifiDot.className="dot "+(wifi?"ok":"");ipText.textContent=state.ip||"--";apiTime.textContent=new Date().toLocaleTimeString();totalEnrolled.textContent=state.templates??"--";nextId.textContent=state.nextId??"--";entryCount.textContent=state.entryCount??logs.filter(l=>eventType(l.event)==="entry").length;exitCount.textContent=state.exitCount??logs.filter(l=>eventType(l.event)==="exit").length;debugStrip.innerHTML="API connected. Logs: <b>"+logs.length+"</b> | Last event: <b>"+((state.last&&state.last.event)?state.last.event:"None")+"</b> | Enrolling: <b>"+(state.isEnrolling?"YES":"NO")+"</b>"; updateRegisterPreview(); if(state.isEnrolling){ setRegisterStep(2); if(typeof registerStatusText!=="undefined")registerStatusText.textContent="Scanning finger"; } } function getInitials(name){ const parts = String(name || "New User").trim().split(/\s+/).filter(Boolean); return parts.slice(0,2).map(p => p[0].toUpperCase()).join("") || "NU"; } function setRegisterStep(step){ const info = document.getElementById("regStepInfo"); const scan = document.getElementById("regStepScan"); const save = document.getElementById("regStepSave"); if(!info || !scan || !save) return; [info, scan, save].forEach(el => { el.classList.remove("active"); el.classList.remove("done"); }); if(step === 1){ info.classList.add("active"); }else if(step === 2){ info.classList.add("done"); scan.classList.add("active"); }else if(step === 3){ info.classList.add("done"); scan.classList.add("done"); save.classList.add("active"); } } function updateRegisterPreview(){ // Live Profile Preview was removed. This function is kept so refresh/status code remains safe. } function clearRegisterForm(){ enrollName.value = ""; enrollCollegeId.value = ""; enrollRole.value = "Student"; enrollDept.value = ""; enrollNote.value = ""; const warn = document.getElementById("registerWarning"); if(warn) warn.classList.remove("show"); setRegisterStep(1); if(typeof registerStatusText !== "undefined") registerStatusText.textContent = "Ready"; updateRegisterPreview(); } function validateRegisterForm(){ const hasName = (enrollName?.value || "").trim().length > 0; const hasId = (enrollCollegeId?.value || "").trim().length > 0; const warn = document.getElementById("registerWarning"); if(!hasName && !hasId){ if(warn) warn.classList.add("show"); showBanner("error", "Missing Details", "Enter at least a name or college ID before registration."); return false; } if(warn) warn.classList.remove("show"); return true; } async function refreshNow(forcePopup=false){try{const newState=await api("/api/status");const logData=await api("/api/logs");let regData={fingerprints:[]};try{regData=await api("/api/registered")}catch(e){regData={fingerprints:[]}}state=newState||{};logs=logData.logs||[];registeredFingerprints=regData.fingerprints||[];updateStatusUi();renderTables();const latest=state.last||logs[logs.length-1]||null;const key=eventKey(latest);if(firstLoad){firstLoad=false;lastSeenKey=key;if(latest){lastEventPill.textContent=latest.event||"INFO";lastPersonPill.textContent=personName(latest);lastTimePill.textContent=latest.time||"--:--:--";if(forcePopup)handleNewEvent(latest)}return}if((forcePopup&&latest)||(key&&key!==lastSeenKey)){lastSeenKey=key;handleNewEvent(latest)}if(state.isEnrolling){heroTitle.textContent="Enrollment In Progress";heroMessage.textContent="Place finger on the sensor and follow the OLED instructions.";debugStrip.innerHTML="Enrollment running. Waiting for fingerprint sensor..."}}catch(e){debugStrip.innerHTML="Dashboard API error: <b>"+e.message+"</b>";showBanner("error","Dashboard API Error",e.message)}} async function startEnroll(mode){if(!validateRegisterForm())return;let name=enrollName.value||"",collegeId=enrollCollegeId.value||"",role=enrollRole.value||"",department=enrollDept.value||"",note=enrollNote.value||"";const form=new URLSearchParams();form.append("name",name);form.append("collegeId",collegeId);form.append("role",role);form.append("department",department);form.append("note",note);try{setRegisterStep(2);if(typeof registerStatusText!=="undefined")registerStatusText.textContent="Scanning finger";heroTitle.textContent="Enrollment In Progress";heroMessage.textContent="Place finger on the R503 sensor now.";showBanner("info","Enrollment Started","Place finger on the sensor.");showModal("info","Enrollment Started","Place finger on the R503 sensor now.",{name:name||"New User",id:-1,collegeId:collegeId,department:department});beep("info");await api("/api/enroll",{method:"POST",headers:{"Content-Type":"application/x-www-form-urlencoded"},body:form});setTimeout(()=>refreshNow(),500)}catch(e){setRegisterStep(1);if(typeof registerStatusText!=="undefined")registerStatusText.textContent="Failed";showBanner("error","Enrollment Failed",e.message);showModal("error","Enrollment Failed",e.message,{name:name,id:-1,collegeId:collegeId,department:department});beep("error")}} async function cancelEnroll(){try{await api("/api/cancel",{method:"POST"});showBanner("info","Enrollment Cancelled","System returned to scan mode.");beep("info");refreshNow()}catch(e){showBanner("error","Cancel Failed",e.message)}} async function deleteFingerprint(id){ if(!id){ showBanner("error","Missing ID","No fingerprint ID was selected."); return; } if(!confirm("Delete fingerprint ID "+id+" and remove this student/staff record?")){ return; } try{ await api("/api/fingerprint?id="+encodeURIComponent(id),{method:"DELETE"}); showBanner("success","Record Deleted","Fingerprint ID "+id+" and assigned details were removed."); beep("success"); refreshNow(); }catch(e){ showBanner("error","Delete Failed",e.message); beep("error"); } } updateRegisterPreview();setRegisterStep(1);refreshNow();setInterval(refreshNow,1000); </script> </body> </html> )rawliteral"; #endif |
Testing & Demo of ESP32 Fingerprint Attendance System
After completing the hardware connection and uploading the code, the ESP32 fingerprint attendance system is ready for testing.

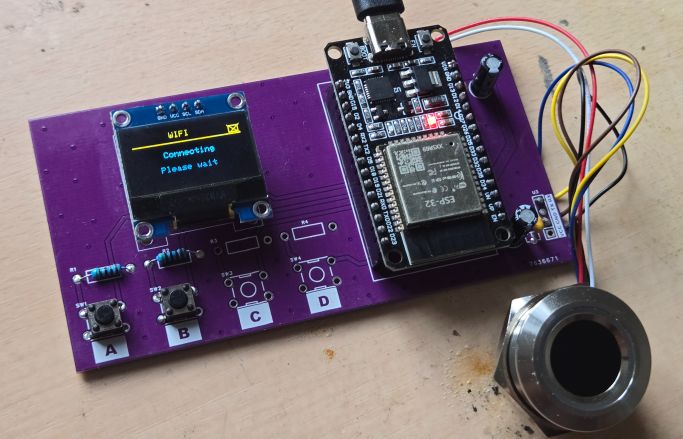

When the device is powered on, the OLED display first shows the Wi-Fi connection status.

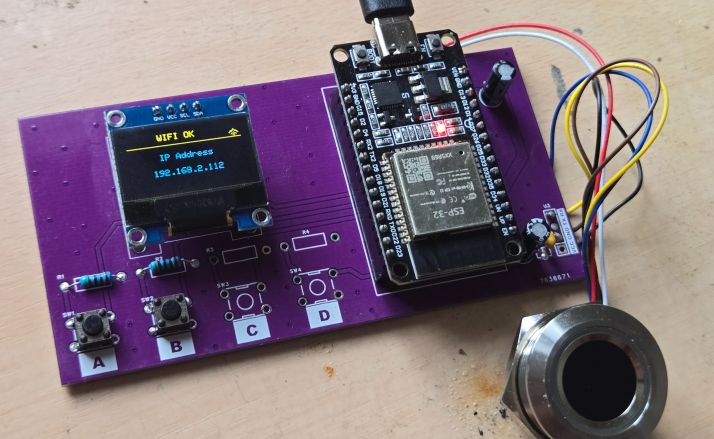

Once the ESP32 connects to the local Wi-Fi network, it displays the IP address on the OLED screen. This IP address can be opened in a web browser to access the attendance dashboard.

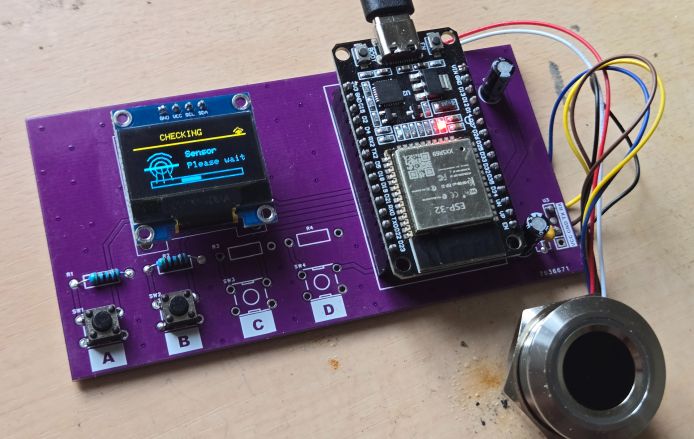

After Wi-Fi connection, the system checks the R503 fingerprint sensor. During this step, the OLED shows a checking message while the ESP32 communicates with the fingerprint module.

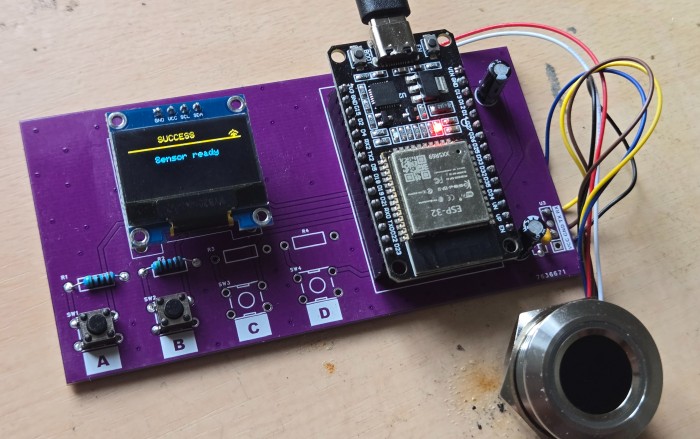

If the sensor is detected successfully, the OLED displays “Sensor Ready”, which means the fingerprint module is properly connected and ready for scanning.

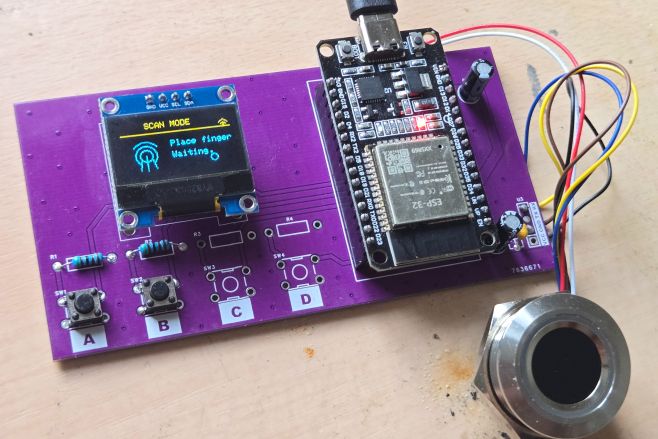

Finally, the system enters scan mode. In this mode, the OLED displays “Place finger” and waits for a registered fingerprint.
Accessing the Dashboard
After the ESP32 connects to the Wi-Fi network, it displays its local IP address on the OLED screen. In this demo, the IP address shown is 192.168.2.112. By entering this IP address in a web browser on a phone, laptop, or computer connected to the same Wi-Fi network, we can access the BioTrack Pro attendance dashboard.

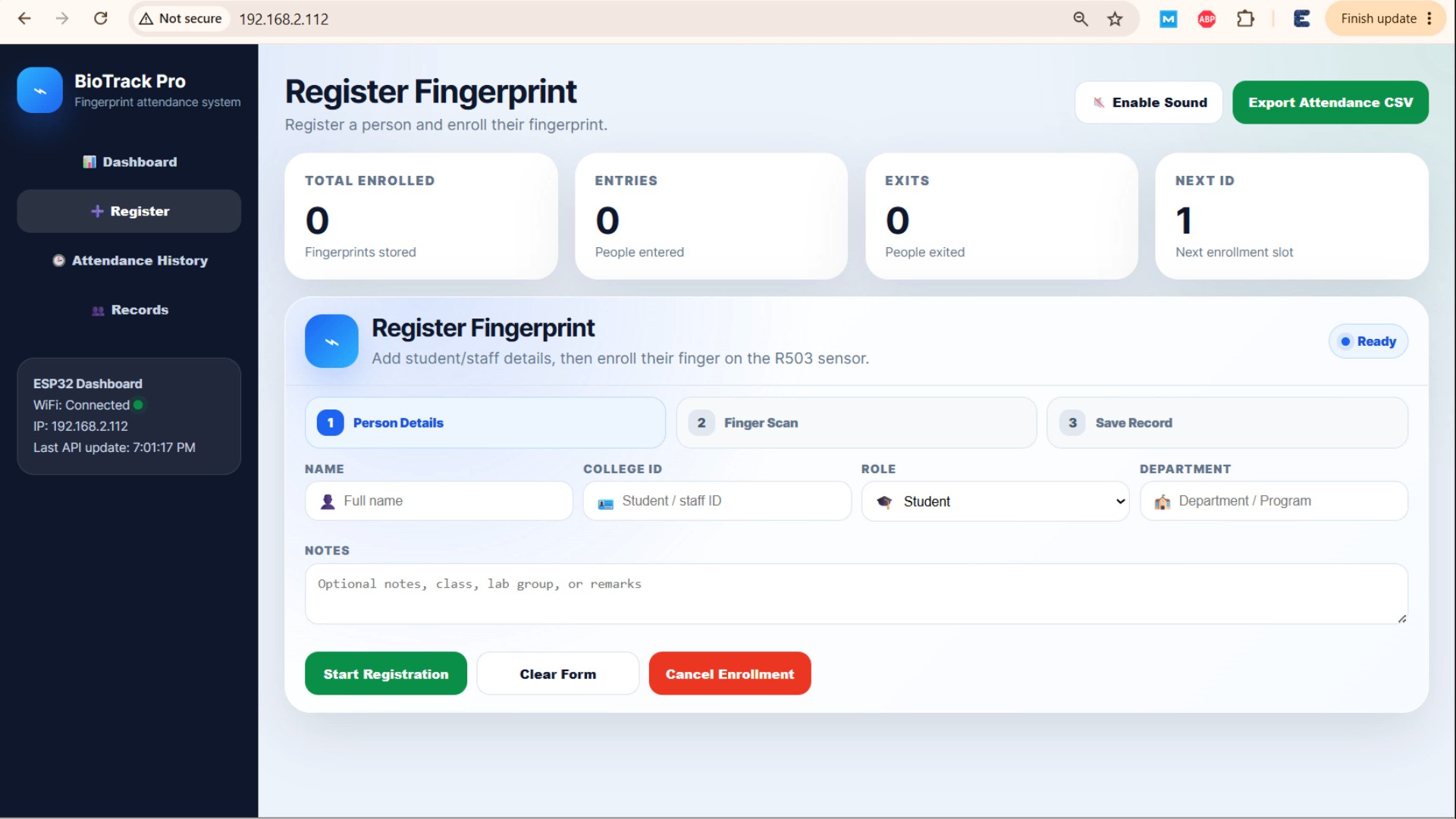

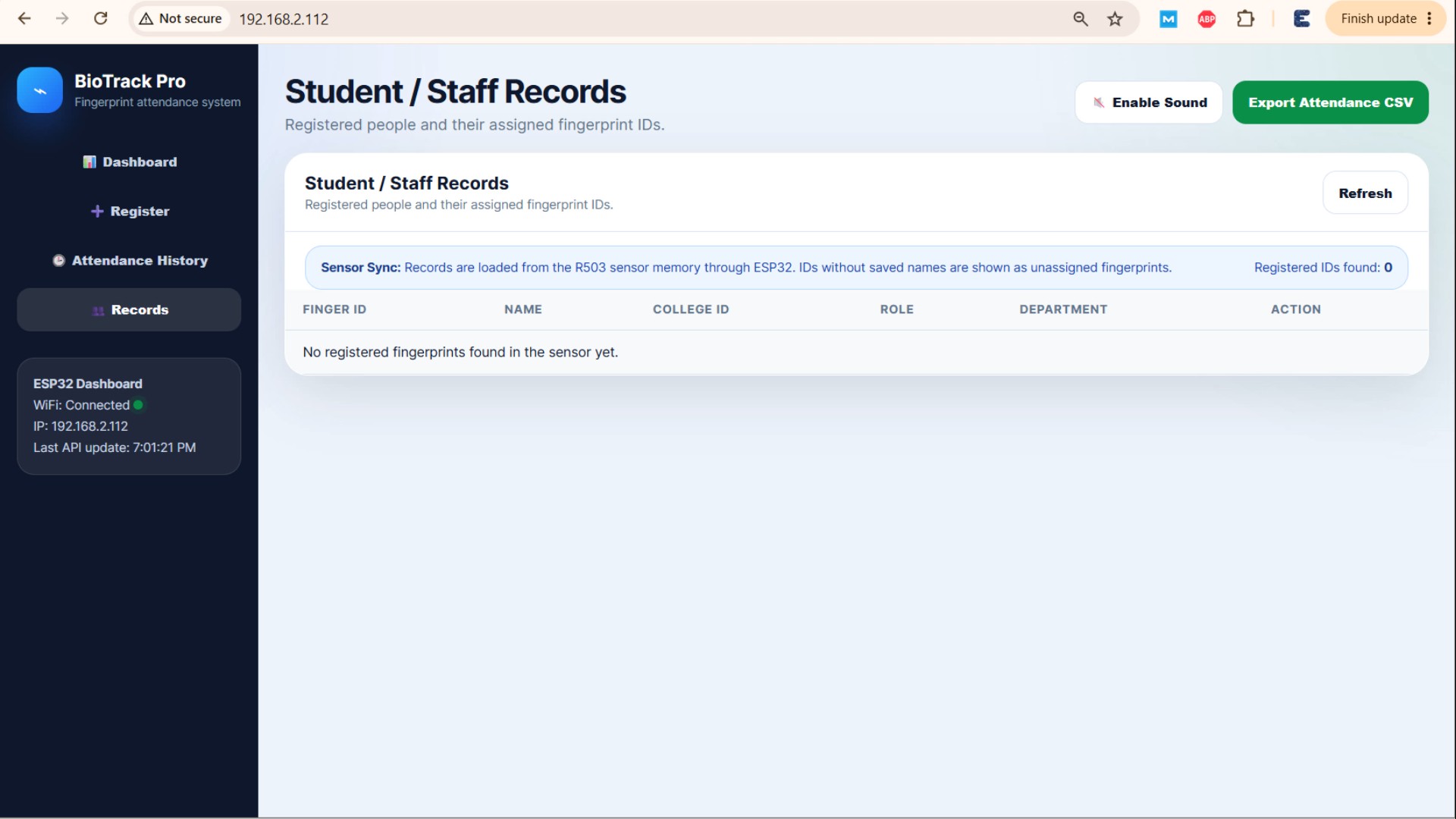

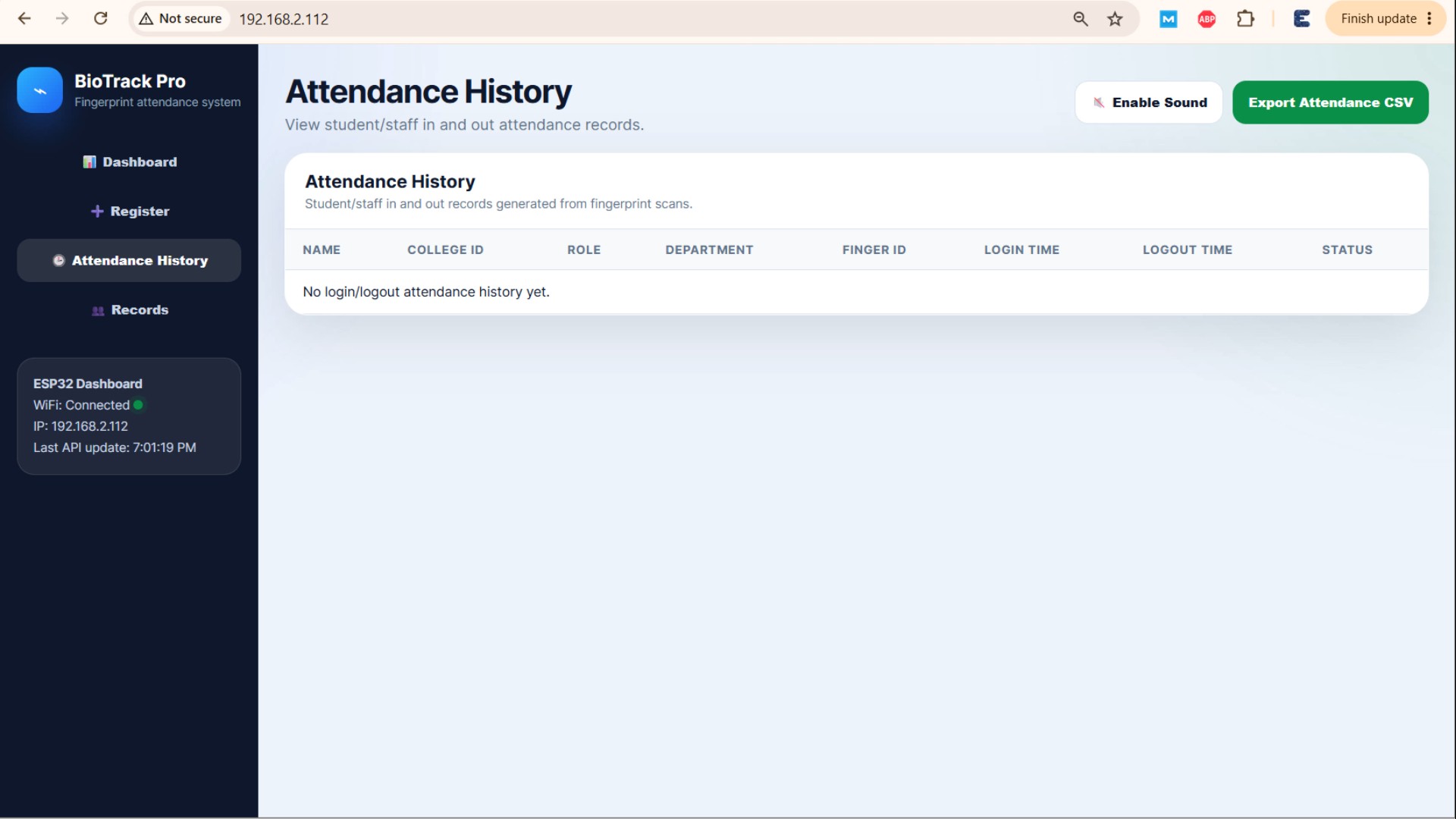

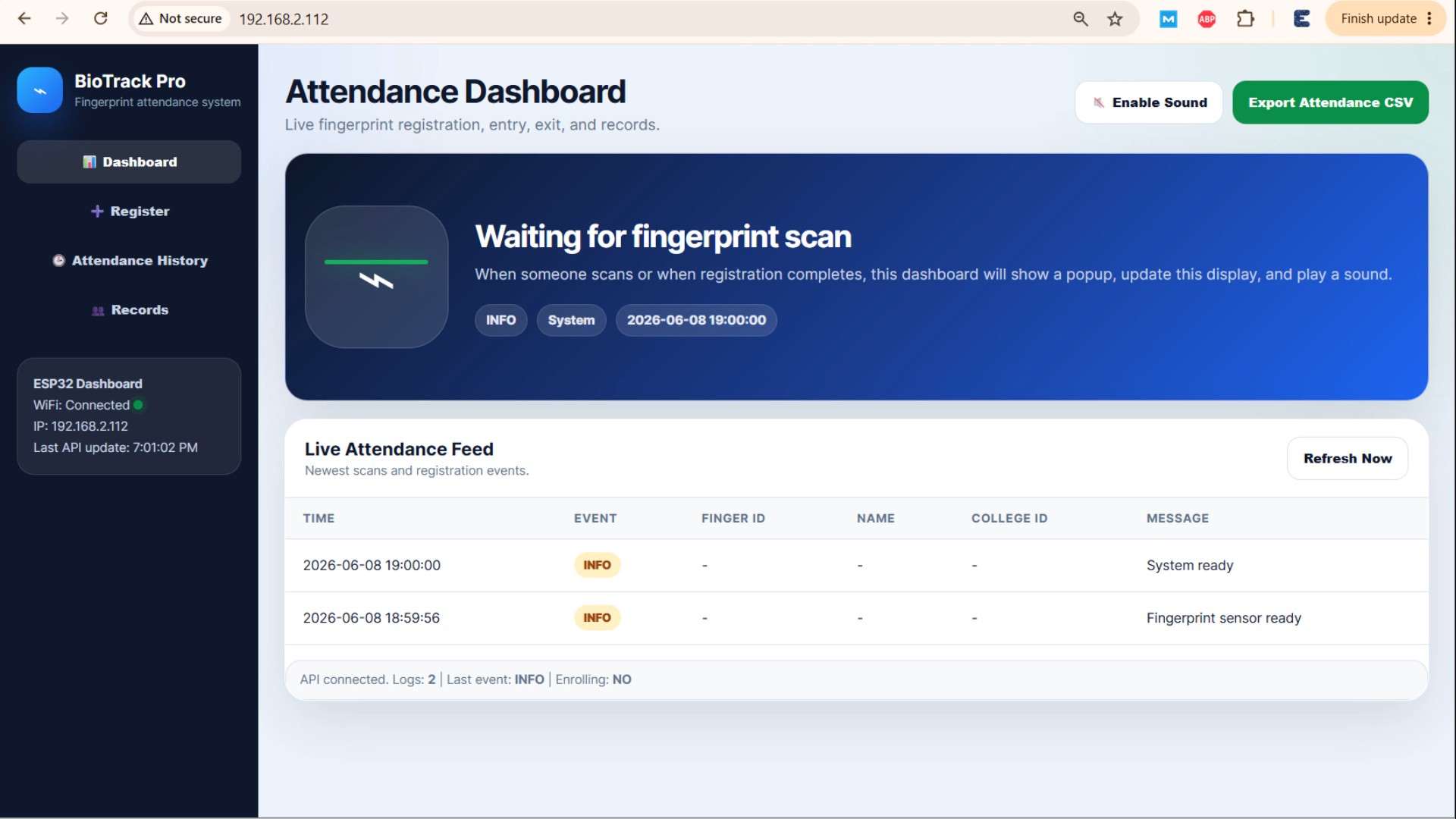

The dashboard page shows the live fingerprint system status, Wi-Fi connection, latest API update time, and live attendance feed. From the left-side menu, we can open different sections such as Dashboard, Register, Attendance History, and Records.
The Register page is used to add student or staff details and start fingerprint enrollment.
The Attendance History page shows login and logout records, while the Records page displays registered users and their assigned fingerprint IDs.
The dashboard also includes options to enable sound alerts and export attendance data as a CSV file.
Registering the Fingerprints

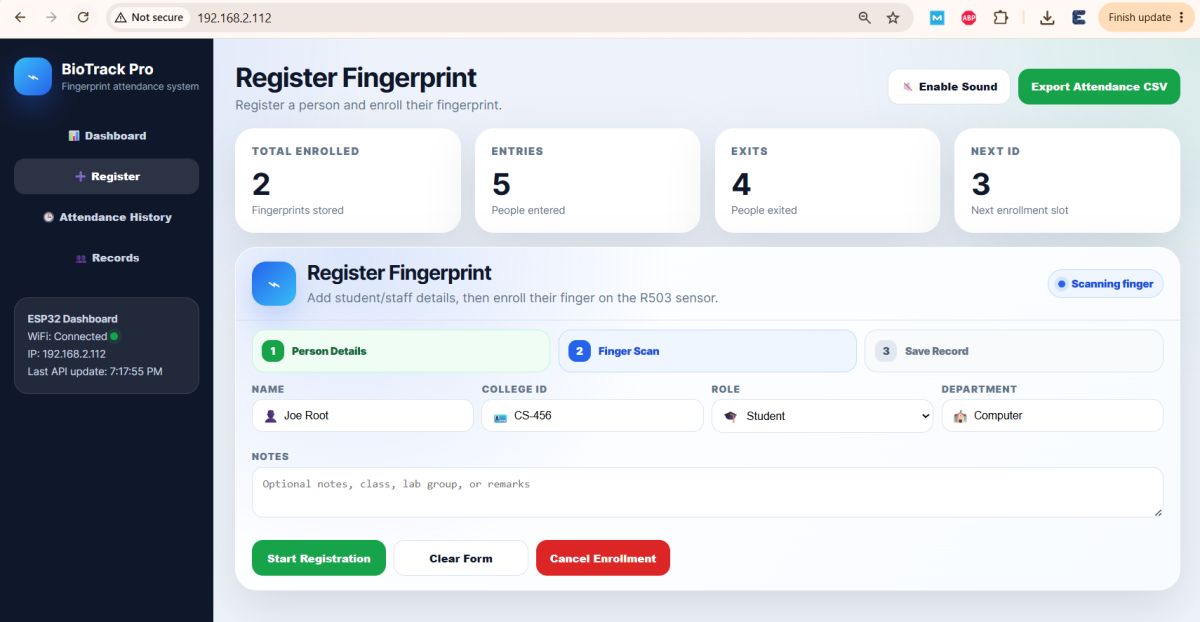

To register a new fingerprint, open the ESP32 web dashboard and go to the Register section. Here, enter the user details such as name, college ID, role, and department, then click the Start Registration button. In this example, the user name is entered as Joe Root with college ID CS-456 and department Computer.

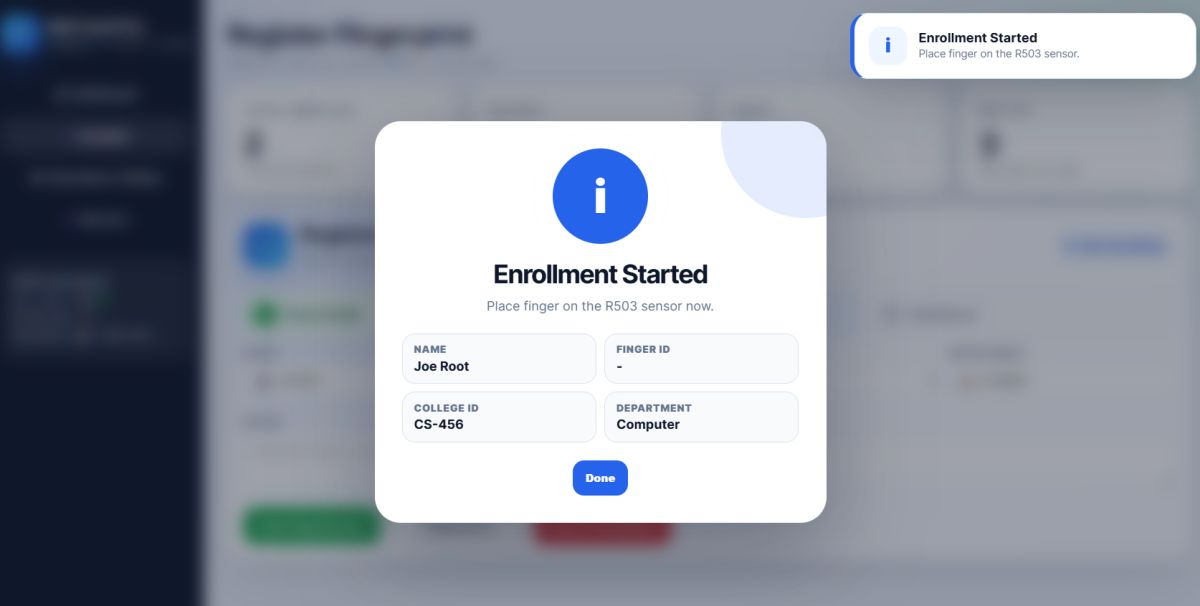

After starting the registration, the dashboard shows an “Enrollment Started” popup and the OLED display asks the user to place a finger on the R503 fingerprint sensor.
The sensor first captures the fingerprint image, then asks the user to remove the finger and place the same finger again for the second scan.

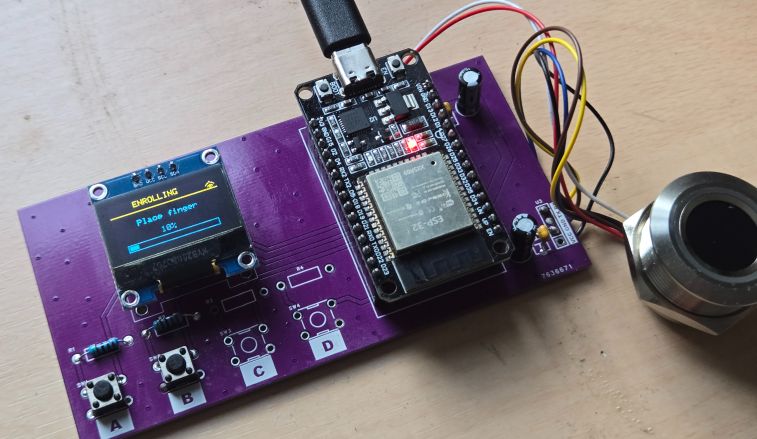

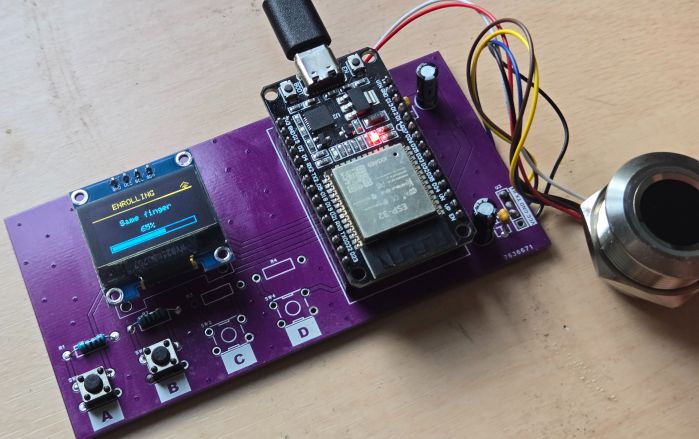

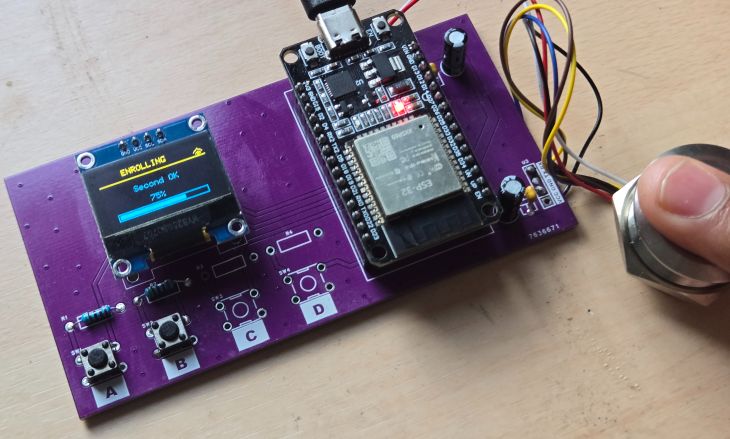

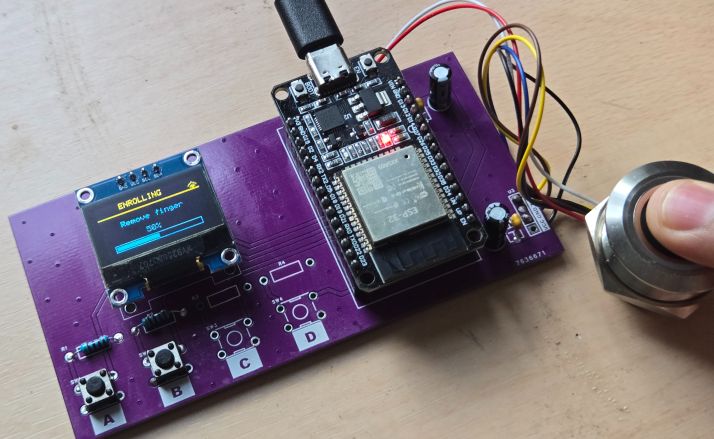

The OLED display shows the enrollment progress step by step, such as placing the finger, removing the finger, scanning again, and saving the fingerprint.
Once both scans are matched successfully, the fingerprint template is saved in the R503 sensor memory and the user details are stored in the ESP32.

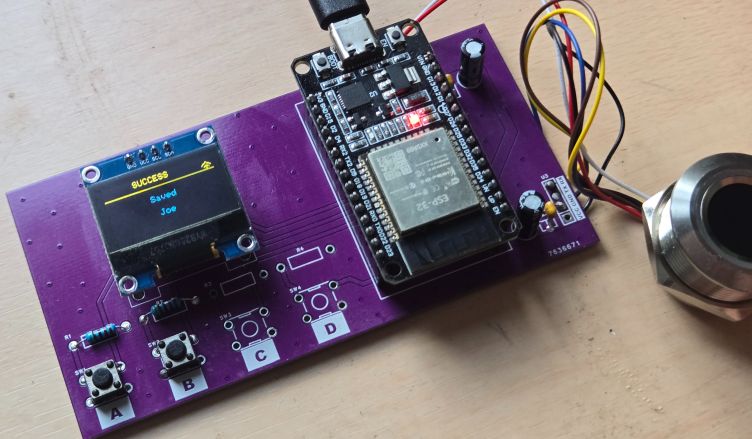

The OLED display shows a success message, and the dashboard also displays a “Registration Successful” popup with the user name, fingerprint ID, college ID, and department.

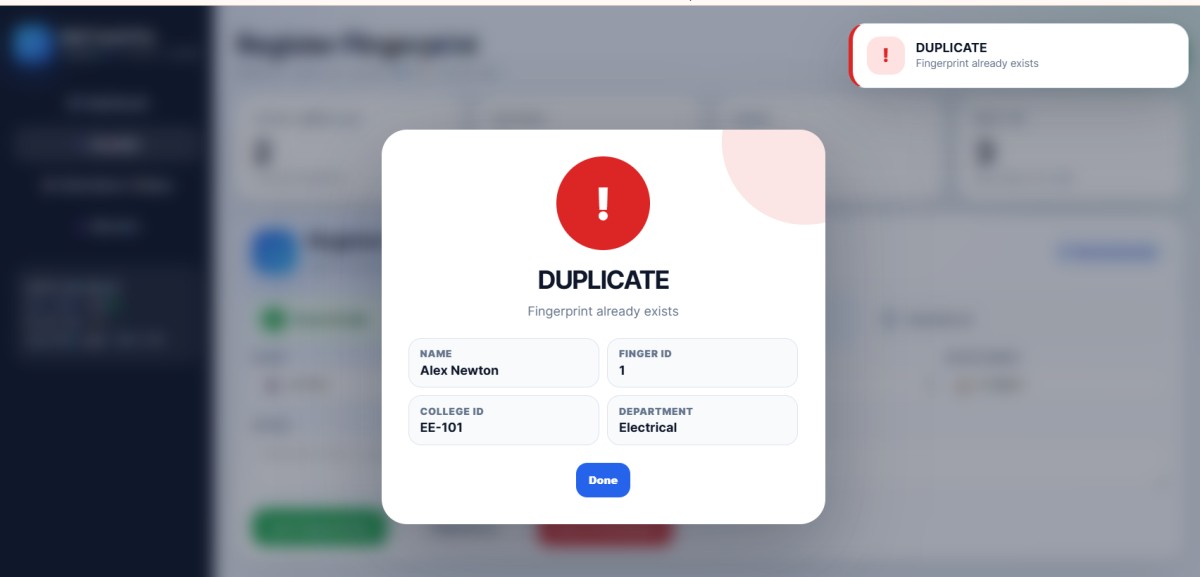

If the same registered finger is scanned again during the registration process, the system detects it as a duplicate fingerprint.
After this, the registered fingerprint can be used for marking attendance.
Recording the Attendance
After the fingerprint is registered, the system can be used to record attendance.

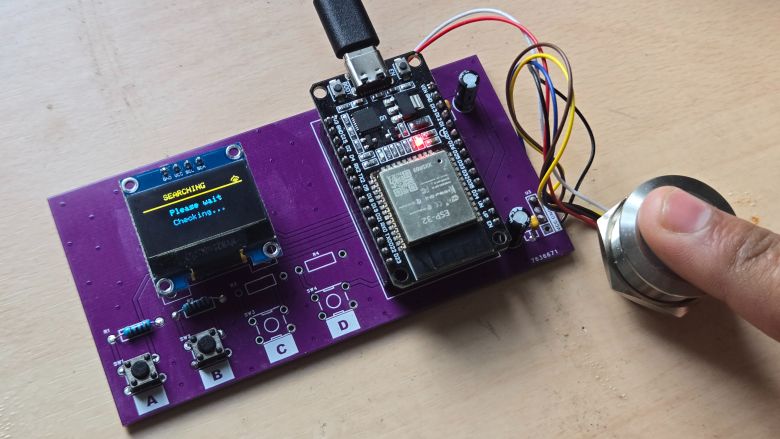

When a user places their finger on the R503 fingerprint sensor, the OLED display shows that the system is searching and checking the fingerprint.
If the fingerprint matches with a saved record, the ESP32 marks the user’s attendance and shows the entry or exit status.

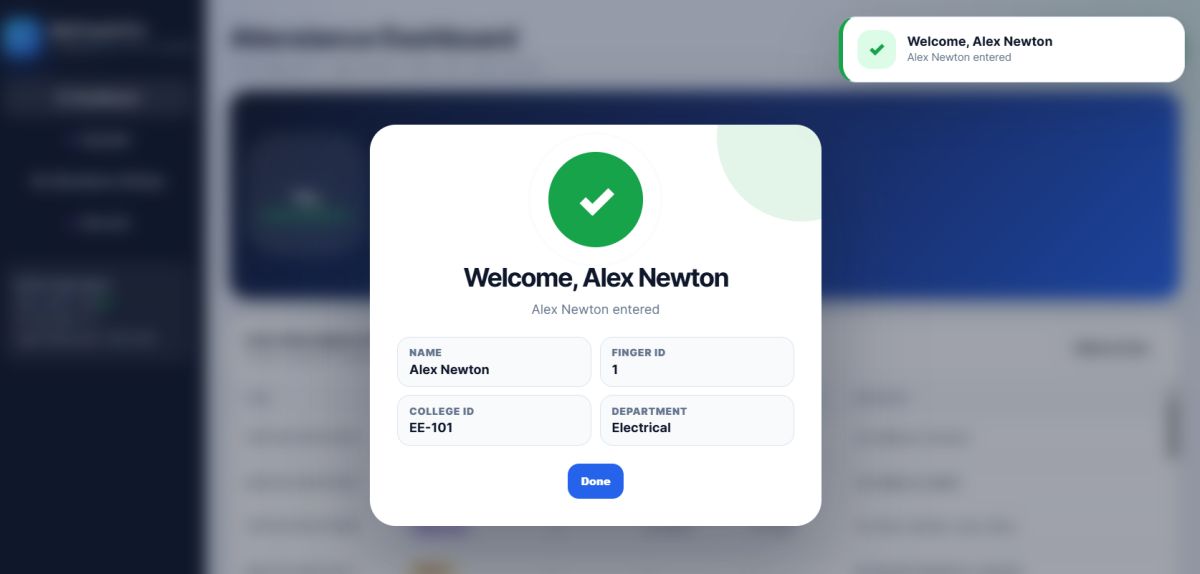

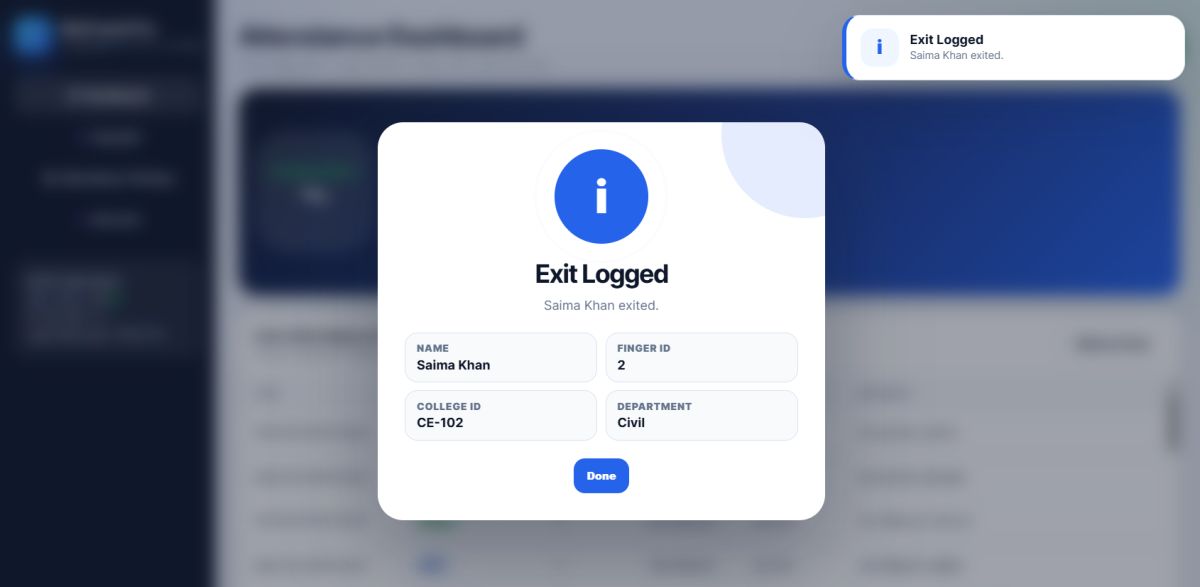

For the first scan, the dashboard displays a welcome popup with the user’s name, fingerprint ID, college ID, and department. This means the user has entered, and the entry time is saved in the attendance log.

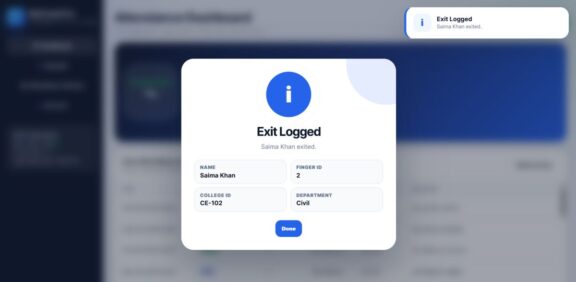

When the same user scans again, the system records it as an exit and displays a goodbye or exit logged message on the dashboard.

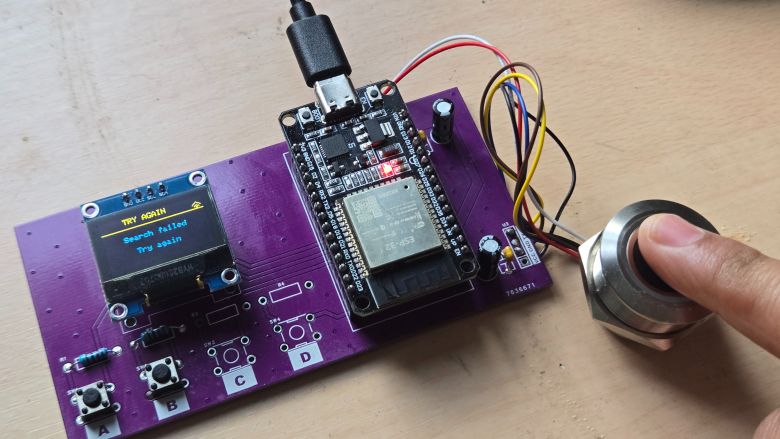

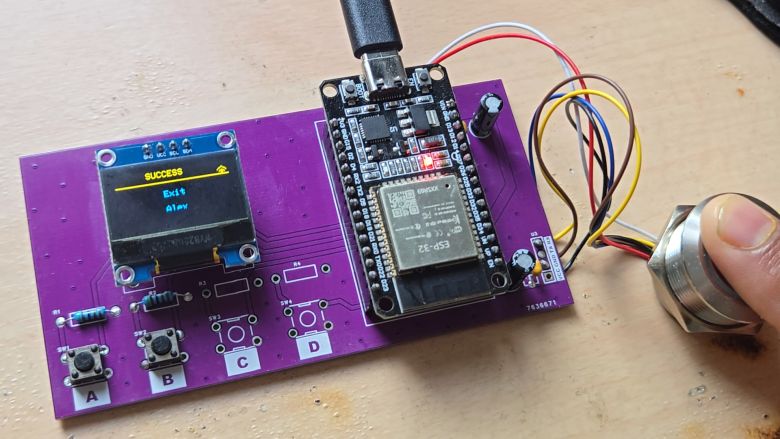

If an unknown or unregistered finger is scanned, the OLED display shows a try again or search failed message.
This means the fingerprint is not found in the saved database. The dashboard also keeps updating the live attendance feed, attendance history, and student/staff records.

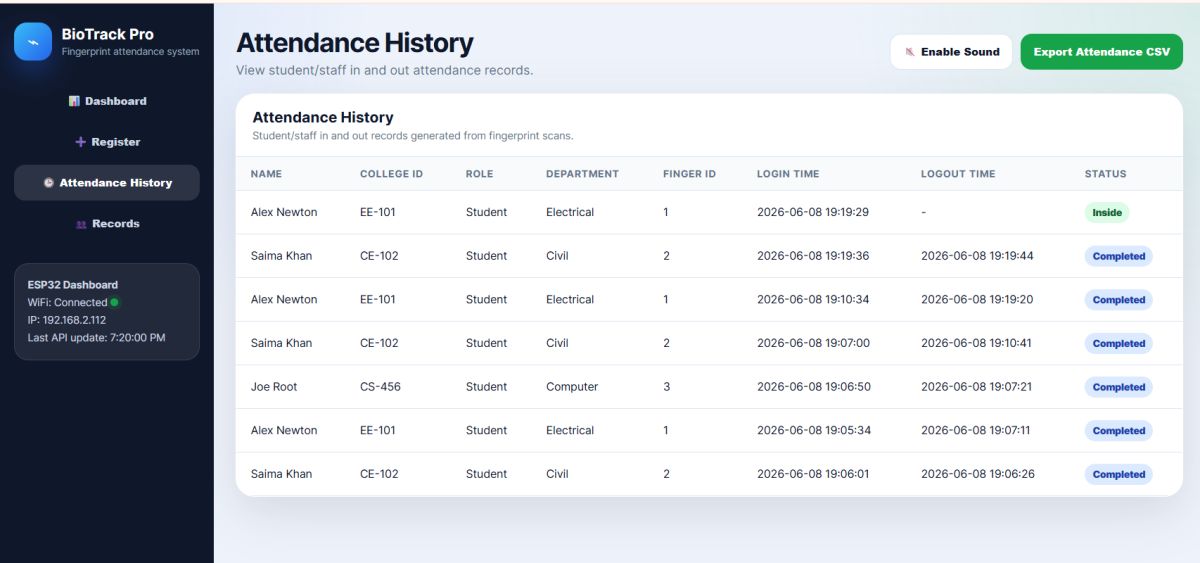

In the Attendance History section, each entry and exit record is shown with name, college ID, role, department, finger ID, login time, logout time, and status.

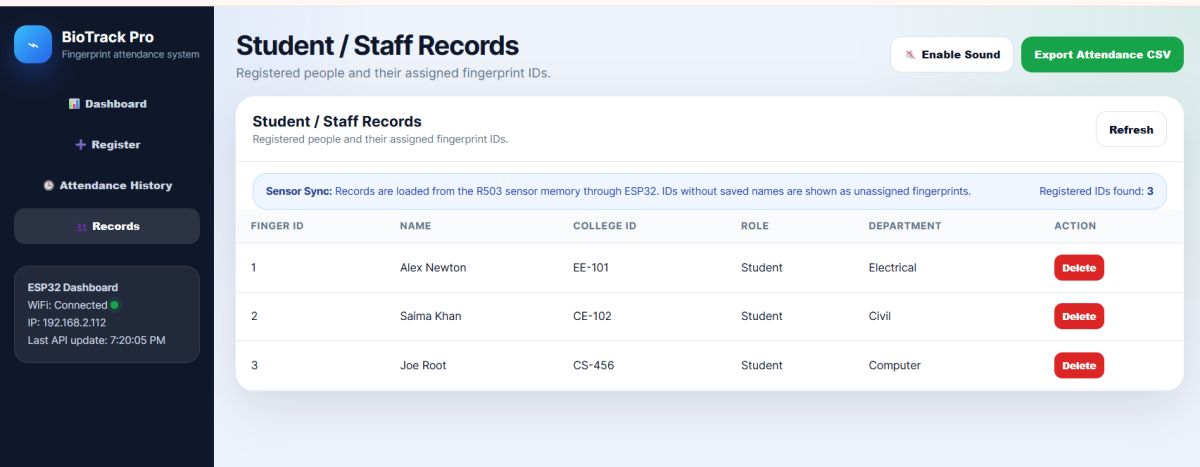

The Records section shows all registered users along with their assigned fingerprint IDs and delete option.
Apart from registration and attendance recording, the dashboard also includes some useful management features. In the Student / Staff Records section, all registered users are listed with their fingerprint ID, name, college ID, role, and department. If any fingerprint needs to be removed, the user can click the Delete button, and the ESP32 deletes that fingerprint ID from the R503 sensor memory as well as removes the saved user details from the system.
The dashboard also provides an Export Attendance CSV option. This allows the attendance history to be downloaded as a CSV file, which can be opened in Excel or Google Sheets for record keeping.
