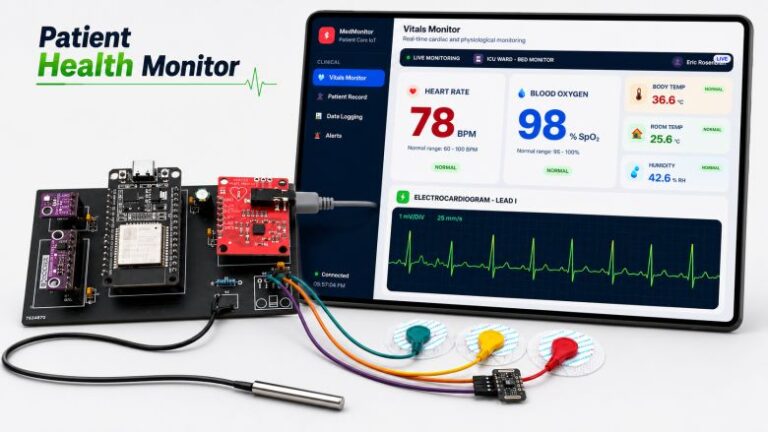

ESP32 Patient Health Monitor ECG, SpO₂, BPM & Live Dashboard

Overview

In this IoT project, we will learn how to build an ESP32 Patient Health Monitor with Live Web Dashboard using ESP32, AD8232 ECG Sensor, MAX30102 Pulse Oximeter, BME280 Environmental Sensor, ADS1115 ADC, and a 10K NTC thermistor for body temperature measurement. The ESP32 Wi-Fi module connects the system to a local network and hosts a professional medical-style web dashboard directly from the device.

This ESP32-based patient health monitoring system measures and displays heart rate (BPM) from the ECG signal, blood oxygen (SpO₂) from the MAX30102 sensor, body temperature from an NTC thermistor, and room temperature & humidity from the BME280 sensor. The dashboard shows a live scrolling ECG waveform with PQRST-style cardiac trace, animated vitals cards, clinical alerts, patient record management, and data logging with Excel export.

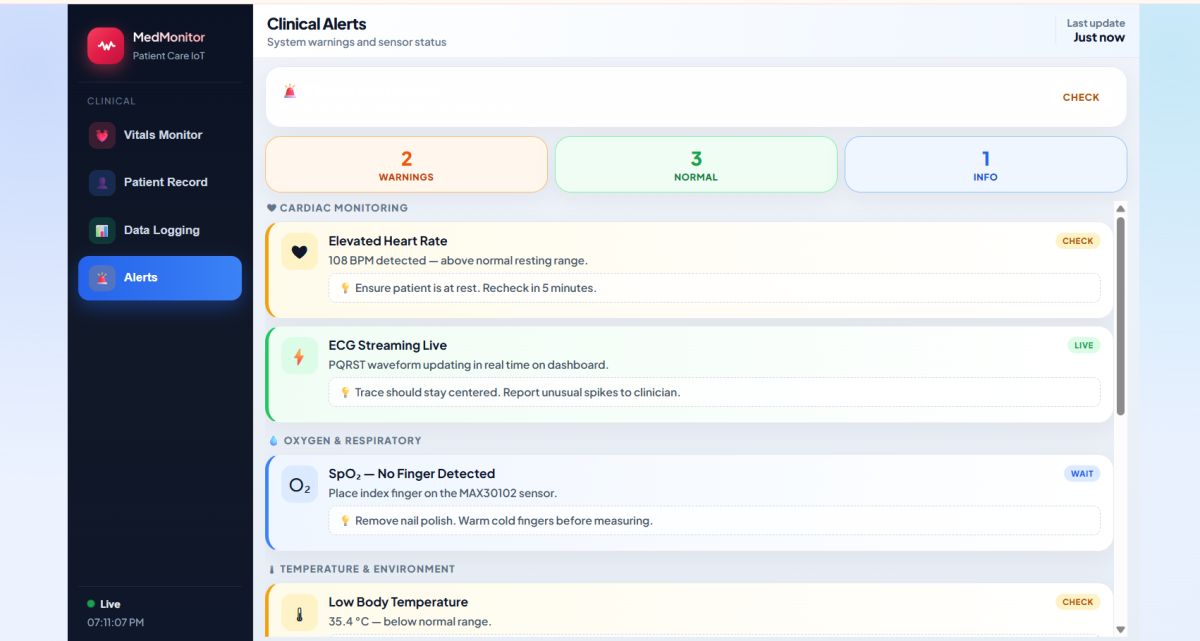

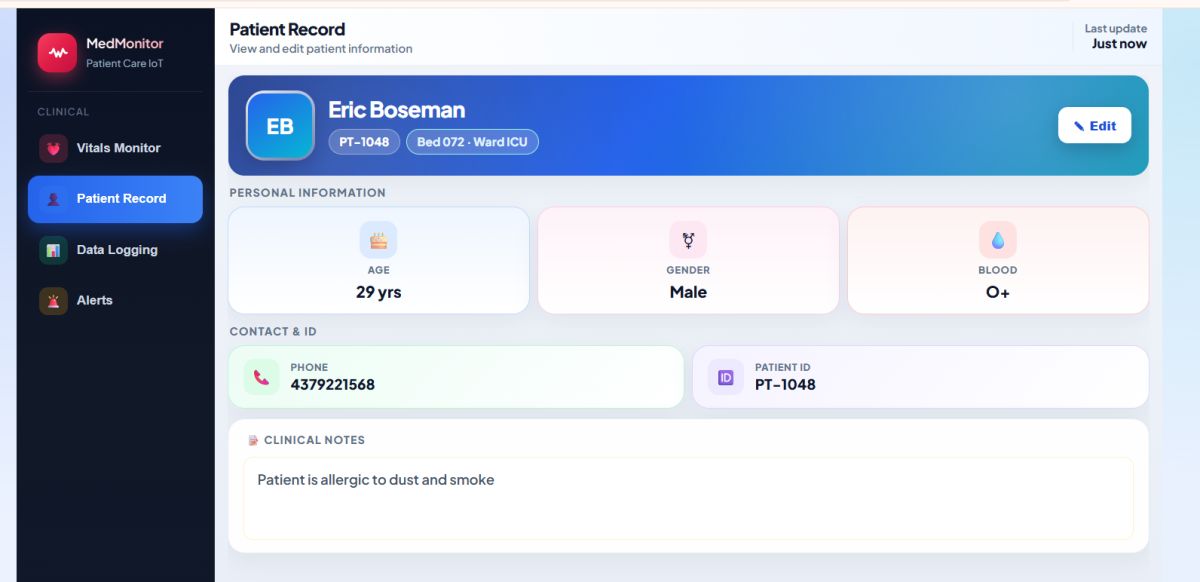

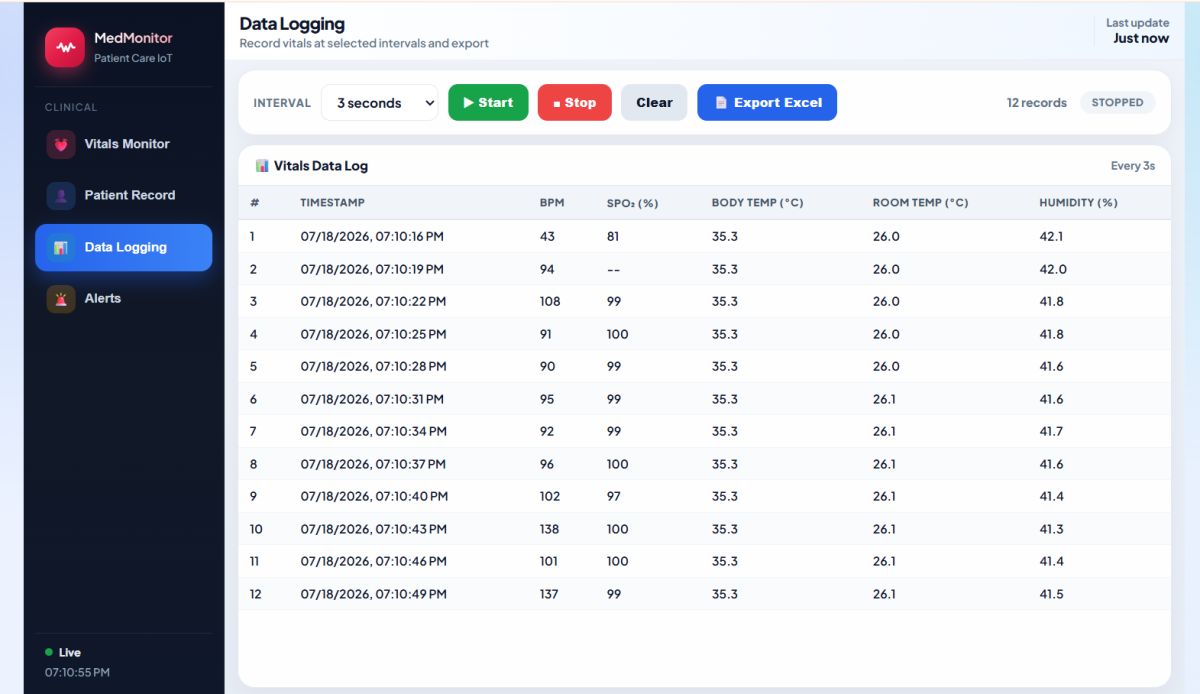

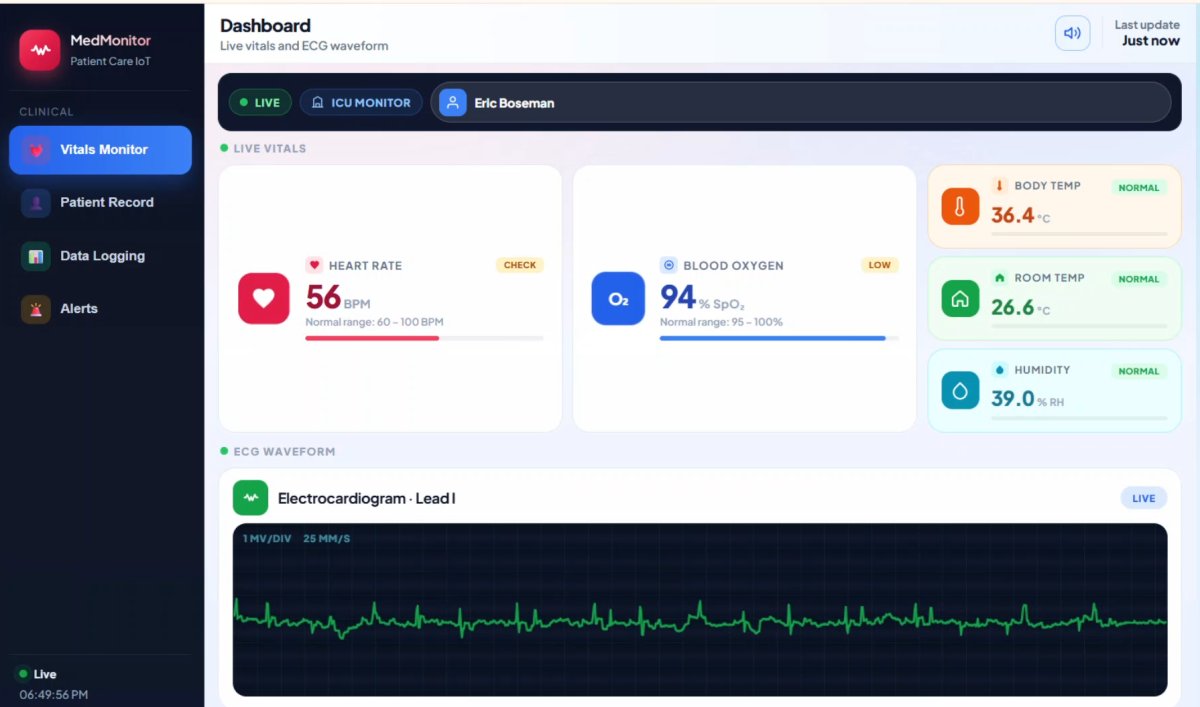

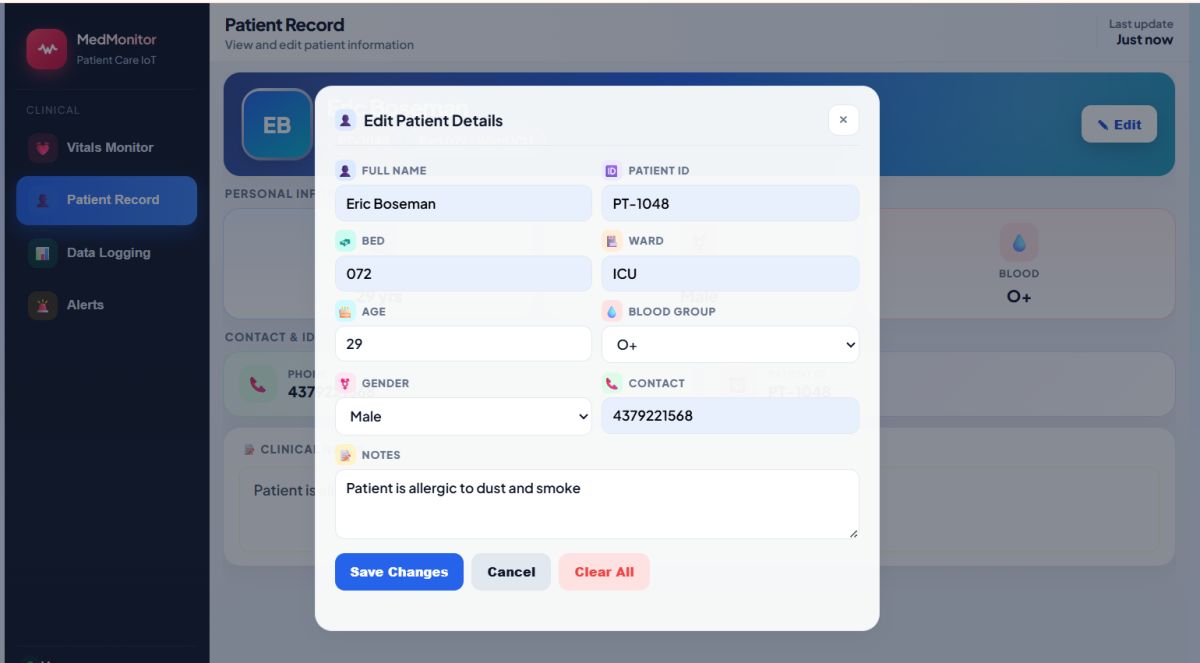

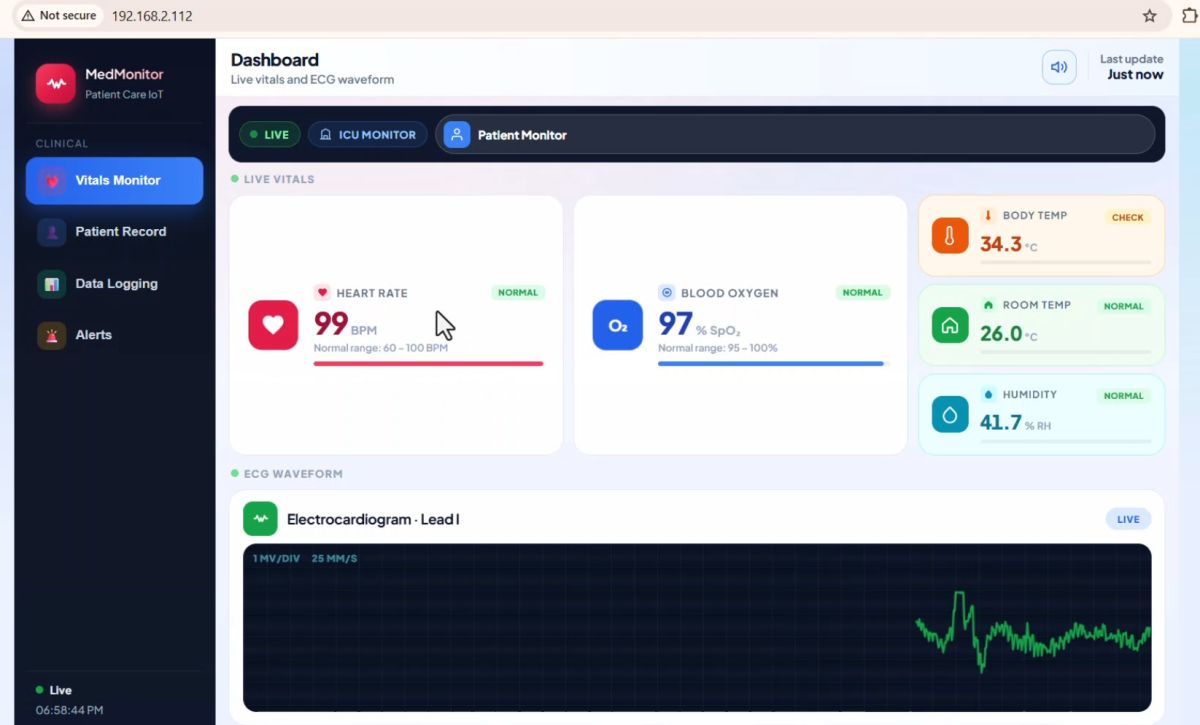

The live web dashboard makes this project more advanced by providing a user-friendly interface for real-time vitals monitoring, ECG waveform viewing, patient details storage, interval-based vitals logging, and clinical alert notifications. This project is a practical and low-cost solution for building a remote patient monitoring system for education, prototyping, and IoT healthcare applications.

You may go through some old projects like:

Components Required

Following are the components required to make the ESP32 Patient Health Monitor with Live Web Dashboard. All these components can be purchased from the given links.

S.N.	Components Name	Quantity	Purchase Link
1	ESP32 Board	1	Amazon \| AliExpress
2	AD8232 ECG Sensor	1	Amazon \| AliExpress
3	MAX30102 Pulse Oximeter	1	Amazon \| AliExpress
4	ADS1115 ADC Module	1	Amazon \| AliExpress
5	BME280 Sensor	1	Amazon \| AliExpress
6	10K NTC Thermistor	1	Amazon \| AliExpress
7	10K Resistor	1	Amazon \| AliExpress
8	10uF Electrolytic Capacitor	1	Amazon \| AliExpress
9	0.1uF Ceramic Capacitor	5	Amazon \| AliExpress
10	Jumper Wires	4	Amazon \| AliExpress

Block Diagram of ESP32 Patient Health Monitor

Let’s take a look at the block diagram of the ESP32-based Patient Health Monitor with Live Web Dashboard.

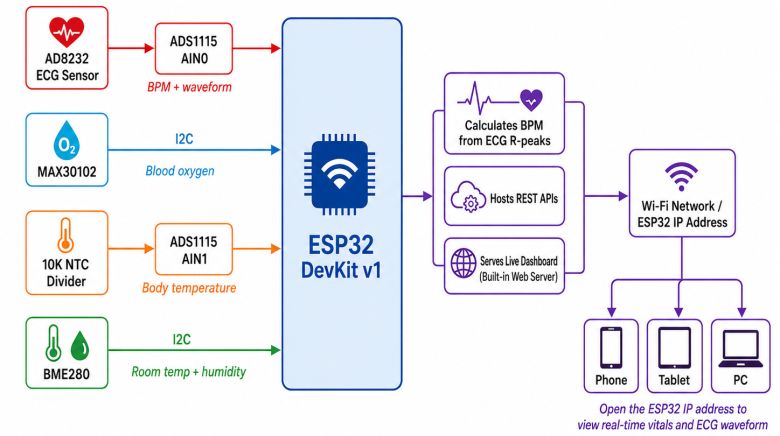

Fig: Block Diagram ESP32 Patient Health Monitor

The system is divided into four main sensor paths connected to the ESP32 DevKit v1:

ECG path — AD8232 → ADS1115 AIN0 → ESP32 (BPM + waveform)
SpO₂ path — MAX30102 → I2C → ESP32 (blood oxygen)
Body temperature path — 10K NTC divider → ADS1115 AIN1 → ESP32
Environment path — BME280 → I2C → ESP32 (room temp + humidity)

The ESP32 reads all sensor data, calculates BPM from ECG R-peaks, hosts REST APIs, and serves the live dashboard through the built-in web server. Any phone, tablet, or PC on the same Wi-Fi network can open the ESP32 IP address to view real-time vitals and the ECG waveform.

AD8232 ECG Sensor Module

The AD8232 ECG sensor module is a single-lead heart rate monitor front-end used to acquire biopotential signals from the human body. It includes an integrated instrumentation amplifier, filter, and right-leg drive circuitry to produce a clean analog ECG output suitable for microcontroller ADC input. Go through AD8232 Arduino Tutorial for more info.

The module outputs an analog ECG signal that is read by the microcontroller ADC Pin. It also provides lead-off detection (LO+ and LO−) pins, which go HIGH when electrodes lose contact with the skin. This helps the firmware and dashboard show a safe flat-line trace and a “LEADS OFF” warning instead of displaying invalid cardiac data.

Features & Specifications

Feature	Specification
Operating Voltage	3.3V (compatible with ESP32)
Output Type	Analog ECG signal (ECG_OUT)
Lead Configuration	Single-lead (3-electrode: RA, LA, RL)
Lead-Off Detection	LO+ and LO− digital outputs
Shutdown Pin	SDN (GPIO 5 — HIGH = enable)
Applications	Heart rate monitoring, ECG waveform display

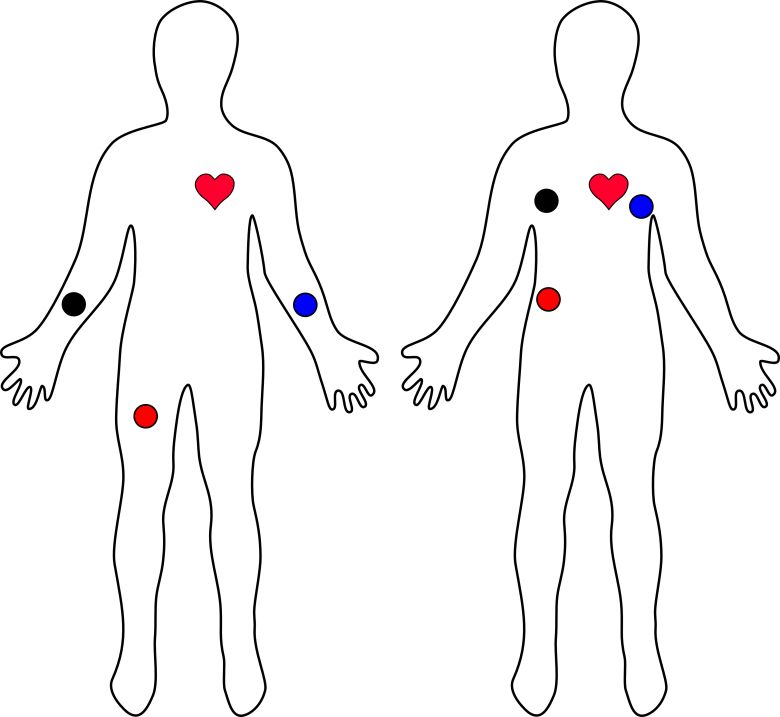

Electrode Placement

Red (RA) → Right Arm or right wrist
Yellow (LA) → Left Arm or left wrist
Green (RL) → Right Leg or lower abdomen (driven reference)

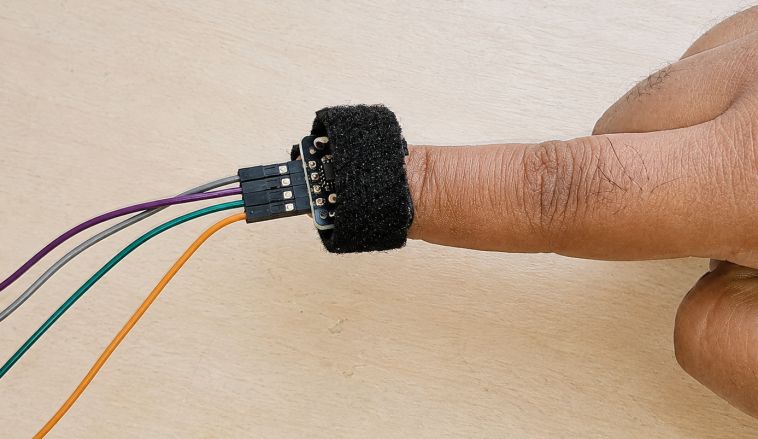

MAX30102 Pulse Oximeter Sensor

The MAX30102 is an integrated pulse oximetry sensor module. It uses red and infrared LEDs with a photodetector to measure light absorption through the finger and calculate SpO₂ (blood oxygen saturation). Go through MAX30102 Arduino Tutorial for more info.

In this project, the MAX30102 communicates with the ESP32 over I2C at address 0x57. It can measure Heart Beat in BPM, Blood Oxygen Concentration in percentage and temperature as well. In this project, the MAX30102 is used to only measure Blood Oxygent Concentration SPO2 (%).

Feature	Specification
Interface	I2C @ 0x57
Measurement	SpO₂ (%), finger detection
Operating Voltage	3.3V (module level)
Normal SpO₂ Range	95% – 100%

BME280 Environmental Sensor

The BME280 is a high-precision digital sensor that combines temperature, humidity, and barometric pressure measurement in a single compact module. In this project, it is used specifically for room environmental monitoring — tracking ambient temperature and relative humidity. Refer to ESP32 BME280 Tutorial for more detailed guide.

Features & Specifications

Feature	Specification
Interface	I2C @ 0x76 (ADDR = GND)
Temperature Range	−40°C to +85°C
Humidity Range	0% to 100% RH
Accuracy (Temp)	±1°C typical
Library	Adafruit BME280 + Adafruit Unified Sensor
Update Rate in Firmware	Every 2 seconds

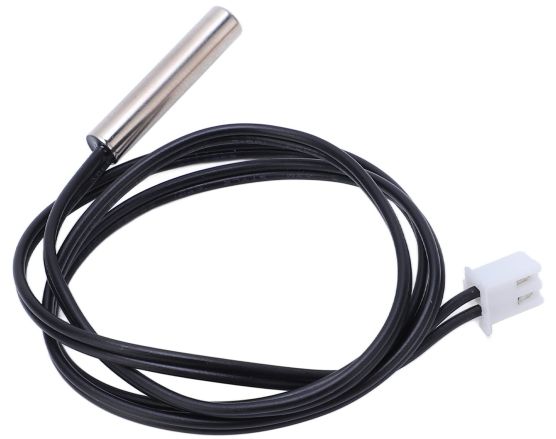

10K NTC Thermistor (Body Temperature Sensor)

Body temperature is measured using a 10K NTC thermistor in a classic voltage divider circuit. Unlike the BME280 which measures room air temperature digitally over I2C, the NTC probe measures skin or body contact temperature through an analog signal read by the ADS1115.

NTC Voltage Divider Circuit

The thermistor circuit uses:

R2 — 10K fixed series resistor to 3.3V
R3 — 10K NTC thermistor to GND
TEMP_SENSE node → ADC of MCU

As body temperature increases, NTC resistance decreases and the voltage at ADC rises.

Specifications

Parameter	Value
ADS1115 Channel	AIN1 (not AIN0)
Thermistor	10K NTC @ 25°C
Series Resistor (R2)	10K ohm
Supply Voltage	3.3V
Beta Coefficient	3950
ADS Gain	GAIN_ONE (±4.096V)
Typical Skin Reading	~35°C – 37°C with good contact

ADS1115 16-Bit ADC

The ADS1115 is a 16-bit analog-to-digital converter that communicates through the I2C interface. It is commonly used when a microcontroller needs to read analog signals with higher resolution than its built-in ADC. You may follow ADS1115 ESP32 Guide for more information.

16-bit resolution for accurate analog signal measurement
I2C interface for easy connection with microcontrollers
Four analog input channels: AIN0, AIN1, AIN2, and AIN3
Programmable gain amplifier for measuring small voltage signals
Configurable data rate for different sampling requirements

The ADS1115 can be used to measure different types of analog signals such as sensor outputs, voltage dividers, battery voltage, pressure sensors, temperature sensors, and other low-voltage signals. Its programmable gain settings make it useful for both general-purpose analog readings and more sensitive signal measurements.

Circuit Diagram

Let’s take a look at the schematic of the ESP32-based Patient Health Monitor project. The schematic is designed in EasyEDA.

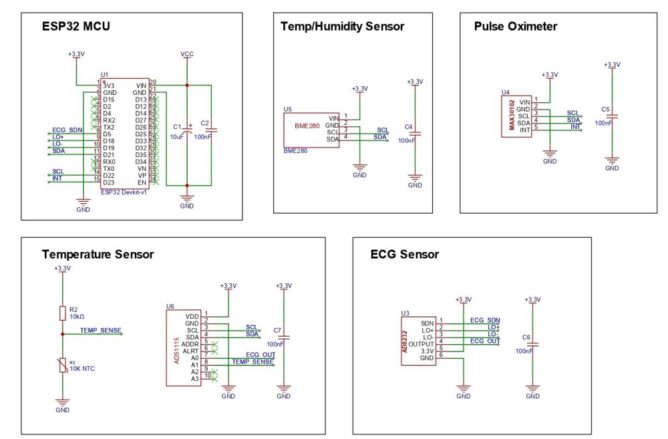

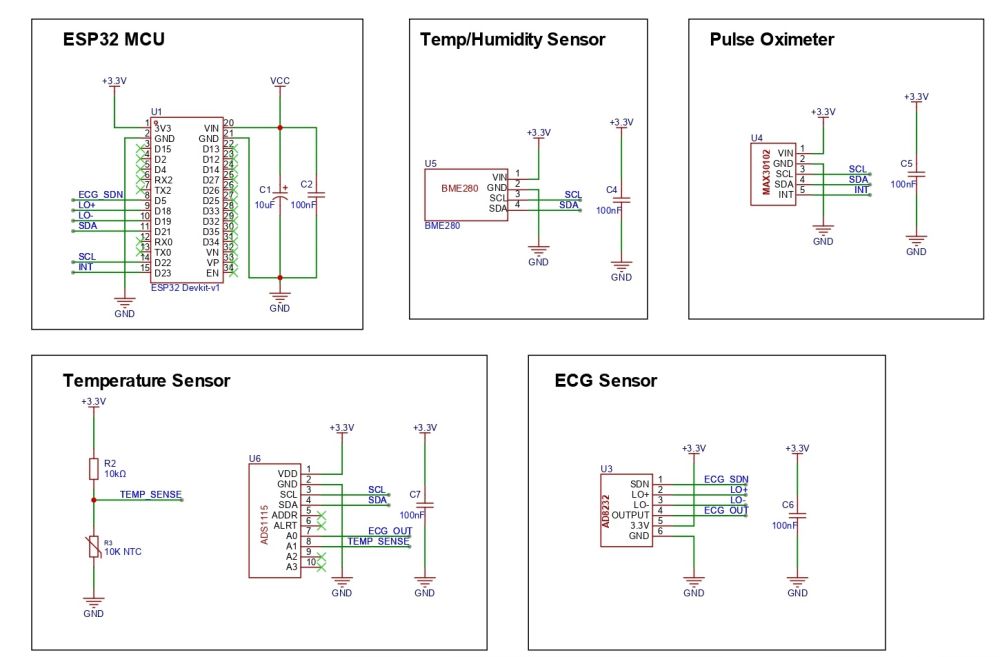

Fig: Schematic ESP32 Patient Health Monitor

Main Circuit Blocks

The schematic (Board1, Version V1.0) contains five functional blocks connected to the ESP32:

Ref	Module	Role
U1	ESP32 DevKit-v1	Main MCU, Wi-Fi, web server
U3	AD8232	ECG analog front-end
U4	MAX30102	Pulse oximeter (SpO₂)
U5	BME280	Room temperature & humidity
U6	ADS1115	16-bit ADC for ECG + NTC

ESP32 Pin Connections

ESP32 Pin	GPIO	Connected To
D21	GPIO 21	I2C SDA (shared bus)
D22	GPIO 22	I2C SCL (shared bus)
D5	GPIO 5	AD8232 SDN (sensor enable, HIGH = run)
D18	GPIO 18	AD8232 LO+ (lead-off detect)
D19	GPIO 19	AD8232 LO− (lead-off detect)

I2C Device Addresses

Device	I2C Address	Bus Pins
ADS1115 (U6)	0x48	SDA / SCL
MAX30102 (U4)	0x57	SDA / SCL
BME280 (U5)	0x76	SDA / SCL (ADDR = GND)

AD8232 ECG Signal Path

ECG_OUT → ADS1115 A0 (AIN0)
ECG_SDN → ESP32 GPIO 5 (OUTPUT HIGH in setup)
LO+ → ESP32 GPIO 18 (INPUT)
LO− → ESP32 GPIO 19 (INPUT)
3.3V / GND → AD8232 power with decoupling capacitors

NTC Body Temperature Divider

3.3V → R2 (10K) → TEMP_SENSE node → R3 (10K NTC) → GND
TEMP_SENSE → ADS1115 A1 (AIN1)

Power Supply & Decoupling

All modules run from 3.3V. The schematic includes decoupling capacitors on each sensor rail:

C1 — 10µF bulk capacitor
C2, C4, C5, C6, C7 — 100nF ceramic capacitors near IC power pins

These capacitors reduce power supply noise and help keep the ECG trace clean on the dashboard.

PCB Designing & Gerber Files

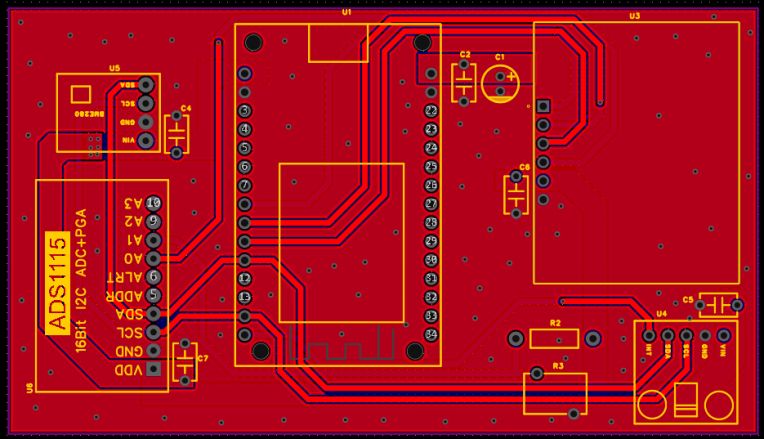

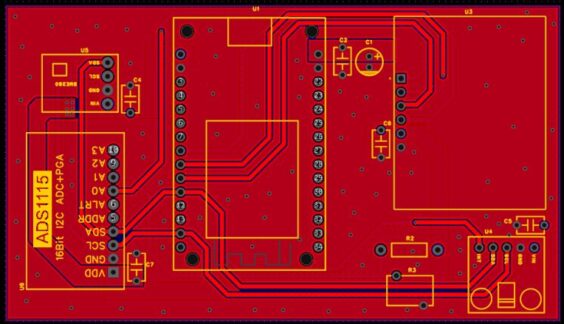

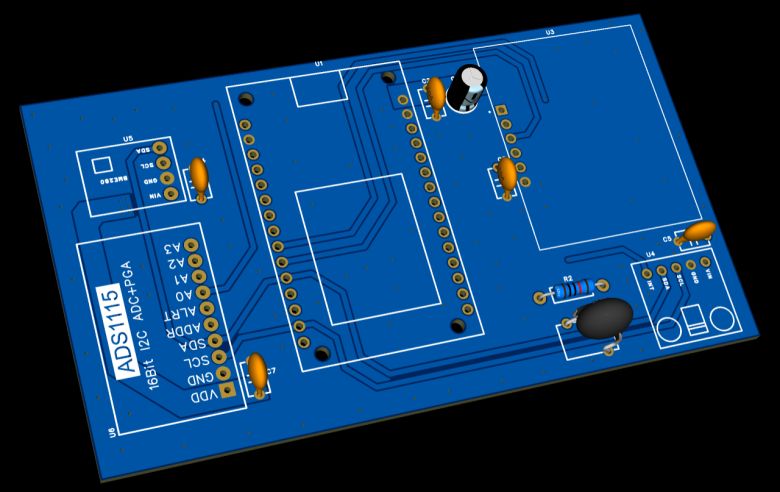

The schematic of the ESP32 Patient Health Monitor was created in EasyEDA, and from there it was converted into a compact PCB layout.

The board is designed with mostly through-hole components to make assembly easier. You can view the 2D view of the PCB.

All of the critical components, including the ESP32 module, ADS1115, sensor connectors, and power filtering capacitors, are placed on the front side of the PCB, which makes assembly easier and more reliable.

Here are the links of files that you can download for PCB manufacturing and PCB assembly services.

Download: Schematic PDF
Download: Gerber File

PCB Ordering Online & Assembly

The Gerber file for this ESP32 Patient Health Monitor is provided above. You can download the Gerber file and place an order with a PCB manufacturer like AIVON for as low as $1 for a PCB Prototype.

To order the PCB, visit the AIVON Official Website and upload the Gerber file using the Quote Now option. You can then choose your required parameters, such as Material Type, Dimensions, Quantity, Thickness, and Solder Mask Color.

AIVON is making PCB prototyping and assembly more affordable for new users by offering $1 PCB Prototype and $35 PCB Assembly with Shipping fee $30 OFF on your first PCB order. With this promotion, you can enjoy free shipping on your first order and affordable assembly service for your project.

Here is the promotion link: AIVON PCB/PCBA Promotion Offer

Once all the details are filled in, select your country and shipping method. After confirming everything, you can place the order and wait for your boards to arrive.

Assembly of the ESP32 Patient Health Monitor

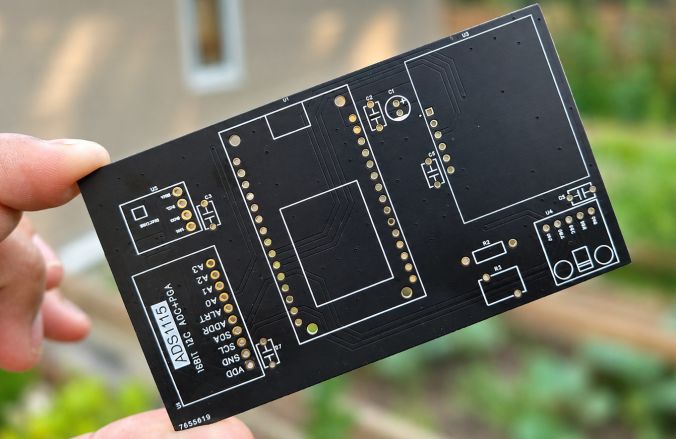

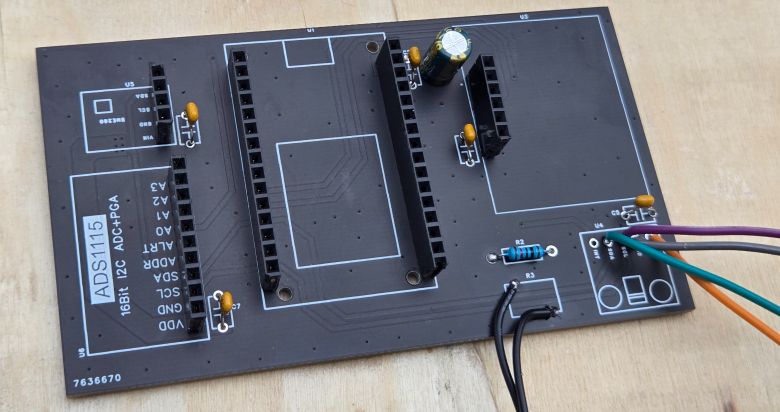

After I ordered the custom PCB, I received it within just 3 days. The PCB quality was very good, and it looked clean and professional. It is a double-sided PCB, which makes the circuit compact and neat.

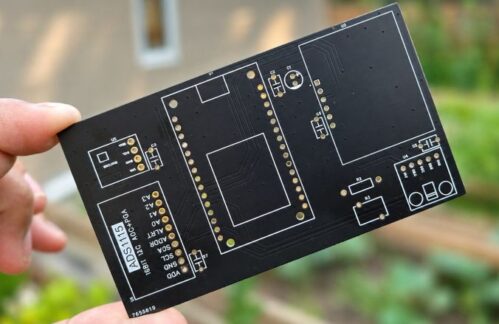

Fig: PCB for ESP32 Patient Health Monitor

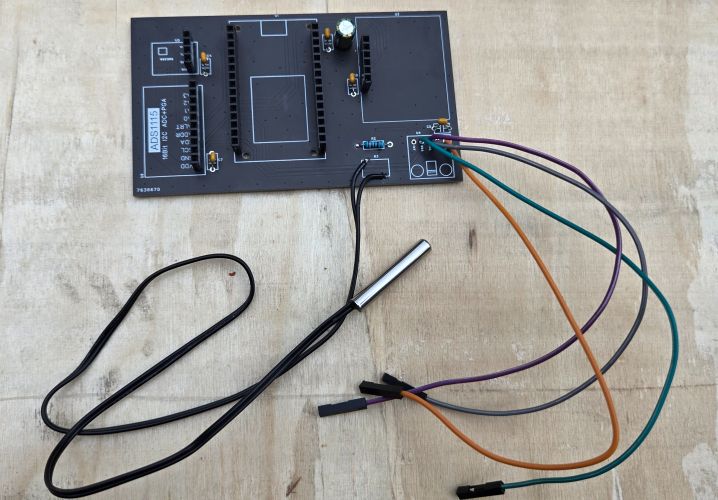

Then I started soldering and assembling all the components on the board. For the ESP32 board, ADS1115, MAX30102, BME280, and AD8232 ECG module, I used female header pins where needed. This makes it easy to remove or replace the modules later if required.

I also soldered the required decoupling capacitors (10µF and 100nF) on different parts of the PCB as shown in the schematic. These capacitors help to keep the power supply stable and reduce noise in the ECG signal. For the MAX30102 module and NTC thermistor probe, I used jumper wires to connect them to the PCB terminal blocks.

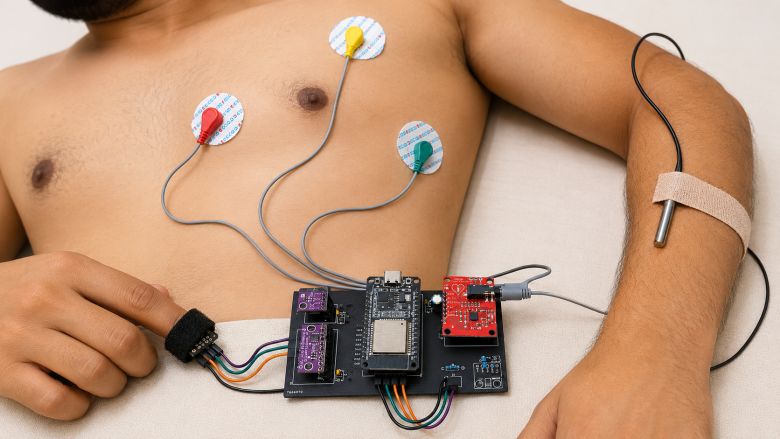

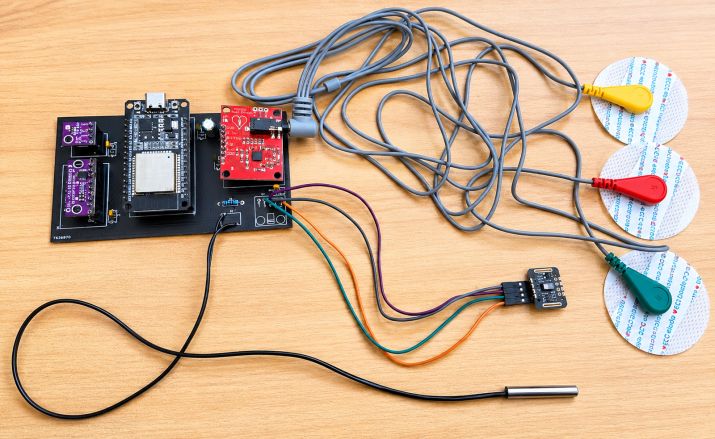

After soldering all the parts, I connected the ECG electrode cable, SpO₂ sensor, and NTC temperature probe, then completed the final assembly of the IoT ESP32 Patient Health Monitor device.

Source Code / Program

Let us take a look at the programming part of this project.

The code starts by including the required libraries for Wi-Fi, web server, I2C sensors, and the dashboard page stored in PROGMEM. The WiFi and WebServer libraries are used to connect the ESP32 to the local network and host the live patient health dashboard. The Adafruit ADS1X15 library reads ECG and NTC values from the ADS1115. The Adafruit BME280 library reads room temperature and humidity. The SparkFun MAX3010x library with spo2_algorithm.h calculates SpO₂ from MAX30102 data.

In the Wi-Fi section, the SSID and password are added so the ESP32 can connect to the network. After connecting, the ESP32 prints its IP address in the Serial Monitor at 115200 baud. This IP address can be opened in a browser to access the professional web dashboard.

The code is divided into two main parts: the main Patient_Health_Monitor.ino file for ESP32 sensor control and API, and the dashboard_page.h file for the live web dashboard interface.

Main .ino code

Copy the following code and paste it to your Arduino IDE editor window. Create a new sketch folder named Patient_Health_Monitor and save this file as Patient_Health_Monitor.ino.

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

256

257

258

259

260

261

262

263

264

265

266

267

268

269

270

271

272

273

274

275

276

277

278

279

280

281

282

283

284

285

286

287

288

289

290

291

292

293

294

295

296

297

298

299

300

301

302

303

304

305

306

307

308

309

310

311

312

313

314

315

316

317

318

319

320

321

322

323

324

325

326

327

328

329

330

331

332

333

334

335

336

337

338

339

340

341

342

343

344

345

346

347

348

349

350

351

352

353

354

355

356

357

358

359

360

361

362

363

364

365

366

367

368

369

370

371

372

373

374

375

376

377

378

379

380

381

382

383

384

385

386

387

388

389

390

391

392

393

394

395

396

397

398

399

400

401

402

403

404

405

406

407

408

409

410

411

412

413

414

415

416

417

418

419

420

421

422

423

424

425

426

427

428

429

430

431

432

433

434

435

436

437

438

439

440

441

442

443

444

445

* Patient Health Monitor

* I2C (SDA=21, SCL=22): BME280 @0x76, ADS1115 @0x48, MAX30102 @0x57

* ADS1115 AIN0: AD8232 ECG AIN1: NTC body temp

* ECG_SDN -> D5, LO+ -> D18, LO- -> D19

#include <WiFi.h>

#include <WebServer.h>

#include <Wire.h>

#include <math.h>

#include <Adafruit_ADS1X15.h>

#include <Adafruit_Sensor.h>

#include <Adafruit_BME280.h>

#include <MAX30105.h>

#include <spo2_algorithm.h>

#include "dashboard_page.h"

const char* WIFI_SSID = "****************";

const char* WIFI_PASSWORD = "***************";

static const int I2C_SDA_PIN = 21;

static const int I2C_SCL_PIN = 22;

static const int ECG_SDN_PIN = 5;

static const int LO_PLUS_PIN = 18;

static const int LO_MINUS_PIN = 19;

static const uint8_t ECG_CHANNEL = 0;

static const uint8_t THERMISTOR_CHANNEL = 1;

static const uint8_t ADS1115_I2C_ADDR = 0x48;

static const uint8_t BME280_I2C_ADDR = 0x76;

static const uint16_t SAMPLE_INTERVAL_MS = 8;

static const uint16_t SLOW_SENSOR_MS = 2000;

static const uint8_t ECG_QUEUE_SIZE = 28;

static const float SUPPLY_VOLTAGE = 3.3f;

static const float SERIES_RESISTOR_OHMS = 10000.0f;

static const float NTC_NOMINAL_OHMS = 10000.0f;

static const float NTC_NOMINAL_TEMP_C = 25.0f;

static const float NTC_BETA = 3950.0f;

static const long FINGER_IR_THRESHOLD = 50000;

static const int32_t SPO2_BUFFER_LENGTH = 100;

static const int32_t SPO2_SHIFT_SAMPLES = 25;

WebServer server(80);

Adafruit_ADS1115 ads;

Adafruit_BME280 bme;

MAX30105 particleSensor;

bool bmeOk = false;

bool maxOk = false;

unsigned long lastSampleMs = 0;

unsigned long lastSlowMs = 0;

unsigned long lastDebugMs = 0;

int lastEcgValue = 512;

int lastRawAdc = 0;

float lastVoltage = 0.0f;

bool lastLeadsOff = true;

int lastLoPlus = 0;

int lastLoMinus = 0;

int ecgQueue[ECG_QUEUE_SIZE];

volatile uint8_t ecgQWrite = 0;

volatile uint8_t ecgQRead = 0;

int ecgBpm = -1;

int32_t ecgBaseline = 512;

int ecgSignalLevel = 0;

bool ecgBeatArmed = true;

unsigned long lastRPeakMs = 0;

float roomTempC = 0.0f;

float roomHumidity = 0.0f;

float bodyTempC = -999.0f;

int spo2Pct = -1;

bool fingerDetected = false;

uint32_t irBuffer[100];

uint32_t redBuffer[100];

int32_t spo2 = 0;

int8_t validSPO2 = 0;

int32_t maximHeartRate = 0;

int8_t validMaximHeartRate = 0;

byte sampleIndex = 0;

bool bufferFilled = false;

char jsonBuffer[384];

bool leadsOff() {

lastLoPlus = digitalRead(LO_PLUS_PIN);

lastLoMinus = digitalRead(LO_MINUS_PIN);

return (lastLoPlus == HIGH) || (lastLoMinus == HIGH);

}

float readChannelVoltage(uint8_t channel) {

int32_t sum = 0;

for (uint8_t i = 0; i < 4; i++) {

sum += ads.readADC_SingleEnded(channel);

yield();

}

return ads.computeVolts((int16_t)(sum / 4));

}

float ntcResistanceFromVoltage(float voltage) {

if (voltage <= 0.001f || voltage >= SUPPLY_VOLTAGE - 0.001f) {

return NAN;

}

return SERIES_RESISTOR_OHMS * voltage / (SUPPLY_VOLTAGE - voltage);

}

float ntcResistanceToCelsius(float resistance) {

if (isnan(resistance) || resistance <= 0.0f) {

return NAN;

}

float steinhart = resistance / NTC_NOMINAL_OHMS;

steinhart = log(steinhart);

steinhart /= NTC_BETA;

steinhart += 1.0f / (NTC_NOMINAL_TEMP_C + 273.15f);

steinhart = 1.0f / steinhart;

return steinhart - 273.15f;

}

float readBodyTemperatureC() {

const float voltage = readChannelVoltage(THERMISTOR_CHANNEL);

const float resistance = ntcResistanceFromVoltage(voltage);

return ntcResistanceToCelsius(resistance);

}

int readEcgValue() {

lastRawAdc = ads.readADC_SingleEnded(ECG_CHANNEL);

lastVoltage = ads.computeVolts(lastRawAdc);

return map(lastRawAdc, 0, 32767, 0, 1023);

}

void ecgQueueClear() {

ecgQRead = 0;

ecgQWrite = 0;

}

void ecgQueuePush(int value) {

const uint8_t next = (uint8_t)((ecgQWrite + 1) % ECG_QUEUE_SIZE);

if (next == ecgQRead) {

ecgQRead = (uint8_t)((ecgQRead + 1) % ECG_QUEUE_SIZE);

}

ecgQueue[ecgQWrite] = value;

ecgQWrite = next;

}

uint8_t ecgQueueDrain(int* out, uint8_t maxOut) {

uint8_t count = 0;

while (ecgQRead != ecgQWrite && count < maxOut) {

out[count++] = ecgQueue[ecgQRead];

ecgQRead = (uint8_t)((ecgQRead + 1) % ECG_QUEUE_SIZE);

}

return count;

}

void resetEcgBpm() {

ecgBpm = -1;

ecgBaseline = 512;

ecgSignalLevel = 0;

ecgBeatArmed = true;

lastRPeakMs = 0;

ecgQueueClear();

}

void updateEcgBpm(int sample) {

ecgBaseline = (ecgBaseline * 995 + sample * 5) / 1000;

const int hp = abs(sample - (int)ecgBaseline);

ecgSignalLevel = (ecgSignalLevel * 127 + hp) / 128;

const int threshold = max(18, (ecgSignalLevel * 3) / 2);

if (hp > threshold && ecgBeatArmed) {

const unsigned long now = millis();

if (lastRPeakMs > 0) {

const unsigned long interval = now - lastRPeakMs;

if (interval >= 300 && interval <= 2000) {

const int bpm = (int)(60000UL / interval);

ecgBpm = (ecgBpm < 0) ? bpm : ((ecgBpm * 3) + bpm) / 4;

}

lastRPeakMs = now;

ecgBeatArmed = false;

} else if (hp < threshold / 3) {

ecgBeatArmed = true;

}

void updateEcgSample() {

const unsigned long now = millis();

if (now - lastSampleMs < SAMPLE_INTERVAL_MS) {

return;

}

lastSampleMs = now;

lastLeadsOff = leadsOff();

if (lastLeadsOff) {

resetEcgBpm();

lastEcgValue = 512;

ecgQueuePush(512);

} else {

lastEcgValue = readEcgValue();

ecgQueuePush(lastEcgValue);

updateEcgBpm(lastEcgValue);

}

void shiftBuffers() {

for (byte i = SPO2_SHIFT_SAMPLES; i < SPO2_BUFFER_LENGTH; i++) {

redBuffer[i - SPO2_SHIFT_SAMPLES] = redBuffer[i];

irBuffer[i - SPO2_SHIFT_SAMPLES] = irBuffer[i];

}

sampleIndex = SPO2_BUFFER_LENGTH - SPO2_SHIFT_SAMPLES;

}

void calculateSpO2() {

maxim_heart_rate_and_oxygen_saturation(

irBuffer, SPO2_BUFFER_LENGTH, redBuffer,

&spo2, &validSPO2, &maximHeartRate, &validMaximHeartRate

);

}

void updateSpO2Reading() {

if (fingerDetected && validSPO2 && spo2 > 0 && spo2 <= 100) {

spo2Pct = (int)spo2;

} else {

spo2Pct = -1;

}

void updateMax30102() {

if (!maxOk) {

return;

}

particleSensor.check();

while (particleSensor.available()) {

const uint32_t irValue = particleSensor.getIR();

const uint32_t redValue = particleSensor.getRed();

particleSensor.nextSample();

fingerDetected = (irValue >= FINGER_IR_THRESHOLD);

if (!bufferFilled) {

redBuffer[sampleIndex] = redValue;

irBuffer[sampleIndex] = irValue;

sampleIndex++;

if (sampleIndex >= SPO2_BUFFER_LENGTH) {

bufferFilled = true;

calculateSpO2();

sampleIndex = SPO2_BUFFER_LENGTH - SPO2_SHIFT_SAMPLES;

updateSpO2Reading();

server.handleClient();

}

} else {

redBuffer[sampleIndex] = redValue;

irBuffer[sampleIndex] = irValue;

sampleIndex++;

if (sampleIndex >= SPO2_BUFFER_LENGTH) {

shiftBuffers();

calculateSpO2();

updateSpO2Reading();

server.handleClient();

}

yield();

server.handleClient();

}

void updateSlowSensors() {

const unsigned long now = millis();

if (now - lastSlowMs < SLOW_SENSOR_MS) {

return;

}

lastSlowMs = now;

if (bmeOk) {

roomTempC = bme.readTemperature();

roomHumidity = bme.readHumidity();

}

const float body = readBodyTemperatureC();

bodyTempC = isnan(body) ? -999.0f : body;

if (now - lastDebugMs >= 2000) {

lastDebugMs = now;

Serial.printf(

"Room: %.1f C Hum: %.1f%% Body: %.1f C SpO2: %d%% (valid=%d) Finger: %s\n",

roomTempC, roomHumidity, bodyTempC, spo2Pct, validSPO2, fingerDetected ? "yes" : "no"

);

Serial.printf(

"ECG plot=%d raw=%d %.3fV bpm=%d leads=%s\n",

lastEcgValue, lastRawAdc, lastVoltage, ecgBpm, lastLeadsOff ? "OFF" : "ON"

);

}

void handleRoot() {

server.send_P(200, "text/html", DASHBOARD_PAGE);

}

void handleEcgApi() {

int samples[ECG_QUEUE_SIZE];

uint8_t count = ecgQueueDrain(samples, ECG_QUEUE_SIZE);

if (count == 0) {

samples[0] = lastEcgValue;

count = 1;

}

char* p = jsonBuffer;

int rem = (int)sizeof(jsonBuffer);

int n = snprintf(p, rem, "{\"v\":[");

p += n;

rem -= n;

for (uint8_t i = 0; i < count && rem > 12; i++) {

if (i > 0) {

*p++ = ',';

rem--;

}

n = snprintf(p, rem, "%d", samples[i]);

p += n;

rem -= n;

}

snprintf(

p, rem,

"],\"lo\":%d,\"raw\":%d,\"mv\":%d,\"lp\":%d,\"lm\":%d,\"bpm\":%d}",

lastLeadsOff ? 1 : 0,

lastRawAdc,

(int)(lastVoltage * 1000.0f),

lastLoPlus,

lastLoMinus,

ecgBpm

);

server.sendHeader("Cache-Control", "no-cache");

server.send(200, "application/json", jsonBuffer);

}

void handleVitalsApi() {

snprintf(

jsonBuffer, sizeof(jsonBuffer),

"{\"roomT\":%.1f,\"hum\":%.1f,\"bodyT\":%.1f,\"spo2\":%d,\"spo2Valid\":%d,\"finger\":%d,\"bme\":%d}",

roomTempC,

roomHumidity,

bodyTempC,

spo2Pct,

(validSPO2 && fingerDetected) ? 1 : 0,

fingerDetected ? 1 : 0,

bmeOk ? 1 : 0

);

server.sendHeader("Cache-Control", "no-cache");

server.send(200, "application/json", jsonBuffer);

}

void setupWiFi() {

WiFi.mode(WIFI_STA);

WiFi.begin(WIFI_SSID, WIFI_PASSWORD);

Serial.print(F("Connecting to WiFi"));

uint8_t attempts = 0;

while (WiFi.status() != WL_CONNECTED && attempts < 40) {

delay(500);

Serial.print('.');

attempts++;

}

Serial.println();

if (WiFi.status() != WL_CONNECTED) {

Serial.println(F("WiFi failed."));

return;

}

Serial.print(F("Open: http://"));

Serial.println(WiFi.localIP());

}

void setup() {

Serial.begin(115200);

delay(500);

pinMode(ECG_SDN_PIN, OUTPUT);

digitalWrite(ECG_SDN_PIN, HIGH);

pinMode(LO_PLUS_PIN, INPUT);

pinMode(LO_MINUS_PIN, INPUT);

Wire.begin(I2C_SDA_PIN, I2C_SCL_PIN);

if (!ads.begin(ADS1115_I2C_ADDR)) {

Serial.println(F("ERROR: ADS1115 not found"));

while (true) {

delay(1000);

yield();

}

ads.setGain(GAIN_ONE);

ads.setDataRate(RATE_ADS1115_128SPS);

Serial.println(F("ADS1115 OK (ECG AIN0, NTC AIN1)"));

bmeOk = bme.begin(BME280_I2C_ADDR);

Serial.println(bmeOk ? F("BME280 OK") : F("BME280 not found"));

maxOk = particleSensor.begin(Wire, I2C_SPEED_FAST);

if (maxOk) {

particleSensor.setup(60, 4, 2, 100, 411, 4096);

particleSensor.setPulseAmplitudeGreen(0);

Serial.println(F("MAX30102 OK (SparkFun SpO2 algorithm)"));

} else {

Serial.println(F("MAX30102 not found"));

}

setupWiFi();

server.on("/", handleRoot);

server.on("/api/ecg", handleEcgApi);

server.on("/api/vitals", handleVitalsApi);

server.begin();

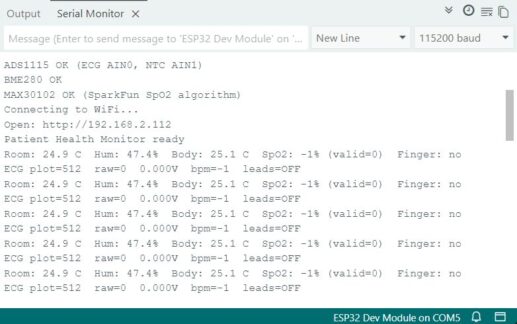

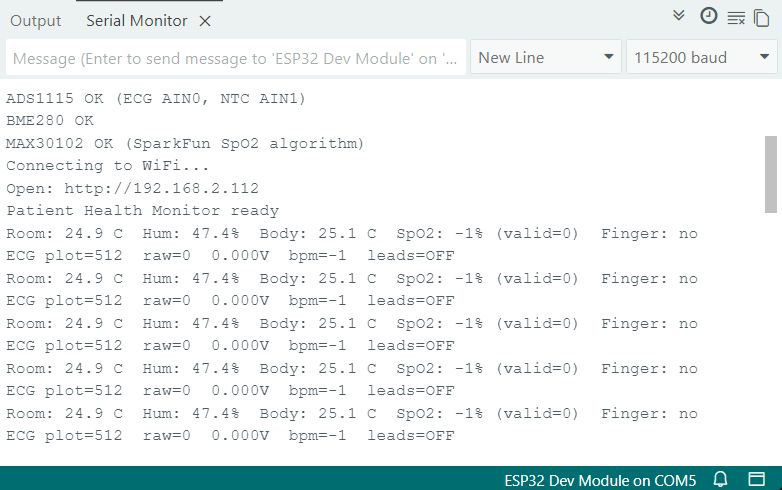

Serial.println(F("Patient Health Monitor ready"));

}

void loop() {

server.handleClient();

if (WiFi.status() == WL_CONNECTED) {

updateEcgSample();

updateMax30102();

updateSlowSensors();

server.handleClient();

}

yield();

}

dashboard_page.h

The dashboard is stored as a single HTML page inside dashboard_page.h using PROGMEM (DASHBOARD_PAGE string). The ESP32 serves it directly without needing external hosting or SD card storage.

Create a file named dashboard_page.h in the same folder as the sketch and paste the following code:

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

256

257

258

259

260

261

262

263

264

265

266

267

268

269

270

271

272

273

274

275

276

277

278

279

280

281

282

283

284

285

286

287

288

289

290

291

292

293

294

295

296

297

298

299

300

301

302

303

304

305

306

307

308

309

310

311

312

313

314

315

316

317

318

319

320

321

322

323

324

325

326

327

328

329

330

331

332

333

334

335

336

337

338

339

340

341

342

343

344

345

346

347

348

349

350

351

352

353

354

355

356

357

358

359

360

361

362

363

364

365

366

367

368

369

370

371

372

373

374

375

376

377

378

379

380

381

382

383

384

385

386

387

388

389

390

391

392

393

394

395

396

397

398

399

400

401

402

403

404

405

406

407

408

409

410

411

412

413

414

415

416

417

418

419

420

421

422

423

424

425

426

427

428

429

430

431

432

433

434

435

436

437

438

439

440

441

442

443

444

445

446

447

448

449

450

451

452

453

454

455

456

457

458

459

460

461

462

463

464

465

466

467

468

469

470

471

472

473

474

475

476

477

478

479

480

481

482

483

484

485

486

487

488

489

490

491

492

493

494

495

496

497

498

499

500

501

502

503

504

505

506

507

508

509

510

511

512

513

514

515

516

517

518

519

520

521

522

523

524

525

526

527

528

529

530

531

532

533

534

535

536

537

538

539

540

541

542

543

544

545

546

547

548

549

550

551

552

553

554

555

556

557

558

559

560

561

562

563

564

565

566

567

568

569

570

571

572

573

574

575

576

577

578

579

580

581

582

583

584

585

586

587

588

589

590

591

592

593

594

595

596

597

598

599

600

601

602

603

604

605

606

607

608

609

610

611

612

613

614

615

616

617

618

619

620

621

622

623

624

625

626

627

628

629

630

631

632

633

634

635

636

637

638

639

640

641

642

643

644

645

646

647

648

649

650

651

652

653

654

655

656

657

658

659

660

661

662

663

664

665

666

667

668

669

670

671

672

673

674

675

676

677

678

679

680

681

682

683

684

685

686

687

688

689

690

691

692

693

694

695

696

697

698

699

700

701

702

703

704

705

706

707

708

709

710

711

712

713

714

715

716

717

718

719

720

721

722

723

724

725

726

727

728

729

730

731

732

733

734

735

736

737

738

739

740

741

742

743

744

745

746

747

748

749

750

751

752

753

754

755

756

757

758

759

760

761

762

763

764

765

766

767

768

769

770

771

772

773

774

775

776

777

778

779

780

781

782

783

784

785

786

787

788

789

790

791

792

793

794

795

796

797

798

799

800

801

802

803

804

805

806

807

808

809

810

811

812

813

814

815

816

817

818

819

820

821

822

823

824

825

826

827

828

829

830

831

832

833

834

835

836

837

838

839

840

841

842

843

844

845

846

847

848

849

850

851

852

853

854

855

856

857

858

859

860

861

862

863

864

865

866

867

868

869

870

871

872

873

874

875

876

877

878

879

880

881

882

883

884

885

886

887

888

889

890

891

892

893

894

895

896

897

898

899

900

901

902

903

904

905

906

907

908

909

910

911

912

913

914

915

916

917

918

919

920

921

922

923

924

925

926

927

928

929

930

931

932

933

934

935

936

937

938

939

940

941

942

943

944

945

946

947

948

949

950

951

952

953

954

955

956

957

958

959

960

961

962

963

964

965

966

967

968

969

970

971

972

973

974

975

976

977

978

979

980

981

982

983

984

985

986

987

988

989

990

991

992

993

994

995

996

997

998

999

1000

1001

1002

1003

1004

1005

1006

1007

1008

1009

1010

1011

1012

1013

1014

1015

1016

1017

1018

1019

1020

1021

1022

1023

1024

1025

1026

1027

1028

1029

1030

1031

1032

1033

1034

1035

1036

1037

1038

1039

1040

1041

1042

1043

1044

1045

1046

1047

1048

1049

1050

1051

1052

1053

1054

1055

1056

1057

1058

1059

1060

1061

1062

1063

1064

1065

1066

1067

1068

1069

1070

1071

1072

1073

1074

1075

1076

1077

1078

1079

1080

1081

1082

1083

1084

1085

1086

1087

1088

1089

1090

1091

1092

1093

1094

1095

1096

1097

1098

1099

1100

1101

1102

1103

1104

1105

1106

1107

1108

1109

1110

1111

1112

1113

1114

1115

1116

1117

1118

1119

1120

1121

1122

1123

1124

1125

1126

1127

1128

1129

1130

1131

1132

1133

1134

1135

1136

1137

1138

1139

1140

1141

1142

1143

1144

1145

1146

1147

1148

1149

1150

1151

1152

1153

1154

1155

1156

1157

1158

1159

1160

1161

1162

1163

1164

1165

1166

1167

1168

1169

1170

1171

1172

1173

1174

1175

1176

1177

1178

1179

1180

1181

1182

1183

1184

1185

1186

1187

1188

1189

1190

1191

1192

1193

1194

1195

1196

1197

1198

1199

1200

1201

1202

1203

1204

1205

1206

1207

1208

1209

1210

1211

1212

1213

1214

1215

1216

1217

1218

1219

1220

1221

1222

1223

1224

1225

1226

1227

1228

1229

1230

1231

1232

1233

1234

1235

1236

1237

1238

1239

1240

1241

1242

1243

1244

1245

1246

1247

1248

1249

1250

1251

1252

1253

1254

1255

1256

1257

1258

1259

1260

1261

1262

1263

1264

1265

1266

1267

1268

1269

1270

1271

1272

1273

1274

1275

1276

1277

1278

1279

1280

1281

1282

1283

1284

1285

1286

1287

1288

1289

1290

1291

1292

1293

1294

1295

1296

1297

1298

1299

1300

1301

1302

1303

1304

1305

1306

1307

1308

1309

1310

1311

1312

1313

1314

1315

1316

1317

1318

1319

1320

1321

1322

1323

1324

1325

1326

1327

1328

1329

1330

1331

1332

1333

1334

1335

1336

1337

1338

1339

1340

1341

1342

1343

1344

1345

1346

1347

1348

1349

1350

1351

1352

1353

1354

1355

1356

1357

1358

1359

1360

1361

1362

1363

1364

1365

1366

1367

1368

1369

1370

1371

1372

1373

1374

1375

1376

1377

1378

1379

1380

1381

1382

1383

1384

1385

1386

1387

1388

1389

1390

1391

1392

1393

1394

1395

1396

1397

1398

1399

1400

1401

1402

1403

1404

1405

1406

1407

1408

1409

1410

1411

1412

1413

1414

1415

1416

1417

1418

1419

1420

1421

1422

1423

1424

1425

1426

1427

1428

1429

1430

1431

1432

1433

1434

1435

1436

1437

1438

1439

1440

1441

1442

1443

1444

1445

1446

1447

1448

1449

1450

1451

1452

1453

1454

1455

1456

1457

1458

1459

1460

1461

1462

1463

1464

1465

1466

1467

1468

1469

1470

1471

1472

1473

1474

1475

1476

1477

1478

1479

1480

1481

1482

1483

1484

1485

1486

1487

1488

1489

1490

1491

1492

1493

1494

1495

1496

1497

1498

1499

1500

1501

1502

1503

1504

1505

1506

1507

1508

1509

1510

1511

1512

1513

1514

1515

1516

1517

1518

1519

1520

1521

1522

1523

1524

1525

1526

1527

1528

1529

1530

1531

1532

1533

1534

1535

1536

1537

1538

1539

1540

1541

1542

1543

1544

1545

1546

1547

1548

1549

1550

1551

1552

1553

1554

1555

1556

1557

1558

1559

1560

1561

1562

1563

1564

1565

1566

1567

1568

1569

1570

1571

1572

1573

1574

1575

1576

1577

1578

1579

1580

1581

1582

1583

1584

1585

1586

1587

1588

1589

1590

1591

1592

1593

1594

1595

1596

1597

1598

1599

1600

1601

1602

1603

1604

1605

1606

1607

1608

1609

1610

1611

1612

1613

1614

1615

1616

1617

1618

1619

1620

1621

1622

1623

1624

1625

1626

1627

1628

1629

1630

1631

1632

1633

1634

1635

1636

1637

1638

1639

1640

1641

1642

1643

1644

1645

1646

1647

1648

1649

1650

1651

1652

1653

1654

1655

1656

1657

1658

1659

1660

1661

1662

1663

1664

1665

1666

1667

1668

1669

1670

1671

1672

1673

1674

1675

1676

1677

1678

1679

1680

1681

1682

1683

1684

1685

1686

1687

1688

1689

1690

1691

1692

1693

1694

1695

1696

1697

1698

1699

1700

1701

1702

1703

1704

1705

1706

1707

1708

1709

1710

1711

1712

1713

1714

1715

1716

1717

1718

1719

1720

1721

1722

1723

1724

1725

1726

1727

1728

1729

1730

1731

1732

1733

1734

1735

1736

1737

1738

1739

1740

1741

1742

1743

1744

1745

1746

1747

1748

1749

1750

1751

1752

1753

1754

1755

1756

1757

1758

1759

1760

1761

1762

1763

1764

1765

1766

1767

1768

1769

1770

1771

1772

1773

1774

1775

1776

1777

1778

1779

1780

1781

1782

1783

1784

1785

1786

1787

1788

1789

1790

1791

1792

1793

1794

1795

1796

1797

1798

1799

1800

1801

1802

1803

1804

1805

1806

1807

1808

1809

1810

1811

1812

1813

1814

1815

1816

1817

1818

1819

1820

1821

1822

1823

1824

1825

1826

1827

1828

1829

1830

1831

1832

1833

1834

1835

1836

1837

1838

1839

1840

1841

1842

1843

1844

1845

1846

1847

1848

1849

1850

1851

1852

1853

1854

1855

1856

1857

1858

1859

1860

1861

1862

1863

1864

1865

1866

1867

1868

1869

1870

1871

1872

1873

1874

1875

1876

1877

1878

1879

1880

1881

1882

1883

1884

1885

1886

1887

1888

1889

1890

1891

1892

1893

1894

1895

1896

1897

1898

1899

1900

1901

1902

1903

1904

1905

1906

1907

1908

1909

1910

1911

1912

1913

1914

1915

1916

1917

1918

1919

1920

1921

1922

1923

1924

1925

1926

1927

1928

1929

1930

1931

1932

1933

1934

1935

1936

1937

1938

1939

1940

1941

1942

1943

1944

1945

1946

1947

1948

1949

1950

1951

1952

1953

1954

1955

1956

1957

1958

1959

1960

1961

1962

1963

1964

1965

1966

1967

1968

1969

1970

1971

1972

1973

1974

1975

1976

1977

1978

1979

1980

1981

1982

1983

1984

1985

1986

1987

1988

1989

1990

1991

1992

1993

1994

1995

1996

1997

1998

1999

2000

2001

2002

2003

2004

2005

2006

2007

2008

2009

2010

2011

2012

2013

2014

2015

2016

2017

2018

2019

2020

2021

2022

2023

2024

2025

2026

2027

2028

2029

2030

2031

2032

2033

2034

2035

2036

2037

2038

2039

2040

2041

2042

2043

2044

2045

2046

2047

2048

2049

2050

2051

2052

2053

2054

2055

2056

2057

2058

2059

2060

2061

2062

2063

2064

2065

2066

2067

2068

2069

2070

2071

2072

2073

2074

2075

2076

2077

2078

2079

2080

2081

2082

2083

2084

2085

2086

2087

2088

2089

2090

2091

2092

2093

2094

2095

2096

2097

2098

2099

2100

2101

2102

2103

2104

2105

2106

2107

2108

2109

2110

2111

2112

2113

2114

2115

2116

2117

2118

2119

2120

2121

2122

2123

2124

2125

2126

2127

2128

2129

2130

2131

2132

2133

2134

2135

2136

2137

2138

2139

2140

2141

2142

2143

2144

2145

2146

2147

2148

2149

2150

2151

2152

2153

2154

2155

2156

2157

2158

2159

2160

2161

2162

2163

2164

2165

2166

2167

2168

2169

2170

2171

2172

2173

2174

2175

2176

2177

2178

2179

2180

2181

2182

2183

2184

2185

2186

2187

2188

2189

2190

2191

2192

2193

2194

2195

2196

2197

2198

2199

2200

2201

2202

2203

2204

2205

2206

2207

2208

2209

2210

2211

2212

2213

2214

2215

2216

2217

2218

2219

2220

2221

2222

2223

2224

2225

2226

2227

2228

2229

2230

2231

2232

2233

2234

2235

2236

2237

2238

2239

2240

2241

2242

2243

2244

2245

2246

2247

2248

2249

2250

2251

2252

2253

2254

2255

2256

2257

2258

2259

2260

2261

2262

2263

2264

2265

2266

2267

2268

2269

2270

2271

2272

2273

2274

2275

2276

2277

2278

2279

2280

2281

2282

2283

2284

2285

2286

2287

2288

2289

2290

2291

2292

2293

2294

2295

2296

2297

2298

2299

2300

2301

2302

2303

2304

2305

2306

2307

2308

2309

2310

2311

2312

2313

2314

2315

2316

2317

2318

2319

2320

2321

2322

2323

2324

2325

2326

2327

2328

2329

2330

2331

2332

2333

2334

2335

2336

2337

2338

2339

2340

2341

2342

2343

2344

2345

2346

2347

2348

2349

2350

2351

2352

2353

2354

2355

2356

2357

2358

2359

2360

2361

2362

2363

2364

2365

2366

2367

2368

2369

2370

2371

2372

2373

2374

2375

2376

2377

2378

2379

2380

2381

2382

2383

2384

2385

2386

2387

2388

2389

2390

2391

2392

2393

2394

2395

2396

2397

2398

2399

2400

2401

2402

2403

2404

2405

2406

2407

2408

2409

2410

2411

2412

2413

2414

2415

2416

2417

2418

2419

2420

2421

2422

2423

2424

2425

2426

2427

2428

2429

2430

2431

2432

2433

2434

2435

2436

2437

2438

2439

2440

2441

2442

2443

2444

2445

2446

2447

2448

2449

2450

2451

2452

2453

2454

2455

2456

2457

2458

2459

2460

2461

2462

2463

2464

2465

2466

2467

2468

2469

2470

2471

2472

2473

2474

2475

2476

2477

2478

2479

2480

2481

2482

2483

2484

2485

2486

2487

2488

2489

2490

2491

2492

2493

2494

2495

2496

2497

2498

2499

2500

2501

2502

2503

2504

2505

2506

2507

2508

2509

2510

2511

2512

2513

2514

2515

2516

2517

2518

2519

2520

2521

2522

2523

2524

2525

2526

2527

2528

2529

2530

2531

2532

2533

2534

2535

2536

2537

2538

2539

2540

2541

2542

2543

2544

2545

2546

2547

2548

2549

2550

2551

2552

2553

2554

2555

2556

2557

2558

2559

2560

2561

2562

2563

2564

2565

2566

2567

2568

2569

2570

2571

2572

2573

2574

2575

2576

2577

2578

2579

2580

2581

2582

2583

2584

2585

2586

2587

2588

2589

2590

2591

2592

2593

2594

2595

2596

2597

2598

2599

2600

2601

2602

2603

2604

2605

2606

2607

2608

2609

2610

2611

2612

2613

2614

2615

2616

2617

2618

2619

2620

2621

2622

2623

2624

2625

2626

2627

2628

2629

2630

2631

2632

2633

2634

2635

2636

2637

2638

2639

2640

2641

2642

2643

2644

2645

2646

2647

2648

2649

2650

2651

2652

2653

2654

2655

2656

2657

2658

2659

2660

2661

2662

2663

2664

2665

2666

2667

2668

2669

2670

2671

2672

2673

2674

2675

2676

2677

2678

2679

2680

2681

2682

2683

2684

2685

2686

2687

2688

2689

2690

2691

2692

2693

2694

2695

2696

2697

2698

2699

2700

2701

2702

2703

2704

2705

2706

2707

2708

2709

2710

2711

2712

2713

2714

2715

2716

2717

2718

2719

2720

2721

2722

2723

2724

2725

2726

2727

2728

2729

2730

2731

2732

2733

2734

2735

2736

2737

2738

2739

2740

2741

2742

2743

2744

2745

2746

2747

2748

2749

2750

2751

2752

2753

2754

2755

2756

2757

2758

2759

2760

2761

2762

2763

2764

2765

2766

2767

2768

2769

2770

2771

2772

2773

2774

2775

2776

2777

2778

2779

2780

2781

2782

2783

2784

2785

2786

2787

2788

2789

2790

2791

2792

2793

2794

2795

2796

2797

2798

2799

2800

2801

2802

2803

2804

2805

2806

2807

2808

2809

2810

2811

2812

2813

2814

2815

2816

2817

2818

2819

2820

2821

2822

2823

2824

2825

2826

2827

2828

2829

2830

2831

2832

2833

2834

2835

2836

2837

2838

2839

2840

2841

2842

2843

2844

2845

2846

2847

2848

2849

2850

2851

2852

2853

2854

2855

2856

2857

2858

2859

2860

2861

2862

2863

2864

2865

2866

2867

2868

2869

2870

2871

2872

2873

2874

2875

2876

2877

2878

2879

2880

2881

2882

2883

2884

2885

2886

2887

2888

2889

2890

2891

2892

2893

2894

2895

2896

2897

2898

2899

2900

2901

2902

2903

2904

2905

2906

2907

2908

2909

2910

2911

2912

2913

2914

2915

2916

2917

2918

2919

2920

2921

2922

2923

2924

2925

2926

2927

2928

2929

2930

2931

2932

2933

2934

2935

2936

2937

2938

2939

2940

2941

2942

2943

2944

2945

2946

2947

2948

2949

2950

2951

2952

2953

2954

2955

2956

2957

2958

2959

2960

2961

2962

2963

2964

2965

2966

2967

2968

2969

2970

2971

2972

2973

2974

2975

2976

2977

2978

2979

2980

2981

2982

2983

2984

2985

2986

2987

2988

2989

2990

2991

2992

2993

2994

2995

2996

2997

2998

2999

3000

3001

3002

3003

3004

3005

3006

3007

3008

3009

3010

3011

3012

3013

3014

3015

3016

3017

3018

3019

3020

3021

3022

3023

3024

3025

3026

3027

3028

3029

3030

3031

3032

3033

3034

#ifndef DASHBOARD_PAGE_H

#define DASHBOARD_PAGE_H

const char DASHBOARD_PAGE[] PROGMEM = R"rawliteral(

<!DOCTYPE html>

<head>

<title>Patient Health Monitor</title>

<style>

:root {

--bg-1: #eef4ff;

--bg-2: #e8f0fe;

--sidebar: #0f172a;

--sidebar-hover: #1e293b;

--sidebar-active: #2563eb;

--card: rgba(255,255,255,0.94);

--text: #0f172a;

--muted: #64748b;

--blue: #2563eb;

--cyan: #06b6d4;

--green: #16a34a;

--red: #ef4444;

--orange: #f59e0b;

--green-soft: #dcfce7;

--red-soft: #fee2e2;

--orange-soft: #fef3c7;

--blue-soft: #dbeafe;

--shadow: 0 20px 50px rgba(15,23,42,0.14);

--radius: 18px;

}

* { margin: 0; padding: 0; box-sizing: border-box; }

html, body { height: 100%; width: 100%; overflow: hidden; }

body {

font-family: "Plus Jakarta Sans", "Segoe UI", system-ui, sans-serif;

color: var(--text);

background:

radial-gradient(circle at 8% 10%, rgba(37,99,235,0.18), transparent 30%),

radial-gradient(circle at 92% 8%, rgba(6,182,212,0.16), transparent 28%),

linear-gradient(135deg, var(--bg-1), var(--bg-2));

display: flex;

align-items: center;

justify-content: center;

padding: 0;

}

.viewport-wrap {

aspect-ratio: 15 / 9;

width: min(100vw, calc(100vh * 15 / 9));

height: min(100vh, calc(100vw * 9 / 15));

}

.app-shell {

width: 100%;

height: 100%;

display: flex;

border-radius: 0;

overflow: hidden;

box-shadow: none;

border: none;

background: var(--card);

}

.sidebar {

width: 210px;

flex-shrink: 0;

background: linear-gradient(180deg, #0b1224 0%, #111827 55%, #0f172a 100%);

color: #e2e8f0;

display: flex;

flex-direction: column;

padding: 18px 12px;

border-right: 1px solid rgba(255,255,255,0.06);

}

.sidebar-brand {

display: flex;

align-items: center;

gap: 10px;

padding: 8px 10px 20px;

border-bottom: 1px solid rgba(255,255,255,0.08);

margin-bottom: 14px;

}

.sidebar-logo {

width: 42px; height: 42px; border-radius: 13px;

background: linear-gradient(135deg, #f43f5e 0%, #e11d48 50%, #be123c 100%);

display: grid; place-items: center;

box-shadow: 0 6px 18px rgba(244,63,94,0.45);

flex-shrink: 0;

}

.sidebar-logo svg {

width: 24px; height: 24px;

fill: none; stroke: #fff;

stroke-width: 2.2; stroke-linecap: round; stroke-linejoin: round;

}

.sidebar-brand strong {

display: block; font-size: 0.88rem; letter-spacing: -0.02em;

background: linear-gradient(90deg, #fff, #fda4af);

-webkit-background-clip: text; -webkit-text-fill-color: transparent;

background-clip: text;

}

.sidebar-brand span {

font-size: 0.68rem; color: #94a3b8;

}

.nav-label {

font-size: 0.65rem; text-transform: uppercase;

letter-spacing: 0.1em; color: #64748b;

padding: 0 10px; margin-bottom: 8px;

}

.nav { flex: 1; display: flex; flex-direction: column; gap: 4px; }

.nav-item {

border: none; background: transparent; color: #cbd5e1;

text-align: left; padding: 10px 12px;

border-radius: 12px; font-size: 0.84rem; font-weight: 700;

cursor: pointer; display: flex; align-items: center; gap: 10px;

transition: background 0.15s, color 0.15s, transform 0.12s;

}

.nav-item:hover { background: var(--sidebar-hover); color: #fff; transform: translateX(2px); }

.nav-item.active {

background: linear-gradient(90deg, #2563eb, #3b82f6);

color: #fff;

box-shadow: 0 8px 22px rgba(37,99,235,0.4);

}

.nav-icon-wrap {

width: 30px; height: 30px; border-radius: 9px;

display: grid; place-items: center;

font-size: 14px; flex-shrink: 0;

background: rgba(255,255,255,0.08);

}

.nav-item.active .nav-icon-wrap { background: rgba(255,255,255,0.22); }

.nav-item[data-page="dashboard"] .nav-icon-wrap { background: rgba(244,63,94,0.2); }

.nav-item[data-page="patient"] .nav-icon-wrap { background: rgba(59,130,246,0.2); }

.nav-item[data-page="logging"] .nav-icon-wrap { background: rgba(16,185,129,0.2); }

.nav-item[data-page="alerts"] .nav-icon-wrap { background: rgba(245,158,11,0.2); }

.nav-icon { width: auto; text-align: center; opacity: 1; }

.sidebar-foot {

padding: 12px 10px 4px;

border-top: 1px solid rgba(255,255,255,0.08);

font-size: 0.72rem; color: #94a3b8;

}

.live-pill {

display: flex; align-items: center; gap: 7px;

margin-bottom: 6px; font-weight: 800; color: #e2e8f0;

}

.live-dot {

width: 8px; height: 8px; border-radius: 50%;

background: var(--green);

animation: pulse 1.5s infinite;

}

.live-dot.off { background: var(--red); animation: none; }

@keyframes pulse {

0% { box-shadow: 0 0 0 0 rgba(22,163,74,0.5); }

75% { box-shadow: 0 0 0 8px rgba(22,163,74,0); }

100% { box-shadow: 0 0 0 0 rgba(22,163,74,0); }

}

.main {

flex: 1; min-width: 0;

display: flex; flex-direction: column;

background: linear-gradient(180deg, #fafbff, #f1f5f9);

}

.topbar {

flex-shrink: 0;

padding: 10px 16px;

display: flex; justify-content: space-between; align-items: center;

gap: 12px;

border-bottom: 1px solid rgba(148,163,184,0.15);

background: linear-gradient(90deg, rgba(255,255,255,0.98), rgba(239,246,255,0.98));

}

.topbar h1 {

font-size: 1.12rem; letter-spacing: -0.03em; font-weight: 800;

}

.topbar p { font-size: 0.76rem; color: var(--muted); margin-top: 2px; font-weight: 600; }

.topbar-actions {

display: flex; align-items: center; gap: 12px;

flex-shrink: 0;

}

.topbar-meta {

text-align: right; font-size: 0.72rem; color: var(--muted); font-weight: 700;

}

.topbar-meta strong { display: block; color: var(--text); font-size: 0.86rem; font-weight: 800; }

.sound-toggle {

width: 36px; height: 36px;

border-radius: 11px;

border: 1.5px solid #e2e8f0;

background: #fff;

color: #64748b;

font-size: 16px; line-height: 1;

cursor: pointer;

display: grid; place-items: center;

transition: background 0.15s, border-color 0.15s, color 0.15s, transform 0.12s;

flex-shrink: 0;

}

.sound-toggle:hover { background: #f8fafc; border-color: #cbd5e1; }

.sound-toggle:active { transform: scale(0.94); }

.sound-toggle.muted { opacity: 0.5; background: #f1f5f9; }

.sound-toggle:not(.muted) {

background: #eff6ff;

border-color: #93c5fd;

color: #2563eb;

}

.sound-toggle svg {

width: 18px; height: 18px;

stroke: currentColor; fill: none;

stroke-width: 2; stroke-linecap: round; stroke-linejoin: round;

}

.sound-toggle .sound-off { display: none; }

.sound-toggle.muted .sound-on { display: none; }

.sound-toggle.muted .sound-off { display: block; }

.topbar-actions .sound-toggle + .topbar-meta {

padding-left: 12px;

border-left: 1px solid #e2e8f0;

}

.page-area {

flex: 1; min-height: 0;

overflow: hidden; position: relative;

}

.page {

display: none;

position: absolute;

inset: 0;

overflow-y: auto;

overflow-x: hidden;

padding: 14px 18px 16px;

-webkit-overflow-scrolling: touch;

}

.page.active {

display: block;

z-index: 1;

}

#page-patient.page.active {

display: flex;

flex-direction: column;

overflow: hidden;

padding: 10px 14px 12px;

background: linear-gradient(180deg, #f0f4fa 0%, #e8eef6 100%);

}

.record-page {

flex: 1; min-height: 0;

display: flex; flex-direction: column; gap: 10px;

overflow: hidden;

}

.record-banner {

flex-shrink: 0;

position: relative; overflow: hidden;

border-radius: 18px;

padding: 0;

}

.record-banner-bg {

position: absolute; inset: 0;

background: linear-gradient(120deg, #1e3a8a 0%, #2563eb 45%, #0891b2 100%);

}

.record-banner-bg::after {

content: "";

position: absolute; inset: 0;

background:

radial-gradient(circle at 85% 20%, rgba(255,255,255,0.2), transparent 42%),

radial-gradient(circle at 12% 88%, rgba(255,255,255,0.12), transparent 38%);

}

.record-profile {

position: relative; z-index: 1;

display: flex; align-items: center; gap: 14px;

padding: 16px 18px;

color: #fff;

}

.record-avatar-ring {

padding: 3px;

border-radius: 20px;

background: linear-gradient(135deg, rgba(255,255,255,0.95), rgba(255,255,255,0.35));

flex-shrink: 0;

}

.record-profile .patient-avatar {

width: 68px; height: 68px;

border-radius: 16px;

font-size: 1.4rem;

box-shadow: 0 8px 20px rgba(0,0,0,0.2);

}

.record-profile-main { flex: 1; min-width: 0; }

.record-profile-main h2 {

margin: 0 0 8px;

font-size: 1.45rem; font-weight: 900;

letter-spacing: -0.03em;

line-height: 1.15;

word-break: break-word;

}

.record-profile .patient-chips {

display: flex; flex-wrap: wrap; gap: 6px;

}

.record-profile .patient-chip {

font-size: 0.78rem; font-weight: 800;

padding: 5px 11px;

border-radius: 999px;

background: rgba(255,255,255,0.18);

border: 1px solid rgba(255,255,255,0.35);

color: #fff;

}

.record-profile .patient-chip.loc {

color: #e0f2fe;

}

.btn-glow {

flex-shrink: 0;

box-shadow: 0 6px 20px rgba(15,23,42,0.25);

background: #fff !important;

color: #1d4ed8 !important;

font-weight: 900;

padding: 10px 16px;

font-size: 0.8rem;

white-space: nowrap;

}

.record-scroll {

flex: 1; min-height: 0;

overflow-y: auto;

overflow-x: hidden;

-webkit-overflow-scrolling: touch;

display: flex; flex-direction: column; gap: 10px;

padding-bottom: 4px;

}

.record-section-title {

font-size: 0.72rem; font-weight: 900;

text-transform: uppercase; letter-spacing: 0.08em;

color: var(--muted);

margin: 0 0 8px 2px;

}

.record-stats-row {

display: grid;

grid-template-columns: repeat(3, 1fr);

gap: 8px;

}

.record-stat {

padding: 14px 10px;

border-radius: 14px;

text-align: center;

display: flex; flex-direction: column; align-items: center; gap: 6px;

}

.record-stat-icon {

width: 40px; height: 40px; border-radius: 12px;

display: grid; place-items: center;

font-size: 18px;

}

.record-stat.rc-age { background: linear-gradient(180deg, #eff6ff, #fff); border: 1px solid #bfdbfe; }

.record-stat.rc-age .record-stat-icon { background: #dbeafe; }

.record-stat.rc-gender { background: linear-gradient(180deg, #fdf2f8, #fff); border: 1px solid #fbcfe8; }

.record-stat.rc-gender .record-stat-icon { background: #fce7f3; }

.record-stat.rc-blood { background: linear-gradient(180deg, #fef2f2, #fff); border: 1px solid #fecaca; }

.record-stat.rc-blood .record-stat-icon { background: #fee2e2; }

.record-stat-label {

font-size: 0.65rem; font-weight: 800;

text-transform: uppercase; letter-spacing: 0.06em;

color: var(--muted);

}

.record-stat-value {

font-size: 1.05rem; font-weight: 900;

color: var(--text); line-height: 1.2;

word-break: break-word;

}

.record-contact-row {

display: grid;

grid-template-columns: 1fr 1fr;

gap: 8px;

}

.record-detail-card {

padding: 14px 16px;

border-radius: 14px;

display: flex; align-items: center; gap: 12px;

}

.record-detail-card.rc-phone {

background: linear-gradient(135deg, #ecfdf5, #fff);

border: 1px solid #bbf7d0;

}

.record-detail-card.rc-id {

background: linear-gradient(135deg, #f5f3ff, #fff);

border: 1px solid #ddd6fe;

}

.record-detail-card .field-icon {

width: 38px; height: 38px; font-size: 16px; border-radius: 11px;

flex-shrink: 0;

}

.record-detail-label {

font-size: 0.65rem; font-weight: 800;

text-transform: uppercase; letter-spacing: 0.05em;

color: var(--muted);

}

.record-detail-value {

font-size: 0.95rem; font-weight: 800;

color: var(--text); margin-top: 2px;

word-break: break-word;

}

.record-notes-card {

padding: 14px 16px;

border-radius: 14px;

background: linear-gradient(180deg, #fffbeb, #ffffff);

border: 1px solid #fde68a;

}

.record-notes-card .record-section-title { margin-bottom: 10px; }

.record-notes-body {

padding: 12px 14px;

background: #fff;

border-radius: 10px;

border: 1px solid #fef3c7;

font-size: 0.92rem; font-weight: 600;

color: #475569; line-height: 1.55;

min-height: 88px;

word-break: break-word;

}

#page-logging.page.active,

#page-alerts.page.active {

display: flex;

flex-direction: column;

overflow: hidden;

padding: 10px 14px 12px;

gap: 10px;

background: linear-gradient(180deg, #f0f4fa 0%, #e8eef6 100%);

}

.logging-page, .alerts-page {

flex: 1; min-height: 0;

display: flex; flex-direction: column; gap: 10px;

}

.logging-toolbar {

flex-shrink: 0;

padding: 14px 16px;

display: flex; align-items: center; justify-content: space-between;

gap: 12px; flex-wrap: wrap;

border-radius: 16px;

}

.logging-controls {

display: flex; align-items: center; gap: 10px; flex-wrap: wrap;

}

.logging-controls label {

font-size: 0.72rem; font-weight: 900;

text-transform: uppercase; letter-spacing: 0.06em;

color: var(--muted);

}

.logging-controls select {

padding: 9px 12px; border-radius: 10px;

border: 1px solid #e2e8f0; background: #fff;

font-size: 0.85rem; font-weight: 700;

font-family: inherit; color: var(--text);

}

.btn-log { padding: 9px 14px; font-size: 0.78rem; }

.btn-log-start { background: #16a34a; color: #fff; }

.btn-log-stop { background: #ef4444; color: #fff; }

.btn-log-export { background: #2563eb; color: #fff; }

.logging-stats {

display: flex; align-items: center; gap: 14px;

font-size: 0.78rem; font-weight: 800; color: var(--muted);

}

.log-status-pill {

padding: 5px 12px; border-radius: 999px;

font-size: 0.68rem; font-weight: 900;

letter-spacing: 0.05em; text-transform: uppercase;

}

.log-status-pill.stopped { background: #f1f5f9; color: #64748b; }

.log-status-pill.running { background: #dcfce7; color: #16a34a; }

.logging-table-wrap {

flex: 1; min-height: 0;

overflow: hidden;

border-radius: 16px;

display: flex; flex-direction: column;

}

.logging-table-head {

flex-shrink: 0;

padding: 12px 16px;

border-bottom: 1px solid #e2e8f0;

display: flex; justify-content: space-between; align-items: center;

}

.logging-table-head h4 {

font-size: 0.85rem; font-weight: 900;

display: flex; align-items: center; gap: 8px;

}

.logging-table-scroll {

flex: 1; min-height: 0; overflow: auto;

-webkit-overflow-scrolling: touch;

}

.log-table {

width: 100%; border-collapse: collapse;

font-size: 0.78rem;

}

.log-table th {

position: sticky; top: 0; z-index: 1;

background: #f1f5f9;

padding: 10px 12px;

text-align: left; font-weight: 900;

color: #475569; text-transform: uppercase;

letter-spacing: 0.05em; font-size: 0.68rem;

border-bottom: 2px solid #e2e8f0;

}

.log-table td {

padding: 9px 12px;

border-bottom: 1px solid #f1f5f9;

font-weight: 600; color: var(--text);

}

.log-table tbody tr:nth-child(even) { background: #fafbfc; }

.log-table tbody tr:hover { background: #eff6ff; }

.log-empty {

padding: 40px; text-align: center;

color: var(--muted); font-weight: 700; font-size: 0.85rem;

}

.alerts-hero {

flex-shrink: 0;

padding: 14px 16px;

display: flex; justify-content: space-between; align-items: center;

gap: 12px;

border-radius: 16px;

background: linear-gradient(120deg, #7f1d1d 0%, #dc2626 40%, #ea580c 100%);

color: #fff;

box-shadow: 0 8px 28px rgba(220,38,38,0.25);

}

.alerts-hero h3 {

font-size: 1.05rem; font-weight: 900;

letter-spacing: -0.02em; margin: 0 0 3px;

color: #fff;

}

.alerts-hero p {

font-size: 0.72rem; color: rgba(255,255,255,0.85); margin: 0;

font-weight: 600;

}

.alerts-status-badge {

font-size: 0.68rem; font-weight: 900;

padding: 8px 14px; border-radius: 999px;

letter-spacing: 0.06em; text-transform: uppercase;

flex-shrink: 0;

background: rgba(255,255,255,0.95);

}

.alerts-status-badge.good { color: #16a34a; }

.alerts-status-badge.watch { color: #b45309; }

.alerts-status-badge.bad { color: #ef4444; }

.alerts-summary {

flex-shrink: 0;

display: grid;

grid-template-columns: repeat(3, 1fr);

gap: 8px;

}

.alerts-summary-card {

padding: 10px 12px;

border-radius: 12px;

text-align: center;

font-size: 0.65rem; font-weight: 800;

text-transform: uppercase; letter-spacing: 0.05em;

}

.alerts-summary-card span {

display: block;

font-size: 1.35rem; font-weight: 1000;

letter-spacing: -0.04em;

margin-bottom: 2px;

}

.alerts-summary-card.warn { background: #fff7ed; border: 1px solid #fdba74; color: #c2410c; }

.alerts-summary-card.warn span { color: #ea580c; }

.alerts-summary-card.ok { background: #f0fdf4; border: 1px solid #86efac; color: #15803d; }

.alerts-summary-card.ok span { color: #16a34a; }

.alerts-summary-card.info { background: #eff6ff; border: 1px solid #93c5fd; color: #1d4ed8; }

.alerts-summary-card.info span { color: #2563eb; }

.alerts-scroll {

flex: 1; min-height: 0;

overflow-y: auto;

overflow-x: hidden;

-webkit-overflow-scrolling: touch;

display: flex; flex-direction: column; gap: 12px;

padding-bottom: 4px;

}

.alerts-section-title {

font-size: 0.7rem; font-weight: 900;

text-transform: uppercase; letter-spacing: 0.08em;

color: var(--muted);

margin: 0 0 8px 2px;

display: flex; align-items: center; gap: 6px;

}

.alert-row {

display: flex; gap: 12px; align-items: flex-start;

padding: 12px 14px;

border-radius: 14px;

margin-bottom: 8px;

border: 1px solid #e8eef5;

background: #fff;

transition: box-shadow 0.15s;

}

.alert-row:last-child { margin-bottom: 0; }

.alert-row.alert-ok { border-left: 4px solid #22c55e; background: linear-gradient(90deg, #f0fdf4, #fff); }

.alert-row.alert-warn { border-left: 4px solid #f59e0b; background: linear-gradient(90deg, #fffbeb, #fff); }

.alert-row.alert-bad { border-left: 4px solid #ef4444; background: linear-gradient(90deg, #fef2f2, #fff); }

.alert-row.alert-info { border-left: 4px solid #3b82f6; background: linear-gradient(90deg, #eff6ff, #fff); }

.alert-row-icon {

width: 42px; height: 42px; flex-shrink: 0;

border-radius: 12px;

display: grid; place-items: center;

font-size: 20px;

}

.alert-row.alert-ok .alert-row-icon { background: #dcfce7; }

.alert-row.alert-warn .alert-row-icon { background: #fef3c7; }

.alert-row.alert-bad .alert-row-icon { background: #fee2e2; }

.alert-row.alert-info .alert-row-icon { background: #dbeafe; }

.alert-row-body { flex: 1; min-width: 0; }

.alert-row-top {

display: flex; align-items: flex-start; justify-content: space-between;

gap: 8px; margin-bottom: 4px;

}

.alert-row-top strong {

font-size: 0.88rem; color: var(--text); line-height: 1.3;

}

.alert-pill {

flex-shrink: 0;

font-size: 0.58rem; font-weight: 900;

padding: 3px 8px; border-radius: 999px;

letter-spacing: 0.05em; text-transform: uppercase;

}

.alert-pill.ok { background: #dcfce7; color: #16a34a; }

.alert-pill.warn { background: #fef3c7; color: #b45309; }

.alert-pill.bad { background: #fee2e2; color: #ef4444; }

.alert-pill.info { background: #dbeafe; color: #2563eb; }

.alert-row-body > p {

font-size: 0.78rem; color: #475569;

line-height: 1.4; margin: 0 0 6px; font-weight: 600;

}

.alert-tip {

font-size: 0.72rem; color: #64748b;

line-height: 1.4; margin: 0;

padding: 7px 10px;

background: rgba(255,255,255,0.7);

border-radius: 8px;

border: 1px dashed #cbd5e1;

font-weight: 600;

}

.alert-tip::before { content: "💡 "; }

.alerts-suggestions {

padding: 14px 16px;

border-radius: 14px;

background: linear-gradient(135deg, #eff6ff, #f0fdf4);

border: 1px solid #bfdbfe;

}

.alerts-suggestions .alerts-section-title { color: #1d4ed8; }

.alert-suggest-list {

list-style: none; margin: 0; padding: 0;

display: flex; flex-direction: column; gap: 8px;

}

.alert-suggest-list li {

font-size: 0.78rem; font-weight: 600;

color: #334155; line-height: 1.45;

padding: 9px 12px 9px 32px;

background: #fff;

border-radius: 10px;

border: 1px solid #e2e8f0;

position: relative;

}

.alert-suggest-list li::before {

content: "✓";

position: absolute; left: 10px; top: 9px;

width: 18px; height: 18px; border-radius: 50%;

background: #dbeafe; color: #2563eb;

font-size: 0.62rem; font-weight: 900;

display: grid; place-items: center;

}

.patient-page {

flex: 1; min-height: 0;

display: flex; flex-direction: column;

}

.patient-panel {

flex: 1; min-height: 0;

display: flex; flex-direction: column;

overflow: hidden;

padding: 0;

}

.patient-hero {

flex-shrink: 0;

padding: 16px 20px;

background: linear-gradient(120deg, #eff6ff 0%, #ecfeff 45%, #ffffff 100%);

border-bottom: 1px solid rgba(148, 163, 184, 0.25);

display: flex; align-items: center; gap: 18px;

}

.patient-avatar {

width: 76px; height: 76px; flex-shrink: 0;

border-radius: 18px;

background: linear-gradient(145deg, var(--blue), var(--cyan));

color: #fff; font-size: 1.55rem; font-weight: 900;

display: grid; place-items: center;

box-shadow: 0 10px 24px rgba(37, 99, 235, 0.28);

letter-spacing: 0.02em;

}

.patient-hero-main { flex: 1; min-width: 0; }

.patient-hero-main h2 {

margin: 0 0 10px; font-size: 1.65rem; font-weight: 900;

letter-spacing: -0.03em; line-height: 1.15;

white-space: nowrap; overflow: hidden; text-overflow: ellipsis;

}

.patient-chips { display: flex; flex-wrap: wrap; gap: 8px; }

.patient-chip {

font-size: 0.88rem; font-weight: 800; padding: 7px 14px;

border-radius: 999px; background: rgba(255,255,255,0.92);

border: 1px solid #dbeafe; color: #1d4ed8;

}

.patient-chip.loc { border-color: #99f6e4; color: #0f766e; }

.patient-hero .btn {

flex-shrink: 0; padding: 12px 20px; font-size: 0.92rem;

}

.patient-body {

flex: 1; min-height: 0;

display: grid;

grid-template-columns: 1fr 1fr 1.15fr;

gap: 12px;

padding: 12px 14px 14px;

overflow: hidden;

align-items: stretch;

}

.patient-section {

background: #f8fafc;

border: 1px solid #e8eef5;

border-radius: 14px;

padding: 16px 18px;

display: flex; flex-direction: column;

min-height: 0;

justify-content: center;

}

.patient-section-title {

font-size: 0.8rem; font-weight: 900; color: var(--muted);

text-transform: uppercase; letter-spacing: 0.09em;

margin: 0 0 12px; padding-bottom: 10px;

border-bottom: 1px solid #e2e8f0;

flex-shrink: 0;

}

.patient-section-rows {

flex: 1; display: flex; flex-direction: column;

justify-content: space-evenly; min-height: 0;

}

.detail-row {

display: flex; align-items: center; justify-content: space-between;

gap: 12px; padding: 11px 0;

border-bottom: 1px solid rgba(226, 232, 240, 0.7);

}

.detail-row:last-child { border-bottom: none; }

.detail-row .detail-label {

display: flex; align-items: center; gap: 10px;

font-size: 0.95rem; color: #64748b; font-weight: 700;

}

#page-patient .detail-row .field-icon {

width: 32px; height: 32px; font-size: 16px; border-radius: 9px;

}

.detail-row .detail-value {

font-size: 1.08rem; font-weight: 800; color: var(--text);

text-align: right; word-break: break-word;

}

.notes-box {

flex: 1; min-height: 0;

margin-top: 6px; padding: 14px 16px;

background: #fff; border-radius: 12px;

border: 1px solid #e2e8f0;

font-size: 1rem; font-weight: 600; color: #475569;

line-height: 1.5; overflow-y: auto;

display: flex; align-items: flex-start;

}

.patient-modal {

display: none;

position: fixed; inset: 0; z-index: 200;

align-items: center; justify-content: center;

padding: 16px;

}

.patient-modal.open { display: flex; }

.patient-modal-backdrop {

position: absolute; inset: 0;

background: rgba(15, 23, 42, 0.5);

}

.patient-modal-card {

position: relative; z-index: 1;

width: min(580px, 100%);

max-height: min(92vh, 640px);

overflow-y: auto;

padding: 18px 20px 20px;

}

.patient-modal-head {

display: flex; justify-content: space-between; align-items: center;

margin-bottom: 14px; padding-bottom: 10px;

border-bottom: 1px solid #e2e8f0;

}

.patient-modal-head h3 {

font-size: 0.98rem; margin: 0;

display: flex; align-items: center; gap: 8px;

}

.btn-icon {

width: 32px; height: 32px; border-radius: 10px;

border: 1px solid #e2e8f0; background: #fff;

color: var(--muted); font-size: 1.1rem; cursor: pointer;

display: grid; place-items: center; line-height: 1;

}

#page-dashboard.page.active {

display: flex;

flex-direction: column;

overflow: hidden;

padding: 10px 14px 12px;

gap: 10px;

z-index: 2;

background:

radial-gradient(ellipse 70% 45% at 15% 0%, rgba(244,63,94,0.08), transparent),

radial-gradient(ellipse 60% 40% at 85% 5%, rgba(37,99,235,0.1), transparent),

radial-gradient(ellipse 50% 35% at 50% 100%, rgba(6,182,212,0.08), transparent),

linear-gradient(180deg, #f8faff 0%, #eef2ff 100%);

}

.med-dash {

flex: 1; min-height: 0;

display: flex; flex-direction: column; gap: 10px;

}

.med-status-bar {

flex-shrink: 0;

display: flex; align-items: center;

gap: 8px;

padding: 8px 10px;

border-radius: 14px;

background: #0f172a;

color: #e2e8f0;

border: 1px solid #1e293b;

overflow: hidden;

}

.med-status-pill {

display: flex; align-items: center; gap: 7px;

padding: 6px 11px;

border-radius: 999px;

font-size: 0.68rem; font-weight: 800;

letter-spacing: 0.05em;

text-transform: uppercase;

white-space: nowrap;

flex-shrink: 0;

}

.med-status-pill.live-pill-dash {

background: rgba(34,197,94,0.15);

border: 1px solid rgba(34,197,94,0.35);

color: #86efac;

}

.med-status-pill.ward-pill-dash {

background: rgba(59,130,246,0.12);

border: 1px solid rgba(59,130,246,0.3);

color: #93c5fd;

}

.med-status-pill.ward-pill-dash svg {

width: 14px; height: 14px;

stroke: currentColor; fill: none;

stroke-width: 2; stroke-linecap: round; stroke-linejoin: round;

}

.med-status-patient {

flex: 1; min-width: 0;

display: flex; align-items: center; gap: 8px;

margin-left: auto;

padding: 6px 12px 6px 8px;

border-radius: 999px;

background: rgba(255,255,255,0.1);

border: 1px solid rgba(255,255,255,0.18);

}

.med-status-patient .med-chip-icon {

background: #3b82f6;

color: #fff;

font-size: 12px;

}

#dashPatientName {

font-size: 0.78rem; font-weight: 800;

text-transform: none; letter-spacing: -0.01em;

color: #fff;

white-space: nowrap; overflow: hidden; text-overflow: ellipsis;

min-width: 0;

flex: 1;

}

.med-status-dot {

width: 8px; height: 8px; border-radius: 50%;

background: #22c55e;

animation: statusPulse 2s infinite;

flex-shrink: 0;

}

@keyframes statusPulse {

0%, 100% { opacity: 1; }

50% { opacity: 0.5; }

}

.med-chip-icon {

width: 28px; height: 28px; border-radius: 8px;

background: rgba(255,255,255,0.14);

display: grid; place-items: center; font-size: 13px;

flex-shrink: 0;

}

.med-chip-icon svg {

width: 15px; height: 15px;

stroke: currentColor; fill: none;

stroke-width: 2; stroke-linecap: round; stroke-linejoin: round;

}

.med-vitals-grid {

flex-shrink: 0;

display: grid;

grid-template-columns: 1.15fr 1.15fr 0.85fr;

gap: 10px;

min-height: 0;

}

.med-vital {

display: flex; align-items: center; gap: 14px;

padding: 16px 18px;

border-radius: 16px;

position: relative;

min-height: 112px;

box-shadow: none !important;

transition: border-color 0.25s ease;

}

.med-vital-heart {

background: #fff1f2;

border: 1.5px solid #fecdd3;

}

.med-vital-spo2 {

background: #eff6ff;

border: 1.5px solid #bfdbfe;

}

.med-vital-icon-wrap {

flex-shrink: 0;

width: 56px;

display: flex; align-items: center; justify-content: center;

}

.vital-icon-box {

width: 52px; height: 52px;

border-radius: 14px;

display: grid; place-items: center;

transform-origin: center;

box-shadow: none;

}

.vital-icon-heart {

background: #e11d48;

color: #fff;

}

.vital-icon-heart.beating {

animation: heartbeat var(--beat-dur, 0.85s) ease-in-out infinite;

will-change: transform;

}

@keyframes heartbeat {

0%, 100% { transform: scale(1); }

14% { transform: scale(1.07); }

28% { transform: scale(1); }

42% { transform: scale(1.04); }

56% { transform: scale(1); }

}

.vital-icon-heart svg {

width: 26px; height: 26px;

fill: currentColor;

}

.vital-icon-spo2 {

background: #2563eb;

color: #fff;

animation: o2Breathe 3s ease-in-out infinite;

}

@keyframes o2Breathe {

0%, 100% { transform: scale(1); }

50% { transform: scale(1.06); }

}

.vital-icon-spo2 .spo2-symbol {

font-size: 1rem; font-weight: 800;

letter-spacing: -0.03em;

text-shadow: none;

}

.med-vital-body { flex: 1; min-width: 0; }

.med-vital-top {

display: flex; justify-content: space-between; align-items: center;

margin-bottom: 6px; gap: 6px;

}

.med-vital-title {

font-size: 0.7rem; font-weight: 700;

text-transform: uppercase; letter-spacing: 0.08em;

color: #64748b;

display: flex; align-items: center; gap: 6px;

}

.vt-ico {

width: 18px; height: 18px; border-radius: 5px;

display: grid; place-items: center;

flex-shrink: 0;

}

.vt-ico svg {

width: 11px; height: 11px;

stroke: currentColor; fill: none;

stroke-width: 2.2; stroke-linecap: round; stroke-linejoin: round;

}

.med-vital-heart .vt-ico { background: #ffe4e6; color: #e11d48; }

.med-vital-spo2 .vt-ico { background: #dbeafe; color: #2563eb; }

.dash-section-label {

font-size: 0.68rem; font-weight: 800;

text-transform: uppercase; letter-spacing: 0.1em;

color: #94a3b8;

padding: 0 2px;

display: flex; align-items: center; gap: 6px;

}

.dash-section-label::before {

content: "";

width: 8px; height: 8px; border-radius: 50%;

background: #22c55e;

animation: statusPulse 2s infinite;

}

.med-vital-value {

font-size: 2rem; font-weight: 800;

letter-spacing: -0.04em; line-height: 1;

margin-bottom: 4px;

font-variant-numeric: tabular-nums;

transition: color 0.3s ease;

}

#bpm.bpm-pulse {

animation: bpmGlow 0.55s ease;

}

@keyframes bpmGlow {

0%, 100% { opacity: 1; filter: none; }

40% { opacity: 0.82; filter: brightness(1.15); }

}

.med-vital-value.vital-flash { animation: vitalSoft 0.45s ease; }

.med-vital-heart .med-vital-value { color: #9f1239; }

.med-vital-spo2 .med-vital-value { color: #1e40af; }

.med-unit {

font-size: 0.75rem; font-weight: 700;

color: #94a3b8; margin-left: 3px;

letter-spacing: 0.02em;

}

.med-range {

font-size: 0.65rem; font-weight: 600;

color: #94a3b8; margin-bottom: 8px;

}

.med-bar {

height: 5px; border-radius: 999px;

background: rgba(15,23,42,0.06); overflow: hidden;

}

.med-vital .bar-fill {

height: 100%; border-radius: inherit;

transition: width 0.55s cubic-bezier(0.4, 0, 0.2, 1);

position: relative;

}

.med-vital-heart .bar-fill { background: #f43f5e; }

.med-vital-spo2 .bar-fill { background: #3b82f6; }

.med-vitals-side {

display: flex; flex-direction: column; gap: 8px;

}

.med-vital-compact {

flex: 1;

display: flex; align-items: center; gap: 12px;

padding: 12px 14px;

border-radius: 14px;

min-height: 0;

box-shadow: none !important;

transition: border-color 0.25s ease;

}

.med-vital-compact.temp {

background: #fff7ed;

border: 1.5px solid #fed7aa;

}

.med-vital-compact.room {

background: #f0fdf4;

border: 1.5px solid #bbf7d0;

}

.med-vital-compact.hum {

background: #ecfeff;

border: 1.5px solid #a5f3fc;

}

.med-compact-icon {

width: 38px; height: 38px; flex-shrink: 0;

border-radius: 11px;

display: grid; place-items: center;

box-shadow: none;

}

.med-vital-compact.temp .med-compact-icon { background: #ea580c; color: #fff; }

.med-vital-compact.room .med-compact-icon { background: #16a34a; color: #fff; }

.med-vital-compact.hum .med-compact-icon { background: #0891b2; color: #fff; }

.med-compact-icon svg {

width: 20px; height: 20px;

stroke: currentColor; fill: none;

stroke-width: 2; stroke-linecap: round; stroke-linejoin: round;

}

.med-compact-body { flex: 1; min-width: 0; }

.med-compact-body .med-vital-title { margin-bottom: 3px; font-size: 0.65rem; }

.med-compact-value {

font-size: 1.3rem; font-weight: 800;

letter-spacing: -0.03em; line-height: 1.1;

font-variant-numeric: tabular-nums;

}

.med-compact-value.vital-flash { animation: vitalSoft 0.45s ease; }

@keyframes vitalSoft {

0%, 100% { opacity: 1; }

50% { opacity: 0.75; }

}

.med-vital-compact.temp .med-compact-value { color: #c2410c; }

.med-vital-compact.room .med-compact-value { color: #15803d; }

.med-vital-compact.hum .med-compact-value { color: #0e7490; }

.med-compact-body .med-unit { font-size: 0.65rem; }

.med-compact-body .med-bar { height: 4px; margin-top: 6px; }

.med-vital-compact.temp .bar-fill { background: #f97316; }

.med-vital-compact.room .bar-fill { background: #22c55e; }

.med-vital-compact.hum .bar-fill { background: #06b6d4; }

.med-vital .badge, .med-vital-compact .badge {

position: static;

font-size: 0.55rem;

font-weight: 800;

padding: 3px 8px;

letter-spacing: 0.04em;

border-radius: 6px;

}

.med-ecg {

flex: 1 1 auto; min-height: 0;

padding: 12px 14px 14px;

background: #f0fdf4;

border: 1.5px solid #bbf7d0;

box-shadow: none !important;

}

.ecg-icon-wrap {

width: 36px; height: 36px; border-radius: 10px;

background: #16a34a;

display: grid; place-items: center;

color: #fff;

box-shadow: none;

}

.ecg-icon-wrap svg {

width: 18px; height: 18px;

stroke: currentColor; fill: none;

stroke-width: 2.2; stroke-linecap: round; stroke-linejoin: round;

}

.ecg-title-block {

display: flex; align-items: center; gap: 10px;

}

.ecg-title-block h3 {

font-size: 0.92rem; letter-spacing: -0.02em;

margin: 0;

}

.ecg-sub {

font-size: 0.68rem; color: var(--muted); font-weight: 600;

}

.ecg-overlay-labels {

position: absolute; top: 8px; left: 10px; z-index: 2;

display: flex; gap: 12px;

font-size: 0.62rem; font-weight: 800;

color: rgba(103,232,249,0.55);

letter-spacing: 0.06em;

text-transform: uppercase;

pointer-events: none;

}

.glass {

background: var(--card);

border: 1px solid rgba(226,232,240,0.9);

border-radius: var(--radius);

box-shadow: 0 8px 24px rgba(15,23,42,0.06);

}

.vitals-row {

display: grid;

grid-template-columns: repeat(5, 1fr);

gap: 10px;

margin-bottom: 10px;

}

.vital-card { padding: 12px 14px; position: relative; overflow: hidden; }

.vital-card .label {

font-size: 0.68rem; font-weight: 900; color: var(--muted);

text-transform: uppercase; letter-spacing: 0.06em;

margin-bottom: 6px;

}

.vital-card .value {

font-size: 1.85rem; font-weight: 1000;

letter-spacing: -0.06em; line-height: 1;

margin-bottom: 8px;

}

.vital-card .unit { font-size: 0.8rem; color: var(--muted); font-weight: 800; }

.vital-card .bar {

height: 6px; border-radius: 999px; background: #e8eef7; overflow: hidden;

}

.vital-card .bar-fill {

height: 100%; border-radius: inherit;

background: linear-gradient(90deg, var(--blue), var(--cyan));

transition: width 0.4s ease;

}

.badge {

position: absolute; top: 10px; right: 10px;

font-size: 0.62rem; font-weight: 900; padding: 4px 8px;

border-radius: 999px; letter-spacing: 0.05em;

}

.badge.good { background: var(--green-soft); color: var(--green); }

.badge.watch { background: var(--orange-soft); color: #b45309; }

.badge.live { background: var(--blue-soft); color: var(--blue); }

.badge.bad { background: var(--red-soft); color: var(--red); }

#page-dashboard .ecg-wrap {

flex: 1 1 auto;

min-height: 0;

display: flex;

flex-direction: column;

}

.ecg-wrap {

flex: 1;

min-height: 0;

display: flex;

flex-direction: column;

}

#page-dashboard .ecg-head {

margin-bottom: 8px;

flex-shrink: 0;

}

#page-dashboard .ecg-stage {

flex: 1 1 auto;

min-height: 0;

}

.ecg-head {

display: flex; justify-content: space-between; align-items: center;

margin-bottom: 8px; gap: 10px;

position: relative;

}

.ecg-head .ecg-badge-pill {

position: static;

flex-shrink: 0;

font-size: 0.62rem; font-weight: 900;

padding: 5px 12px; border-radius: 999px;

letter-spacing: 0.06em; text-transform: uppercase;

background: var(--blue-soft); color: var(--blue);

}

.ecg-head .ecg-badge-pill.good { background: var(--green-soft); color: var(--green); }

.ecg-head .ecg-badge-pill.watch { background: var(--orange-soft); color: #b45309; }

.ecg-head .ecg-badge-pill.bad { background: var(--red-soft); color: var(--red); }

.ecg-head .ecg-badge-pill.live { background: #dbeafe; color: #2563eb; }

.ecg-head h3 { font-size: 0.92rem; letter-spacing: -0.02em; }

.ecg-head span { font-size: 0.72rem; color: var(--muted); }

.ecg-stage {

flex: 1;

min-height: 0;

border-radius: 14px;

overflow: hidden;

position: relative;

background:

linear-gradient(rgba(103,232,249,0.06) 1px, transparent 1px),

linear-gradient(90deg, rgba(103,232,249,0.06) 1px, transparent 1px),

linear-gradient(180deg, #06101d, #0f172a 62%, #08111f);

background-size: 24px 24px;

border: 1px solid rgba(15,23,42,0.1);

}

.ecg-stage canvas {

position: absolute;

inset: 0;

width: 100%;

height: 100%;

display: block;

}

.info-grid {

display: grid; grid-template-columns: 1fr 1fr;

gap: 12px;

}

.info-card { padding: 16px; }

.info-card h3 {

font-size: 0.95rem; margin-bottom: 12px;

padding-bottom: 8px; border-bottom: 1px solid #e2e8f0;

}

.info-row {

display: flex; justify-content: space-between; gap: 10px;

padding: 8px 0; border-bottom: 1px solid #f1f5f9;

font-size: 0.82rem;

}

.info-row span:first-child { color: var(--muted); font-weight: 700; }

.info-row span:last-child { font-weight: 800; text-align: right; }

.alert-card {

padding: 14px; margin-bottom: 10px;

display: grid; grid-template-columns: 36px 1fr; gap: 12px;

align-items: start;

}

.alert-icon {

width: 36px; height: 36px; border-radius: 12px;

background: #fff; display: grid; place-items: center;

border: 1px solid #e2e8f0; font-size: 16px;

}

.alert-card strong { display: block; font-size: 0.88rem; margin-bottom: 4px; }

.alert-card p { font-size: 0.78rem; color: var(--muted); line-height: 1.4; }

.form-grid {

display: grid; grid-template-columns: 1fr 1fr; gap: 9px;

}

.form-field {

display: flex; flex-direction: column; gap: 4px;

}

.form-field.full { grid-column: span 2; }

.form-field label {

display: flex; align-items: center; gap: 6px;

font-size: 0.68rem; color: var(--muted); font-weight: 800;

text-transform: uppercase; letter-spacing: 0.06em;

}

.field-icon {

width: 22px; height: 22px; border-radius: 7px;

display: grid; place-items: center;

font-size: 12px; line-height: 1; flex-shrink: 0;

}

.field-icon.ic-name { background: #dbeafe; color: #2563eb; }

.field-icon.ic-id { background: #ede9fe; color: #7c3aed; }

.field-icon.ic-bed { background: #ccfbf1; color: #0d9488; }

.field-icon.ic-ward { background: #ffedd5; color: #ea580c; }

.field-icon.ic-age { background: #cffafe; color: #0891b2; }

.field-icon.ic-blood { background: #fee2e2; color: #dc2626; }

.field-icon.ic-gender { background: #fce7f3; color: #db2777; }

.field-icon.ic-contact { background: #dcfce7; color: #16a34a; }

.field-icon.ic-notes { background: #fef3c7; color: #d97706; }

.info-label {

display: flex; align-items: center; gap: 8px;

color: var(--muted); font-weight: 700;

}

.info-label .field-icon { width: 20px; height: 20px; font-size: 11px; border-radius: 6px; }

#page-patient .info-card h3 {

display: flex; align-items: center; gap: 8px;

}

#page-patient .info-card h3 .field-icon { width: 24px; height: 24px; font-size: 13px; }

.form-field input, .form-field select, .form-field textarea {

padding: 9px 11px; border-radius: 10px;

border: 1px solid #e2e8f0; background: #fff;

font-size: 0.88rem; font-weight: 600; color: var(--text);

font-family: inherit;

}

.form-field textarea { min-height: 72px; resize: vertical; }

.form-field input:focus, .form-field select:focus, .form-field textarea:focus {

outline: none; border-color: var(--blue);

box-shadow: 0 0 0 3px rgba(37,99,235,0.12);

}

.form-actions {

display: flex; gap: 8px; margin-top: 14px; flex-wrap: wrap;

}

.btn {

padding: 10px 16px; border-radius: 10px; border: none;

font-size: 0.82rem; font-weight: 800; cursor: pointer;

}

.btn-primary { background: var(--blue); color: #fff; }

.btn-secondary { background: #e2e8f0; color: var(--text); }

.btn-danger { background: var(--red-soft); color: var(--red); }

.save-msg {

font-size: 0.78rem; color: var(--green); font-weight: 800;

margin-top: 8px; min-height: 1em;

}

.patient-head {

display: flex; justify-content: space-between; align-items: center;

margin-bottom: 12px;

}

.nav-text-short { display: none; }

.patient-head h3 { font-size: 0.95rem; border: none; padding: 0; margin: 0; }

/* Tablet */

@media (max-width: 1024px) {

.med-vitals-grid { grid-template-columns: 1fr 1fr; }

.med-vitals-side { grid-column: span 2; flex-direction: row; }

.med-vital-compact { flex: 1; min-width: 0; }

}

/* Mobile */

@media (max-width: 768px) {

body {

align-items: stretch;

justify-content: stretch;

}

.viewport-wrap {

width: 100vw;

width: 100dvw;

height: 100vh;

height: 100dvh;

max-width: none;

max-height: none;

aspect-ratio: auto;

}

.app-shell {

flex-direction: column;

}

.main {

flex: 1;

min-height: 0;

order: 1;

}

.sidebar {

order: 2;

width: 100%;

flex-shrink: 0;

flex-direction: column;

padding: 0;

border-right: none;

border-top: 1px solid rgba(255,255,255,0.1);

}

.sidebar-brand,

.nav-label { display: none; }

.sidebar-foot {

display: flex;

align-items: center;

justify-content: space-between;

padding: 6px 14px;

border-top: none;

border-bottom: 1px solid rgba(255,255,255,0.08);

margin: 0;

}

.nav {

flex-direction: row;

flex: none;

gap: 2px;

padding: 4px 6px;

padding-bottom: max(6px, env(safe-area-inset-bottom));

}

.nav-item {

flex: 1;

flex-direction: column;

align-items: center;

justify-content: center;

gap: 3px;

padding: 8px 2px;

min-height: 54px;

font-size: 0.58rem;

text-align: center;

transform: none;

border-radius: 10px;

}

.nav-item:hover { transform: none; }

.nav-text-long { display: none; }

.nav-text-short { display: inline; }

.nav-icon-wrap {

width: 32px;

height: 32px;

font-size: 15px;

}

.topbar {

padding: 8px 12px;

gap: 8px;

}

.topbar h1 { font-size: 1rem; }

.topbar p { font-size: 0.7rem; display: none; }

.topbar-meta { font-size: 0.68rem; }

.topbar-meta strong { font-size: 0.78rem; }

.page {

padding: 10px 10px 12px;

}

.page.active {

overflow-y: auto;

overflow-x: hidden;

-webkit-overflow-scrolling: touch;

}

#page-dashboard.page.active,

#page-patient.page.active,

#page-logging.page.active,

#page-alerts.page.active {

overflow-y: auto;

padding: 8px 10px 10px;

}

.med-dash {

gap: 8px;

min-height: min-content;

}

.med-status-bar {

flex-wrap: wrap;

gap: 6px;

padding: 8px 10px;

}

.med-status-patient {

flex: 1 1 100%;

max-width: 100%;

width: 100%;

justify-content: flex-start;

}

.ward-pill-dash { display: none; }

.topbar-actions { gap: 8px; }

.sound-toggle { width: 32px; height: 32px; font-size: 14px; }

.med-vitals-grid {

grid-template-columns: 1fr;

gap: 8px;

}

.med-vitals-side {

grid-column: auto;

flex-direction: column;

gap: 8px;

}

.med-vital {

min-height: auto;

padding: 12px 14px;

}

.med-vital-value { font-size: 2rem; }

.med-vital-compact { min-height: auto; }

#page-dashboard .ecg-wrap {

flex: none;

min-height: 0;

}

#page-dashboard .ecg-stage {

flex: none;

min-height: 200px;

height: 42vw;

max-height: 280px;

}

.record-stats-row { grid-template-columns: 1fr; }

.record-stat {

flex-direction: row;

align-items: center;

justify-content: flex-start;

text-align: left;

padding: 12px 14px;

gap: 12px;

}

.record-stat-label { flex: 1; margin: 0; }

.record-stat-value { font-size: 1rem; flex-shrink: 0; }

.record-contact-row { grid-template-columns: 1fr; }

.record-profile {

flex-wrap: wrap;

padding: 14px;

gap: 12px;

}

.record-profile-main { width: calc(100% - 82px); }

.record-profile-main h2 { font-size: 1.25rem; }

.record-profile .btn-glow {

width: 100%;

margin-top: 2px;

}

.record-page { overflow: hidden; }

#page-patient.page.active { overflow: hidden; }

#page-alerts.page.active { overflow: hidden; }

.alerts-summary { grid-template-columns: repeat(3, 1fr); gap: 6px; }

.alerts-summary-card { padding: 8px 6px; font-size: 0.58rem; }

.alerts-summary-card span { font-size: 1.15rem; }

.alerts-hero { flex-wrap: wrap; padding: 12px 14px; }

.alerts-hero h3 { font-size: 0.95rem; }

.alert-row { padding: 11px 12px; gap: 10px; }

.alert-row-icon { width: 38px; height: 38px; font-size: 17px; }

.alert-row-top strong { font-size: 0.82rem; }

.alert-tip { font-size: 0.68rem; padding: 6px 8px; }

.logging-toolbar {

flex-direction: column;

align-items: stretch;

gap: 10px;

}

.logging-controls {

flex-direction: column;

align-items: stretch;

}

.logging-controls select,

.logging-controls .btn-log {

width: 100%;

}

.logging-stats {

justify-content: space-between;

width: 100%;

}

.logging-table-scroll {

overflow-x: auto;

overflow-y: auto;

}

.log-table { min-width: 520px; font-size: 0.72rem; }

.log-table th, .log-table td { padding: 8px 8px; }

.form-grid { grid-template-columns: 1fr; }

.form-field.full { grid-column: span 1; }

.patient-modal { padding: 10px; align-items: flex-end; }

.patient-modal-card {

max-height: 92dvh;

border-radius: 18px 18px 0 0;

width: 100%;

}

.info-grid { grid-template-columns: 1fr; }

.vitals-row { grid-template-columns: 1fr; }

}

/* Small phones */

@media (max-width: 400px) {

.med-vital-icon-wrap { width: 52px; }

.vital-icon-box { width: 46px; height: 46px; }

.vital-icon-heart svg { width: 22px; height: 22px; }

.med-vital-value { font-size: 1.75rem; }

.med-compact-value { font-size: 1.15rem; }

.nav-item { font-size: 0.52rem; min-height: 50px; }

.ecg-overlay-labels { font-size: 0.55rem; gap: 8px; }

#page-dashboard .ecg-stage {

min-height: 160px;

height: 38vw;

}

</style>

</head>

<body>

</svg>

</div>

<div>

<strong>MedMonitor</strong>

<span>Patient Care IoT</span>

</div>

<div class="nav-label">Clinical</div>

<button class="nav-item active" data-page="dashboard"><span class="nav-icon-wrap"><span class="nav-icon">💓</span></span><span class="nav-text"><span class="nav-text-long">Vitals Monitor</span><span class="nav-text-short">Vitals</span></span></button>

<button class="nav-item" data-page="patient"><span class="nav-icon-wrap"><span class="nav-icon">👤</span></span><span class="nav-text"><span class="nav-text-long">Patient Record</span><span class="nav-text-short">Patient</span></span></button>

<button class="nav-item" data-page="logging"><span class="nav-icon-wrap"><span class="nav-icon">📊</span></span><span class="nav-text"><span class="nav-text-long">Data Logging</span><span class="nav-text-short">Logging</span></span></button>

<button class="nav-item" data-page="alerts"><span class="nav-icon-wrap"><span class="nav-icon">🚨</span></span><span class="nav-text"><span class="nav-text-long">Alerts</span><span class="nav-text-short">Alerts</span></span></button>

</nav>

<div class="live-pill"><span class="live-dot" id="liveDot"></span><span id="connText">Connecting</span></div>

</div>

</aside>

<div>

<h1 id="pageTitle">Dashboard</h1>

<p id="pageSubtitle">Live vitals and ECG waveform</p>

</div>

</button>

<span>Last update</span>

</div>

</header>

</div>

<span>ICU Monitor</span>

</div>

</span>

<span id="dashPatientName">Patient Monitor</span>

</div>

<div class="dash-section-label">Live Vitals</div>

</svg>

</div>

<span class="med-vital-title"><span class="vt-ico"><svg viewBox="0 0 24 24"><path d="M12 21.35l-1.45-1.32C5.4 15.36 2 12.28 2 8.5 2 5.42 4.42 3 7.5 3c1.74 0 3.41.81 4.5 2.09C13.09 3.81 14.76 3 16.5 3 19.58 3 22 5.42 22 8.5c0 3.78-3.4 6.86-8.55 11.54L12 21.35z" fill="currentColor" stroke="none"/></svg></span>Heart Rate</span>

</div>

<div class="med-range">Normal range: 60 – 100 BPM</div>

</div>

</div>

<span class="med-vital-title"><span class="vt-ico"><svg viewBox="0 0 24 24"><circle cx="12" cy="12" r="9"/><path d="M8 12h8M10 9v6M14 9v6"/></svg></span>Blood Oxygen</span>

</div>

<div class="med-range">Normal range: 95 – 100%</div>

</div>

</div>

</div>

</div>

</div>

</div>

</div>

</div>

<span class="med-vital-title"><span class="vt-ico" style="background:#cffafe;color:#0891b2"><svg viewBox="0 0 24 24"><path d="M12 2.69l5.66 5.66a8 8 0 1 1-11.31 0z" fill="currentColor" stroke="none"/></svg></span>Humidity</span>

</div>

</div>

<div class="dash-section-label" style="margin-top:2px">ECG Waveform</div>

</div>

<div>

<h3>Electrocardiogram · Lead I</h3>

</div>

<span class="ecg-badge-pill live" id="ecgBadge">STREAMING</span>

</div>

</div>

</div>

</section>

</div>

<h2 id="viewName">No patient saved</h2>

</div>

</div>

<div>

<h4 class="record-section-title">Personal Information</h4>

</div>

<span class="record-stat-label">Gender</span>

</div>

<span class="record-stat-label">Blood</span>

</div>

<div>

<h4 class="record-section-title">Contact & ID</h4>

<div>

<div class="record-detail-label">Phone</div>

</div>

<div>

<div class="record-detail-label">Patient ID</div>

</div>

<h4 class="record-section-title">📝 Clinical Notes</h4>

<div class="record-notes-body" id="viewNotes">No notes added.</div>

</div>

</section>

<h3><span class="field-icon ic-name">👤</span>Edit Patient Details</h3>

</div>

</div>

<label for="inpId"><span class="field-icon ic-id">🆔</span>Patient ID</label>

</div>

</div>

</div>

</div>

<label for="inpBlood"><span class="field-icon ic-blood">💧</span>Blood Group</label>

<option value="">Select</option>

</select>

</div>

<label for="inpGender"><span class="field-icon ic-gender">⚧</span>Gender</label>

<option value="">Select</option>

<option value="Female">Female</option>

<option value="Other">Other</option>

</select>

</div>

<label for="inpContact"><span class="field-icon ic-contact">📞</span>Contact</label>

</div>

<label for="inpNotes"><span class="field-icon ic-notes">📝</span>Notes</label>

</div>

</form>

<button type="button" class="btn btn-primary" id="btnSavePatient">Save Changes</button>

<button type="button" class="btn btn-secondary" id="btnCancelPatient">Cancel</button>

<button type="button" class="btn btn-danger" id="btnClearPatient">Clear All</button>

</div>

</div>

<label for="logInterval">Interval</label>

<option value="2000">2 seconds</option>

<option value="3000">3 seconds</option>

<option value="5000" selected>5 seconds</option>

<option value="10000">10 seconds</option>

<option value="15000">15 seconds</option>

<option value="30000">30 seconds</option>

<option value="60000">60 seconds</option>

</select>

<button type="button" class="btn btn-log btn-log-start" id="btnLogStart">▶ Start</button>

<button type="button" class="btn btn-log btn-secondary" id="btnLogClear">Clear</button>

<button type="button" class="btn btn-log btn-log-export" id="btnLogExport">📄 Export Excel</button>

</div>

<span id="logCount">0 records</span>

<span class="log-status-pill stopped" id="logStatus">Stopped</span>

</div>

<h4>📊 Vitals Data Log</h4>

<span style="font-size:0.72rem;color:var(--muted);font-weight:700" id="logIntervalLabel">Every 5s</span>

</div>

<thead>

<tr>

<th>Timestamp</th>

<th>Humidity (%)</th>

</tr>

</thead>

<tr><td colspan="7" class="log-empty">No data logged yet. Press Start to begin recording.</td></tr>

</tbody>

</table>

</div>

</section>

<div>

<h3>🚨 Clinical Alert Center</h3>

<p>Live sensor status, warnings & care suggestions</p>

</div>

</div>

<span id="alertWarnCount">0</span>Warnings

</div>

<span id="alertOkCount">0</span>Normal

</div>

<span id="alertInfoCount">0</span>Info

</div>

<h4 class="alerts-section-title">❤ Cardiac Monitoring</h4>

<strong id="alertTitle1">Heart Rate</strong>

</div>

<p id="alertMsg1">Waiting for sensor data...</p>

<p class="alert-tip" id="alertTip1">Normal resting range: 60–100 BPM.</p>

</div>

<strong id="alertTitle2">ECG Waveform</strong>

</div>

<p id="alertMsg2">Checking ECG signal...</p>

<p class="alert-tip" id="alertTip2">Ensure RA, LA, and RL electrodes are firmly attached.</p>

</div>

<h4 class="alerts-section-title">💧 Oxygen & Respiratory</h4>

<strong id="alertTitle3">Blood Oxygen (SpO₂)</strong>

</div>

<p id="alertMsg3">Place finger on pulse oximeter sensor.</p>

<p class="alert-tip" id="alertTip3">Keep hand still; normal SpO₂ is 95–100%.</p>

</div>

<h4 class="alerts-section-title">🌡 Temperature & Environment</h4>

<strong id="alertTitle4">Body Temperature</strong>

</div>

<p id="alertMsg4">Monitoring body temperature...</p>

<p class="alert-tip" id="alertTip4">Normal body temp: 36.1–37.2 °C.</p>

</div>

<strong id="alertTitle5">Room Environment</strong>

</div>

<p id="alertMsg5">Checking room temp and humidity...</p>

<p class="alert-tip" id="alertTip5">Ideal room: 20–24 °C, humidity 40–60%.</p>

</div>

<h4 class="alerts-section-title">📡 System Status</h4>

<strong id="alertTitle6">Device Connection</strong>

</div>

<p id="alertMsg6">Connecting to ESP32 monitor...</p>

<p class="alert-tip" id="alertTip6">Ensure ESP32 is powered and on the same WiFi network.</p>

</div>

<h4 class="alerts-section-title">💡 Clinical Suggestions</h4>

<li>All systems initializing — suggestions will appear as data arrives.</li>

</ul>

</div>

</section>

</div>

const $ = (id) => document.getElementById(id);

const pages = {

dashboard: { title: "Vitals Monitor", sub: "Real-time cardiac and physiological monitoring" },

patient: { title: "Patient Record", sub: "View and edit patient information" },

logging: { title: "Data Logging", sub: "Record vitals at selected intervals and export" },

alerts: { title: "Clinical Alerts", sub: "System warnings and sensor status" }

};

const ui = {

clock: $("clock"), lastUpdate: $("lastUpdate"), pageTitle: $("pageTitle"), pageSubtitle: $("pageSubtitle"),

bpm: $("bpm"), spo2: $("spo2"), bodyTemp: $("bodyTemp"),

roomTemp: $("roomTemp"), humidity: $("humidity"),

bpmBar: $("bpmBar"), spo2Bar: $("spo2Bar"), bodyTempBar: $("bodyTempBar"),

roomTempBar: $("roomTempBar"), humBar: $("humBar"),

bpmBadge: $("bpmBadge"), spo2Badge: $("spo2Badge"), tempBadge: $("tempBadge"),

roomBadge: $("roomBadge"), humBadge: $("humBadge"),

ecgBadge: $("ecgBadge"),

alertBadge: $("alertBadge"),

alertWarnCount: $("alertWarnCount"), alertOkCount: $("alertOkCount"), alertInfoCount: $("alertInfoCount"),

alertSuggestions: $("alertSuggestions"),

connText: $("connText"), liveDot: $("liveDot"),

alertTitle1: $("alertTitle1"), alertMsg1: $("alertMsg1"), alertTip1: $("alertTip1"),

alertIcon1: $("alertIcon1"), alertPill1: $("alertPill1"), alertRow1: $("alertRow1"),

alertTitle2: $("alertTitle2"), alertMsg2: $("alertMsg2"), alertTip2: $("alertTip2"),

alertIcon2: $("alertIcon2"), alertPill2: $("alertPill2"), alertRow2: $("alertRow2"),

alertTitle3: $("alertTitle3"), alertMsg3: $("alertMsg3"), alertTip3: $("alertTip3"),

alertIcon3: $("alertIcon3"), alertPill3: $("alertPill3"), alertRow3: $("alertRow3"),

alertTitle4: $("alertTitle4"), alertMsg4: $("alertMsg4"), alertTip4: $("alertTip4"),

alertIcon4: $("alertIcon4"), alertPill4: $("alertPill4"), alertRow4: $("alertRow4"),

alertTitle5: $("alertTitle5"), alertMsg5: $("alertMsg5"), alertTip5: $("alertTip5"),

alertIcon5: $("alertIcon5"), alertPill5: $("alertPill5"), alertRow5: $("alertRow5"),

alertTitle6: $("alertTitle6"), alertMsg6: $("alertMsg6"), alertTip6: $("alertTip6"),

alertIcon6: $("alertIcon6"), alertPill6: $("alertPill6"), alertRow6: $("alertRow6"),

patientForm: $("patientForm"), saveMsg: $("saveMsg"),

patientModal: $("patientModal"),

viewAvatar: $("viewAvatar"),

viewName: $("viewName"), viewId: $("viewId"), viewIdDetail: $("viewIdDetail"),

viewBed: $("viewBed"), viewWard: $("viewWard"),

viewAge: $("viewAge"), viewGender: $("viewGender"),

viewBlood: $("viewBlood"),

viewContact: $("viewContact"), viewNotes: $("viewNotes"),

heartIcon: $("heartIcon"), dashPatientName: $("dashPatientName")

};

const PATIENT_KEY = "phm_patient_v1";

const defaultPatient = {

name: "", patientId: "", bed: "", ward: "",

age: "", bloodGroup: "", gender: "", contact: "", notes: ""

};

const PLOT_MAX = 1023;

const ECG_POLL_MS = 25;

const BPM_UI_MS = 1000;

const ECG_Y_MARGIN = 24;

const SCROLL_STEP = 1;

let ecgFail = 0, vitalsFail = 0;

let connOnline = false;

let connFailStreak = 0;

const CONN_FAIL_LIMIT = 12;

let canvasW = 0, canvasH = 0;

let heightOld = 0;

let traceReady = false;

let ecgPollBusy = false;

let leadsOffState = true;

let lastVitals = { spo2: -1, finger: false, spo2Valid: false, bodyT: -999, roomT: 0, hum: 0, bme: false };

let heartAudioCtx = null;

let heartSoundOn = true;

let heartSoundTimer = null;

let lastSoundBpm = 0;

let audioUnlocked = false;

let latestBpm = 0;

let displayedBpm = -1;

let lastBpmUiTick = 0;

let lastBeatAnimBpm = 0;

let bpmUiReady = false;

let prevLeadsOff = true;

let logData = [];

let logTimer = null;

let logRunning = false;

const LOG_KEY = "phm_log_v1";

const MAX_LOG_ROWS = 500;

const canvas = $("ecgCanvas");

const ctx = canvas.getContext("2d");

document.querySelectorAll(".nav-item").forEach((btn) => {

btn.addEventListener("click", () => {

const id = btn.dataset.page;

document.querySelectorAll(".nav-item").forEach((b) => b.classList.remove("active"));

document.querySelectorAll(".page").forEach((p) => p.classList.remove("active"));

btn.classList.add("active");

$("page-" + id).classList.add("active");

ui.pageTitle.textContent = pages[id].title;

ui.pageSubtitle.textContent = pages[id].sub;

const soundBtn = $("btnSoundToggle");

if (soundBtn) soundBtn.style.display = id === "dashboard" ? "" : "none";

if (id === "dashboard") requestAnimationFrame(resizeCanvas);

window.scrollTo(0, 0);

const activePage = $("page-" + id);

if (activePage) activePage.scrollTop = 0;

});

const ecgStage = () => canvas.parentElement;

function resizeCanvas() {

const stage = ecgStage();

if (!stage) return;

const w = stage.clientWidth;

const h = stage.clientHeight;

if (w < 10 || h < 10) return;

if (w === canvasW && h === canvasH) return;

canvasW = w;

canvasH = h;

canvas.width = w;

canvas.height = h;

ctx.setTransform(1, 0, 0, 1, 0, 0);

ctx.clearRect(0, 0, w, h);

heightOld = h * 0.54;

traceReady = false;

}

if (window.ResizeObserver && ecgStage()) {

const ro = new ResizeObserver(() => resizeCanvas());

ro.observe(ecgStage());

}

window.addEventListener("resize", resizeCanvas);

window.addEventListener("orientationchange", () => {

setTimeout(() => {

resizeCanvas();

}, 200);

});

requestAnimationFrame(() => requestAnimationFrame(resizeCanvas));

function setBar(el, pct) { el.style.width = Math.max(6, Math.min(pct, 100)) + "%"; }

function flashVital(el) {

if (!el) return;

el.classList.remove("vital-flash");

void el.offsetWidth;

el.classList.add("vital-flash");

}

function pulseBpmValue() {

const el = ui.bpm;

if (!el) return;

el.classList.remove("bpm-pulse");

void el.offsetWidth;

el.classList.add("bpm-pulse");

}

function setBadge(el, text, kind) {

el.textContent = text;

if (el.id === "alertBadge") {

el.className = "alerts-status-badge " + kind;

} else if (el.id === "ecgBadge") {

el.className = "ecg-badge-pill " + kind;

} else {

el.className = "badge " + kind;

}

function fmtTime() {

return new Date().toLocaleTimeString([], { hour: "2-digit", minute: "2-digit", second: "2-digit" });

}

function touchUpdate() { ui.lastUpdate.textContent = "Just now"; ui.clock.textContent = fmtTime(); }

function setConn(ok) {

if (connOnline === ok) return;

connOnline = ok;

ui.connText.textContent = ok ? "Live" : "Offline";

ui.liveDot.className = ok ? "live-dot" : "live-dot off";

}

function markConnSuccess() {

connFailStreak = 0;

ecgFail = 0;

setConn(true);

}

function markConnFailure() {

connFailStreak++;

if (connFailStreak >= CONN_FAIL_LIMIT) {

setConn(false);

}

function loadPatientForm(data) {

$("inpName").value = data.name || "";

$("inpId").value = data.patientId || "";

$("inpBed").value = data.bed || "";

$("inpWard").value = data.ward || "";

$("inpAge").value = data.age || "";

$("inpBlood").value = data.bloodGroup || "";

$("inpGender").value = data.gender || "";

$("inpContact").value = data.contact || "";

$("inpNotes").value = data.notes || "";

updatePatientPreview(data);

}

function readPatientForm() {

return {

name: $("inpName").value.trim(),

patientId: $("inpId").value.trim(),

bed: $("inpBed").value.trim(),

ward: $("inpWard").value.trim(),

age: $("inpAge").value.trim(),

bloodGroup: $("inpBlood").value,

gender: $("inpGender").value,

contact: $("inpContact").value.trim(),

notes: $("inpNotes").value.trim()

};

}

function patientInitials(name) {

const parts = (name || "").trim().split(/\s+/).filter(Boolean);

if (!parts.length) return "?";

if (parts.length === 1) return parts[0].slice(0, 2).toUpperCase();

return (parts[0][0] + parts[parts.length - 1][0]).toUpperCase();

}

function updatePatientPreview(data) {

const hasPatient = !!(data.name || data.patientId);

ui.viewName.textContent = data.name || "No patient saved";

ui.viewAvatar.textContent = patientInitials(data.name);

ui.viewId.textContent = data.patientId || "No ID";

ui.viewIdDetail.textContent = data.patientId || "--";

ui.viewBed.textContent = data.bed || "--";

ui.viewWard.textContent = data.ward || "--";

ui.viewAge.textContent = data.age ? data.age + " yrs" : "--";

ui.viewGender.textContent = data.gender || "--";

ui.viewBlood.textContent = data.bloodGroup || "--";

ui.viewContact.textContent = data.contact || "--";

ui.viewNotes.textContent = data.notes || (hasPatient ? "No notes added." : "No notes added.");

updateDashPatient();

}

function openPatientModal() {

let data = defaultPatient;

try {

const saved = localStorage.getItem(PATIENT_KEY);

if (saved) data = { ...defaultPatient, ...JSON.parse(saved) };

} catch (e) {}

loadPatientForm(data);

ui.saveMsg.textContent = "";

ui.patientModal.classList.add("open");

}

function closePatientModal() {

ui.patientModal.classList.remove("open");

ui.saveMsg.textContent = "";

}

function savePatient() {

const data = readPatientForm();

if (!data.name && !data.patientId) {

ui.saveMsg.textContent = "Enter at least a name or patient ID.";

ui.saveMsg.style.color = "#ef4444";

return;

}

try {

localStorage.setItem(PATIENT_KEY, JSON.stringify(data));

updatePatientPreview(data);

ui.saveMsg.textContent = "Patient details saved.";

ui.saveMsg.style.color = "#16a34a";

setTimeout(closePatientModal, 400);

} catch (e) {

ui.saveMsg.textContent = "Could not save. Browser storage may be full.";

ui.saveMsg.style.color = "#ef4444";

}

function clearPatientForm() {

loadPatientForm(defaultPatient);

try { localStorage.removeItem(PATIENT_KEY); } catch (e) {}

ui.saveMsg.textContent = "All patient data cleared.";

ui.saveMsg.style.color = "#64748b";

setTimeout(closePatientModal, 500);

}

function initPatientForm() {

let data = defaultPatient;

try {

const saved = localStorage.getItem(PATIENT_KEY);

if (saved) data = { ...defaultPatient, ...JSON.parse(saved) };

} catch (e) {}

updatePatientPreview(data);

$("btnEditPatient").addEventListener("click", openPatientModal);

$("btnClosePatientModal").addEventListener("click", closePatientModal);

$("btnCancelPatient").addEventListener("click", closePatientModal);

$("patientModalBackdrop").addEventListener("click", closePatientModal);

$("btnSavePatient").addEventListener("click", savePatient);

$("btnClearPatient").addEventListener("click", clearPatientForm);

ui.patientForm.addEventListener("submit", (e) => { e.preventDefault(); savePatient(); });

}

initPatientForm();

function loadPatientData() {

try {

const saved = localStorage.getItem(PATIENT_KEY);

if (saved) return { ...defaultPatient, ...JSON.parse(saved) };

} catch (e) {}

return { ...defaultPatient };

}

function fmtLogTime(d) {

return d.toLocaleString([], {

year: "numeric", month: "2-digit", day: "2-digit",

hour: "2-digit", minute: "2-digit", second: "2-digit"

});

}

function captureLogRow() {

const bpmVal = parseInt(ui.bpm.textContent, 10);

return {

ts: fmtLogTime(new Date()),

bpm: (!isNaN(bpmVal) && ui.bpm.textContent !== "--") ? bpmVal : "",

spo2: (lastVitals.spo2Valid && lastVitals.spo2 > 0) ? lastVitals.spo2 : "",

bodyT: (lastVitals.bodyT > -100) ? lastVitals.bodyT.toFixed(1) : "",

roomT: lastVitals.bme ? lastVitals.roomT.toFixed(1) : "",

hum: lastVitals.bme ? lastVitals.hum.toFixed(1) : ""

};

}

function updateLogTable() {

const tbody = $("logTableBody");

if (!logData.length) {

tbody.innerHTML = '<tr><td colspan="7" class="log-empty">No data logged yet. Press Start to begin recording.</td></tr>';

$("logCount").textContent = "0 records";

return;

}

$("logCount").textContent = logData.length + " record" + (logData.length === 1 ? "" : "s");

let html = "";

const start = Math.max(0, logData.length - 200);

for (let i = start; i < logData.length; i++) {

const r = logData[i];

html += "<tr><td>" + (i + 1) + "</td><td>" + r.ts + "</td><td>" + (r.bpm !== "" ? r.bpm : "--") +

"</td><td>" + (r.spo2 !== "" ? r.spo2 : "--") + "</td><td>" + (r.bodyT !== "" ? r.bodyT : "--") +

"</td><td>" + (r.roomT !== "" ? r.roomT : "--") + "</td><td>" + (r.hum !== "" ? r.hum : "--") + "</td></tr>";

}

tbody.innerHTML = html;

const scroll = tbody.closest(".logging-table-scroll");

if (scroll) scroll.scrollTop = scroll.scrollHeight;

}

function saveLogData() {

try { localStorage.setItem(LOG_KEY, JSON.stringify(logData)); } catch (e) {}

}

function loadLogData() {

try {

const saved = localStorage.getItem(LOG_KEY);

if (saved) logData = JSON.parse(saved);

} catch (e) { logData = []; }

updateLogTable();

}

function addLogEntry() {

logData.push(captureLogRow());

if (logData.length > MAX_LOG_ROWS) logData.shift();

updateLogTable();

saveLogData();

}

function getLogIntervalMs() {

return parseInt($("logInterval").value, 10) || 5000;

}

function updateLogIntervalLabel() {

const ms = getLogIntervalMs();

const sec = ms / 1000;

$("logIntervalLabel").textContent = "Every " + sec + "s";

}

function startLogging() {

if (logRunning) return;

logRunning = true;

$("logStatus").textContent = "Recording";

$("logStatus").className = "log-status-pill running";

addLogEntry();

logTimer = setInterval(addLogEntry, getLogIntervalMs());

}

function stopLogging() {

logRunning = false;

if (logTimer) { clearInterval(logTimer); logTimer = null; }

$("logStatus").textContent = "Stopped";

$("logStatus").className = "log-status-pill stopped";

}

function restartLoggingIfActive() {

if (!logRunning) return;

stopLogging();

startLogging();

}

function clearLogging() {

stopLogging();

logData = [];

try { localStorage.removeItem(LOG_KEY); } catch (e) {}

updateLogTable();

}

function csvCell(v) {

return '"' + String(v == null ? "" : v).replace(/"/g, '""') + '"';

}

function exportLogExcel() {

if (!logData.length) {

alert("No data to export. Start logging first.");

return;

}

const p = loadPatientData();

const rows = [];

rows.push(["Patient Health Monitor - Vitals Data Log"]);

rows.push([]);

rows.push(["Patient Name", p.name || "N/A"]);

rows.push(["Patient ID", p.patientId || "N/A"]);

rows.push(["Bed", p.bed || "N/A"]);

rows.push(["Ward", p.ward || "N/A"]);

rows.push(["Age", p.age ? p.age + " years" : "N/A"]);

rows.push(["Gender", p.gender || "N/A"]);

rows.push(["Blood Group", p.bloodGroup || "N/A"]);

rows.push(["Contact", p.contact || "N/A"]);

rows.push(["Clinical Notes", p.notes || "N/A"]);

rows.push(["Export Date", fmtLogTime(new Date())]);

rows.push(["Logging Interval", (getLogIntervalMs() / 1000) + " seconds"]);

rows.push(["Total Records", logData.length]);

rows.push([]);

rows.push(["#", "Timestamp", "BPM", "SpO2 (%)", "Body Temp (C)", "Room Temp (C)", "Humidity (%)"]);

logData.forEach((r, i) => {

rows.push([i + 1, r.ts, r.bpm, r.spo2, r.bodyT, r.roomT, r.hum]);

});

const csv = rows.map((row) => row.map(csvCell).join(",")).join("\r\n");

const blob = new Blob(["\ufeff" + csv], { type: "application/vnd.ms-excel;charset=utf-8;" });

const url = URL.createObjectURL(blob);

const a = document.createElement("a");

const date = new Date().toISOString().slice(0, 10);

const pname = (p.name || "Patient").replace(/[^a-z0-9]/gi, "_");

a.href = url;

a.download = "PHM_Vitals_" + pname + "_" + date + ".xls";

document.body.appendChild(a);

a.click();

document.body.removeChild(a);

URL.revokeObjectURL(url);

}

function initLogging() {

loadLogData();

updateLogIntervalLabel();

$("logInterval").addEventListener("change", () => {

updateLogIntervalLabel();

restartLoggingIfActive();

});

$("btnLogStart").addEventListener("click", startLogging);

$("btnLogStop").addEventListener("click", stopLogging);

$("btnLogClear").addEventListener("click", () => {

if (!logData.length || confirm("Clear all logged data?")) clearLogging();

});

$("btnLogExport").addEventListener("click", exportLogExcel);

}

initLogging();

function updateRoomUi(roomT, hum, bmeOk) {

if (bmeOk) {

ui.roomTemp.textContent = roomT.toFixed(1);

ui.humidity.textContent = hum.toFixed(1);

flashVital($("roomTempWrap"));

flashVital($("humidityWrap"));

setBar(ui.roomTempBar, Math.min(roomT * 3, 100));

setBar(ui.humBar, hum);

setBadge(ui.roomBadge, "NORMAL", "good");

setBadge(ui.humBadge, "NORMAL", "good");

} else {

ui.roomTemp.textContent = "--";

ui.humidity.textContent = "--";

setBar(ui.roomTempBar, 6);

setBar(ui.humBar, 6);

setBadge(ui.roomBadge, "WAIT", "watch");

setBadge(ui.humBadge, "WAIT", "watch");

}

function getHeartAudioCtx() {

if (!heartAudioCtx) {

heartAudioCtx = new (window.AudioContext || window.webkitAudioContext)();

}

return heartAudioCtx;

}

async function unlockHeartAudio() {

try {

const ctx = getHeartAudioCtx();

if (ctx.state === "suspended") await ctx.resume();

const buffer = ctx.createBuffer(1, 1, 22050);

const source = ctx.createBufferSource();

source.buffer = buffer;

source.connect(ctx.destination);

source.start(0);

audioUnlocked = true;

if (heartSoundOn && latestBpm > 0 && !leadsOffState) startHeartSound(latestBpm);

} catch (e) {}

}

function playMonitorBeep() {

if (!heartSoundOn || !audioUnlocked) return;

try {

const ctx = getHeartAudioCtx();

const t = ctx.currentTime;

const master = ctx.createGain();

master.gain.setValueAtTime(0.14, t);

master.connect(ctx.destination);

const osc1 = ctx.createOscillator();

const g1 = ctx.createGain();

osc1.type = "sine";

osc1.frequency.setValueAtTime(920, t);

osc1.frequency.exponentialRampToValueAtTime(720, t + 0.05);

g1.gain.setValueAtTime(0, t);

g1.gain.linearRampToValueAtTime(1, t + 0.006);

g1.gain.exponentialRampToValueAtTime(0.001, t + 0.065);

osc1.connect(g1);

g1.connect(master);

osc1.start(t);

osc1.stop(t + 0.07);

const osc2 = ctx.createOscillator();

const g2 = ctx.createGain();

osc2.type = "sine";

osc2.frequency.setValueAtTime(580, t + 0.09);

g2.gain.setValueAtTime(0, t + 0.09);

g2.gain.linearRampToValueAtTime(0.55, t + 0.1);

g2.gain.exponentialRampToValueAtTime(0.001, t + 0.17);

osc2.connect(g2);

g2.connect(master);

osc2.start(t + 0.09);

osc2.stop(t + 0.18);

} catch (e) {}

}

function stopHeartSound() {

if (heartSoundTimer) {

clearInterval(heartSoundTimer);

heartSoundTimer = null;

}

lastSoundBpm = 0;

}

function startHeartSound(bpm) {

if (!bpm || bpm <= 0 || leadsOffState) {

stopHeartSound();

return;

}

if (!heartSoundOn) {

stopHeartSound();

return;

}

if (heartSoundTimer && lastSoundBpm === bpm) return;

stopHeartSound();

lastSoundBpm = bpm;

const interval = 60000 / bpm;

if (audioUnlocked) playMonitorBeep();

heartSoundTimer = setInterval(() => {

if (audioUnlocked) playMonitorBeep();

}, interval);

}

function syncSoundToggleBtn() {

const btn = $("btnSoundToggle");

if (!btn) return;

btn.classList.toggle("muted", !heartSoundOn);

btn.title = heartSoundOn ? "Mute heartbeat sound" : "Enable heartbeat sound";

btn.setAttribute("aria-label", btn.title);

}

function initHeartSound() {

syncSoundToggleBtn();

const unlockOnce = () => { unlockHeartAudio(); };

document.addEventListener("click", unlockOnce, { once: true, passive: true, capture: true });

document.addEventListener("touchstart", unlockOnce, { once: true, passive: true, capture: true });

$("btnSoundToggle").addEventListener("click", async (e) => {

e.stopPropagation();

await unlockHeartAudio();

heartSoundOn = !heartSoundOn;

syncSoundToggleBtn();

if (heartSoundOn) {

if (latestBpm > 0 && !leadsOffState) startHeartSound(latestBpm);

} else {

stopHeartSound();

}

});

}

initHeartSound();

function updateDashPatient() {

try {

const saved = localStorage.getItem(PATIENT_KEY);

if (saved) {

const p = JSON.parse(saved);

if (p.name) {

ui.dashPatientName.textContent = p.name;

return;

}

} catch (e) {}

ui.dashPatientName.textContent = "Patient Monitor";

}

function setHeartBeatAnim(bpm) {

const el = ui.heartIcon;

if (!el) return;

const active = bpm > 0 && !leadsOffState;

if (!active) {

el.classList.remove("beating");

lastBeatAnimBpm = 0;

stopHeartSound();

return;

}

if (!el.classList.contains("beating")) el.classList.add("beating");

if (lastBeatAnimBpm !== bpm) {

lastBeatAnimBpm = bpm;

el.style.setProperty("--beat-dur", (60 / bpm) + "s");

}

startHeartSound(bpm);

}

function applyBpmUi(bpm) {

displayedBpm = bpm;

if (bpm > 0) {

const changed = ui.bpm.textContent !== String(bpm);

ui.bpm.textContent = bpm;

if (changed) pulseBpmValue();

setBar(ui.bpmBar, bpm);

setBadge(ui.bpmBadge, bpm >= 60 && bpm <= 100 ? "NORMAL" : "CHECK", bpm >= 60 && bpm <= 100 ? "good" : "watch");

setHeartBeatAnim(bpm);

} else {

ui.bpm.textContent = "--";

setBar(ui.bpmBar, 6);

setBadge(ui.bpmBadge, "WAIT", "watch");

setHeartBeatAnim(0);

}

function maybeUpdateBpmUi(bpm) {

latestBpm = bpm;

const now = Date.now();

const leadsChanged = prevLeadsOff !== leadsOffState;

prevLeadsOff = leadsOffState;

const urgent = bpm <= 0 || leadsOffState || leadsChanged;

if (urgent) {

lastBpmUiTick = now;

bpmUiReady = false;

applyBpmUi(bpm);

return;

}

if (!bpmUiReady || now - lastBpmUiTick >= BPM_UI_MS) {

lastBpmUiTick = now;

bpmUiReady = true;

applyBpmUi(bpm);

}

function updateSpo2Ui(spo2, finger, spo2Valid) {

if (finger && spo2Valid && spo2 > 0) {

ui.spo2.textContent = spo2;

flashVital($("spo2Wrap"));

setBar(ui.spo2Bar, spo2);

setBadge(ui.spo2Badge, spo2 >= 95 ? "NORMAL" : "LOW", spo2 >= 95 ? "good" : "watch");

} else {

ui.spo2.textContent = "--";

setBar(ui.spo2Bar, 6);

setBadge(ui.spo2Badge, finger ? "WAIT" : "WAIT", "watch");

}

function updateBodyUi(temp) {

if (temp > -100) {

ui.bodyTemp.textContent = temp.toFixed(1);

flashVital($("bodyTempWrap"));

setBar(ui.bodyTempBar, temp * 2);

const ok = temp >= 36.1 && temp <= 37.2;

setBadge(ui.tempBadge, ok ? "NORMAL" : "CHECK", ok ? "good" : "watch");

} else {

ui.bodyTemp.textContent = "--";

setBar(ui.bodyTempBar, 6);

setBadge(ui.tempBadge, "WAIT", "watch");

}

function setAlertRow(n, cfg) {

const row = ui["alertRow" + n];

const pill = ui["alertPill" + n];

ui["alertTitle" + n].textContent = cfg.title;

ui["alertMsg" + n].textContent = cfg.msg;

if (ui["alertTip" + n]) ui["alertTip" + n].textContent = cfg.tip;

if (ui["alertIcon" + n]) ui["alertIcon" + n].textContent = cfg.icon;

pill.textContent = cfg.pill;

pill.className = "alert-pill " + cfg.state;

row.className = "alert-row alert-" + cfg.state + " glass";

return cfg.state;

}

function updateAlerts(leadsOff, bpm, spo2, finger, bodyT) {

const v = lastVitals;

let warnN = 0, okN = 0, infoN = 0;

const suggestions = [];

function countState(s) {

if (s === "ok") okN++;

else if (s === "warn" || s === "bad") warnN++;

else infoN++;

}

// 1 — Heart rate

if (leadsOff) {

countState(setAlertRow(1, {

title: "Heart Rate — Leads Off",

msg: "Cannot measure BPM without ECG electrodes.",

tip: "Attach RA, LA, and RL pads. Clean skin with alcohol wipe first.",

icon: "\u26A0", pill: "ALERT", state: "bad"

}));

suggestions.push("Re-attach all three ECG electrodes and verify cable connections.");

} else if (bpm > 100) {

countState(setAlertRow(1, {

title: "Elevated Heart Rate",

msg: bpm + " BPM detected — above normal resting range.",

tip: "Ensure patient is at rest. Recheck in 5 minutes.",

icon: "\u2764", pill: "CHECK", state: "warn"

}));

suggestions.push("Heart rate is elevated — confirm patient is resting and hydrated.");

} else if (bpm > 0 && bpm < 60) {

countState(setAlertRow(1, {

title: "Low Heart Rate",

msg: bpm + " BPM detected — below normal resting range.",

tip: "Verify electrode placement. Consult clinician if persistent.",

icon: "\u2764", pill: "CHECK", state: "warn"

}));

suggestions.push("Bradycardia detected — verify sensor contact and patient status.");

} else if (bpm > 0) {

countState(setAlertRow(1, {

title: "Heart Rate Normal",

msg: bpm + " BPM — within healthy resting range.",

tip: "Continue routine monitoring every few minutes.",

icon: "\u2705", pill: "NORMAL", state: "ok"

}));

} else {

countState(setAlertRow(1, {

title: "Detecting Heartbeat",

msg: "Leads connected. Waiting for stable BPM reading.",

tip: "Keep patient still for accurate heart rate detection.",

icon: "\u23F3", pill: "WAIT", state: "info"

}));

}

// 2 — ECG waveform

if (leadsOff) {

countState(setAlertRow(2, {

title: "No ECG Signal",

msg: "Waveform unavailable — leads disconnected.",

tip: "Press electrodes firmly. Check LO+ and LO- indicator wires.",

icon: "\u26A1", pill: "ALERT", state: "bad"

}));

} else {

countState(setAlertRow(2, {

title: "ECG Streaming Live",

msg: "PQRST waveform updating in real time on dashboard.",

tip: "Trace should stay centered. Report unusual spikes to clinician.",

icon: "\u26A1", pill: "LIVE", state: "ok"

}));

}

// 3 — SpO2

if (!finger) {

countState(setAlertRow(3, {

title: "SpO\u2082 — No Finger Detected",

msg: "Place index finger on the MAX30102 sensor.",

tip: "Remove nail polish. Warm cold fingers before measuring.",

icon: "O\u2082", pill: "WAIT", state: "info"

}));

suggestions.push("Place finger on SpO\u2082 sensor with light, steady pressure.");

} else if (spo2 > 0 && spo2 < 90 && v.spo2Valid) {

countState(setAlertRow(3, {

title: "Critical Low SpO\u2082",

msg: spo2 + "% — critically low oxygen saturation.",

tip: "Seek immediate clinical attention. Check airway and breathing.",

icon: "\u26A0", pill: "CRITICAL", state: "bad"

}));

suggestions.push("URGENT: SpO\u2082 critically low — notify clinical staff immediately.");

} else if (spo2 > 0 && spo2 < 95 && v.spo2Valid) {

countState(setAlertRow(3, {

title: "Low SpO\u2082",

msg: spo2 + "% — below normal range (95–100%).",

tip: "Reposition finger. Ensure sensor is clean and finger is warm.",

icon: "O\u2082", pill: "CHECK", state: "warn"

}));

suggestions.push("Reposition finger on oximeter — reading below 95%.");

} else if (spo2 > 0 && v.spo2Valid) {

countState(setAlertRow(3, {

title: "SpO\u2082 Normal",

msg: "Blood oxygen at " + spo2 + "% — within healthy range.",

tip: "Maintain steady finger contact for continuous monitoring.",

icon: "\u2705", pill: "NORMAL", state: "ok"

}));

} else {

countState(setAlertRow(3, {

title: "Calculating SpO\u2082",

msg: "Finger detected. Algorithm stabilizing reading...",

tip: "Hold perfectly still for 10–15 seconds.",

icon: "O\u2082", pill: "WAIT", state: "info"

}));

}

// 4 — Body temperature

if (bodyT > 37.5) {

countState(setAlertRow(4, {

title: "Elevated Body Temperature",

msg: bodyT.toFixed(1) + " \u00B0C — above normal (fever range).",

tip: "Monitor for other symptoms. Notify clinician if rising.",

icon: "\uD83C\uDF21", pill: "CHECK", state: "warn"

}));

suggestions.push("Body temperature elevated — monitor closely and log readings.");

} else if (bodyT > 0 && bodyT < 35.5) {

countState(setAlertRow(4, {

title: "Low Body Temperature",

msg: bodyT.toFixed(1) + " \u00B0C — below normal range.",

tip: "Check sensor placement on skin. Keep patient warm.",

icon: "\uD83C\uDF21", pill: "CHECK", state: "warn"

}));

suggestions.push("Hypothermia range detected — verify probe contact and warm patient.");

} else if (bodyT > -100) {

countState(setAlertRow(4, {

title: "Body Temperature Normal",

msg: bodyT.toFixed(1) + " \u00B0C — within normal range.",

tip: "NTC thermistor reading stable.",

icon: "\u2705", pill: "NORMAL", state: "ok"

}));

} else {

countState(setAlertRow(4, {

title: "Body Temp — Waiting",

msg: "NTC thermistor sensor initializing...",

tip: "Ensure thermistor has firm skin contact.",

icon: "\uD83C\uDF21", pill: "WAIT", state: "info"

}));

}

// 5 — Room environment

if (v.bme) {

let envState = "ok";

let envPill = "NORMAL";

let envTitle = "Room Environment Normal";

let envMsg = "Room " + v.roomT.toFixed(1) + " \u00B0C \u00B7 Humidity " + v.hum.toFixed(1) + "%";

let envTip = "Conditions within comfortable clinical range.";

if (v.roomT > 28 || v.roomT < 18) {

envState = "warn"; envPill = "CHECK";

envTitle = "Room Temperature Alert";

envMsg = "Room temp " + v.roomT.toFixed(1) + " \u00B0C — outside ideal 18–28 \u00B0C.";

envTip = "Adjust HVAC or ventilation for patient comfort.";

suggestions.push("Room temperature out of range — check ventilation.");

}

if (v.hum > 70 || v.hum < 30) {

envState = "warn"; envPill = "CHECK";

envTitle = "Humidity Alert";

envMsg = "Humidity " + v.hum.toFixed(1) + "% — outside ideal 30–70%.";

envTip = "Use dehumidifier or humidifier as needed.";

suggestions.push("Room humidity out of range — adjust environmental controls.");

}

countState(setAlertRow(5, {

title: envTitle, msg: envMsg, tip: envTip,

icon: "\uD83C\uDFE0", pill: envPill, state: envState

}));

} else {

countState(setAlertRow(5, {

title: "BME280 Sensor Waiting",

msg: "Room temperature and humidity sensor not ready.",

tip: "Check BME280 I2C wiring (SDA=21, SCL=22).",

icon: "\uD83C\uDFE0", pill: "WAIT", state: "info"

}));

}

// 6 — Connection

if (connOnline) {

countState(setAlertRow(6, {

title: "Monitor Connected",

msg: "ESP32 live link active. Data streaming normally.",

tip: "If readings freeze, refresh browser or check WiFi signal.",

icon: "\uD83D\uDCF6", pill: "LIVE", state: "ok"

}));

} else {

countState(setAlertRow(6, {

title: "Monitor Offline",

msg: "Lost connection to ESP32 health monitor.",

tip: "Verify ESP32 power, WiFi credentials, and router range.",

icon: "\u274C", pill: "OFFLINE", state: "bad"

}));

suggestions.push("Device offline — check ESP32 power and WiFi connection.");

}

ui.alertWarnCount.textContent = warnN;

ui.alertOkCount.textContent = okN;

ui.alertInfoCount.textContent = infoN;

if (!suggestions.length) {

suggestions.push("All vitals within normal limits. Continue routine monitoring.");

}

ui.alertSuggestions.innerHTML = suggestions.map((s) => "<li>" + s + "</li>").join("");

const overall = warnN > 0 ? "watch" : (okN > 0 ? "good" : "watch");

setBadge(ui.alertBadge, warnN > 0 ? "CHECK" : "SAFE", overall);

}

function valueToY(v, h, leadsOff) {

if (leadsOff) return h * 0.54;

const plotH = h - ECG_Y_MARGIN * 2;

const c = Math.max(0, Math.min(PLOT_MAX, v));

return ECG_Y_MARGIN + plotH * (1 - c / PLOT_MAX);

}

function drawEcgPoint(v, leadsOff) {

const w = canvasW;

const h = canvasH;

if (w < 8 || h < 8) return;

const y = valueToY(v, h, leadsOff);

if (traceReady) {

const imageData = ctx.getImageData(SCROLL_STEP, 0, w - SCROLL_STEP, h);

ctx.putImageData(imageData, 0, 0);

ctx.clearRect(w - SCROLL_STEP, 0, SCROLL_STEP, h);

} else {

traceReady = true;

heightOld = y;

}

const x0 = Math.max(0, w - SCROLL_STEP - 1);

const x1 = w - 1;

ctx.beginPath();

ctx.moveTo(x0, heightOld);

ctx.lineTo(x1, y);

ctx.strokeStyle = leadsOff ? "#67e8f9" : "#16a34a";

ctx.lineWidth = 2.2;

ctx.lineJoin = "round";

ctx.lineCap = "round";

ctx.stroke();

heightOld = y;

}

function drawEcgSamples(samples, leadsOff) {

if (!samples || !samples.length) return;

for (let i = 0; i < samples.length; i++) {

drawEcgPoint(samples[i], leadsOff);

}

async function pollEcg() {

if (ecgPollBusy) return;

ecgPollBusy = true;

try {

const r = await fetch("/api/ecg", { cache: "no-store" });

if (!r.ok) throw new Error("ecg");

const d = await r.json();

markConnSuccess();

touchUpdate();

leadsOffState = !!d.lo;

maybeUpdateBpmUi(d.bpm);

setBadge(ui.ecgBadge, d.lo ? "LEADS OFF" : "LIVE", d.lo ? "watch" : "live");

const samples = Array.isArray(d.v) ? d.v : [d.v];

drawEcgSamples(samples, d.lo);

updateAlerts(leadsOffState, displayedBpm > 0 ? displayedBpm : d.bpm, lastVitals.spo2, lastVitals.finger, lastVitals.bodyT);

} catch (e) {

ecgFail++;

markConnFailure();

if (!connOnline) setBadge(ui.ecgBadge, "ERROR", "bad");

} finally {

ecgPollBusy = false;

}

async function pollVitals() {

try {

const r = await fetch("/api/vitals", { cache: "no-store" });

if (!r.ok) throw new Error("vitals");

const d = await r.json();

vitalsFail = 0;

markConnSuccess();

touchUpdate();

lastVitals = { spo2: d.spo2, finger: d.finger, bodyT: d.bodyT, roomT: d.roomT, hum: d.hum, bme: d.bme, spo2Valid: !!d.spo2Valid };

updateSpo2Ui(d.spo2, d.finger, d.spo2Valid);

updateBodyUi(d.bodyT);

updateRoomUi(d.roomT, d.hum, d.bme);

const bpm = displayedBpm > 0 ? displayedBpm : latestBpm;

updateAlerts(leadsOffState, bpm > 0 ? bpm : -1, d.spo2, d.finger, d.bodyT);

} catch (e) {

vitalsFail++;

markConnFailure();

}

setInterval(() => { ui.clock.textContent = fmtTime(); }, 1000);

setInterval(pollEcg, ECG_POLL_MS);

setInterval(pollVitals, 1500);

pollEcg();

pollVitals();

</script>

</body>

</html>

)rawliteral";

#endif

Testing & Demo of ESP32 Patient Health Monitor

After completing the hardware connection and uploading the code, the ESP32 patient health monitor is ready for testing.

Fig: ESP32 Patient Health Monitor Sensor Placement on Body

When the device is powered on, open the Serial Monitor at 115200 baud. The ESP32 connects to Wi-Fi and prints the local IP address. You should see sensor initialization messages such as ADS1115 OK, BME280 OK, and MAX30102 OK.

The Serial Monitor also prints debug data every 2 seconds: room temperature, humidity, body temperature, SpO₂, ECG plot value, raw ADC, voltage, BPM, and lead status.

Accessing the Dashboard

After the ESP32 connects to the Wi-Fi network, note the IP address from the Serial Monitor. Enter this IP in a web browser on any device connected to the same Wi-Fi network to open the MedMonitor live health dashboard.

Fig: ESP32 Patient Health Monitor Dashboard

The Vitals Monitor page shows live heart rate, SpO₂, body temperature, room temperature, humidity, and a scrolling ECG waveform panel. A speaker icon in the top bar toggles synchronized heartbeat monitor sound.

From the left-side menu, we can open Vitals Monitor, Patient Record, Data Logging, and Alerts.

ECG Waveform & Heart Rate

Attach the ECG electrodes (RA, LA, RL) with good skin contact. The dashboard ECG panel shows a live scrolling trace with PQRST-style cardiac complexes when leads are connected.

If electrodes are removed, the LO+ / LO− pins detect lead-off and the dashboard shows “LEADS OFF” with a flat cyan trace. BPM calculation pauses until valid ECG signal returns.

SpO₂ and Temperature Monitoring

Place a finger on the MAX30102 sensor to measure blood oxygen. You may wrap the sensor around the finger. Do not wrap too tightly.

Body temperature is read from the NTC thermistor probe on ADS1115 AIN1. Attach the thermistor on any part of the body. You may use something to wrap the sensor and fix properly on body.

Fig: Temperature Sensor Placement on Body

Room temperature and humidity are displayed from the BME280.

Patient Record & Data Logging

The Patient Record page stores patient details.

You may click on Edit details to enter the patient details on this section.

The Data Logging page records vitals at selectable intervals and exports to Excel with patient information at the top.

Clinical Alerts

The Alerts page monitors cardiac rhythm, SpO₂, body temperature, room environment, and Wi-Fi connection with clinical suggestion tips and summary counters.

Applications

Remote patient vitals monitoring prototype
IoT healthcare and biomedical engineering education
Home wellness tracking and fitness experiments
Hospital ward environmental + vitals dashboard demo
Research projects on ECG signal acquisition and web visualization

Note: This project is intended for educational and prototyping purposes only. It is not a certified medical device and should not be used for clinical diagnosis or treatment decisions.
