IoT Based PM & Air Quality Monitoring System using ESP32

Overview

In this project, we will make an IoT Based PM and Air Quality Monitoring System using ESP32, PMS7003, BME680, and OLED Display. This device will measure dust particles in the air, such as PM1.0, PM2.5, and PM10.

The BME680 sensor will measure temperature, humidity, IAQ, CO2 equivalent, and VOC equivalent. These values help us understand the overall air quality around us and detect poor ventilation, dust, smoke, or harmful gases.

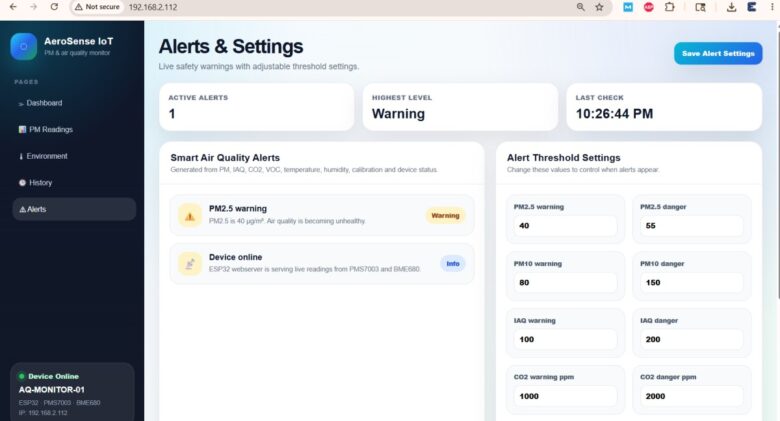

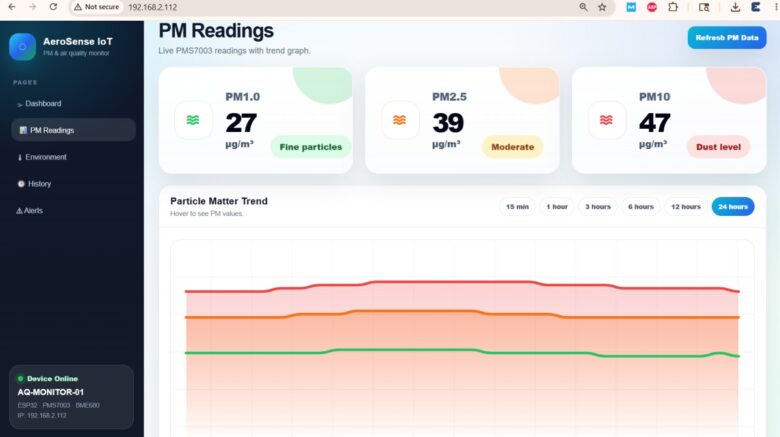

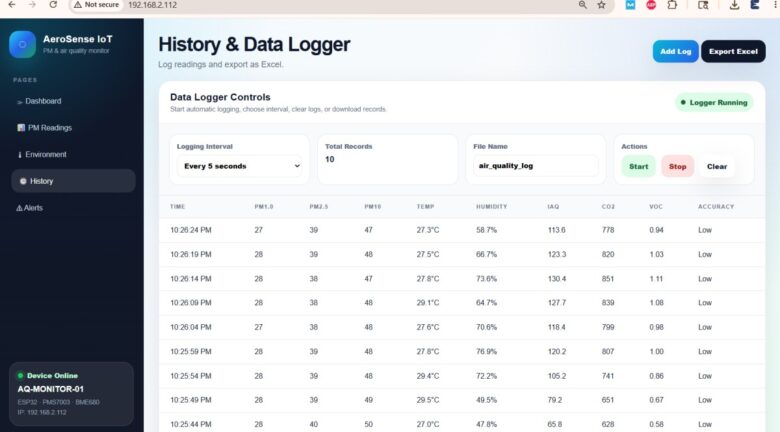

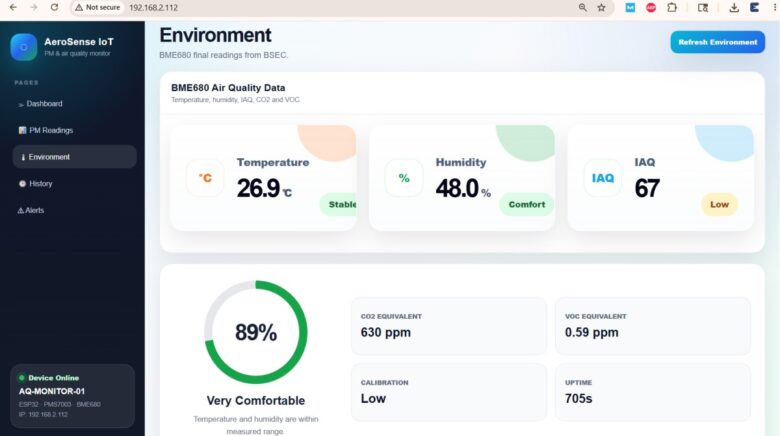

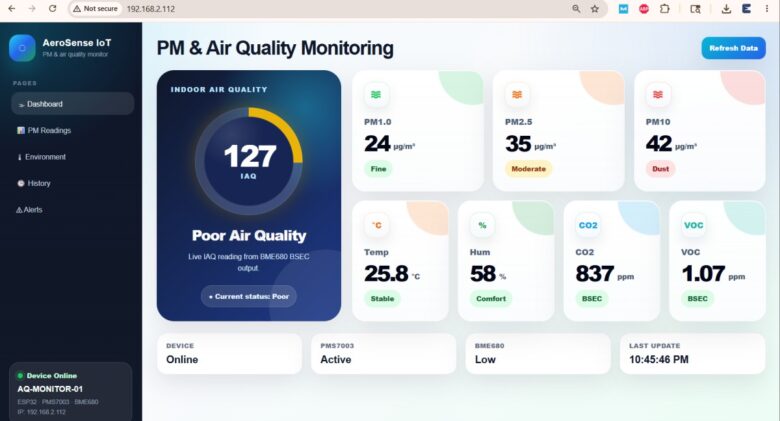

All readings will be shown on the OLED display and also on a web dashboard using the ESP32 Wi-Fi. The ESP32 creates a local webserver and hosts a modern web dashboard. The dashboard displays all sensor readings in a clean and professional interface. It includes separate sections for live dashboard readings, PM readings, environment data, history logging, and alerts. The dashboard can also show graphs, log sensor data, export readings, and generate alerts when pollution or air quality values go beyond selected limits.

Components Required

Following are the components required for making this project. The components Purchased links are given as well.

S.N.	Components Name	Quantity	Purchase Link
1	ESP32 Board	1	Amazon \| AliExpress
2	PMS7003 PM Sensor	1	Amazon \| AliExpress
3	BME680 Sensor	1	Amazon \| AliExpress
4	OLED Display 0.96"	1	Amazon \| AliExpress
5	10uF Electrolytic Capacitor	2	Amazon \| AliExpress
6	0.1uF Ceramic Capacitor	4	Amazon \| AliExpress
7	Jumper Wires	4	Amazon \| AliExpress

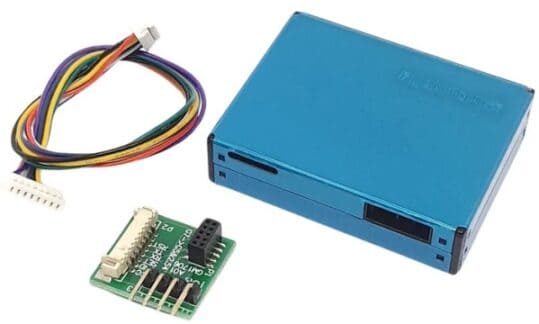

PMS7003 Particulate Matter Sensor

The PMS7003 is a digital particulate matter sensor used to measure dust particles present in the air. It is commonly used in air quality monitoring systems to detect fine particles such as PM1.0, PM2.5, and PM10.

This sensor works on the principle of laser scattering. A small fan pulls air into the sensor, and a laser detects the particles passing through the air chamber. Based on the detected particles, the sensor calculates the particle concentration and sends the data through UART serial communication.

In this project, the PMS7003 is used with the ESP32 to measure real-time particulate matter levels. The readings help us understand the amount of dust, smoke, and pollution particles present in the surrounding air. Earlier we used PMS5003 with Arduino, which you can take as a reference for studying.

PMS7003 Specifications

Sensor Type: Laser Particulate Matter Sensor
Measured Particles: PM1.0, PM2.5, and PM10
Output Unit: µg/m³
Communication Interface: UART Serial
Baud Rate: 9600 bps
Operating Voltage: 5V DC
Working Current: Around 100 mA
Measuring Range: 0 to 500 µg/m³
Particle Detection Size: 0.3 µm and above
Response Time: Less than 10 seconds
Operating Temperature: -10°C to 60°C
Operating Humidity: 0% to 99% RH
Application: Air quality monitoring, dust detection, and pollution monitoring

BME680 Environmental Sensor

The BME680 is an environmental sensor that can measure temperature, humidity, pressure, and gas resistance. It is commonly used in air quality monitoring projects because it can help detect changes in the surrounding environment.

This sensor includes a gas sensor that can detect the presence of different volatile organic compounds, also known as VOCs. With the help of the BSEC library, the BME680 can calculate useful values such as IAQ, CO2 equivalent, and VOC equivalent.

In this project, the BME680 is connected to the ESP32 using the I2C communication protocol. It helps us monitor indoor air quality, room temperature, humidity level, and gas-based air pollution in real time. You can refer to BME680 ESP8266 tutorial for more better understanding.

BME680 Specifications

Sensor Type: Environmental and Gas Sensor
Measured Parameters: Temperature, Humidity, Pressure, and Gas Resistance
Calculated Values: IAQ, CO2 Equivalent, and VOC Equivalent
Communication Interface: I2C and SPI
I2C Address: 0x76 or 0x77
Operating Voltage: 3.3V DC
Temperature Range: -40°C to 85°C
Humidity Range: 0% to 100% RH
Pressure Range: 300 hPa to 1100 hPa
Gas Sensor: VOC gas detection
Low Power Consumption: Suitable for IoT devices
Application: Air quality monitoring, weather monitoring, indoor environment monitoring, and IoT projects

Circuit: IoT Based PM & Air Quality Monitoring System using ESP32

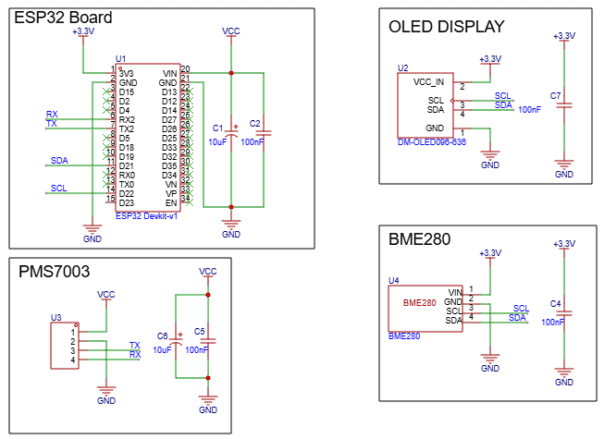

Here is the circuit diagram for IoT ESP32 based air quality monitoring system. The ESP32 is the main controller of the system. It reads air quality data from the PMS7003 sensor and reads environmental data from the BME280 sensor. The OLED display is used to show the sensor readings locally.

The OLED display and BME280 sensor both use the I2C communication pins of the ESP32. Their SCL pins are connected to ESP32 GPIO22, and their SDA pins are connected to ESP32 GPIO21. Both modules are powered using 3.3V and connected to common GND.

The PMS7003 sensor is connected to the ESP32 using UART serial communication. The TX pin of PMS7003 is connected to the RX pin of ESP32, and the RX pin of PMS7003 is connected to the TX pin of ESP32. The PMS7003 is powered from +5V and GND.

Capacitors are also added near the power supply lines for stable operation. These capacitors improve the stability of the OLED display, BME280 sensor, PMS7003 sensor, and ESP32 board.

PCB Designing & Gerber Files

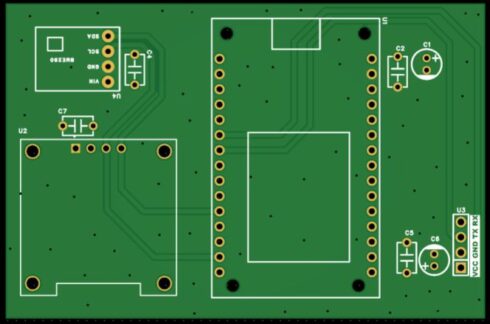

The schematic of the ESP32 Air Quality & Particulate Matter monitoring system was created in EasyEDA, and from there it was converted into a compact PCB layout.

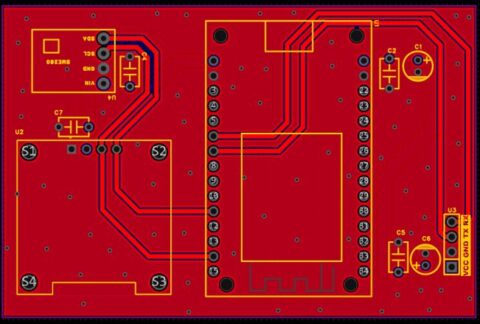

The board is designed with mostly through-hole components to make easier assembly. You can view the 2D view of the PCB.

All of the critical components, including the ESP32 module, are placed on the front side of the PCB, which makes assembly easier and more reliable.

Here are the link of files that you can download for PCB manufacturing and PCB assembly services.

Download: Schematic PDF
Download: Gerber File

PCB Ordering Online & Assembly

The Gerber file for this ESP32, PMS7003, BME680 Air Quality Monitor is provided above. You can download the Gerber file and place an order with a PCB manufacturer like AIVON for as low as $1 for a PCB Prototype.

To order the PCB, visit the AIVON Official Website and upload the Gerber file using the Quote Now option. You can then choose your required parameters, such as Material Type, Dimensions, Quantity, Thickness, and Solder Mask Color.

AIVON is making PCB prototyping and assembly more affordable for new users by offering $1 PCB Prototype and $35 PCB Assembly with Shipping fee $30 OFF on your first PCB order. With this promotion, you can enjoy free shipping on your first order and affordable assembly service for your project.

Here is the promotion link: AIVON PCB/PCBA Promotion Offer

Once all the details are filled in, select your country and shipping method. After confirming everything, you can place the order and wait for your boards to arrive.

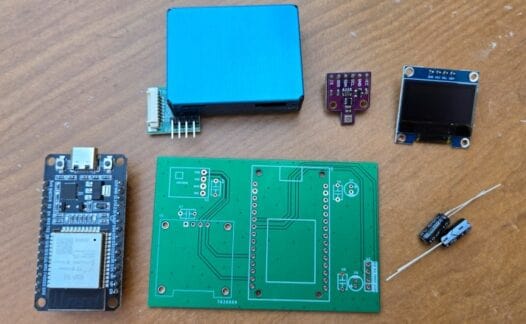

Assembly of the IoT Air Quality ESP32 Board

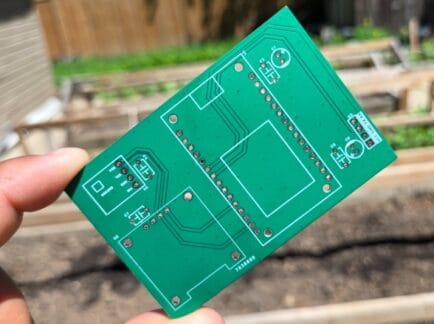

After I ordered the custom PCB, I received it within just 3 days. The PCB quality was very good, and it looked clean and professional. It is a double-sided PCB, which makes the circuit compact and neat.

Then I started soldering and assembling all the components on the board. For the ESP32 board, OLED display, and BME680 sensor, I used female header pins. This makes it easy to remove or replace the modules later if needed.

I also soldered the required capacitors on different parts of the PCB. These capacitors help to keep the power supply stable and reduce noise in the circuit. For the PMS7003 sensor, I used 4 jumper wires instead of directly soldering it on the PCB.

The PMS7003 needs proper air flow for accurate particle detection, so it should be placed in a suitable position. Using jumper wires makes it easier to adjust the position of the PMS7003 module.

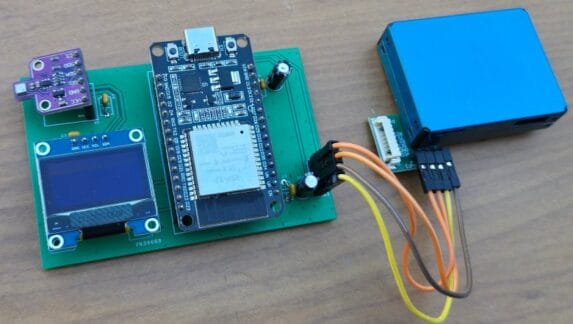

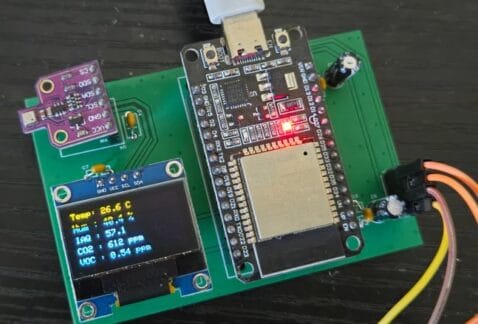

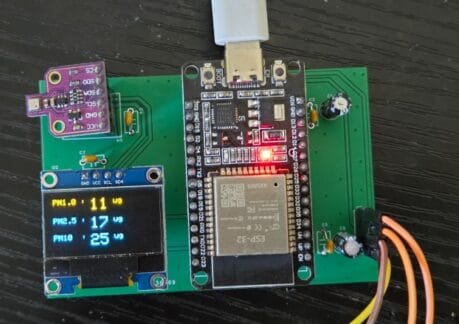

After soldering all the parts, I connected the sensor and completed the final assembly of the IoT ESP32 air quality monitoring device.

Source Code/program

Let us take a look at the programming part of this project.

The code starts by including the required libraries for the project. The WiFi and WebServer libraries are used to connect the ESP32 to a Wi-Fi network and create a local web dashboard. The BSEC library is used with the BME680 sensor to get final air quality values such as IAQ, CO2 equivalent, and VOC equivalent. The Adafruit GFX and Adafruit SSD1306 libraries are used to control the OLED display.

In the Wi-Fi section, the SSID and password are added so the ESP32 can connect to the local network. After the connection is successful, the ESP32 prints its IP address on the Serial Monitor and also shows it on the OLED display. This IP address can be opened in a browser to view the live air quality dashboard.

The main loop continuously reads data from the PMS7003 and BME680 sensors. The PMS7003 provides PM1.0, PM2.5, and PM10 values, while the BME680 provides temperature, humidity, IAQ, CO2, and VOC data. These readings are displayed on the OLED screen, printed on the Serial Monitor, and sent to the web dashboard as JSON data through the /api/readings route.

The code is divided into two sections one with the main .ino code and other with the webpage header file.

Main ino code

Copy the following code and paste it to your Arduino IDE editor window.

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

256

257

258

259

260

261

262

263

264

265

266

267

268

269

270

271

272

273

274

275

276

277

278

279

280

281

282

283

284

285

286

287

288

289

290

291

292

293

294

295

296

297

298

299

300

301

302

303

304

305

306

307

308

309

310

311

312

313

314

315

316

317

318

319

320

321

322

323

324

325

326

327

328

329

330

331

332

333

334

335

336

337

338

339

340

341

342

343

344

345

346

347

348

349

350

351

352

353

354

355

356

357

358

359

360

361

362

363

364

365

366

367

368

369

370

371

372

373

374

375

376

377

378

379

#include <Arduino.h>

#include <Wire.h>

#include <WiFi.h>

#include <WebServer.h>

#include "bsec.h"

#include <Adafruit_GFX.h>

#include <Adafruit_SSD1306.h>

#include "webpage.h"

// -------- WiFi --------

const char* ssid = "*****************";

const char* password = "*****************";

// -------- Webserver --------

WebServer server(80);

// -------- OLED --------

#define SCREEN_WIDTH 128

#define SCREEN_HEIGHT 64

#define OLED_RESET -1

#define OLED_ADDR 0x3C

Adafruit_SSD1306 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET);

// -------- PMS7003 --------

#define PMS_RX 16

#define PMS_TX 17

HardwareSerial pmsSerial(2);

// -------- BME680 I2C --------

#define I2C_SDA 21

#define I2C_SCL 22

#ifndef LED_BUILTIN

#define LED_BUILTIN 2

#endif

Bsec iaqSensor;

struct PMS7003Data {

uint16_t pm1_0_atm;

uint16_t pm2_5_atm;

uint16_t pm10_atm;

};

PMS7003Data pmsData;

uint16_t pm1_0 = 0;

uint16_t pm2_5 = 0;

uint16_t pm10 = 0;

float temperatureC = 0;

float humidityRH = 0;

float iaqValue = 0;

float co2Equivalent = 0;

float vocEquivalent = 0;

uint8_t iaqAccuracy = 0;

unsigned long lastSerialPrintTime = 0;

unsigned long lastDisplayUpdateTime = 0;

const unsigned long serialPrintInterval = 3000;

const unsigned long displayUpdateInterval = 500;

const unsigned long pageSwitchInterval = 5000;

bool readPMS7003(PMS7003Data &data);

void checkIaqSensorStatus();

void errLeds();

String getAccuracyText(uint8_t accuracy);

String getAirQualityStatus(float iaq);

String getJsonReadings();

void updateOLED();

void showPage1();

void showPage2();

void handleRoot() {

server.send_P(200, "text/html", INDEX_HTML);

}

void handleReadings() {

server.sendHeader("Access-Control-Allow-Origin", "*");

server.send(200, "application/json", getJsonReadings());

}

void handleNotFound() {

server.send(404, "text/plain", "404 Not Found");

}

void setup() {

Serial.begin(115200);

delay(1000);

Serial.println("\nESP32 PMS7003 + BME680 + OLED + Webserver");

Wire.begin(I2C_SDA, I2C_SCL);

if (!display.begin(SSD1306_SWITCHCAPVCC, OLED_ADDR)) {

Serial.println("OLED not found.");

} else {

display.clearDisplay();

display.setTextColor(SSD1306_WHITE);

display.setTextSize(1);

display.setCursor(0, 0);

display.println("Air Quality");

display.println("Starting...");

display.display();

}

pmsSerial.begin(9600, SERIAL_8N1, PMS_RX, PMS_TX);

// BME680 address 0x77

iaqSensor.begin(BME68X_I2C_ADDR_HIGH, Wire);

checkIaqSensorStatus();

bsec_virtual_sensor_t sensorList[5] = {

BSEC_OUTPUT_IAQ,

BSEC_OUTPUT_CO2_EQUIVALENT,

BSEC_OUTPUT_BREATH_VOC_EQUIVALENT,

BSEC_OUTPUT_SENSOR_HEAT_COMPENSATED_TEMPERATURE,

BSEC_OUTPUT_SENSOR_HEAT_COMPENSATED_HUMIDITY

};

iaqSensor.updateSubscription(sensorList, 5, BSEC_SAMPLE_RATE_LP);

checkIaqSensorStatus();

display.clearDisplay();

display.setCursor(0, 0);

display.println("Connecting WiFi");

display.display();

WiFi.mode(WIFI_STA);

WiFi.begin(ssid, password);

Serial.print("Connecting to WiFi");

while (WiFi.status() != WL_CONNECTED) {

delay(500);

Serial.print(".");

}

Serial.println();

Serial.print("Dashboard IP: ");

Serial.println(WiFi.localIP());

display.clearDisplay();

display.setCursor(0, 0);

display.println("WiFi Connected");

display.println(WiFi.localIP());

display.display();

delay(1500);

server.on("/", HTTP_GET, handleRoot);

server.on("/api/readings", HTTP_GET, handleReadings);

server.onNotFound(handleNotFound);

server.begin();

Serial.println("Webserver started.");

}

void loop() {

server.handleClient();

if (readPMS7003(pmsData)) {

pm1_0 = pmsData.pm1_0_atm;

pm2_5 = pmsData.pm2_5_atm;

pm10 = pmsData.pm10_atm;

}

if (iaqSensor.run()) {

temperatureC = iaqSensor.temperature;

humidityRH = iaqSensor.humidity;

iaqValue = iaqSensor.iaq;

co2Equivalent = iaqSensor.co2Equivalent;

vocEquivalent = iaqSensor.breathVocEquivalent;

iaqAccuracy = iaqSensor.iaqAccuracy;

} else {

checkIaqSensorStatus();

}

if (millis() - lastDisplayUpdateTime >= displayUpdateInterval) {

lastDisplayUpdateTime = millis();

updateOLED();

}

if (millis() - lastSerialPrintTime >= serialPrintInterval) {

lastSerialPrintTime = millis();

Serial.println("================================");

Serial.print("PM1.0: "); Serial.print(pm1_0); Serial.println(" ug/m3");

Serial.print("PM2.5: "); Serial.print(pm2_5); Serial.println(" ug/m3");

Serial.print("PM10 : "); Serial.print(pm10); Serial.println(" ug/m3");

Serial.print("Temp : "); Serial.print(temperatureC, 2); Serial.println(" C");

Serial.print("Hum : "); Serial.print(humidityRH, 2); Serial.println(" %");

Serial.print("IAQ : "); Serial.print(iaqValue, 2);

Serial.print(" | Accuracy: "); Serial.print(iaqAccuracy);

Serial.print(" - "); Serial.println(getAccuracyText(iaqAccuracy));

Serial.print("CO2 : "); Serial.print(co2Equivalent, 2); Serial.println(" ppm");

Serial.print("VOC : "); Serial.print(vocEquivalent, 2); Serial.println(" ppm");

Serial.print("Web : http://"); Serial.println(WiFi.localIP());

Serial.println("================================\n");

}

String getJsonReadings() {

String json = "{";

json += "\"pm1\":" + String(pm1_0) + ",";

json += "\"pm25\":" + String(pm2_5) + ",";

json += "\"pm10\":" + String(pm10) + ",";

json += "\"temperature\":" + String(temperatureC, 2) + ",";

json += "\"humidity\":" + String(humidityRH, 2) + ",";

json += "\"iaq\":" + String(iaqValue, 2) + ",";

json += "\"iaqAccuracy\":" + String(iaqAccuracy) + ",";

json += "\"iaqAccuracyText\":\"" + getAccuracyText(iaqAccuracy) + "\",";

json += "\"co2\":" + String(co2Equivalent, 2) + ",";

json += "\"voc\":" + String(vocEquivalent, 2) + ",";

json += "\"status\":\"" + getAirQualityStatus(iaqValue) + "\",";

json += "\"calibrating\":" + String(iaqAccuracy == 0 ? "true" : "false") + ",";

json += "\"ip\":\"" + WiFi.localIP().toString() + "\",";

json += "\"uptime\":" + String(millis() / 1000);

json += "}";

return json;

}

void updateOLED() {

if (((millis() / pageSwitchInterval) % 2) == 0) showPage1();

else showPage2();

}

void showPage1() {

display.clearDisplay();

display.setTextColor(SSD1306_WHITE);

display.setTextSize(1);

display.setCursor(0, 0);

display.print("PM1.0 : ");

display.setTextSize(2);

display.print(pm1_0);

display.setTextSize(1);

display.println(" ug");

display.setCursor(0, 22);

display.print("PM2.5 : ");

display.setTextSize(2);

display.print(pm2_5);

display.setTextSize(1);

display.println(" ug");

display.setCursor(0, 44);

display.print("PM10 : ");

display.setTextSize(2);

display.print(pm10);

display.setTextSize(1);

display.print(" ug");

display.display();

}

void showPage2() {

display.clearDisplay();

display.setTextColor(SSD1306_WHITE);

display.setTextSize(1);

if (iaqAccuracy == 0) {

display.setCursor(82, 0);

display.print("CAL...");

}

display.setCursor(0, 0);

display.print("Temp: ");

display.print(temperatureC, 1);

display.print(" C");

display.setCursor(0, 13);

display.print("Hum : ");

display.print(humidityRH, 1);

display.print(" %");

display.setCursor(0, 26);

display.print("IAQ : ");

display.print(iaqValue, 1);

display.setCursor(0, 39);

display.print("CO2 : ");

display.print(co2Equivalent, 0);

display.print(" ppm");

display.setCursor(0, 52);

display.print("VOC : ");

display.print(vocEquivalent, 2);

display.print(" ppm");

display.display();

}

bool readPMS7003(PMS7003Data &data) {

if (pmsSerial.available() < 32) return false;

while (pmsSerial.available() >= 32) {

if (pmsSerial.read() == 0x42) {

if (pmsSerial.peek() == 0x4D) break;

}

if (pmsSerial.available() < 31) return false;

uint8_t buffer[32];

buffer[0] = 0x42;

buffer[1] = pmsSerial.read();

for (int i = 2; i < 32; i++) {

buffer[i] = pmsSerial.read();

}

if (buffer[0] != 0x42 || buffer[1] != 0x4D) return false;

uint16_t frameLength = (buffer[2] << 8) | buffer[3];

if (frameLength != 28) return false;

uint16_t sum = 0;

for (int i = 0; i < 30; i++) {

sum += buffer[i];

}

uint16_t checksum = (buffer[30] << 8) | buffer[31];

if (sum != checksum) return false;

data.pm1_0_atm = (buffer[10] << 8) | buffer[11];

data.pm2_5_atm = (buffer[12] << 8) | buffer[13];

data.pm10_atm = (buffer[14] << 8) | buffer[15];

return true;

}

String getAccuracyText(uint8_t accuracy) {

if (accuracy == 0) return "Calibrating";

if (accuracy == 1) return "Low";

if (accuracy == 2) return "Medium";

if (accuracy == 3) return "High";

return "Unknown";

}

String getAirQualityStatus(float iaq) {

if (iaq <= 50) return "Good";

if (iaq <= 100) return "Moderate";

if (iaq <= 150) return "Poor";

if (iaq <= 200) return "Unhealthy";

if (iaq <= 300) return "Very Unhealthy";

return "Hazardous";

}

void checkIaqSensorStatus() {

if (iaqSensor.bsecStatus != BSEC_OK) {

if (iaqSensor.bsecStatus < BSEC_OK) {

Serial.print("BSEC error code: ");

Serial.println(iaqSensor.bsecStatus);

while (1) errLeds();

} else {

Serial.print("BSEC warning code: ");

Serial.println(iaqSensor.bsecStatus);

}

if (iaqSensor.bme68xStatus != BME68X_OK) {

if (iaqSensor.bme68xStatus < BME68X_OK) {

Serial.print("BME68X error code: ");

Serial.println(iaqSensor.bme68xStatus);

while (1) errLeds();

} else {

Serial.print("BME68X warning code: ");

Serial.println(iaqSensor.bme68xStatus);

}

void errLeds() {

pinMode(LED_BUILTIN, OUTPUT);

digitalWrite(LED_BUILTIN, HIGH);

delay(100);

digitalWrite(LED_BUILTIN, LOW);

delay(100);

}

From the following lines, change the WiFi SSID and Password.

// -------- WiFi --------

const char* ssid = "*****************";

const char* password = "*****************";

After replacing the WiFi SSID and password, you are good to go.

webpage.h file

Here is the header file for the project. You need to create another tab on Arduino IDE editor window and paste the following code that consist of webpage files.

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

256

257

258

259

260

261

262

263

264

265

266

267

268

269

270

271

272

273

274

275

276

277

278

279

280

281

282

283

284

285

286

287

288

289

290

291

292

293

294

295

296

297

298

299

300

301

302

303

304

305

306

307

308

309

310

311

312

313

314

315

316

317

318

319

320

321

322

323

324

325

326

327

328

329

330

331

332

333

334

335

336

337

338

339

340

341

342

343

344

345

346

347

348

349

350

351

352

353

354

355

356

357

358

359

360

361

362

363

364

365

366

367

368

369

370

371

372

373

374

375

376

377

378

379

380

381

382

383

384

385

386

387

388

389

390

391

392

393

394

395

396

397

398

399

400

401

402

403

404

405

406

407

408

409

410

411

412

413

414

415

416

417

418

419

420

421

422

423

424

425

426

427

428

429

430

431

432

433

434

435

436

437

438

439

440

441

442

443

444

445

446

447

448

449

450

451

452

453

454

455

456

457

458

459

460

461

462

463

464

465

466

467

468

469

470

471

472

473

474

475

476

477

478

479

480

481

482

483

484

485

486

487

488

489

490

491

492

493

494

495

496

497

498

499

500

501

502

503

504

505

506

507

508

509

510

511

512

513

514

515

516

517

518

519

520

521

522

523

524

525

526

527

528

529

530

531

532

533

534

535

536

537

538

539

540

541

542

543

544

545

546

547

548

549

550

551

552

553

554

555

556

557

558

559

560

561

562

563

564

565

566

567

568

569

570

571

572

573

574

575

576

577

578

579

580

581

582

583

584

585

586

587

588

589

590

591

592

593

594

595

596

597

598

599

600

601

602

603

604

605

606

607

608

609

610

611

612

613

614

615

616

617

618

619

620

621

622

623

624

625

626

627

628

629

630

631

632

633

634

635

636

637

638

639

640

641

642

643

644

645

646

647

648

649

650

651

652

653

654

655

656

657

658

659

660

661

662

663

664

665

666

667

668

669

670

671

672

673

674

675

676

677

678

679

680

681

682

683

684

685

686

687

688

689

690

691

692

693

694

695

696

697

698

699

700

701

702

703

704

705

706

707

708

709

710

711

712

713

714

715

716

717

718

719

720

721

722

723

724

725

726

727

728

729

730

731

732

733

734

735

736

737

738

739

740

741

742

743

744

745

746

747

748

749

750

751

752

753

754

755

756

757

758

759

760

761

762

763

764

765

766

767

768

769

770

771

772

773

774

775

776

777

778

779

780

781

782

783

784

785

786

787

788

789

790

791

792

793

794

795

796

797

798

799

800

801

802

803

804

805

806

807

808

809

810

811

812

813

814

815

816

817

818

819

820

821

822

823

824

825

826

827

828

829

830

831

832

833

834

835

836

837

838

839

840

841

842

843

844

845

846

847

848

849

850

851

852

853

854

855

856

857

858

859

860

861

862

863

864

865

866

867

868

869

870

871

872

873

874

875

876

877

878

879

880

881

882

883

884

885

886

887

888

889

890

891

892

893

894

895

896

897

898

899

900

901

902

903

904

905

906

907

908

909

910

911

912

913

914

915

916

917

918

919

920

921

922

923

924

925

926

927

928

929

930

931

932

933

934

935

936

937

938

939

940

941

942

943

944

945

946

947

948

949

950

951

952

953

954

955

956

957

958

959

960

961

962

963

964

965

966

967

968

969

970

971

972

973

974

975

976

977

978

979

980

981

982

983

984

985

986

987

988

989

990

991

992

993

994

995

996

997

998

999

1000

1001

1002

1003

1004

1005

1006

1007

1008

1009

1010

1011

1012

1013

1014

1015

1016

1017

1018

1019

1020

1021

1022

1023

1024

1025

1026

1027

1028

1029

1030

1031

1032

1033

1034

1035

1036

1037

1038

1039

1040

1041

1042

1043

1044

1045

1046

1047

1048

1049

1050

1051

1052

1053

1054

1055

1056

1057

1058

1059

1060

1061

1062

1063

1064

1065

1066

1067

1068

1069

1070

1071

1072

1073

1074

1075

1076

1077

1078

1079

1080

1081

1082

1083

1084

1085

1086

1087

1088

1089

1090

1091

1092

1093

1094

1095

1096

1097

1098

1099

1100

1101

1102

1103

1104

1105

1106

1107

1108

1109

1110

1111

1112

1113

1114

1115

1116

1117

1118

1119

1120

1121

1122

1123

1124

1125

1126

1127

1128

1129

1130

1131

1132

1133

1134

1135

1136

1137

1138

1139

1140

1141

1142

1143

1144

1145

1146

1147

1148

1149

1150

1151

1152

1153

1154

1155

1156

1157

1158

1159

1160

1161

1162

1163

1164

1165

1166

1167

1168

1169

1170

1171

1172

1173

1174

1175

1176

1177

1178

1179

1180

1181

1182

1183

1184

1185

1186

1187

1188

1189

1190

1191

1192

1193

1194

1195

1196

1197

1198

1199

1200

1201

1202

1203

1204

1205

1206

1207

1208

1209

1210

1211

1212

1213

1214

1215

1216

1217

1218

1219

1220

1221

1222

1223

1224

1225

1226

1227

1228

1229

1230

1231

1232

1233

1234

1235

1236

1237

1238

1239

1240

1241

1242

1243

1244

1245

1246

1247

1248

1249

1250

1251

1252

1253

1254

1255

1256

1257

1258

1259

1260

1261

1262

1263

1264

1265

1266

1267

1268

1269

1270

1271

1272

1273

1274

1275

1276

1277

1278

1279

1280

1281

1282

1283

1284

1285

1286

1287

1288

1289

1290

1291

1292

1293

1294

1295

1296

1297

1298

1299

1300

1301

1302

1303

1304

1305

1306

1307

1308

1309

1310

1311

1312

1313

1314

1315

1316

1317

1318

1319

1320

1321

1322

1323

1324

1325

1326

1327

1328

1329

1330

1331

1332

1333

1334

1335

1336

1337

1338

1339

1340

1341

1342

1343

1344

1345

1346

1347

1348

1349

1350

1351

1352

1353

1354

1355

1356

1357

1358

1359

1360

1361

1362

1363

1364

1365

1366

1367

1368

1369

1370

1371

1372

1373

1374

1375

1376

1377

1378

1379

1380

1381

1382

1383

1384

1385

1386

1387

1388

1389

1390

1391

1392

1393

1394

1395

1396

1397

1398

1399

1400

1401

1402

1403

1404

1405

1406

1407

1408

1409

1410

1411

1412

1413

1414

1415

1416

1417

1418

1419

1420

1421

1422

1423

1424

1425

1426

1427

1428

1429

1430

1431

1432

1433

1434

1435

1436

1437

1438

1439

1440

1441

1442

1443

1444

1445

1446

1447

1448

1449

1450

1451

1452

1453

1454

1455

1456

1457

1458

1459

1460

1461

1462

1463

1464

1465

1466

1467

1468

1469

1470

1471

1472

1473

1474

1475

1476

1477

1478

1479

1480

1481

1482

1483

1484

1485

1486

1487

1488

1489

1490

1491

1492

1493

1494

1495

1496

1497

1498

1499

1500

1501

1502

1503

1504

1505

1506

1507

1508

1509

1510

1511

1512

1513

1514

1515

1516

1517

1518

1519

1520

1521

1522

1523

1524

1525

1526

1527

1528

1529

1530

1531

1532

1533

1534

1535

1536

1537

1538

1539

1540

1541

1542

1543

1544

1545

1546

1547

1548

1549

1550

1551

1552

1553

1554

1555

1556

1557

1558

1559

1560

1561

1562

1563

1564

1565

1566

1567

1568

1569

1570

1571

1572

1573

1574

1575

1576

1577

1578

1579

1580

1581

1582

1583

1584

1585

1586

1587

1588

1589

1590

1591

1592

1593

1594

1595

1596

1597

1598

1599

1600

1601

1602

1603

1604

1605

1606

1607

1608

1609

1610

1611

1612

1613

1614

1615

1616

1617

1618

1619

1620

1621

1622

1623

1624

1625

1626

1627

1628

1629

1630

1631

1632

1633

1634

1635

1636

1637

1638

1639

1640

1641

1642

1643

1644

1645

1646

1647

1648

1649

1650

1651

1652

1653

1654

1655

1656

1657

1658

1659

1660

1661

1662

1663

1664

1665

1666

1667

1668

1669

1670

1671

1672

1673

1674

1675

1676

1677

1678

1679

1680

1681

1682

1683

1684

1685

1686

1687

1688

1689

1690

1691

1692

1693

1694

1695

1696

1697

1698

1699

1700

1701

1702

1703

1704

1705

1706

1707

1708

1709

1710

1711

1712

1713

1714

1715

1716

1717

1718

1719

1720

1721

1722

1723

1724

1725

1726

1727

1728

1729

1730

1731

1732

1733

1734

1735

1736

1737

1738

1739

1740

1741

1742

1743

1744

1745

1746

1747

1748

1749

1750

1751

1752

1753

1754

1755

1756

1757

1758

1759

1760

1761

1762

1763

1764

1765

1766

1767

1768

1769

1770

1771

1772

1773

1774

1775

1776

1777

1778

1779

1780

1781

1782

1783

1784

1785

1786

1787

1788

1789

1790

1791

1792

1793

1794

1795

1796

1797

1798

1799

1800

1801

1802

1803

1804

1805

1806

1807

1808

1809

1810

1811

1812

1813

1814

1815

1816

1817

1818

1819

1820

1821

1822

1823

1824

1825

1826

1827

1828

1829

1830

1831

1832

1833

1834

1835

1836

1837

1838

1839

1840

1841

1842

1843

1844

1845

1846

1847

1848

1849

1850

1851

1852

1853

1854

1855

1856

1857

1858

1859

1860

1861

1862

1863

1864

1865

1866

1867

1868

1869

1870

1871

1872

1873

1874

1875

1876

1877

1878

1879

1880

1881

1882

1883

1884

1885

1886

1887

1888

1889

1890

1891

1892

1893

1894

1895

1896

1897

1898

1899

1900

1901

1902

1903

1904

1905

1906

1907

1908

1909

1910

1911

1912

1913

1914

1915

1916

1917

1918

1919

1920

1921

1922

1923

1924

1925

1926

1927

1928

1929

1930

1931

1932

1933

1934

1935

1936

1937

1938

1939

1940

1941

1942

1943

1944

1945

1946

1947

1948

1949

1950

1951

1952

1953

1954

1955

1956

1957

1958

1959

1960

1961

1962

1963

1964

1965

1966

1967

1968

1969

1970

1971

1972

1973

1974

1975

1976

1977

1978

1979

1980

1981

1982

1983

1984

1985

1986

1987

1988

1989

1990

1991

1992

1993

1994

1995

1996

1997

1998

1999

2000

2001

2002

2003

2004

2005

2006

2007

2008

2009

2010

2011

2012

2013

2014

2015

2016

2017

2018

2019

2020

2021

2022

2023

2024

2025

2026

2027

2028

2029

2030

2031

2032

2033

2034

2035

2036

2037

2038

2039

2040

2041

2042

2043

2044

2045

2046

2047

2048

2049

2050

2051

2052

2053

2054

2055

2056

2057

2058

2059

2060

2061

2062

2063

2064

2065

2066

2067

2068

2069

2070

2071

2072

2073

2074

2075

2076

2077

2078

2079

2080

2081

2082

2083

2084

2085

2086

2087

2088

2089

2090

2091

2092

2093

2094

2095

2096

2097

2098

2099

2100

2101

2102

2103

2104

2105

2106

2107

2108

2109

2110

2111

2112

2113

2114

2115

2116

2117

2118

2119

2120

2121

2122

2123

2124

2125

2126

2127

2128

2129

2130

2131

2132

2133

2134

2135

2136

2137

2138

2139

2140

2141

2142

2143

2144

2145

2146

2147

2148

2149

2150

2151

2152

2153

2154

2155

2156

2157

2158

2159

2160

2161

2162

2163

2164

2165

2166

2167

2168

2169

2170

2171

2172

2173

2174

2175

2176

2177

2178

2179

2180

2181

2182

2183

2184

2185

2186

2187

2188

2189

2190

2191

2192

2193

2194

2195

2196

2197

2198

2199

2200

2201

2202

2203

2204

2205

2206

2207

2208

2209

2210

2211

2212

2213

2214

2215

2216

2217

2218

2219

2220

2221

2222

2223

2224

2225

2226

2227

2228

2229

2230

2231

2232

2233

2234

2235

2236

2237

2238

2239

2240

2241

2242

2243

2244

2245

2246

2247

2248

2249

2250

2251

2252

2253

2254

2255

2256

2257

2258

2259

2260

2261

2262

2263

2264

2265

2266

2267

2268

2269

2270

2271

2272

2273

2274

2275

2276

2277

2278

2279

2280

2281

2282

2283

2284

2285

2286

2287

2288

2289

2290

2291

2292

2293

2294

2295

2296

2297

2298

2299

2300

2301

2302

2303

2304

2305

2306

2307

2308

2309

2310

2311

2312

2313

2314

2315

2316

2317

2318

2319

2320

2321

2322

2323

2324

2325

2326

2327

2328

2329

2330

2331

2332

2333

2334

2335

2336

2337

2338

2339

2340

2341

2342

2343

2344

2345

2346

2347

2348

2349

2350

2351

#ifndef WEBPAGE_H

#define WEBPAGE_H

const char INDEX_HTML[] PROGMEM = R"rawliteral(

<!DOCTYPE html>

<html>

<head>

<title>AeroSense IoT</title>

<style>

:root{

--dark:#0f172a;

--dark2:#111827;

--text:#172033;

--muted:#667085;

--line:#e5e7eb;

--blue:#2563eb;

--cyan:#06b6d4;

--green:#16a34a;

--orange:#f97316;

--red:#ef4444;

--purple:#7c3aed;

--yellow:#eab308;

--shadow:0 18px 45px rgba(15,23,42,.10);

--radius:24px;

}

box-sizing:border-box;

}

body{

margin:0;

font-family:Arial,Helvetica,sans-serif;

color:var(--text);

background:

radial-gradient(circle at top left,rgba(6,182,212,.18),transparent 30%),

radial-gradient(circle at top right,rgba(37,99,235,.14),transparent 30%),

linear-gradient(135deg,#f0f9ff,#f8fafc 45%,#ecfdf5);

}

.app{

display:grid;

grid-template-columns:280px 1fr;

min-height:100vh;

}

.sidebar{

position:sticky;

top:0;

height:100vh;

padding:24px 20px;

background:

radial-gradient(circle at 20% 0%,rgba(6,182,212,.24),transparent 30%),

linear-gradient(180deg,var(--dark),var(--dark2));

color:white;

}

.brand{

display:flex;

align-items:center;

gap:14px;

margin-bottom:34px;

}

.brand-icon{

width:52px;

height:52px;

border-radius:18px;

display:grid;

place-items:center;

background:linear-gradient(135deg,#22d3ee,#2563eb,#16a34a);

font-size:25px;

box-shadow:0 16px 36px rgba(6,182,212,.25);

}

.brand h1{

margin:0;

font-size:19px;

line-height:1.1;

}

.brand p{

margin:5px 0 0;

color:#94a3b8;

font-size:12px;

}

.nav-title{

margin:22px 8px 10px;

color:#64748b;

font-size:11px;

font-weight:800;

letter-spacing:.12em;

text-transform:uppercase;

}

.nav button{

width:100%;

display:flex;

align-items:center;

gap:12px;

padding:13px 14px;

margin:7px 0;

color:#cbd5e1;

background:transparent;

border:0;

text-align:left;

border-radius:16px;

font-size:14px;

cursor:pointer;

transition:.2s;

}

.nav button:hover,

.nav button.active{

color:white;

background:rgba(255,255,255,.10);

transform:translateX(4px);

}

.sidebar-footer{

position:absolute;

left:20px;

right:20px;

bottom:24px;

padding:16px;

border-radius:20px;

background:rgba(255,255,255,.08);

border:1px solid rgba(255,255,255,.12);

}

.online{

display:flex;

align-items:center;

gap:8px;

color:#bbf7d0;

font-weight:800;

font-size:13px;

margin-bottom:8px;

}

.dot{

width:10px;

height:10px;

border-radius:50%;

background:#22c55e;

box-shadow:0 0 0 6px rgba(34,197,94,.16);

}

.sidebar-footer strong{

display:block;

font-size:16px;

margin-bottom:5px;

}

.sidebar-footer span{

color:#94a3b8;

font-size:12px;

line-height:1.5;

}

.content{

padding:28px;

min-width:0;

}

.page{

display:none;

animation:fadeIn .22s ease;

}

.page.active{

display:block;

}

@keyframes fadeIn{

from{

opacity:0;

transform:translateY(8px);

}

to{

opacity:1;

transform:translateY(0);

}

.topbar{

display:flex;

justify-content:space-between;

align-items:center;

gap:18px;

margin-bottom:22px;

}

.topbar h2{

margin:0;

font-size:clamp(26px,3vw,38px);

letter-spacing:-.04em;

color:#0f172a;

}

.topbar p{

margin:8px 0 0;

color:var(--muted);

}

.btn{

border:0;

border-radius:14px;

padding:12px 15px;

font-weight:800;

box-shadow:var(--shadow);

background:white;

color:var(--text);

cursor:pointer;

}

.btn-primary{

background:linear-gradient(135deg,var(--cyan),var(--blue));

color:white;

}

.btn-dark{

background:#0f172a;

color:white;

}

.btn-success{

background:#dcfce7;

color:#166534;

box-shadow:none;

}

.btn-danger{

background:#fee2e2;

color:#991b1b;

box-shadow:none;

}

/* ================= FIRST DASHBOARD PAGE ================= */

.dashboard-hero{

display:grid;

grid-template-columns:360px 1fr;

gap:22px;

margin-bottom:22px;

}

.iaq-priority-card{

min-height:420px;

border-radius:34px;

padding:28px;

color:white;

background:

radial-gradient(circle at 80% 15%,rgba(34,211,238,.38),transparent 34%),

linear-gradient(135deg,#0f172a,#1e3a8a);

box-shadow:var(--shadow);

position:relative;

overflow:hidden;

}

.iaq-priority-card::after{

content:"";

position:absolute;

width:220px;

height:220px;

border-radius:50%;

right:-80px;

bottom:-80px;

background:rgba(255,255,255,.08);

}

.iaq-label{

color:#bae6fd;

font-size:13px;

font-weight:900;

letter-spacing:.14em;

text-transform:uppercase;

}

.iaq-gauge-wrap{

display:flex;

justify-content:center;

align-items:center;

margin:26px 0 18px;

}

.iaq-gauge{

width:210px;

height:210px;

border-radius:50%;

display:grid;

place-items:center;

position:relative;

background:conic-gradient(#16a34a 0deg,#1e293b 0deg);

box-shadow:

0 22px 50px rgba(0,0,0,.22),

inset 0 0 0 1px rgba(255,255,255,.12);

}

.iaq-gauge::before{

content:"";

position:absolute;

inset:18px;

border-radius:50%;

background:

radial-gradient(circle at 30% 20%,rgba(255,255,255,.12),transparent 34%),

#172554;

box-shadow:inset 0 0 0 1px rgba(255,255,255,.08);

}

.iaq-gauge-center{

position:relative;

z-index:1;

text-align:center;

}

.iaq-number{

font-size:58px;

line-height:.9;

letter-spacing:-.08em;

font-weight:950;

}

.iaq-unit{

margin-top:6px;

color:#bae6fd;

font-size:13px;

font-weight:900;

letter-spacing:.16em;

}

.iaq-status-main{

text-align:center;

font-size:28px;

font-weight:900;

letter-spacing:-.04em;

margin-bottom:12px;

}

.iaq-desc{

color:#dbeafe;

line-height:1.6;

font-size:14px;

max-width:280px;

margin:0 auto;

text-align:center;

}

.iaq-badge{

display:flex;

align-items:center;

justify-content:center;

gap:8px;

margin:22px auto 0;

width:max-content;

padding:11px 14px;

border-radius:999px;

background:rgba(255,255,255,.12);

border:1px solid rgba(255,255,255,.16);

color:#e0f2fe;

font-size:13px;

font-weight:900;

}

.dashboard-readings-wrap{

display:grid;

gap:18px;

}

.dashboard-row{

display:grid;

gap:18px;

}

.dashboard-row.pm-row{

grid-template-columns:repeat(3,1fr);

}

.dashboard-row.env-row{

grid-template-columns:repeat(4,1fr);

}

.reading-tile{

background:

radial-gradient(circle at 92% 0%,color-mix(in srgb,var(--accent) 18%,transparent) 0 66px,transparent 68px),

linear-gradient(180deg,rgba(255,255,255,.98),rgba(251,252,253,.94));

border-radius:26px;

padding:22px;

box-shadow:0 22px 55px rgba(15,23,42,.10),inset 0 1px 0 rgba(255,255,255,.85);

border:1px solid rgba(255,255,255,.92);

min-height:201px;

position:relative;

overflow:hidden;

}

.tile-icon{

width:50px;

height:50px;

border-radius:17px;

display:grid;

place-items:center;

background:linear-gradient(180deg,rgba(255,255,255,.96),rgba(245,248,252,.90));

color:var(--accent);

font-weight:950;

border:1px solid color-mix(in srgb,var(--accent) 20%,rgba(255,255,255,.8));

box-shadow:0 10px 24px rgba(15,23,42,.08),inset 0 1px 0 rgba(255,255,255,.95);

margin-bottom:16px;

}

.tile-title{

color:#50627a;

font-size:16px;

font-weight:900;

margin-bottom:10px;

}

.tile-value-row{

display:flex;

align-items:flex-end;

gap:8px;

flex-wrap:wrap;

}

.tile-value{

font-size:42px;

line-height:.92;

letter-spacing:-.08em;

color:#020617;

font-weight:950;

}

.tile-unit{

font-size:14px;

color:#475569;

font-weight:900;

line-height:1.1;

margin-bottom:4px;

white-space:nowrap;

}

.tile-badge{

display:inline-flex;

margin-top:14px;

padding:8px 13px;

border-radius:999px;

font-size:13px;

font-weight:900;

}

.good{

background:#dcfce7;

color:#166534;

}

.moderate{

background:#fef3c7;

color:#92400e;

}

.danger{

background:#fee2e2;

color:#991b1b;

}

.summary-strip{

margin-top:22px;

display:grid;

grid-template-columns:repeat(4,1fr);

gap:16px;

}

.summary-box{

background:white;

border-radius:20px;

padding:16px 18px;

box-shadow:var(--shadow);

border:1px solid rgba(229,231,235,.85);

}

.summary-box span{

display:block;

color:var(--muted);

font-size:12px;

font-weight:900;

text-transform:uppercase;

letter-spacing:.06em;

margin-bottom:8px;

}

.summary-box strong{

color:#0f172a;

font-size:20px;

}

/* ================= ICONS ================= */

.pm-icon svg,

.air-icon svg{

width:28px;

height:28px;

stroke:currentColor;

stroke-width:2.35;

fill:none;

stroke-linecap:round;

stroke-linejoin:round;

}

.wide-icon.pm-icon svg{

width:36px;

height:36px;

}

/* ================= SHARED PAGES ================= */

.panel{

background:white;

border-radius:var(--radius);

box-shadow:var(--shadow);

border:1px solid rgba(229,231,235,.85);

overflow:hidden;

}

.panel-header{

padding:20px 22px;

border-bottom:1px solid var(--line);

display:flex;

justify-content:space-between;

align-items:center;

gap:14px;

flex-wrap:wrap;

}

.panel-header h3{

margin:0;

font-size:19px;

color:#0f172a;

}

.panel-header p{

margin:5px 0 0;

color:var(--muted);

font-size:13px;

}

.pm-reading-cards,

.environment-reading-cards{

display:grid;

grid-template-columns:repeat(3,1fr);

gap:24px;

margin-bottom:22px;

width:100%;

}

.environment-reading-cards{

padding:20px;

}

.wide-card{

background:

radial-gradient(circle at 88% 0%,color-mix(in srgb,var(--accent) 20%,transparent) 0 70px,transparent 72px),

linear-gradient(180deg,rgba(255,255,255,.98),rgba(251,252,253,.94));

border-radius:26px;

padding:28px 30px;

min-height:205px;

display:grid;

grid-template-columns:78px 1fr auto;

align-items:center;

column-gap:20px;

box-shadow:var(--shadow);

border:1px solid rgba(255,255,255,.92);

overflow:hidden;

}

.wide-icon{

width:74px;

height:74px;

border-radius:24px;

display:grid;

place-items:center;

background:white;

color:var(--accent);

font-weight:950;

font-size:22px;

border:1px solid color-mix(in srgb,var(--accent) 20%,rgba(255,255,255,.8));

}

.wide-main p{

margin:0 0 12px;

font-size:20px;

color:#50627a;

font-weight:900;

}

.wide-reading-row{

display:flex;

align-items:flex-end;

gap:10px;

flex-wrap:wrap;

}

.wide-value{

font-size:50px;

line-height:.92;

letter-spacing:-.08em;

color:#020617;

font-weight:950;

}

.wide-unit{

font-size:18px;

color:#475569;

font-weight:900;

line-height:1.05;

margin-bottom:5px;

white-space:nowrap;

}

.wide-main h3{

margin:0;

font-size:50px;

line-height:1;

letter-spacing:-.08em;

color:#020617;

}

.wide-main .unit{

font-size:20px;

color:#475569;

font-weight:900;

margin-left:6px;

}

.wide-badge{

align-self:end;

justify-self:end;

padding:11px 18px;

border-radius:999px;

font-size:16px;

font-weight:900;

white-space:nowrap;

}

.chart{

height:430px;

margin:22px;

border-radius:20px;

border:1px solid var(--line);

background:

linear-gradient(to top,rgba(148,163,184,.18) 1px,transparent 1px),

linear-gradient(to right,rgba(148,163,184,.12) 1px,transparent 1px);

background-size:100% 72px,78px 100%;

overflow:hidden;

}

.chart svg{

width:100%;

height:100%;

display:block;

}

.legend{

display:flex;

gap:14px;

flex-wrap:wrap;

padding:0 22px 22px;

}

.legend span{

display:flex;

align-items:center;

gap:8px;

color:var(--muted);

font-weight:800;

font-size:13px;

}

.legend i{

width:10px;

height:10px;

border-radius:50%;

background:var(--c);

}

.range-controls{

display:flex;

gap:8px;

flex-wrap:wrap;

}

.range-btn{

border:1px solid var(--line);

background:white;

color:#475569;

padding:9px 12px;

border-radius:999px;

font-size:12px;

font-weight:900;

cursor:pointer;

}

.range-btn.active,

.range-btn:hover{

background:linear-gradient(135deg,var(--cyan),var(--blue));

color:white;

border-color:transparent;

}

.interactive-chart{

position:relative;

}

.chart-tooltip{

position:absolute;

min-width:178px;

padding:12px 13px;

border-radius:14px;

background:#0f172a;

color:white;

box-shadow:0 18px 40px rgba(15,23,42,.26);

pointer-events:none;

opacity:0;

transform:translate(-50%,-110%);

z-index:5;

font-size:12px;

}

.chart-tooltip.show{

opacity:1;

}

.chart-tooltip strong{

display:block;

font-size:13px;

margin-bottom:8px;

color:#e0f2fe;

}

.tooltip-row{

display:flex;

align-items:center;

justify-content:space-between;

gap:18px;

margin:5px 0;

}

.tooltip-label{

display:inline-flex;

align-items:center;

gap:6px;

color:#cbd5e1;

}

.tooltip-dot{

width:8px;

height:8px;

border-radius:50%;

background:var(--dot);

}

.hover-line{

stroke:#0f172a;

stroke-width:1.5;

stroke-dasharray:5 5;

opacity:0;

pointer-events:none;

}

.hover-point{

opacity:0;

pointer-events:none;

stroke:white;

stroke-width:3;

}

.interactive-chart.active-hover .hover-line,

.interactive-chart.active-hover .hover-point{

opacity:1;

}

.comfort{

padding:26px;

}

.comfort-layout{

display:grid;

grid-template-columns:320px 1fr;

gap:24px;

align-items:center;

}

.comfort-left{

display:flex;

flex-direction:column;

align-items:center;

justify-content:center;

text-align:center;

padding:6px 10px;

}

.comfort-meter{

width:200px;

height:200px;

margin:0 0 20px;

border-radius:50%;

display:grid;

place-items:center;

background:conic-gradient(#16a34a 0 260deg,#e5e7eb 260deg 360deg);

position:relative;

}

.comfort-meter::before{

content:"";

position:absolute;

inset:16px;

background:white;

border-radius:50%;

}

.comfort-meter strong{

position:relative;

z-index:1;

font-size:44px;

letter-spacing:-.05em;

}

.comfort h4{

text-align:center;

margin:0 0 10px;

font-size:23px;

}

.comfort p{

text-align:center;

margin:0;

color:var(--muted);

line-height:1.6;

font-size:15px;

max-width:260px;

}

.mini-grid{

display:grid;

grid-template-columns:1fr 1fr;

gap:16px;

}

.mini{

min-height:112px;

padding:18px;

border-radius:18px;

background:#f8fafc;

border:1px solid var(--line);

display:flex;

flex-direction:column;

justify-content:center;

}

.mini span{

color:var(--muted);

font-size:12px;

font-weight:900;

}

.mini strong{

display:block;

margin-top:10px;

font-size:24px;

color:#0f172a;

}

.table-wrap{

overflow-x:auto;

}

table{

width:100%;

border-collapse:collapse;

min-width:820px;

}

th,td{

padding:15px 22px;

text-align:left;

border-bottom:1px solid var(--line);

font-size:14px;

}

th{

background:#f8fafc;

color:var(--muted);

font-size:11px;

text-transform:uppercase;

letter-spacing:.08em;

}

.logger-toolbar{

display:grid;

grid-template-columns:repeat(4,minmax(160px,1fr));

gap:14px;

padding:20px;

border-bottom:1px solid var(--line);

background:#f8fafc;

}

.logger-control{

background:white;

border:1px solid var(--line);

border-radius:18px;

padding:14px;

}

.logger-control span{

display:block;

color:var(--muted);

font-size:12px;

font-weight:900;

margin-bottom:8px;

}

.logger-control select,

.logger-control input{

width:100%;

box-shadow:none;

border:1px solid var(--line);

padding:10px;

border-radius:12px;

background:white;

font-weight:800;

}

.logger-actions{

display:flex;

gap:10px;

flex-wrap:wrap;

}

.logger-status{

display:inline-flex;

align-items:center;

gap:8px;

padding:9px 12px;

border-radius:999px;

font-size:13px;

font-weight:900;

background:#fee2e2;

color:#991b1b;

}

.logger-status.running{

background:#dcfce7;

color:#166534;

}

.logger-dot{

width:9px;

height:9px;

border-radius:50%;

background:currentColor;

}

/* ================= ALERTS PAGE ================= */

.alert-dashboard-grid{

display:grid;

grid-template-columns:1.1fr .9fr;

gap:20px;

}

.alerts{

display:grid;

gap:14px;

padding:20px;

}

.alert{

display:grid;

grid-template-columns:46px 1fr auto;

gap:14px;

padding:16px;

border-radius:20px;

background:#f8fafc;

border:1px solid var(--line);

align-items:center;

}

.alert-icon{

width:46px;

height:46px;

border-radius:16px;

display:grid;

place-items:center;

background:#fef3c7;

color:#92400e;

font-size:20px;

}

.alert strong{

display:block;

margin-bottom:4px;

color:#0f172a;

}

.alert span{

color:var(--muted);

font-size:13px;

line-height:1.5;

}

.alert-level{

padding:8px 12px;

border-radius:999px;

font-size:12px;

font-weight:900;

white-space:nowrap;

}

.level-info{

background:#dbeafe;

color:#1d4ed8;

}

.level-warning{

background:#fef3c7;

color:#92400e;

}

.level-danger{

background:#fee2e2;

color:#991b1b;

}

.level-good{

background:#dcfce7;

color:#166534;

}

.alert-settings{

padding:20px;

display:grid;

gap:14px;

}

.settings-grid{

display:grid;

grid-template-columns:1fr 1fr;

gap:14px;

}

.setting-card{

padding:14px;

border-radius:18px;

background:#f8fafc;

border:1px solid var(--line);

}

.setting-card label{

display:block;

color:#475569;

font-size:12px;

font-weight:900;

margin-bottom:8px;

}

.setting-card input{

width:100%;

border:1px solid var(--line);

border-radius:12px;

padding:10px;

font-size:14px;

font-weight:800;

outline:none;

}

.alert-summary{

display:grid;

grid-template-columns:repeat(3,1fr);

gap:14px;

margin-bottom:20px;

}

.alert-metric{

background:white;

border:1px solid var(--line);

box-shadow:var(--shadow);

border-radius:22px;

padding:18px;

}

.alert-metric span{

color:var(--muted);

font-size:12px;

font-weight:900;

text-transform:uppercase;

letter-spacing:.06em;

}

.alert-metric strong{

display:block;

margin-top:8px;

font-size:26px;

color:#0f172a;

}

@media(max-width:1250px){

.dashboard-hero{

grid-template-columns:1fr;

}

.dashboard-row.pm-row,

.dashboard-row.env-row{

grid-template-columns:repeat(2,1fr);

}

.summary-strip,

.alert-summary{

grid-template-columns:repeat(2,1fr);

}

.pm-reading-cards,

.environment-reading-cards{

grid-template-columns:1fr;

}

.wide-card{

grid-template-columns:70px 1fr;

row-gap:16px;

}

.wide-badge{

grid-column:1/-1;

justify-self:start;

}

.comfort-layout{

grid-template-columns:1fr;

}

.logger-toolbar,

.settings-grid{

grid-template-columns:repeat(2,1fr);

}

.alert-dashboard-grid{

grid-template-columns:1fr;

}

@media(max-width:900px){

.app{

grid-template-columns:1fr;

}

.sidebar{

position:static;

height:auto;

}

.sidebar-footer{

position:static;

margin-top:24px;

}

.topbar{

align-items:flex-start;

flex-direction:column;

}

@media(max-width:620px){

.content{

padding:18px;

}

.dashboard-row.pm-row,

.dashboard-row.env-row,

.summary-strip,

.mini-grid,

.logger-toolbar,

.settings-grid,

.alert-summary{

grid-template-columns:1fr;

}

.iaq-gauge{

width:190px;

height:190px;

}

.iaq-number{

font-size:52px;

}

.tile-value{

font-size:38px;

}

.wide-value{

font-size:42px;

}

.alert{

grid-template-columns:46px 1fr;

}

.alert-level{

grid-column:1/-1;

justify-self:start;

}

</style>

</head>

<body>

<div>

<h1>AeroSense IoT</h1>

<p>PM & air quality monitor</p>

</div>

<div class="nav-title">Pages</div>

<button class="active" onclick="showPage('dashboard',this)">🌫 Dashboard</button>

<button onclick="showPage('pm',this)">📊 PM Readings</button>

<button onclick="showPage('environment',this)">🌡 Environment</button>

<button onclick="showPage('history',this)">🕒 History</button>

<button onclick="showPage('alerts',this)">⚠ Alerts</button>

</nav>

<div class="online"><span class="dot"></span> Device Online</div>

<strong>AQ-MONITOR-01</strong>

</div>

</aside>

<div>

<h2>PM & Air Quality Monitoring</h2>

</div>

<button class="btn btn-primary" onclick="fetchReadings()">Refresh Data</button>

</header>

<div class="iaq-label">Indoor Air Quality</div>

</div>

<div class="iaq-status-main" id="aqiLabel">Loading...</div>

<div class="iaq-desc" id="aqiMessage">Waiting for ESP32 sensor readings.</div>

<div class="iaq-badge" id="aqiStatus">● Connecting</div>

</div>

</svg>

</div>

</div>

</div>

</svg>

</div>

</div>

</div>

</svg>

</div>

</div>

</div>

</div>

<div class="tile-badge good">Stable</div>

</div>

</div>

<div class="tile-badge good">Comfort</div>

</div>

</div>

</div>

</div>

</div>

<span>Device</span>

<strong id="deviceState">Online</strong>

</div>

<strong>Active</strong>

</div>

</div>

<span>Last Update</span>

</div>

</section>

<div>

<h2>PM Readings</h2>

<p>Live PMS7003 readings with trend graph.</p>

</div>

<button class="btn btn-primary" onclick="fetchReadings()">Refresh PM Data</button>

</header>

</svg>

</div>

</div>

<span class="wide-badge good">Fine particles</span>

</div>

</svg>

</div>

</div>

<span class="wide-badge moderate">Moderate</span>

</div>

</svg>

</div>

</div>

<span class="wide-badge danger">Dust level</span>

</div>

<div>

<h3>Particle Matter Trend</h3>

<p>Hover to see PM values.</p>

</div>

<button class="range-btn" onclick="setPmRange('3h',this)">3 hours</button>

<button class="range-btn" onclick="setPmRange('6h',this)">6 hours</button>

<button class="range-btn" onclick="setPmRange('12h',this)">12 hours</button>

<button class="range-btn" onclick="setPmRange('24h',this)">24 hours</button>

</div>

<defs>

</linearGradient>

</linearGradient>

</defs>

</svg>

</div>

</div>

</section>

<div>

<h2>Environment</h2>

<p>BME680 final readings from BSEC.</p>

</div>

<button class="btn btn-primary" onclick="fetchReadings()">Refresh Environment</button>

</header>

<div>

<h3>BME680 Air Quality Data</h3>

<p>Temperature, humidity, IAQ, CO2 and VOC.</p>

</div>

<p>Temperature</p>

</div>

<span class="wide-badge good">Stable</span>

</div>

<p>Humidity</p>

</div>

<span class="wide-badge good">Comfort</span>

</div>

</div>

</div>

</div>

<h4 id="comfortLabel">Loading</h4>

<p id="comfortText">Waiting for BME680 readings.</p>

</div>

<div class="mini"><span>CO2 EQUIVALENT</span><strong id="co2Mini">-- ppm</strong></div>

<div class="mini"><span>VOC EQUIVALENT</span><strong id="vocMini">-- ppm</strong></div>

<div class="mini"><span>CALIBRATION</span><strong id="calMini">--</strong></div>

<div class="mini"><span>UPTIME</span><strong id="uptimeMini">--</strong></div>

</div>

</section>

<div>

<h2>History & Data Logger</h2>

<p>Log readings and export as Excel.</p>

</div>

<div>

<button class="btn btn-dark" onclick="exportExcel()">Export Excel</button>

</div>

</header>

<div>

<h3>Data Logger Controls</h3>

<p>Start automatic logging, choose interval, clear logs, or download records.</p>

</div>

<span class="logger-dot"></span> Logger Stopped

</div>

<span>Logging Interval</span>

<option value="2000">Every 2 seconds</option>

<option value="5000" selected>Every 5 seconds</option>

<option value="10000">Every 10 seconds</option>

<option value="30000">Every 30 seconds</option>

<option value="60000">Every 1 minute</option>

</select>

</div>

<span>Total Records</span>

</div>

</div>

<span>Actions</span>

<button class="btn btn-success" onclick="startLogger()">Start</button>

<button class="btn" onclick="clearLogs()">Clear</button>

</div>

<table>

<thead>

<tr>

<th>Humidity</th>

<th>Accuracy</th>

</tr>

</thead>

</table>

</div>

</section>

<div>

<h2>Alerts & Settings</h2>

<p>Live safety warnings with adjustable threshold settings.</p>

</div>

<button class="btn btn-primary" onclick="saveAlertSettings()">Save Alert Settings</button>

</header>

<span>Active Alerts</span>

</div>

<span>Highest Level</span>

<strong id="highestAlertLevel">Normal</strong>

</div>

<span>Last Check</span>

</div>

<div>

<h3>Smart Air Quality Alerts</h3>

<p>Generated from PM, IAQ, CO2, VOC, temperature, humidity, calibration and device status.</p>

</div>

<div>

<strong>Waiting for data</strong>

<span>Dashboard is connecting to ESP32.</span>

</div>

</div>

<div>

<h3>Alert Threshold Settings</h3>

<p>Change these values to control when alerts appear.</p>

</div>

<label>PM2.5 warning</label>

</div>

<label>PM2.5 danger</label>

</div>

<label>PM10 warning</label>

</div>

<label>PM10 danger</label>

</div>

<label>IAQ warning</label>

</div>

<label>IAQ danger</label>

</div>

<label>CO2 warning ppm</label>

</div>

<label>CO2 danger ppm</label>

</div>

<label>VOC warning ppm</label>

</div>

<label>VOC danger ppm</label>

</div>

<label>Min comfort humidity %</label>

</div>

<label>Max comfort humidity %</label>

</div>

<label>Min comfort temp °C</label>

</div>

<label>Max comfort temp °C</label>

</div>

<button class="btn btn-dark" onclick="resetAlertSettings()">Reset Defaults</button>

</div>

</section>

</main>

</div>

let latest=null;

let loggerTimer=null;

let pmHistory=[];

const defaultAlertSettings={

pm25Warn:35,

pm25Danger:55,

pm10Warn:80,

pm10Danger:150,

iaqWarn:100,

iaqDanger:200,

co2Warn:1000,

co2Danger:2000,

vocWarn:1.00,

vocDanger:2.00,

humMin:30,

humMax:70,

tempMin:18,

tempMax:32

};

let alertSettings={...defaultAlertSettings};

function showPage(page,button){

document.querySelectorAll(".page").forEach(s=>s.classList.remove("active"));

document.getElementById("page-"+page).classList.add("active");

document.querySelectorAll(".nav button").forEach(x=>x.classList.remove("active"));

button.classList.add("active");

}

function cls(status){

return status==="Good" ? "good" :

status==="Unhealthy" || status==="Very Unhealthy" || status==="Hazardous" ? "danger" :

"moderate";

}

function setHTML(id,value){

const e=document.getElementById(id);

if(e)e.innerHTML=value;

}

function setText(id,value){

const e=document.getElementById(id);

if(e)e.textContent=value;

}

function pm25Status(v){

if(v<=12)return "Good";

if(v<=35)return "Moderate";

if(v<=55)return "Poor";

return "Unhealthy";

}

function getIaqColor(iaq){

if(iaq<=50)return "#16a34a";

if(iaq<=100)return "#84cc16";

if(iaq<=150)return "#eab308";

if(iaq<=200)return "#f97316";

if(iaq<=300)return "#ef4444";

return "#991b1b";

}

function updateIaqGauge(iaq){

const gauge=document.getElementById("iaqGauge");

if(!gauge)return;

const value=Math.max(0,Math.min(500,Number(iaq)));

const degrees=(value/500)*360;

const color=getIaqColor(value);

gauge.style.background=`conic-gradient(${color} 0deg ${degrees}deg, rgba(255,255,255,.16) ${degrees}deg 360deg)`;

gauge.style.boxShadow=`0 22px 50px rgba(0,0,0,.22), 0 0 34px ${color}55, inset 0 0 0 1px rgba(255,255,255,.12)`;

}

function updateUI(d){

latest=d;

const status=d.status || "Loading";

const now=new Date().toLocaleTimeString([],{

hour:"2-digit",

minute:"2-digit",

second:"2-digit"

});

setText("dashPm1",d.pm1);

setText("dashPm25",d.pm25);

setText("dashPm10",d.pm10);

setText("dashTemp",Number(d.temperature).toFixed(1));

setText("dashHum",Number(d.humidity).toFixed(0));

setText("dashCo2",Number(d.co2).toFixed(0));

setText("dashVoc",Number(d.voc).toFixed(2));

setText("pm1PageValue",d.pm1);

setText("pm25PageValue",d.pm25);

setText("pm10PageValue",d.pm10);

setHTML("envTemp",`${Number(d.temperature).toFixed(1)}<span class="unit">°C</span>`);

setHTML("envHumidity",`${Number(d.humidity).toFixed(1)}<span class="unit">%</span>`);

setHTML("envIaq",`${Number(d.iaq).toFixed(0)}`);

setText("aqiValue",Number(d.iaq).toFixed(0));

setText("aqiLabel",`${status} Air Quality`);

setText("aqiStatus",`● Current status: ${status}`);

updateIaqGauge(d.iaq);

if(d.calibrating){

setText("aqiMessage","BME680 is calibrating. IAQ, CO2, and VOC will improve after calibration.");

}else{

setText("aqiMessage","Live IAQ reading from BME680 BSEC output.");

}

const pms=pm25Status(Number(d.pm25));

const pmBadge=document.getElementById("pm25Status");

if(pmBadge){

pmBadge.className="tile-badge "+cls(pms);

pmBadge.textContent=pms;

}

setText("deviceIp",d.ip || "--");

setText("lastUpdate",now);

setText("deviceState","Online");

setText("calState",d.iaqAccuracyText || "--");

setText("envAccuracy",d.iaqAccuracyText || "--");

setText("co2Mini",`${Number(d.co2).toFixed(0)} ppm`);

setText("vocMini",`${Number(d.voc).toFixed(2)} ppm`);

setText("calMini",d.iaqAccuracyText || "--");

setText("uptimeMini",`${d.uptime}s`);

const comfort=Math.max(

45,

Math.min(

96,

100-Math.abs(d.temperature-25)*5-Math.abs(d.humidity-50)*.6

)

);

setText("comfortScore",Math.round(comfort)+"%");

setText("comfortLabel",comfort>75 ? "Very Comfortable" : comfort>60 ? "Comfortable" : "Needs Improvement");

if(d.calibrating){

setText("comfortText","Sensor calibration is in progress.");

}else{

setText("comfortText","Temperature and humidity are within measured range.");

}

updateAlerts(d);

pushPmHistory(d);

renderPmChart();

}

function getAlertSettingsFromInputs(){

alertSettings={

pm25Warn:Number(document.getElementById("setPm25Warn").value),

pm25Danger:Number(document.getElementById("setPm25Danger").value),

pm10Warn:Number(document.getElementById("setPm10Warn").value),

pm10Danger:Number(document.getElementById("setPm10Danger").value),

iaqWarn:Number(document.getElementById("setIaqWarn").value),

iaqDanger:Number(document.getElementById("setIaqDanger").value),

co2Warn:Number(document.getElementById("setCo2Warn").value),

co2Danger:Number(document.getElementById("setCo2Danger").value),

vocWarn:Number(document.getElementById("setVocWarn").value),

vocDanger:Number(document.getElementById("setVocDanger").value),

humMin:Number(document.getElementById("setHumMin").value),

humMax:Number(document.getElementById("setHumMax").value),

tempMin:Number(document.getElementById("setTempMin").value),

tempMax:Number(document.getElementById("setTempMax").value)

};

}

function loadAlertSettings(){

const saved=localStorage.getItem("aerosense_alert_settings");

if(saved){

try{

alertSettings={...defaultAlertSettings,...JSON.parse(saved)};

}catch(e){

alertSettings={...defaultAlertSettings};

}

document.getElementById("setPm25Warn").value=alertSettings.pm25Warn;

document.getElementById("setPm25Danger").value=alertSettings.pm25Danger;

document.getElementById("setPm10Warn").value=alertSettings.pm10Warn;

document.getElementById("setPm10Danger").value=alertSettings.pm10Danger;

document.getElementById("setIaqWarn").value=alertSettings.iaqWarn;

document.getElementById("setIaqDanger").value=alertSettings.iaqDanger;

document.getElementById("setCo2Warn").value=alertSettings.co2Warn;

document.getElementById("setCo2Danger").value=alertSettings.co2Danger;

document.getElementById("setVocWarn").value=alertSettings.vocWarn;

document.getElementById("setVocDanger").value=alertSettings.vocDanger;

document.getElementById("setHumMin").value=alertSettings.humMin;

document.getElementById("setHumMax").value=alertSettings.humMax;

document.getElementById("setTempMin").value=alertSettings.tempMin;

document.getElementById("setTempMax").value=alertSettings.tempMax;

}

function saveAlertSettings(){

getAlertSettingsFromInputs();

localStorage.setItem("aerosense_alert_settings",JSON.stringify(alertSettings));

if(latest) updateAlerts(latest);

alert("Alert settings saved.");

}

function resetAlertSettings(){

alertSettings={...defaultAlertSettings};

localStorage.removeItem("aerosense_alert_settings");

loadAlertSettings();

if(latest) updateAlerts(latest);

}

function makeAlert(icon,title,message,level){

const levelClass=level==="Danger" ? "level-danger" :

level==="Warning" ? "level-warning" :

level==="Good" ? "level-good" :

"level-info";

return `

<div>

<strong>${title}</strong>

<span>${message}</span>

</div>

<div class="alert-level ${levelClass}">${level}</div>

</div>

}

function updateAlerts(d){

getAlertSettingsFromInputs();

let h="";

let count=0;

let highest="Normal";

function add(icon,title,msg,level){

h+=makeAlert(icon,title,msg,level);

if(level==="Warning" || level==="Danger") count++;

if(level==="Danger") highest="Danger";

else if(level==="Warning" && highest!=="Danger") highest="Warning";

}

if(d.calibrating){

add("⏳","BME680 calibration in progress","IAQ accuracy is "+d.iaqAccuracy+". Keep the sensor running for better IAQ, CO2 and VOC readings.","Warning");

}

if(Number(d.pm25)>=alertSettings.pm25Danger){

add("🚨","PM2.5 danger level","PM2.5 is "+d.pm25+" µg/m³. Consider filtration and ventilation.","Danger");

}else if(Number(d.pm25)>=alertSettings.pm25Warn){

add("⚠️","PM2.5 warning","PM2.5 is "+d.pm25+" µg/m³. Air quality is becoming unhealthy.","Warning");

}

if(Number(d.pm10)>=alertSettings.pm10Danger){

add("🌪️","PM10 danger level","PM10 is "+d.pm10+" µg/m³. Dust level is high.","Danger");

}else if(Number(d.pm10)>=alertSettings.pm10Warn){

add("🌫️","PM10 warning","PM10 is "+d.pm10+" µg/m³. Dust level is above your warning limit.","Warning");

}

if(Number(d.iaq)>=alertSettings.iaqDanger){

add("🛑","IAQ danger level","IAQ is "+Number(d.iaq).toFixed(0)+". Indoor air quality is unhealthy.","Danger");

}else if(Number(d.iaq)>=alertSettings.iaqWarn){

add("⚠️","IAQ warning","IAQ is "+Number(d.iaq).toFixed(0)+". Air quality needs attention.","Warning");

}

if(Number(d.co2)>=alertSettings.co2Danger){

add("🫁","CO2 danger level","CO2 equivalent is "+Number(d.co2).toFixed(0)+" ppm. Improve ventilation immediately.","Danger");

}else if(Number(d.co2)>=alertSettings.co2Warn){

add("💨","CO2 warning","CO2 equivalent is "+Number(d.co2).toFixed(0)+" ppm. Ventilation may be low.","Warning");

}

if(Number(d.voc)>=alertSettings.vocDanger){

add("🧪","VOC danger level","VOC equivalent is "+Number(d.voc).toFixed(2)+" ppm. Possible chemical or odor source nearby.","Danger");

}else if(Number(d.voc)>=alertSettings.vocWarn){

add("🧴","VOC warning","VOC equivalent is "+Number(d.voc).toFixed(2)+" ppm. Check for perfumes, smoke, cleaners or solvents.","Warning");

}

if(Number(d.humidity)<alertSettings.humMin){

add("💧","Low humidity","Humidity is "+Number(d.humidity).toFixed(0)+"%. Air may feel dry.","Warning");

}else if(Number(d.humidity)>alertSettings.humMax){

add("💦","High humidity","Humidity is "+Number(d.humidity).toFixed(0)+"%. Risk of discomfort or moisture buildup.","Warning");

}

if(Number(d.temperature)<alertSettings.tempMin){

add("❄️","Low temperature","Temperature is "+Number(d.temperature).toFixed(1)+" °C. Room is below comfort limit.","Warning");

}else if(Number(d.temperature)>alertSettings.tempMax){

add("🔥","High temperature","Temperature is "+Number(d.temperature).toFixed(1)+" °C. Room is above comfort limit.","Warning");

}

if(h===""){

h+=makeAlert("✅","All readings normal","PM, IAQ, CO2, VOC, temperature and humidity are within the configured limits.","Good");

}

h+=makeAlert("📡","Device online","ESP32 webserver is serving live readings from PMS7003 and BME680.","Info");

document.getElementById("alertsBox").innerHTML=h;

setText("activeAlertCount",count);

setText("highestAlertLevel",highest);

setText("alertLastCheck",new Date().toLocaleTimeString([],{

hour:"2-digit",

minute:"2-digit",

second:"2-digit"

}));

}

async function fetchReadings(){

try{

const r=await fetch("/api/readings");

const d=await r.json();

updateUI(d);

}catch(e){

setText("deviceState","Offline");

}

function addLog(d=latest){

if(!d)return;

const row=document.createElement("tr");

const now=new Date().toLocaleTimeString([],{

hour:"2-digit",

minute:"2-digit",

second:"2-digit"

});

row.innerHTML=`

<td>${Number(d.temperature).toFixed(1)}°C</td>

<td>${Number(d.humidity).toFixed(1)}%</td>

<td>${Number(d.iaq).toFixed(1)}</td>

<td>${Number(d.co2).toFixed(0)}</td>

<td>${Number(d.voc).toFixed(2)}</td>

<td>${d.iaqAccuracyText}</td>

document.getElementById("logBody").prepend(row);

updateRecordCount();

}

function updateRecordCount(){

setText("recordCount",document.querySelectorAll("#logBody tr").length);

}

function startLogger(){

if(loggerTimer)return;

const interval=Number(document.getElementById("loggingInterval").value);

const s=document.getElementById("loggerStatus");

s.classList.add("running");

s.innerHTML='<span class="logger-dot"></span> Logger Running';

loggerTimer=setInterval(()=>addLog(),interval);

}

function stopLogger(){

if(loggerTimer){

clearInterval(loggerTimer);

loggerTimer=null;

}

const s=document.getElementById("loggerStatus");

s.classList.remove("running");

s.innerHTML='<span class="logger-dot"></span> Logger Stopped';

}

function clearLogs(){

if(confirm("Clear all logged records?")){

document.getElementById("logBody").innerHTML="";

updateRecordCount();

}

function exportExcel(){

const table=document.querySelector("#page-history table");

let html="<html><head><meta charset='UTF-8'></head><body><table border='1'><tr><th colspan='10'>IoT PM and Air Quality Monitoring Data Log</th></tr>";

table.querySelectorAll("tr").forEach(r=>{

html+="<tr>";

r.querySelectorAll("th,td").forEach(c=>{

html+=`<td>${c.innerText}</td>`;

});

html+="</tr>";

});

html+="</table></body></html>";

const blob=new Blob([html],{

type:"application/vnd.ms-excel"

});

const name=(document.getElementById("exportFileName").value || "air_quality_log").replace(/[^a-z0-9_-]/gi,"_");

const a=document.createElement("a");

a.href=URL.createObjectURL(blob);

a.download=name+".xls";

a.click();

}

function pushPmHistory(d){

pmHistory.push({

time:new Date(),

label:new Date().toLocaleTimeString([],{

hour:"2-digit",

minute:"2-digit"

}),

pm1:Number(d.pm1),

pm25:Number(d.pm25),

pm10:Number(d.pm10)

});

if(pmHistory.length>80){

pmHistory.shift();

}

function yVal(v,max){

return 394-(v/max)*(394-34);

}

function path(points){

if(!points.length)return "";

let d=`M${points[0].x},${points[0].y}`;

for(let i=1;i<points.length;i++){

let p=points[i-1];

let c=points[i];

let m=(p.x+c.x)/2;

d+=` C${m},${p.y} ${m},${c.y} ${c.x},${c.y}`;

}

return d;

}

function setPmRange(k,b){

document.querySelectorAll(".range-btn").forEach(x=>x.classList.remove("active"));

b.classList.add("active");

renderPmChart();

}

function renderPmChart(){

const data=pmHistory.length<2

? Array.from({length:30},()=>({label:"--",pm1:0,pm25:0,pm10:0}))

: pmHistory.slice(-30);

const max=Math.max(1,...data.flatMap(x=>[x.pm1,x.pm25,x.pm10]))*1.15;

const pts=data.map((d,i)=>{

let x=24+(i/(data.length-1))*852;

return {

...d,

y1:yVal(d.pm1,max),

y25:yVal(d.pm25,max),

y10:yVal(d.pm10,max)

};

});

const p1=path(pts.map(p=>({x:p.x,y:p.y1})));

const p25=path(pts.map(p=>({x:p.x,y:p.y25})));

const p10=path(pts.map(p=>({x:p.x,y:p.y10})));

[

["pm1Line",p1],

["pm25Line",p25],

["pm10Line",p10]

].forEach(item=>{

let e=document.getElementById(item[0]);

if(e)e.setAttribute("d",item[1]);

});

const a25=document.getElementById("pm25Area");

const a10=document.getElementById("pm10Area");

if(a25)a25.setAttribute("d",`${p25} L876,394 L24,394 Z`);

if(a10)a10.setAttribute("d",`${p10} L876,394 L24,394 Z`);

setupHover(pts);

}

function setupHover(points){

const chart=document.getElementById("pmChart");

if(!chart)return;

const svg=document.getElementById("pmSvg");

const tip=document.getElementById("pmTooltip");

chart.onmousemove=e=>{

const r=svg.getBoundingClientRect();

const x=((e.clientX-r.left)/r.width)*900;

let n=points[0];

let m=Math.abs(points[0].x-x);

points.forEach(p=>{

let dd=Math.abs(p.x-x);

if(dd<m){

m=dd;

n=p;

}

});

const hl=document.getElementById("hoverLine");

hl.setAttribute("x1",n.x);

hl.setAttribute("x2",n.x);

[

["hoverPm1",n.y1],

["hoverPm25",n.y25],

["hoverPm10",n.y10]

].forEach(a=>{

let el=document.getElementById(a[0]);

el.setAttribute("cx",n.x);

el.setAttribute("cy",a[1]);

});

tip.innerHTML=`

<strong>${n.label}</strong>

</div>

</div>

</div>

tip.style.left=(n.x/900*r.width)+"px";

tip.style.top=Math.max(80,Math.min(n.y1,n.y25,n.y10)/430*r.height)+"px";

chart.classList.add("active-hover");

tip.classList.add("show");

};

chart.onmouseleave=()=>{

chart.classList.remove("active-hover");

tip.classList.remove("show");

};

}

window.addEventListener("load",()=>{

loadAlertSettings();

});

setInterval(fetchReadings,2000);

fetchReadings();

renderPmChart();

</script>

</body>

</html>

)rawliteral";

#endif

Testing & Results of ESP32 based IoT Air Quality Monitoring Device

After uploading the code to the ESP32, the device starts initializing all the connected modules. First, the OLED display turns on and shows the startup message. After that, the ESP32 connects to the Wi-Fi network and displays the local IP address on the OLED screen. This IP address is used to open the web dashboard on a mobile phone or computer. You can watch it on Serial Monitor as well.

The OLED display shows the sensor readings on two different pages. On the first page, it displays the PMS7003 particulate matter readings, including PM1.0, PM2.5, and PM10 values.

On the second page, it displays the BME680 readings such as Temperature, Humidity, IAQ, CO2 equivalent, and VOC equivalent.

The display automatically switches between the two pages every few seconds. If the BME680 sensor is still calibrating, a small CAL… message appears on the OLED display. Once the sensor calibration improves, the readings become more stable and accurate.

Monitoring Air Quality and Paticulate Matter on IoT Dashboard

After uploading the code, the ESP32 connects to the Wi-Fi network and starts a local webserver. The IP address of the ESP32 is displayed on the OLED display and also printed on the Serial Monitor.

To open the IoT dashboard, connect your mobile phone or computer to the same Wi-Fi network and enter the ESP32 IP address in the browser. For example, in my case the dashboard was opened using 192.168.2.112.

The dashboard page displays the complete air quality data in a clean and professional layout. The main dashboard shows the IAQ value in a circular gauge, which changes color according to the air quality level. It also displays live values of PM1.0, PM2.5, PM10, temperature, humidity, CO2 equivalent, and VOC equivalent. At the bottom, it shows the device status, PMS7003 status, BME680 calibration level, and last update time.

The PM Readings page is used to monitor particulate matter data from the PMS7003 sensor. It shows separate cards for PM1.0, PM2.5, and PM10. Below these cards, a live graph displays the trend of particulate matter values over time. The graph has different time options such as 15 minutes, 1 hour, 3 hours, 6 hours, 12 hours, and 24 hours, which makes it easier to analyze air pollution changes.

The Environment page displays the BME680 sensor values. It shows temperature, humidity, and IAQ in large cards. Below that, it shows a comfort percentage gauge along with CO2 equivalent, VOC equivalent, calibration status, and uptime. This section helps to understand the indoor environment and air quality condition more clearly.

The History and Data Logger page is used to record sensor readings. It logs time, PM values, temperature, humidity, IAQ, CO2, VOC, and accuracy level. The data logger can be started or stopped from the dashboard, and the logged data can also be exported as an Excel file for later analysis.

The Alerts and Settings page shows air quality warnings based on the sensor readings. It can display alerts for high PM2.5, PM10, IAQ, CO2, VOC, temperature, and humidity levels. This page also includes threshold settings, so we can change the warning and danger limits according to our requirement.

This project successfully demonstrates an IoT based air quality monitoring system using ESP32, PMS7003, and BME680. It can monitor particulate matter, environmental values, and air quality in real time on both the OLED display and web dashboard.
