Monitor Water Tank Level with GSM & ESP8266 on Blynk

Mamtaz AlamBy Mamtaz AlamUpdated:June 28, 20256 Mins Read
Share Facebook Twitter LinkedIn Telegram Reddit WhatsApp
Water Tank Level Monitoring System with GSM & ESP8266
Share
Facebook Twitter LinkedIn Pinterest Email Reddit Telegram WhatsApp

Overview

In this project, we will develop an IoT-based Water Tank Level Monitoring System that utilizes the GSM/GPRS network to monitor Water Level. By incorporating the SIM800L GSM Module with ESP8266 Microcontroller, this system is designed to transmit the water tank’s level data directly to the Blynk Dashboard. The user-friendly dashboard will not only display the current water level but also indicate whether the tank is full or empty. This will provide users with real-time insights into their water storage system.

Furthermore, the project enhances user convenience by offering the capability to receive updates on the tank’s status through SMS. This means that in addition to the dashboard’s visual representation of the water level, users can also get notified of the tank being full or empty via text messages. For measuring the Water Level, we will use the Ultrasonic Sensor HC-SR04.

Earlier we build, a few of those similar projects which you can go through for more understanding:

  • GSM Based Water Level Monitoring System with Arduino
  • IoT Based Water Level Control & Monitoring with ESP8266
  • Inductive Water Level Indicator with Display
  • Water Level Alert using Float Sensor & 555 Timer

Bill of Materials

Following are the list of components required to build Water Tank Level Monitoring System with GSM & ESP8266 on Blynk.

S.N.ComponentsQuantityPurchase Links
1ESP8266 Board1Amazon | AliExpress | SunFounder
2GSM Module SIM800L1Amazon | AliExpress
316x2 I2C LCD Module1Amazon | AliExpress | SunFounder
4HC-SR04 Ultrasonic Sensor1Amazon | AliExpress | SunFounder
5LM2596 Buck Converter1Amazon | AliExpress
67805 Voltage Regulator IC1Amazon | AliExpress
7LED 5mm Red Color1Amazon | AliExpress | SunFounder
8Resistor 560-ohm2Amazon | AliExpress
9Capacitor 100uF1Amazon | AliExpress | SunFounder
10Capacitor 10uF1Amazon | AliExpress
119V/12V DC Adapter1Amazon | AliExpress | SunFounder




Circuit Diagram & Setup

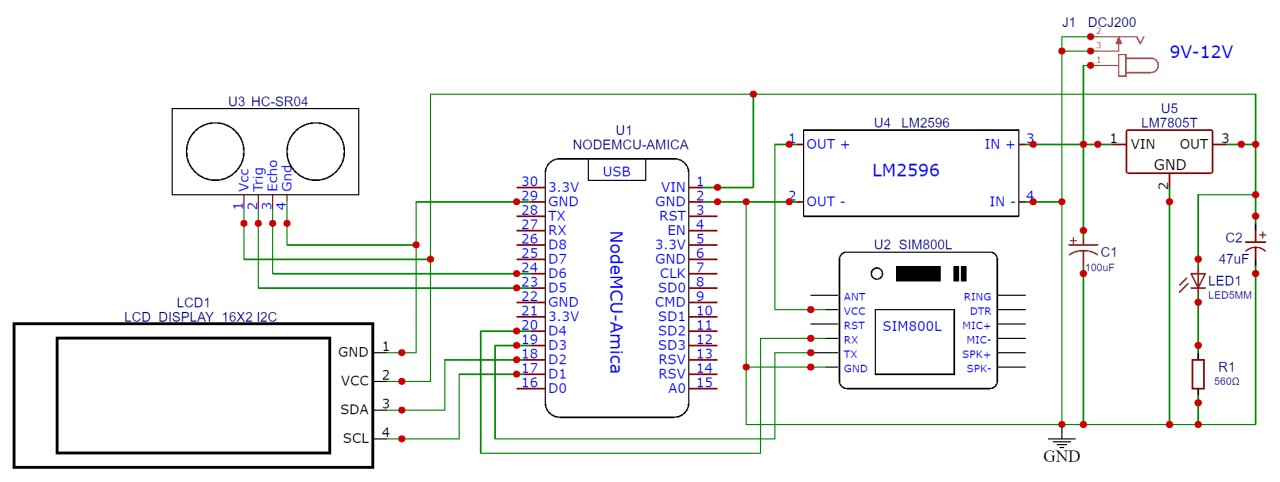

Here is the circuit for Water Tank Level Monitoring System with GSM & ESP8266. All the active-passive components are connected to the digital pins of NodeMCU ESP8266 Board.

Schematic GSM Water Tank Monitor ESP8266 Blynk

The center of the Circuit is NodeMCU Board which works on 5V power supply. The 5V input is fed to NodeMCU board via 7805 Voltage regulator IC. The Ultrasonic Sensor HC-SR04 is connected to the digital pins of NodeMCU ESP8266 Board.

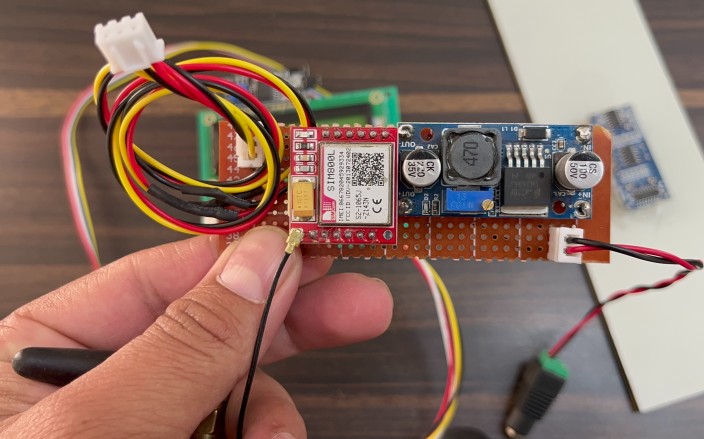

LM2596 Power Supply with SIM800L

For the GSM power supply part we are using the Buck Converter Module LM2596. The LM2596 is supplied with 9V DC Supply. The LM2596 output is setup between 3.7V to 4V for GSM Module. The 16X2 I2C LCD Display is connected to I2C Pins of NodemCU ESP8266 Board.

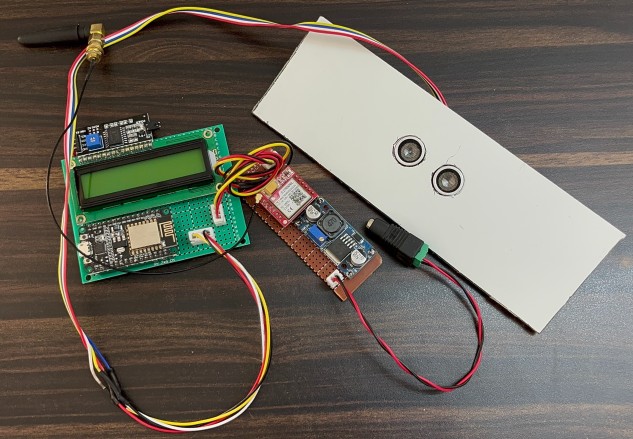

Monitor Water Level ESP8266 Blynk HC-SR04

For the demo, I assembled the project on a Zero PCB Board here. You can also assemble the circuit on a breadboard or Vero board or use your own custom PCB for commercial applications.



Project PCB Gerber File & PCB Ordering Online

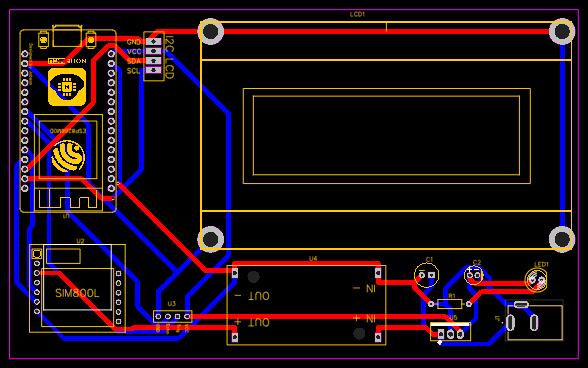

We have designed the PCB using the EasyEDA Software. The PCB design looks like this.

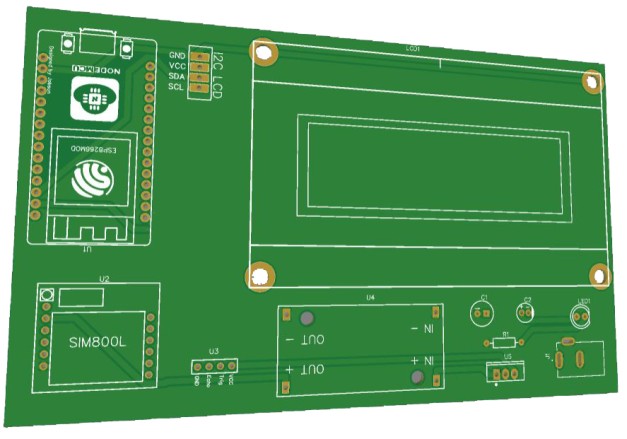

Here is the 2D View of the PCB.

The Gerber File for the PCB is given below. You can simply download the Gerber File and order the PCB from PCBGOGO at 1$ only.

Download Gerber File: Water Tank Level Monitor

You can use this Gerber file to order high-quality PCB for this project. To do that visit the PCBGOGO official website by clicking here: https://www.pcbgogo.com/.

You can now upload the Gerber File by choosing the Quote Now option. From these options, you can choose the Material Type, Dimensions, Quantity, Thickness, Solder Mask Color and other required parameters.

After filling all details, select your country and shipping method. Finally you can place the order.


Setting up Blynk Dashboard

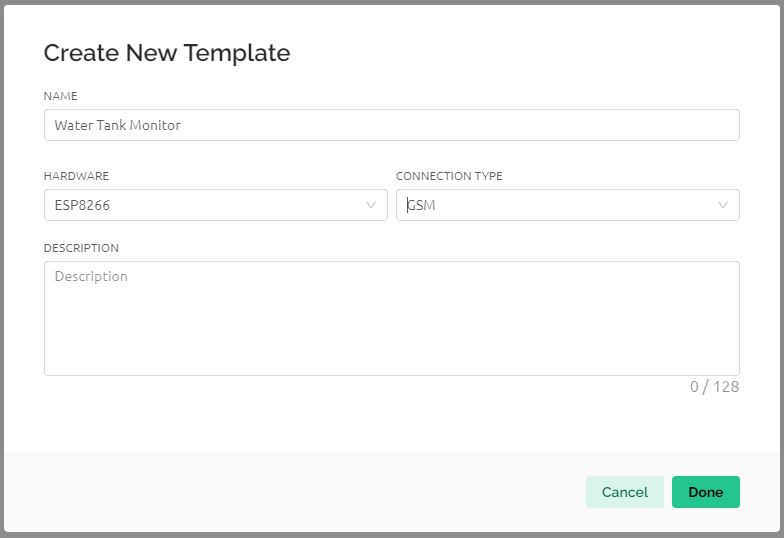

Let’s begin by setting up the Blynk App for data visualization. First, create a template and assign it any name of your choosing.

For the hardware selection, choose ESP8266, and set the connection type to GSM.

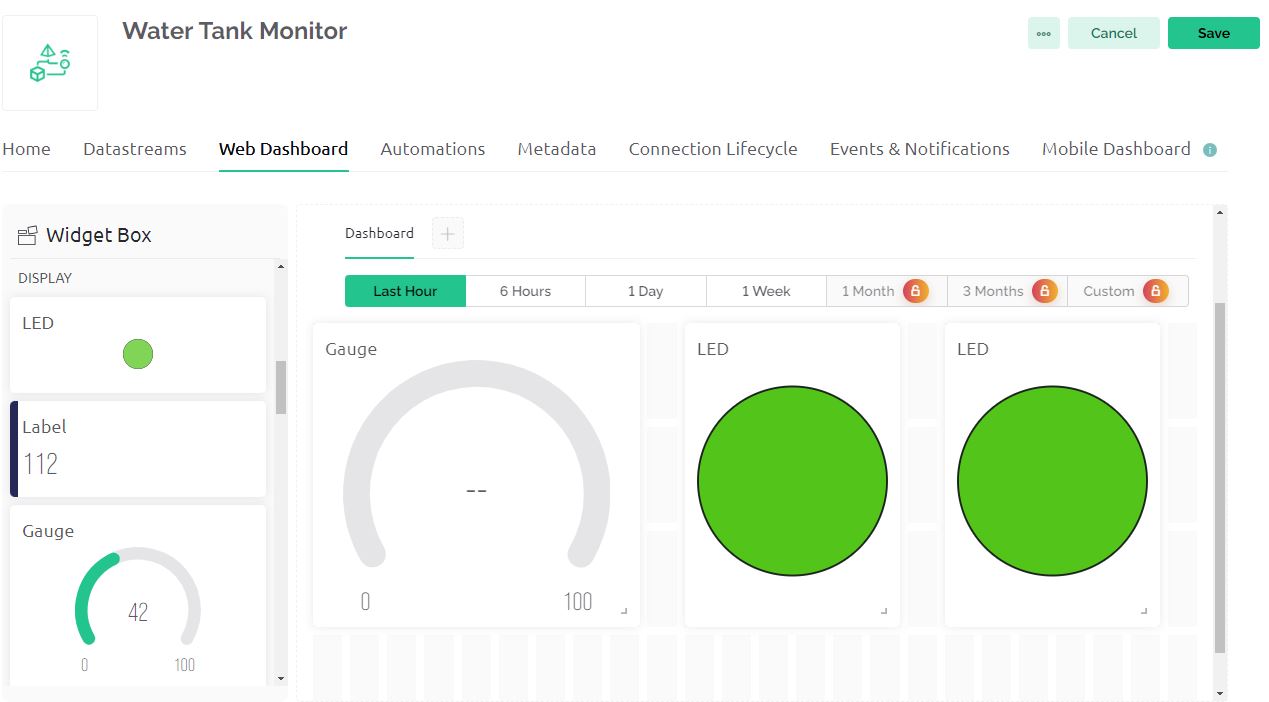

Next, navigate to the web dashboard. Here, you’ll need to drag and drop one gauge widget and two LED widgets onto the dashboard. Once added, adjust their sizes for better visibility and provide them with appropriate titles.

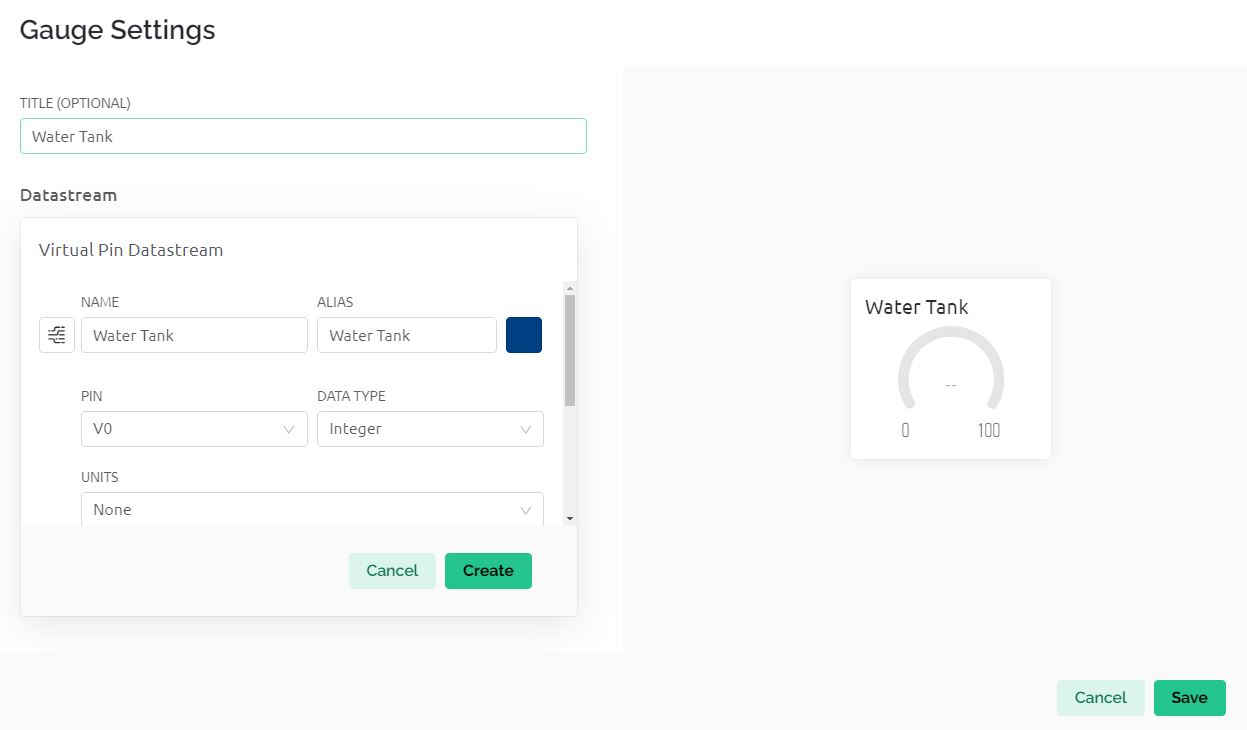

You’ll also need to create data streams that handle integer values ranging from 0 to 100% to represent your data accurately. For the LED widgets, assign values of 1 and 0 to signify ‘tank full’ and ‘tank empty’ statuses, respectively.

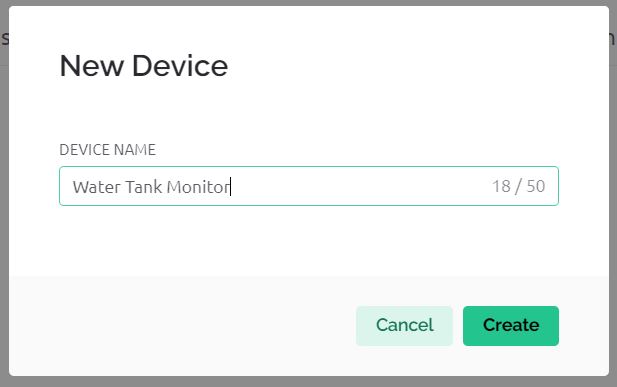

Following this, create a device, giving it any name you prefer. Upon completion, you will observe that the device has been successfully created on the platform.

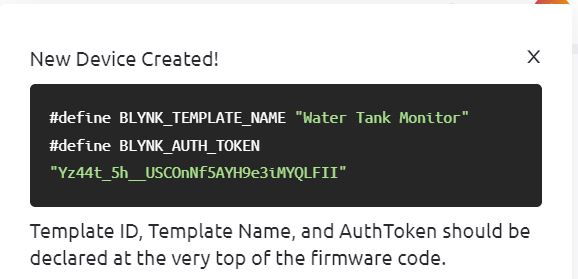

Additionally, you’ll be provided with credentials that are crucial for this project.




Source Code/Program

The code is designed for a GSM Water Tank Monitoring System using GSM module (SIM800), ESP8266 Microcontroller and an ultrasonic sensor to measure the liquid level in a tank. It connects to the Blynk IoT platform for remote monitoring and control. The system displays the liquid level on an LCD screen and sends alerts via SMS when the tank is full or empty.

It utilizes the Blynk library for communication with the Blynk app, the TinyGsmClient library for GSM functionality, and controls an ultrasonic sensor to determine the tank’s liquid level. Additionally, it includes functions to send SMS alerts for specific tank level conditions.

Add the following libraries to the Arduino folder, before uploading the code.
1. TinyGSM Client Library: Download TinyGsmClient Library
2. Blynk Library: Download Blynk Library
3. I2C LCD Library: Download I2C_LCD Library

From this line, change the Blynk Authentication token and replace it with your Blynk token.

1
#define BLYNK_AUTH_TOKEN "*************************"

You need to replace the apn in this line with the APN Service provider of your Cellular network.

1
char apn[] = "internet";

In the SendMessage2 & SendMessage1 function, replace the number where you want to send the SMS for water alert.

1
SerialAT.println("AT+CMGS=\"+91xxxxxxxx\"\r");

Here is the full code for this project.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
#define BLYNK_TEMPLATE_ID "TMPL30BL34-7r"
#define BLYNK_TEMPLATE_NAME "IoT"
#define BLYNK_AUTH_TOKEN "*************************"

#define BLYNK_PRINT Serial
#define TINY_GSM_MODEM_SIM800

char apn[] = "internet";
char user[] = "";
char pass[] = "";

#include <TinyGsmClient.h>
#include <BlynkSimpleTinyGSM.h>
#include <LiquidCrystal_I2C.h>
#include <SoftwareSerial.h>
#include <Wire.h>

LiquidCrystal_I2C lcd(0x27, 16, 2);
SoftwareSerial SerialAT(D3, D4); //gsm
TinyGsm modem(SerialAT);

char auth[] = BLYNK_AUTH_TOKEN;

BlynkTimer timer;

const int trigPin1 = D5;
const int echoPin1 = D6;
unsigned long startMillis;
unsigned long currentMillis;
const unsigned long period = 10000;
long duration1;
int distance1;

int firstmessageSent = 0;
int secondmessageSent = 0;

void setup() {

  Serial.begin(9600);
  delay(10);
  SerialAT.begin(9600);
  delay(3000);
  Serial.println("Initializing modem...");
  modem.restart();
  Blynk.begin(auth, modem, apn, user, pass);
  Wire.begin(D2, D1);
  lcd.init();
  lcd.backlight();
  lcd.setCursor(0, 0);
  lcd.print("   WELCOME TO");
  lcd.setCursor(0, 1);
  lcd.print("  OUR PROJECTS");
  delay(2000);
  lcd.clear();
  lcd.setCursor(0, 0);
  lcd.print(" SMART");
  lcd.setCursor(0, 1);
  lcd.print("TANK MONITORING");
  delay(3000);
  lcd.clear();
  pinMode(trigPin1, OUTPUT);
  pinMode(echoPin1, INPUT);
}
void loop() {

  ultersonic();
  lcd.clear();
  lcd.setCursor(0, 0);
  lcd.print("Liquid Level-");
  lcd.print(distance1);
  Blynk.virtualWrite(V0, distance1);

  if (distance1 < 20) {
    digitalWrite(D0, HIGH);
    digitalWrite(D8, LOW);
    lcd.setCursor(0, 1);
    lcd.print("   Tank Full.");
    WidgetLED LED(V2);
    LED.on();
    WidgetLED LED1(V1);
    LED1.off();
    if (secondmessageSent == 0) {
      SendMessage1();
      secondmessageSent = 1;
      firstmessageSent = 0;
    }
    delay(100);
  }

  if (distance1 > 60) {
    digitalWrite(D0, HIGH);
    digitalWrite(D8, LOW);
    lcd.setCursor(0, 1);
    lcd.print("   Tank Empty");

    if (firstmessageSent == 0) {
      SendMessage2();
      secondmessageSent = 0;
      firstmessageSent = 1;
    }
    delay(100);
  } else {
    digitalWrite(D0, HIGH);
    digitalWrite(D8, LOW);
    WidgetLED LED(V2);
    LED.off();
    WidgetLED LED1(V1);
    LED1.on();
  }
  currentMillis = millis();
  if (currentMillis - startMillis >= period) {
    startMillis = currentMillis;
  }
}

void SendMessage2() {
  SerialAT.println(" Tank Empty ");
  SerialAT.println("AT+CMGF=1");
  delay(1000);
  SerialAT.println("AT+CMGS=\"+91xxxxxxxx\"\r");
  delay(1000);
  SerialAT.println(" Tank Empty");
  delay(100);
  SerialAT.println((char)26);
  delay(1000);
}

void SendMessage1() {
  SerialAT.println(" Tank Full ");
  SerialAT.println("AT+CMGF=1");
  delay(1000);
  SerialAT.println("AT+CMGS=\"+91xxxxxxxxxx\"\r");
  delay(1000);
  SerialAT.println(" Tank Full ");
  delay(100);
  SerialAT.println((char)26);
  delay(1000);
}

void ultersonic() {
  digitalWrite(trigPin1, LOW);
  delayMicroseconds(2);
  digitalWrite(trigPin1, HIGH);
  delayMicroseconds(10);
  digitalWrite(trigPin1, LOW);
  duration1 = pulseIn(echoPin1, HIGH);
  distance1 = duration1 * 0.207 / 2;
  Serial.println(distance1);
  delay(100);
}



Working of Water Tank Level Monitor with GSM & ESP8266 on Blynk

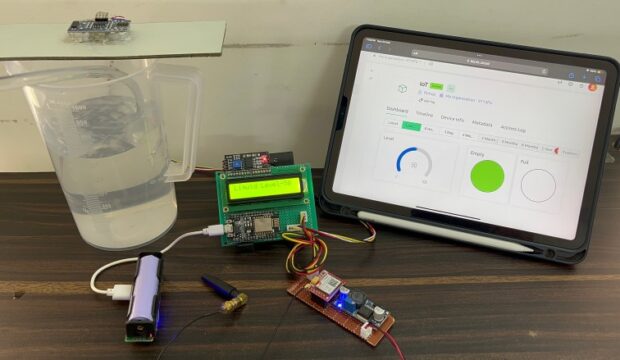

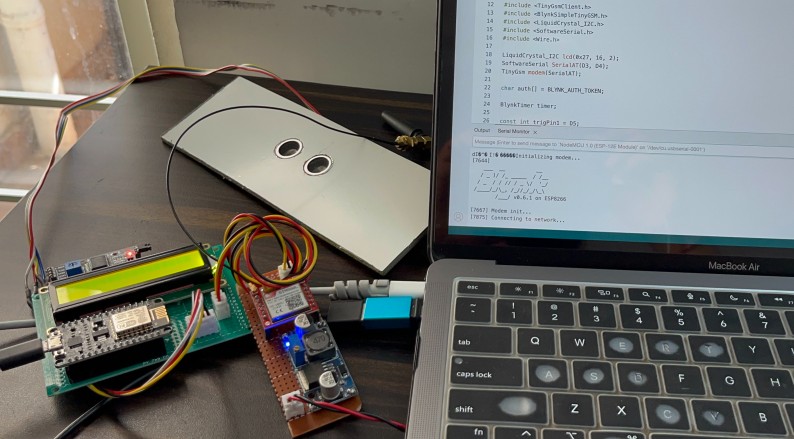

After uploading the code, the device is ready for testing. Initially, the GSM module establishes a connection with the Blynk Server, indicating the system is ready for testing.

GSM Water Level Monitoring System

To initiate testing, the water pump is activated to start filling the tank.

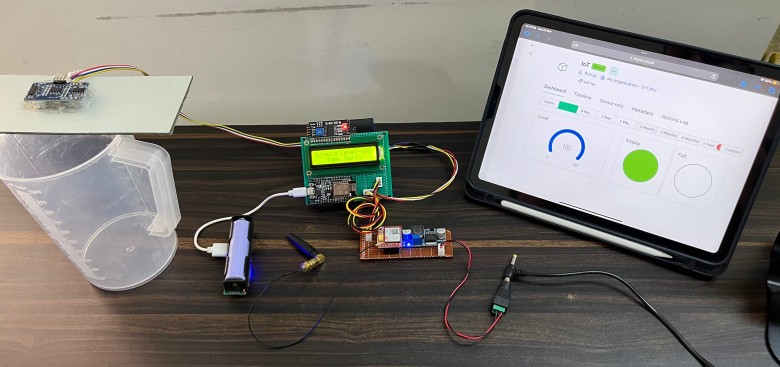

Water Tank Monitoring System ESP8266

During this process, the Blynk Dashboard’s gauge visually represents the decreasing level of emptiness, indicating the tank is gradually being filled with water. This change is gradual, mirroring the actual filling process of the tank.

Once the tank reaches full capacity, the dashboard indicator changes to red, signifying that the tank is completely full.

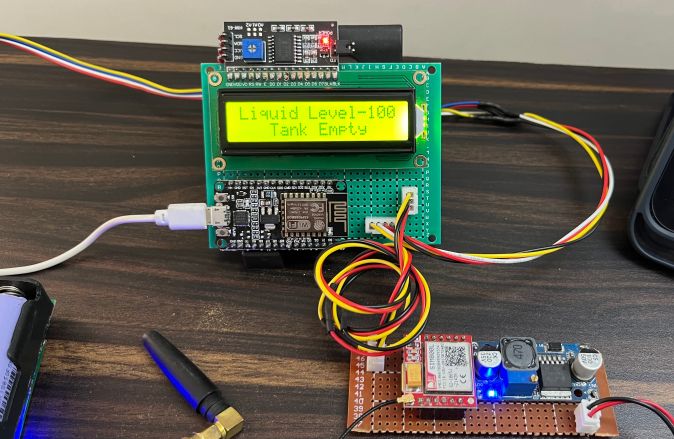

Additionally, the LCD display connected to the system provides real-time updates on the water level.

Initially, it shows the liquid level at 100 and indicates that the tank is empty. Correspondingly, a notification is sent as an SMS to the phone, confirming that the tank is empty.

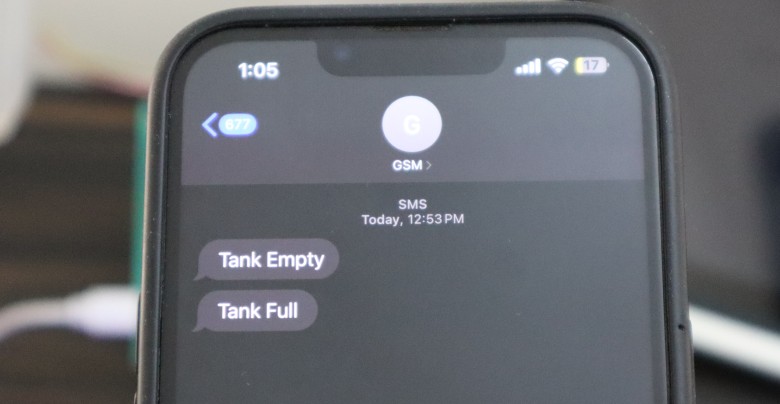

Monitor Water Tank Level with GSM & ESP8266 on Blynk & SMS

The final phase of the test involves filling the tank to observe the system’s response to a full tank scenario. As the tank becomes full, the LCD display updates to indicate that the tank is full, and a matching SMS notification is sent to the phone, confirming the tank’s full status.



Video Tutorial & Demo

GSM Based Water Tank Level Monitoring System on Blynk with SMS Alert
Watch this video on YouTube.

Share. Facebook Twitter Pinterest LinkedIn Tumblr Email Reddit Telegram WhatsApp
Previous ArticleInterfacing LM35 Temperature Sensor with ESP32 Web Server
Next Article LM35 Temperature Sensor with Raspberry Pi Pico MicroPython

Related Posts

ESP32 Fingerprint Attendance System with Live Web Dashboard

ESP32 Fingerprint Attendance System with Live Web Dashboard

Updated:June 21, 2026
IoT Based PM & Air Quality Monitoring System using ESP32

IoT Based PM & Air Quality Monitoring System using ESP32

Updated:June 14, 2026
DIY ESP32 MLX90640 IR Thermal Camera with Live Web Display

DIY ESP32 MLX90640 IR Thermal Camera with Live Web Display

Updated:May 10, 20262K
IoT Activity Tracker with ESP32 & Accelerometer Gyroscope

IoT Activity Tracker with ESP32 & Accelerometer/Gyroscope

Updated:May 2, 2026

ESP32 IoT Vehicle Motion Analyzer with MPU6050 & LIS3MDL

Updated:April 27, 20261K
High-Accuracy Pitch, Roll, Yaw with ESP32 & BNO08x IMU

High-Accuracy Pitch, Roll, Yaw with ESP32 & BNO08x IMU

Updated:April 27, 20262K
Add A Comment

CommentsCancel reply

Latest Posts
ESP32 Fingerprint Attendance System with Live Web Dashboard

ESP32 Fingerprint Attendance System with Live Web Dashboard

June 21, 2026
IoT Based PM & Air Quality Monitoring System using ESP32

IoT Based PM & Air Quality Monitoring System using ESP32

June 14, 2026
DIY ESP32 MLX90640 IR Thermal Camera with Live Web Display

DIY ESP32 MLX90640 IR Thermal Camera with Live Web Display

May 10, 2026
IoT Activity Tracker with ESP32 & Accelerometer Gyroscope

IoT Activity Tracker with ESP32 & Accelerometer/Gyroscope

May 2, 2026
A Guide to Sourcing Obsolete ICs for Vintage Projects

Beyond AliExpress: A Guide to Sourcing Obsolete ICs for Vintage Projects

April 21, 2026

ESP32 IoT Vehicle Motion Analyzer with MPU6050 & LIS3MDL

April 27, 2026
Building a Smart Sensor Node with a BLE Microcontroller

Building a Smart Sensor Node with a BLE Microcontroller

February 26, 2026
High-Accuracy Pitch, Roll, Yaw with ESP32 & BNO08x IMU

High-Accuracy Pitch, Roll, Yaw with ESP32 & BNO08x IMU

April 27, 2026
Top Posts & Pages
  • ESP32 Fingerprint Attendance System with Live Web Dashboard
    ESP32 Fingerprint Attendance System with Live Web Dashboard
  • ESP32 CAN Bus Tutorial | Interfacing MCP2515 CAN Module with ESP32
    ESP32 CAN Bus Tutorial | Interfacing MCP2515 CAN Module with ESP32
  • 12V DC to 220V AC Inverter Circuit & PCB
    12V DC to 220V AC Inverter Circuit & PCB
  • LD2410 Sensor with ESP32 - Human Presence Detection
    LD2410 Sensor with ESP32 - Human Presence Detection
  • IoT AC Energy Meter with PZEM-004T & ESP32 WebServer
    IoT AC Energy Meter with PZEM-004T & ESP32 WebServer
  • Silicon Controlled Rectifier (SCR): Construction, Working & Applications
    Silicon Controlled Rectifier (SCR): Construction, Working & Applications
  • How to use ADS1115 16-Bit ADC Module with Arduino
    How to use ADS1115 16-Bit ADC Module with Arduino
  • DIY AC Energy Meter using PZEM-004T & Arduino
    DIY AC Energy Meter using PZEM-004T & Arduino
Categories
  • Arduino Projects (197)
  • Articles (60)
    • Learn Electronics (19)
    • Product Review (15)
    • Tech Articles (28)
  • Electronics Circuits (46)
    • 555 Timer Projects (21)
    • Op-Amp Circuits (7)
    • Power Electronics (13)
  • IoT Projects (205)
    • ESP32 MicroPython (7)
    • ESP32 Projects (82)
    • ESP32-CAM Projects (15)
    • ESP8266 Projects (76)
    • LoRa/LoRaWAN Projects (22)
  • Microcontrollers (38)
    • AMB82-Mini IoT AI Camera (4)
    • BLE Projects (18)
    • STM32 Projects (19)
  • Raspberry Pi (93)
    • Raspberry Pi Pico Projects (57)
    • Raspberry Pi Pico W Projects (12)
    • Raspberry Pi Projects (24)
Follow Us
  • Facebook
  • Twitter
  • Pinterest
  • Instagram
  • YouTube
About Us

“‘How to Electronics’ is a vibrant community for electronics enthusiasts and professionals. We deliver latest insights in areas such as Embedded Systems, Power Electronics, AI, IoT, and Robotics. Our goal is to stimulate innovation and provide practical solutions for students, organizations, and industries. Join us to transform learning into a joyful journey of discovery and innovation.

Copyright © How To Electronics. All rights reserved.
  • About Us
  • Disclaimer
  • Privacy Policy
  • Contact Us
  • Advertise With Us

Type above and press Enter to search. Press Esc to cancel.

Ad Blocker Enabled!
Ad Blocker Enabled!
Looks like you're using an ad blocker. Please allow ads on our site. We rely on advertising to help fund our site.
