Water Level Alert using Float Sensor & 555 Timer

Overview

This article explores a water level alert circuit using a 555 timer and a float sensor, designed to detect and signal when water reaches a predefined level.

The NE555 timer IC is a versatile and cost-effective solution for creating automated alert systems. This project is ideal for applications like water tanks, reservoirs, or flood detection systems. The circuit activates a visual or audible alarm (e.g., buzzer or LED) upon contact with water. The float sensor acts as a trigger, while the 555 timer processes the input and drives the alert mechanism.

Components Required

Following are the list of components required to build Water Level Alert using Float Sensor & 555 Timer.

IC: NE555 timer IC
Float sensor
Resistor: 10KΩ
Resistor: 1KΩ
Potentiometer: 100KΩ
Capacitor: 10µF
Capacitor: 0.01µF
LED or buzzer (alert indicator)
Transistor (e.g., BC547)
Diode (1N4007)
Breadboard
Jumper wires
5V–12V DC power supply

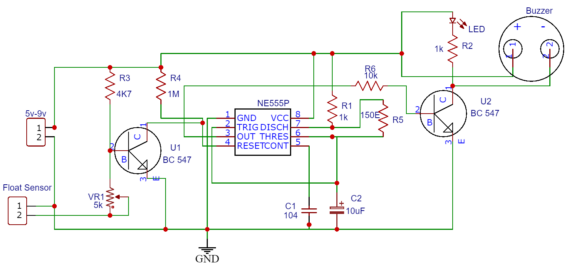

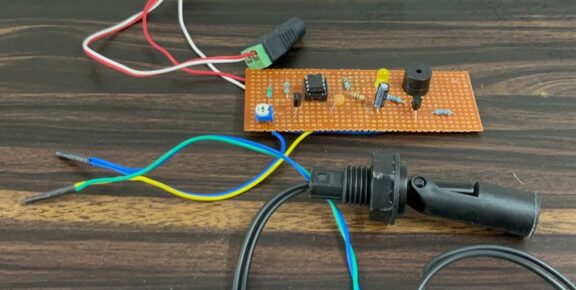

Circuit: Water Level Alert using Float Sensor & 555 Timer

The circuit for Water Level Alert using Float Sensor & 555 Timer consists of four main sections:

Power Supply: The 555 IC is powered via Pin 8 (VCC) and Pin 1 (GND), connected to a 5V–12V DC source. A decoupling capacitor (C2) stabilizes the supply.

Sensor Interface: The float sensor is connected between Pin 2 (TRIG) of the 555 and the ground. A pull-up resistor (R1: 10KΩ) ensures the trigger pin stays HIGH when the sensor is open. When water closes the float sensor, Pin 2 is pulled LOW, activating the timer.

Timing Configuration: The 555 operates in monostable mode, with timing determined by R2 (1KΩ) and C1 (10µF). Pin 6 (THRES) and Pin 7 (DISCH) are linked to the RC network to control the output pulse duration.

Output Stage: Pin 3 (OUT) drives an LED or buzzer directly (via R2) or through a transistor for higher power loads. A relay (optional) can be added with a flyback diode (1N4007) to switch pumps or alarms.

Working and Testing

In standby mode, the float sensor remains open, keeping Pin 2 (TRIG) HIGH. When water rises and closes the float sensor, Pin 2 is grounded, triggering the 555’s monostable mode.

The output (Pin 3) goes HIGH for a duration set by:

T = 1.1 × R2 × C1 (≈11 seconds here)During this time, the LED/buzzer remains active. If a relay is used, it can automate actions like shutting off a pump. The circuit resets automatically after the timing cycle, ready to detect the next water level rise.

Testing Procedure:

Dry Test: Power the circuit and ensure the LED/buzzer is off. Confirm the float sensor’s open state keeps Pin 2 HIGH.

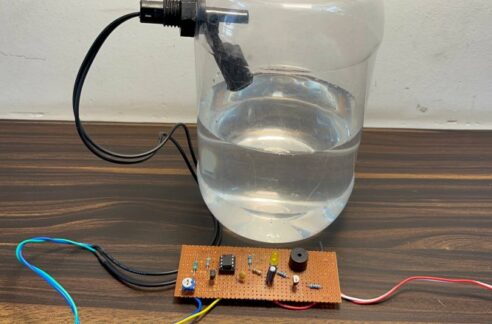

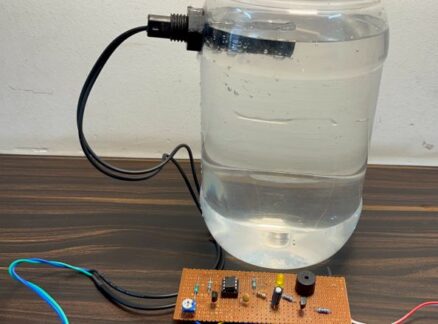

Wet Test: Submerge the float sensor in water. The LED/buzzer should activate immediately and stay on for ~11 seconds. Adjust VR1 (if included) to fine-tune sensitivity.

Load Test: Connect a relay or pump to verify automated control. Use a multimeter to check voltages at Pin 3 and sensor terminals.

Troubleshooting Tips:

If the alarm fails, check float sensor continuity and ensure Pin 2 transitions LOW when submerged.
For erratic behavior, verify capacitor polarities and secure connections at the 555’s timing pins.
Ensure the buzzer/LED polarity matches the circuit’s output.
