Transformerless Power Supply – 220V AC to 9V DC

Mamtaz AlamBy Mamtaz AlamUpdated:May 29, 20237 Comments4 Mins Read
Share Facebook Twitter LinkedIn Telegram Reddit WhatsApp
Transformerless Power Supply
Share
Facebook Twitter LinkedIn Pinterest Email Reddit Telegram WhatsApp

Overview: Transformerless Power Supply

In this project, we will design Transformerless Power Supply for low current applications. Basically a transformerless power supply is just a voltage divider network that takes the 220V AC as input and divides it down to Lower DC voltage that we want. The AC voltage need is rectified through a few diodes and regulated to a maximum voltage. Earlier we learnt about Dc-DC Converter circuit. But now we will convert the AC to DC.

Transformerless Power Supply is especially inexpensive products where the cost of a transformer is removed. Transformers are bulky and expensive. Most of the electrical appliances used in our daily life like LED light, Lamp, Laptop & Phone Battery Chargers, Hair Drier, Toys, etc work at lower DC voltage like 5V, 9V, 12V, or 15V. So we need to lower down the 220V or 110V AC to lower DC without making the circuit bulky and keeping the PCB size small.

To power low current demanding logic circuits and microprocessor circuits, the transformerless power supply is an ideal solution.


Bill of Materials

Following are the components required for making this project. All the components can be easily purchased from Amazon.

S.N.Components DescriptionQuantity
1Resistor470 Ω2
2Resistor470 K Ω1
3Capacitor0.47 µF, 450V (Electrolytic Capacitor)1
4Capacitor470 µF, 25V (Electrolytic Capacitor)1
51N4007Rectifier Diode2
61N4739ARectifier Diode1




Design considerations

There are two types of transformerless power supplies that are Capacitive & Resistive. Capacitive type is more efficient compared to Resistive Type because of the low heat dissipation and very low power loss. If a circuit requires a very low current of a few milliamperes, such power supply is an ideal solution.

Before designing a power supply, we need to go through some design considerations. If a non-polarised capacitor and a resistor are kept in series with the AC power line, a constant current can be maintained through the resistor. In this case, the reactance of the capacitor should be greater than the resistance of the resistor used.

The current flowing through resistor R depends on the value of capacitor C. The more the Capacitance, the more the current to the circuit. Current flow through dropping capacitor C depends on its reactance (X). The value of the current passing through the X-Rated capacitor is defined as:

IRMS = VIN /X


The selection of the voltage dropping capacitor is very crucial. it is based on Reactance of Capacitor and the amount of current to be withdrawn. The Reactance of the capacitor is given by below formula:

We have used 0.47uF capacitor and frequency of mains is 50 Hz so the Reactance X is:

X = 1 / 23.14500.4710-6 = 6.77 Kohm

Now we can calculate the current (I) in the circuit:

I = V/X = 230/6775 = 34mA


Transformerless Power Supply Circuit

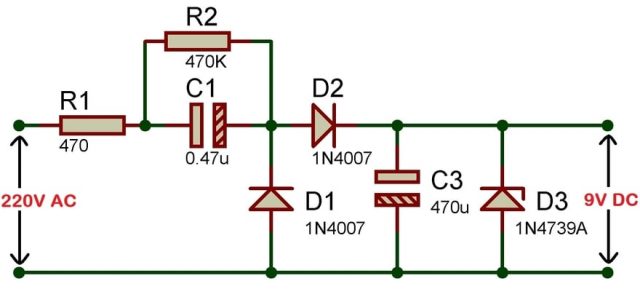

Circuit Transformerless Power Supply

We used 220V AC main as the input voltage. You may connect fuse for safety reasons. The 220V AC is then rectified through a few diodes. In this circuit, we used 2 diodes 1N4007 as a half-bridge rectifier. Normally, DC voltage dividers are made with a pair of resistors. Combined, they define the current flowing through the path.


We used 9V Zener Diode 1N4739A to limit the voltage to 9V. If you want 5V or 12V or any other output voltage, you need the specific Zener diode according to voltage rating. You can use our DIY Voltmeter to measure the output voltage.

We simulated the circuit using Proteus Software. The simulated image is shown below.


Project PCB Gerber File & PCB Ordering Online

If you don’t want to assemble the circuit on a breadboard and you want PCB for the project, then here is the PCB for you. The PCB Board for Transformerless Power Supply is designed using EasyEDA online Circuit Schematics & PCB designing tool. The PCB looks something like below.

Transformerless Power Supply PCB

The Gerber File for the PCB is given below. You can simply download the Gerber File and order the PCB from ALLPCB at 1$ only.

Download Gerber File: Transformerless Power Supply

You can use this Gerber file to order high quality PCB for this project. To do that visit the ALLPCB official website by clicking here: https://www.allpcb.com/.

You can now upload the Gerber File by choosing the Quote Now option. From these options, you can choose the Material Type, Dimensions, Quantity, Thickness, Solder Mask Color and other required parameters.

After filling all details, select your country and shipping method. Finally you can place the order.

Share. Facebook Twitter Pinterest LinkedIn Tumblr Email Reddit Telegram WhatsApp
Previous Article(BLDC) Brushless DC Motor Driver Circuit using 555 IC
Next Article Simple Mobile Phone Detector Circuit using Op-Amp

Related Posts

Water Level Alert using Float Sensor & 555 Timer

Water Level Alert using Float Sensor & 555 Timer

2K
Adjustable Auto On Off Delay Timer Circuit Using 555 IC

555 Based Adjustable Auto On Off Delay Timer Circuit

Updated:February 14, 20252K

12V DC to 220V AC Inverter Circuit & PCB

Updated:February 2, 20251461K
DIY Smart Blind Stick using Op-Amp & IR Sensor

DIY Smart Blind Stick using Op-Amp & IR Sensor

Updated:February 2, 202515K
Square Wave Generator Circuit with Op Amp IC LM358

Square Wave Generator Circuit with Op Amp IC LM358

Updated:February 2, 202513K
Gas Leak Detection & Alarm using 555 Timer IC

Gas Leak Detection & Alarm using 555 Timer IC

Updated:February 2, 202525K
View 7 Comments

7 Comments

  1. HK on March 12, 2021 7:57 PM

    Transformerless Power Supply Circuit:
    this circuit is a total risk for human life. In case you touch the live 220 V line thru minus 9V output, a direct shock will occur.

    Reply
  2. Srijan Verma on June 16, 2022 4:28 PM

    Hi there so a voltage rise happens upto 300 volts when I add the load to the circuit. Help please?

    Reply
  3. Arun on August 17, 2022 5:40 AM

    Any alternate to 0.47 µF, 450V (Electrolytic Capacitor) that can be used? And which diode to use for 5V output?

    Reply
  4. Willian Silva (@WillianBR) on November 21, 2022 8:30 AM

    I’m sorry, but the formula is a bit awkward! Mainly for those who are not genius in electronic!
    Your joined all the values (math operators non visible)!
    Where came that six to subtract?

    I tried to do the same computation to check the numbers and than change the AC frequency to my local power line(60Hz). But I could not!

    Can you be a litle bit more clear, please! I would appreciate the extra help!

    Reply
  5. Botman on November 21, 2022 10:33 AM

    I agree with HK. One side of the 220 VAC line is directly connected to the 9 VDC output. DANGER!

    Reply
  6. myelectrons on January 16, 2023 11:13 PM

    I’d rather be cautious popularizing such “solutions”. The reason being: Safety versus Knowledge.
    If a person cannot come up with such a schematic properly sized – I’d be worried about their safety working under the phase voltages.
    220VAC is brutal, it can be lethal.

    Reply
  7. myelectrons on January 17, 2023 12:30 PM

    This thingy is twice as dangerous!
    In the BOM it specs “0.47 µF, 450V (Electrolytic Capacitor)”, a polarized electrolytic cap is shown on the schematic. It will face 310V in reverse polarity. The poor thingy will BLOW UP immediately.

    Reply
