Overview
In this project, we will learn how to send BME280 Sensor Weather Station Data to Blynk 2.0 Applications using the WiFi capability of Raspberry Pi Pico W.
The BME280 sensor is a versatile and widely-used environmental sensor that measures temperature, humidity, and barometric pressure. When combined with the Raspberry Pi Pico W microcontroller, it can be used to create a powerful and cost-effective weather monitoring system. By connecting this system to the Blynk app, it is possible to remotely monitor and visualize weather data in real time.
Blynk is a popular platform for building IoT applications that enable users to remotely control and monitor a wide range of devices. With Blynk, users can create custom dashboards, receive push notifications, and even trigger actions based on sensor data. By integrating the BME280 sensor with the Raspberry Pi Pico W microcontroller and the Blynk app, it is possible to create a weather monitoring system that can be accessed from anywhere in the world. This type of system can be useful for a variety of applications, from agriculture and environmental monitoring to personal weather tracking.
Bill of Materials
In this guide, I used SunFounder Raspberry Pi Pico W Kit to test different Modules. You can buy the kit and perform some other operations as well. From this kit, you can use the following components.
- Raspberry Pi Pico W- 1
- BME280 Sensor – 1
- Jumper Wires – 10
- Breadbaord – 1
- Micro-USB Cable – 1
BME280 Barometric Pressure Sensor
The BME280 is Barometric Pressure Sensor that can measure temperature, Humidity & Atmospheric Pressure. The Sensor has an I2C Bus and operates on 3.3V Power Supply. The unit combines high linearity and high accuracy sensors and is perfectly feasible for low current consumption, long-term stability, and high EMC robustness.
This sensor is simple to use, comes pre-calibrated, and requires no additional components, so you can start measuring relative humidity, temperature, barometric pressure, and altitude in no time.
The sensor is best for measuring humidity with ±3% accuracy, barometric pressure with ±1 hPa absolute accuracy, and temperature with ±1.0°C accuracy. Because pressure changes with altitude and the pressure measurements are so good, you can also use it as an altimeter with ±1 meter or better accuracy.
To learn more about the BME280 Sensor refer to the BME280 datasheet or you may follow the BME280 Raspberry Pi Pico interfacing guide.
Interfacing BME280 Sensor with Raspberry Pi Pico W
Let us connect the BME280 Barometric Pressure Sensor with Raspberry Pi Pico W via I2C pins. This sensor communicates using the I2C communication protocol, so the wiring is very simple.
Raspberry Pi Pico W has multiple I2C pins, you may use any. Connect the VCC, GND, SCL & SDA pin of BME280 Sensor to 3.3V, GND, GP21 & GP20 of Raspberry Pi Pico W respectively.
Setting up Blynk 2.0 Application
To control the 4 Home Appliances using Blynk and Raspberry Pi Pico W, you need to create a Blynk project and set up a dashboard in the mobile or web application. Here’s how you can set up the dashboard:
Visit blynk.cloud and create a Blynk account on the Blynk website. Or you can simply sign in using the registered Email ID.
Click on +New Template.

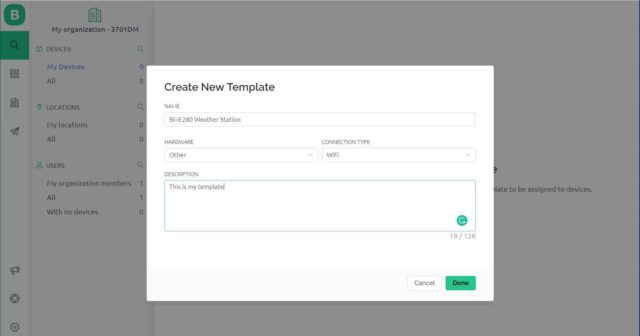

Give any name to the Hardware. Choose the Hardware type as Other and the connection type as WiFi.

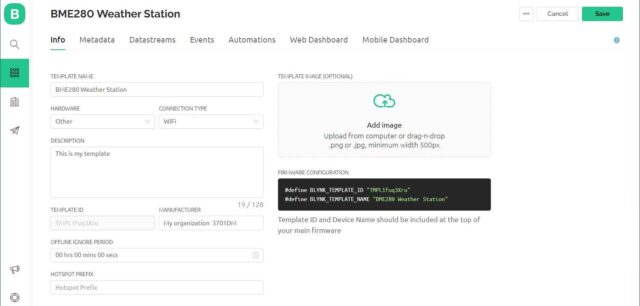

The template is created successfully.

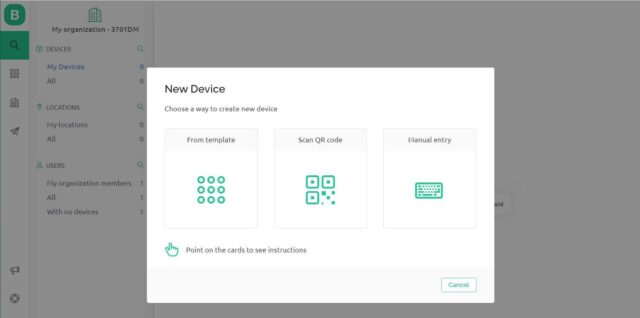

Now we need to add New Devices here.
Select the device from a template that you created earlier.
Give any name and click on Create.
A device authentication token is generated now. Copy this token as this will be used in the code.

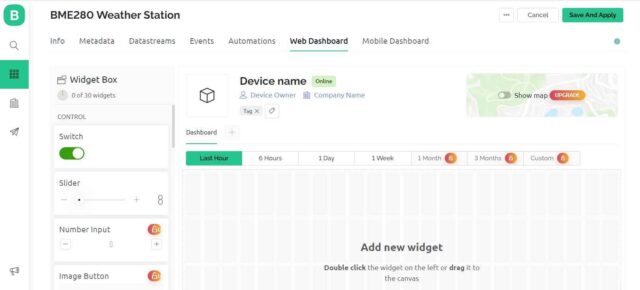

Now go to the Web Dashboard.

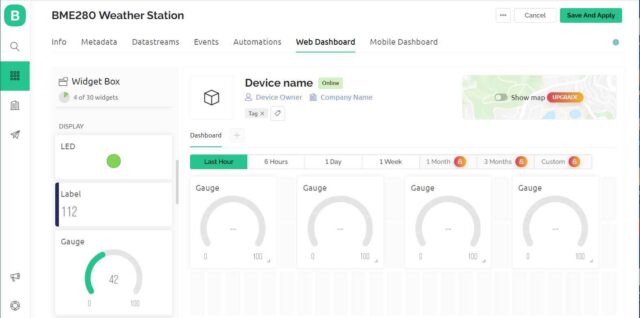

In the Web Dashboard, drag and drop 3 widgets Gauge on the dashboard.

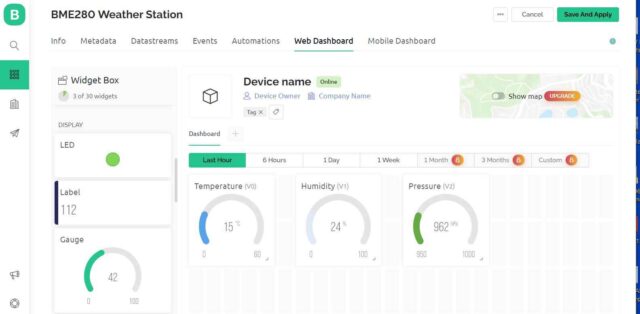

You need to set all the 3 widgets one by one. Assign virtual pin V0, V1 and V2 to Temperature, Humidity and Pressure values.
The Blynk Dashboard setup is successfully completed now.
MicroPython Code
If you are a beginner and want to learn how to get started with Raspberry Pi Pico W, you may refer to the Getting Started guide.
The code for interfacing the BME280 Sensor with Raspberry Pi Pico W & sending the sensor data to Blynk Dashboard is divided into 3 parts:
- bme280.py
- BlynkLib.py
- main.py
bme280.py
The library to read from the BME280 sensor isn’t part of the standard MicroPython library by default. So, you need to upload the BME280 MicroPython library to your Raspberry Pi Pico W Board. The library has all the required modules and registers details to extract the data from the Sensor.
Open your Thonny IDE and paste the following code to the Thonny Editor. Save the file in the Raspberry Pi Pico W and name it bme280.py.
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 |
import time from ustruct import unpack, unpack_from from array import array # BME280 default address. BME280_I2CADDR = 0x76 # Operating Modes BME280_OSAMPLE_1 = 1 BME280_OSAMPLE_2 = 2 BME280_OSAMPLE_4 = 3 BME280_OSAMPLE_8 = 4 BME280_OSAMPLE_16 = 5 BME280_REGISTER_CONTROL_HUM = 0xF2 BME280_REGISTER_CONTROL = 0xF4 class BME280: def __init__(self, mode=BME280_OSAMPLE_1, address=BME280_I2CADDR, i2c=None, **kwargs): # Check that mode is valid. if mode not in [BME280_OSAMPLE_1, BME280_OSAMPLE_2, BME280_OSAMPLE_4, BME280_OSAMPLE_8, BME280_OSAMPLE_16]: raise ValueError( 'Unexpected mode value {0}. Set mode to one of ' 'BME280_ULTRALOWPOWER, BME280_STANDARD, BME280_HIGHRES, or ' 'BME280_ULTRAHIGHRES'.format(mode)) self._mode = mode self.address = address if i2c is None: raise ValueError('An I2C object is required.') self.i2c = i2c # load calibration data dig_88_a1 = self.i2c.readfrom_mem(self.address, 0x88, 26) dig_e1_e7 = self.i2c.readfrom_mem(self.address, 0xE1, 7) self.dig_T1, self.dig_T2, self.dig_T3, self.dig_P1, \ self.dig_P2, self.dig_P3, self.dig_P4, self.dig_P5, \ self.dig_P6, self.dig_P7, self.dig_P8, self.dig_P9, \ _, self.dig_H1 = unpack("<HhhHhhhhhhhhBB", dig_88_a1) self.dig_H2, self.dig_H3 = unpack("<hB", dig_e1_e7) e4_sign = unpack_from("<b", dig_e1_e7, 3)[0] self.dig_H4 = (e4_sign << 4) | (dig_e1_e7[4] & 0xF) e6_sign = unpack_from("<b", dig_e1_e7, 5)[0] self.dig_H5 = (e6_sign << 4) | (dig_e1_e7[4] >> 4) self.dig_H6 = unpack_from("<b", dig_e1_e7, 6)[0] self.i2c.writeto_mem(self.address, BME280_REGISTER_CONTROL, bytearray([0x3F])) self.t_fine = 0 # temporary data holders which stay allocated self._l1_barray = bytearray(1) self._l8_barray = bytearray(8) self._l3_resultarray = array("i", [0, 0, 0]) def read_raw_data(self, result): """ Reads the raw (uncompensated) data from the sensor. Args: result: array of length 3 or alike where the result will be stored, in temperature, pressure, humidity order Returns: None """ self._l1_barray[0] = self._mode self.i2c.writeto_mem(self.address, BME280_REGISTER_CONTROL_HUM, self._l1_barray) self._l1_barray[0] = self._mode << 5 | self._mode << 2 | 1 self.i2c.writeto_mem(self.address, BME280_REGISTER_CONTROL, self._l1_barray) sleep_time = 1250 + 2300 * (1 << self._mode) sleep_time = sleep_time + 2300 * (1 << self._mode) + 575 sleep_time = sleep_time + 2300 * (1 << self._mode) + 575 time.sleep_us(sleep_time) # Wait the required time # burst readout from 0xF7 to 0xFE, recommended by datasheet self.i2c.readfrom_mem_into(self.address, 0xF7, self._l8_barray) readout = self._l8_barray # pressure(0xF7): ((msb << 16) | (lsb << 8) | xlsb) >> 4 raw_press = ((readout[0] << 16) | (readout[1] << 8) | readout[2]) >> 4 # temperature(0xFA): ((msb << 16) | (lsb << 8) | xlsb) >> 4 raw_temp = ((readout[3] << 16) | (readout[4] << 8) | readout[5]) >> 4 # humidity(0xFD): (msb << 8) | lsb raw_hum = (readout[6] << 8) | readout[7] result[0] = raw_temp result[1] = raw_press result[2] = raw_hum def read_compensated_data(self, result=None): """ Reads the data from the sensor and returns the compensated data. Args: result: array of length 3 or alike where the result will be stored, in temperature, pressure, humidity order. You may use this to read out the sensor without allocating heap memory Returns: array with temperature, pressure, humidity. Will be the one from the result parameter if not None """ self.read_raw_data(self._l3_resultarray) raw_temp, raw_press, raw_hum = self._l3_resultarray # temperature var1 = ((raw_temp >> 3) - (self.dig_T1 << 1)) * (self.dig_T2 >> 11) var2 = (((((raw_temp >> 4) - self.dig_T1) * ((raw_temp >> 4) - self.dig_T1)) >> 12) * self.dig_T3) >> 14 self.t_fine = var1 + var2 temp = (self.t_fine * 5 + 128) >> 8 # pressure var1 = self.t_fine - 128000 var2 = var1 * var1 * self.dig_P6 var2 = var2 + ((var1 * self.dig_P5) << 17) var2 = var2 + (self.dig_P4 << 35) var1 = (((var1 * var1 * self.dig_P3) >> 8) + ((var1 * self.dig_P2) << 12)) var1 = (((1 << 47) + var1) * self.dig_P1) >> 33 if var1 == 0: pressure = 0 else: p = 1048576 - raw_press p = (((p << 31) - var2) * 3125) // var1 var1 = (self.dig_P9 * (p >> 13) * (p >> 13)) >> 25 var2 = (self.dig_P8 * p) >> 19 pressure = ((p + var1 + var2) >> 8) + (self.dig_P7 << 4) # humidity h = self.t_fine - 76800 h = (((((raw_hum << 14) - (self.dig_H4 << 20) - (self.dig_H5 * h)) + 16384) >> 15) * (((((((h * self.dig_H6) >> 10) * (((h * self.dig_H3) >> 11) + 32768)) >> 10) + 2097152) * self.dig_H2 + 8192) >> 14)) h = h - (((((h >> 15) * (h >> 15)) >> 7) * self.dig_H1) >> 4) h = 0 if h < 0 else h h = 419430400 if h > 419430400 else h humidity = h >> 12 if result: result[0] = temp result[1] = pressure result[2] = humidity return result return array("i", (temp, pressure, humidity)) @property def values(self): """ human readable values """ t, p, h = self.read_compensated_data() p = p // 256 pi = p // 100 pd = p - pi * 100 hi = h // 1024 hd = h * 100 // 1024 - hi * 100 return ("{}*C".format(t / 100), "{}.{:02d} hPa".format(pi, pd), "{}.{:02d} %".format(hi, hd)) |
BlynkLib.py
This library provides an API that enables connectivity between your IoT hardware, which supports Micropython/Python, and the Blynk Cloud. With this API, you can send both raw and processed sensor data and remotely control any connected hardware (such as relays, motors, and servos) from anywhere in the world using the Blynk mobile apps available on both iOS and Android.
Copy the following code and save it to your Raspberry Pi Pico W board with name ‘BlynkLib.py’.
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 218 219 220 221 222 223 224 225 226 227 228 229 230 231 232 233 234 235 236 237 238 239 240 241 242 243 244 245 246 247 248 249 250 251 252 253 254 255 256 257 258 259 260 261 262 263 264 |
# Copyright (c) 2015-2019 Volodymyr Shymanskyy. See the file LICENSE for copying permission. __version__ = "1.0.0" import struct import time import sys import os try: import machine gettime = lambda: time.ticks_ms() SOCK_TIMEOUT = 0 except ImportError: const = lambda x: x gettime = lambda: int(time.time() * 1000) SOCK_TIMEOUT = 0.05 def dummy(*args): pass MSG_RSP = const(0) MSG_LOGIN = const(2) MSG_PING = const(6) MSG_TWEET = const(12) MSG_NOTIFY = const(14) MSG_BRIDGE = const(15) MSG_HW_SYNC = const(16) MSG_INTERNAL = const(17) MSG_PROPERTY = const(19) MSG_HW = const(20) MSG_HW_LOGIN = const(29) MSG_EVENT_LOG = const(64) MSG_REDIRECT = const(41) # TODO: not implemented MSG_DBG_PRINT = const(55) # TODO: not implemented STA_SUCCESS = const(200) STA_INVALID_TOKEN = const(9) DISCONNECTED = const(0) CONNECTING = const(1) CONNECTED = const(2) print(""" ___ __ __ / _ )/ /_ _____ / /__ / _ / / // / _ \\/ '_/ /____/_/\\_, /_//_/_/\\_\\ /___/ for Python v""" + __version__ + " (" + sys.platform + ")\n") class EventEmitter: def __init__(self): self._cbks = {} def on(self, evt, f=None): if f: self._cbks[evt] = f else: def D(f): self._cbks[evt] = f return f return D def emit(self, evt, *a, **kv): if evt in self._cbks: self._cbks[evt](*a, **kv) class BlynkProtocol(EventEmitter): def __init__(self, auth, tmpl_id=None, fw_ver=None, heartbeat=50, buffin=1024, log=None): EventEmitter.__init__(self) self.heartbeat = heartbeat*1000 self.buffin = buffin self.log = log or dummy self.auth = auth self.tmpl_id = tmpl_id self.fw_ver = fw_ver self.state = DISCONNECTED self.connect() def virtual_write(self, pin, *val): self._send(MSG_HW, 'vw', pin, *val) def send_internal(self, pin, *val): self._send(MSG_INTERNAL, pin, *val) def set_property(self, pin, prop, *val): self._send(MSG_PROPERTY, pin, prop, *val) def sync_virtual(self, *pins): self._send(MSG_HW_SYNC, 'vr', *pins) def log_event(self, *val): self._send(MSG_EVENT_LOG, *val) def _send(self, cmd, *args, **kwargs): if 'id' in kwargs: id = kwargs.get('id') else: id = self.msg_id self.msg_id += 1 if self.msg_id > 0xFFFF: self.msg_id = 1 if cmd == MSG_RSP: data = b'' dlen = args[0] else: data = ('\0'.join(map(str, args))).encode('utf8') dlen = len(data) self.log('<', cmd, id, '|', *args) msg = struct.pack("!BHH", cmd, id, dlen) + data self.lastSend = gettime() self._write(msg) def connect(self): if self.state != DISCONNECTED: return self.msg_id = 1 (self.lastRecv, self.lastSend, self.lastPing) = (gettime(), 0, 0) self.bin = b"" self.state = CONNECTING self._send(MSG_HW_LOGIN, self.auth) def disconnect(self): if self.state == DISCONNECTED: return self.bin = b"" self.state = DISCONNECTED self.emit('disconnected') def process(self, data=None): if not (self.state == CONNECTING or self.state == CONNECTED): return now = gettime() if now - self.lastRecv > self.heartbeat+(self.heartbeat//2): return self.disconnect() if (now - self.lastPing > self.heartbeat//10 and (now - self.lastSend > self.heartbeat or now - self.lastRecv > self.heartbeat)): self._send(MSG_PING) self.lastPing = now if data != None and len(data): self.bin += data while True: if len(self.bin) < 5: break cmd, i, dlen = struct.unpack("!BHH", self.bin[:5]) if i == 0: return self.disconnect() self.lastRecv = now if cmd == MSG_RSP: self.bin = self.bin[5:] self.log('>', cmd, i, '|', dlen) if self.state == CONNECTING and i == 1: if dlen == STA_SUCCESS: self.state = CONNECTED dt = now - self.lastSend info = ['ver', __version__, 'h-beat', self.heartbeat//1000, 'buff-in', self.buffin, 'dev', sys.platform+'-py'] if self.tmpl_id: info.extend(['tmpl', self.tmpl_id]) info.extend(['fw-type', self.tmpl_id]) if self.fw_ver: info.extend(['fw', self.fw_ver]) self._send(MSG_INTERNAL, *info) try: self.emit('connected', ping=dt) except TypeError: self.emit('connected') else: if dlen == STA_INVALID_TOKEN: self.emit("invalid_auth") print("Invalid auth token") return self.disconnect() else: if dlen >= self.buffin: print("Cmd too big: ", dlen) return self.disconnect() if len(self.bin) < 5+dlen: break data = self.bin[5:5+dlen] self.bin = self.bin[5+dlen:] args = list(map(lambda x: x.decode('utf8'), data.split(b'\0'))) self.log('>', cmd, i, '|', ','.join(args)) if cmd == MSG_PING: self._send(MSG_RSP, STA_SUCCESS, id=i) elif cmd == MSG_HW or cmd == MSG_BRIDGE: if args[0] == 'vw': self.emit("V"+args[1], args[2:]) self.emit("V*", args[1], args[2:]) elif cmd == MSG_INTERNAL: self.emit("internal:"+args[0], args[1:]) elif cmd == MSG_REDIRECT: self.emit("redirect", args[0], int(args[1])) else: print("Unexpected command: ", cmd) return self.disconnect() import socket class Blynk(BlynkProtocol): def __init__(self, auth, **kwargs): self.insecure = kwargs.pop('insecure', False) self.server = kwargs.pop('server', 'blynk.cloud') self.port = kwargs.pop('port', 80 if self.insecure else 443) BlynkProtocol.__init__(self, auth, **kwargs) self.on('redirect', self.redirect) def redirect(self, server, port): self.server = server self.port = port self.disconnect() self.connect() def connect(self): print('Connecting to %s:%d...' % (self.server, self.port)) s = socket.socket() s.connect(socket.getaddrinfo(self.server, self.port)[0][-1]) try: s.setsockopt(socket.IPPROTO_TCP, socket.TCP_NODELAY, 1) except: pass if self.insecure: self.conn = s else: try: import ussl ssl_context = ussl except ImportError: import ssl ssl_context = ssl.create_default_context() self.conn = ssl_context.wrap_socket(s, server_hostname=self.server) try: self.conn.settimeout(SOCK_TIMEOUT) except: s.settimeout(SOCK_TIMEOUT) BlynkProtocol.connect(self) def _write(self, data): #print('<', data) self.conn.write(data) # TODO: handle disconnect def run(self): data = b'' try: data = self.conn.read(self.buffin) #print('>', data) except KeyboardInterrupt: raise except socket.timeout: # No data received, call process to send ping messages when needed pass except: # TODO: handle disconnect return self.process(data) |
main.py
Copy the following code and save it to the Raspberry Pi Pico W with name ‘main.py’.
|
1 2 3 4 5 6 |
# WiFi credentials WIFI_SSID = "SSID" WIFI_PASSWORD = "Password" # Blynk authentication token BLYNK_AUTH = "**************************" |
From these lines change the WiFi SSID, Password & Blynk Authentication Token.
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 |
from machine import Pin, I2C #importing relevant modules & classes import bme280 #importing BME280 library import network import time import BlynkLib i2c=I2C(0,sda=Pin(0), scl=Pin(1), freq=400000) #initializing the I2C method # WiFi credentials WIFI_SSID = "SSID" WIFI_PASSWORD = "Password" # Blynk authentication token BLYNK_AUTH = "**************************" # Connect to WiFi network wifi = network.WLAN(network.STA_IF) wifi.active(True) wifi.connect(WIFI_SSID, WIFI_PASSWORD) # Wait for the connection to be established while not wifi.isconnected(): sleep(1) # Initialize Blynk blynk = BlynkLib.Blynk(BLYNK_AUTH) # Run the main loop while True: # Read BME280 sensor data bme = bme280.BME280(i2c=i2c) temperature, pressure, humidity = bme.read_compensated_data() # Print sensor data to console print('Temperature: {:.1f} C'.format(temperature/100)) print('Humidity: {:.1f} %'.format(humidity/1024)) print('Pressure: {:.1f} hPa'.format(pressure/25600)) # Send sensor data to Blynk blynk.virtual_write(1, temperature/100) # virtual pin 1 for temperature blynk.virtual_write(2, humidity/1024) # virtual pin 2 for humidity blynk.virtual_write(3, pressure/25600) # virtual pin 3 for pressure # Run Blynk blynk.run() # Delay for 10 seconds time.sleep(5) |
Sending BME280 Readings to Blynk 2.0 with Raspberry Pi Pico W
Save the above code and run it on the Pico W board.
You can now test the the Blynk web app. Open the web app and navigate to the project dashboard. Click on the button widget, and the BME280 Sensor Data gets uploaded.

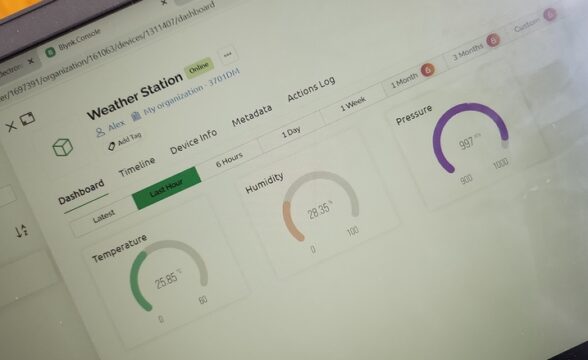

You can also view the BME280 temperature, pressure and humidity readings on Blynk Dashboard.
In conclusion, this project provides a practical guide to sending BME280 Sensor Weather Station data to Blynk 2.0 applications through the Raspberry Pi Pico W’s WiFi capability. The BME280 Sensor measures temperature, humidity, and pressure, making it an essential tool for creating weather stations.
By integrating it with Blynk 2.0 applications, we can remotely monitor and visualize the data. The Raspberry Pi Pico W’s WiFi capability makes it possible to transmit data wirelessly, enabling us to easily set up a weather station and monitor it from anywhere. This project is an excellent starting point for anyone interested in creating IoT projects that involve weather monitoring and wireless data transmission.
