Temperature Based Fan Speed Control & Monitoring With Arduino:
In this post, we have described how to design Temperature Based Fan Speed Control & Monitoring With Arduino and LM35 Temperature Sensor. The microcontroller controls the speed of an electric fan according to the requirement & allows dynamic and faster control and the LCD makes the system user-friendly. Sensed temperature in Celsius Scale and fan speed in percentage are simultaneously displayed on the LCD panel.
The applications areas of this project are air-conditioners, water-heaters, snow-melters, ovens, heat-exchangers, mixers, furnaces, incubators, thermal baths, and veterinary operating tables.

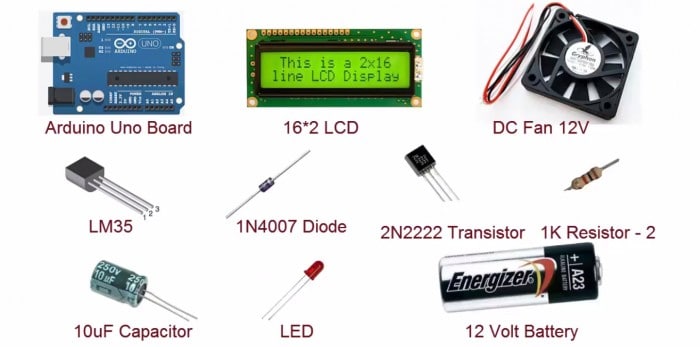

Bill of Materials
| S.N. | Components Name | Quantity | Purchase Links |
|---|---|---|---|
| 1 | Arduino UNO Board | 1 | Amazon | AliExpress |
| 2 | LM35 Temperature Sensor | 1 | Amazon | AliExpress |
| 3 | 12V DC Fan | 1 | Amazon | AliExpress |
| 4 | 16x2 LCD Display | 1 | Amazon | AliExpress |
| 5 | Potentiometer 10K | 1 | Amazon | AliExpress |
| 6 | Transistor 2N2222 | 1 | Amazon | AliExpress |
| 7 | Resistor 1K | 1 | Amazon | AliExpress |
| 8 | Diode 1N4007 | 1 | Amazon | AliExpress |
| 9 | Capacitor 10uF | 1 | Amazon | AliExpress |
| 10 | LED 5mm Any Color | 1 | Amazon | AliExpress |
| 11 | 12V Power Supply/Adapter | 1 | Amazon | AliExpress |
| 12 | Connecting Wires | 20 | Amazon | AliExpress |
| 13 | Breadboard | 1 | Amazon | AliExpress |
Circuit Diagram & Connections:
Circuit diagram of the Temperature Based Fan Speed Control & Monitoring With Arduino & LM35 is shown above. Arduino is at the heart of the circuit as it controls all functions. LM35 is a precision integrated-circuit whose output voltage is linearly proportional to Celsius (Centigrade) temperature. It is rated to operate over a -55°C to 150°C temperature range. It has +10.0mV/Celsius linear-scale factor.
The 2N2222 transistor acts as a switch and controls the fan speed depending upon temperature. 1N4007 diode controls the fan from being damaged. The LED glows whenever the temperature exceeds 60°C.
Working of the Circuit:
Temperature sensor LM35 senses the temperature and converts it into an electrical (analog) signal, which is applied to the ATmega328 microcontroller of the Arduino UNO Board. The analog value is converted into a digital value. Thus the sensed values of the temperature and speed of the fan are displayed on the LCD. When the temperature exceeds 30°C the fan starts rotating.
A low-frequency pulse-width modulation (PWM) signal, whose duty cycle is varied to adjust the fan’s speed is used. An inexpensive, single, small pass transistor-like 2N222 or BD139 can be used here. It is efficient because the pass transistor is used as a switch.
Source Code/Program:
The program for Temperature Based Fan Speed Control & Monitoring With Arduino is given below. Simply copy this code and paste it in your Arduino IDE. Then compile the code and then upload it.
|
