Send Sensor Data to Thingspeak with Raspberry Pi Pico W

Overview

In this tutorial, we will send the DHT11 Humidity Temperature Sensor Data to Thingspeak Server using Raspberry Pi Pico W Board. The latest Raspberry Pi Pico W brings WiFi to the Pico platform while retaining complete pin compatibility with its older sibling Raspberry Pi Pico.

Earlier we learned Getting Started with Raspberry Pi Pico W in detailed & discussed various method to connect the Pi Pico W to any Wi-Fi Access point. For testing the Wi-Fi capability and working with sensors, Thingspeak is the best platform. ThingSpeak is open-source software that allows users to communicate with internet-enabled devices. It facilitates data access, retrieval, and logging of data by providing an API to both the devices and social network websites.

The DHT11/22 Humidity Temperature sensor is the best sensor for beginners for getting started with any new microcontroller or new programming language. This guide will explain the method to interface the DHT11 Sensor with Raspberry Pi Pico W with MicroPython Code & post the Sensor Data on Thingspeak Server.

Components Required

You need following components for this project. You can buy the Raspberry Pi Pico W Kit from SunFounder which consist the Lipo Charger Module along with other 200+ components.

Raspberry Pi Pico W – 1
DHT11 Sensor – 1
Lipo Battery Charger – 1
Samsung 18650 Battery with Holder – 1
Jumper Wires – 3
Breadboard – 1
Micro-USB Cable.

DHT11 Temperature & Humidity Sensor

DHT11 Temperature & Humidity sensor is a temperature and humidity composite sensor with calibrated digital signal output. It includes a resistive humidity sensing element and an NTC temperature measuring element and is connected to a high-performance 8-bit microcontroller.

Its application-specific digital module acquisition technology and temperature and humidity sensing technology ensure that the product has extremely high reliability and excellent long-term stability.

There is a dedicated post about DHT11 Raspberry Pi Pico interfacing in one of our previous article. You can go through it for more info.

Interfacing DHT11 Sensor with Raspberry Pi Pico W

Now lets interface the DHT11 Humidity and Temperature Sensor with Raspberry Pi Pico W. The connection is fairly simple.

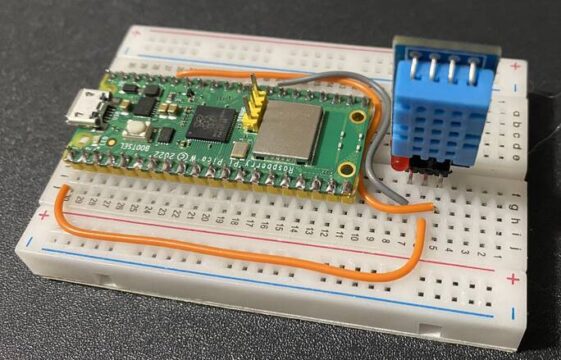

Connect the VCC, GND & Output pin of DHT11 Sensor to Raspberry Pi Pico W 3.3V, GND & GP0 Pin respectively.

The Raspberry Pi Pico W has a buck-boost converter IC. Hence you can power the Raspberry Pi Pico W via a Lipo Battery. The Lipo Battery Charger Module which consists of LTC4054 IC has been modified and specially designed for powering Raspberry Pi Pico W using Lipo Battery.

Using the Lipo Charger Module and 3.7V Samsung 18650 Rechargeable Lithium-Ion Battery, you can power the Raspberry Pi Pico W & DHT11 Sensor & make the project portable.

Setting up Thingspeak

ThingSpeak provides very good tool for IoT based projects. By using the ThingSpeak site, we can monitor our data and control our system over the Internet, using the Channels and web pages provided by ThingSpeak. So first you need to sign up for ThingSpeak. So visit https://thingspeak.com and create an account.

Then create a new channel and create two variables as shown in the image below.

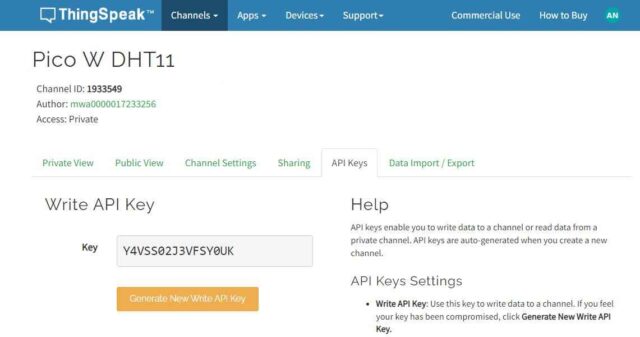

Then create the API keys. This key is required for programming modifications and receiving data from Raspberry Pi Pico W.

Now click on channels so that you can see the online data streaming.

MicroPython Code

Now let us write a MicroPython code for Raspberry Pi Pico W to send the DHT11 Humidity Temperature Sensor Data to the Thingspeak Server.

To upload the data to Thingspeak Server, the Raspberry Pi Pico W needs to connect to the Wi-Fi network. Then using the API Key the Raspberry Pi Pico W uploads the humidity and temperature data to Thingspeak. You can observe the graphical data in visualized form in Thingspeak dashboard.

The MicroPython Code is has two parts as the DHT11 Sensor requires a library for retrieving the humidity temperature data.

dht.py

Copy the following code as paste it on your Thonny editor. Save the file in Raspberry Pi Pico as dht.py.

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

import array

import micropython

import utime

from machine import Pin

from micropython import const

class InvalidChecksum(Exception):

pass

class InvalidPulseCount(Exception):

pass

MAX_UNCHANGED = const(100)

MIN_INTERVAL_US = const(200000)

HIGH_LEVEL = const(50)

EXPECTED_PULSES = const(84)

class DHT11:

_temperature: float

_humidity: float

def __init__(self, pin):

self._pin = pin

self._last_measure = utime.ticks_us()

self._temperature = -1

self._humidity = -1

def measure(self):

current_ticks = utime.ticks_us()

if utime.ticks_diff(current_ticks, self._last_measure) < MIN_INTERVAL_US and (

self._temperature > -1 or self._humidity > -1

# Less than a second since last read, which is too soon according

# to the datasheet

return

self._send_init_signal()

pulses = self._capture_pulses()

buffer = self._convert_pulses_to_buffer(pulses)

self._verify_checksum(buffer)

self._humidity = buffer[0] + buffer[1] / 10

self._temperature = buffer[2] + buffer[3] / 10

self._last_measure = utime.ticks_us()

@property

def humidity(self):

self.measure()

return self._humidity

@property

def temperature(self):

self.measure()

return self._temperature

def _send_init_signal(self):

self._pin.init(Pin.OUT, Pin.PULL_DOWN)

self._pin.value(1)

utime.sleep_ms(50)

self._pin.value(0)

utime.sleep_ms(18)

@micropython.native

def _capture_pulses(self):

pin = self._pin

pin.init(Pin.IN, Pin.PULL_UP)

val = 1

idx = 0

transitions = bytearray(EXPECTED_PULSES)

unchanged = 0

timestamp = utime.ticks_us()

while unchanged < MAX_UNCHANGED:

if val != pin.value():

if idx >= EXPECTED_PULSES:

raise InvalidPulseCount(

"Got more than {} pulses".format(EXPECTED_PULSES)

)

now = utime.ticks_us()

transitions[idx] = now - timestamp

timestamp = now

idx += 1

val = 1 - val

unchanged = 0

else:

unchanged += 1

pin.init(Pin.OUT, Pin.PULL_DOWN)

if idx != EXPECTED_PULSES:

raise InvalidPulseCount(

"Expected {} but got {} pulses".format(EXPECTED_PULSES, idx)

)

return transitions[4:]

def _convert_pulses_to_buffer(self, pulses):

"""Convert a list of 80 pulses into a 5 byte buffer

The resulting 5 bytes in the buffer will be:

0: Integral relative humidity data

1: Decimal relative humidity data

2: Integral temperature data

3: Decimal temperature data

4: Checksum

"""

# Convert the pulses to 40 bits

binary = 0

for idx in range(0, len(pulses), 2):

binary = binary << 1 | int(pulses[idx] > HIGH_LEVEL)

# Split into 5 bytes

buffer = array.array("B")

for shift in range(4, -1, -1):

buffer.append(binary >> shift * 8 & 0xFF)

return buffer

def _verify_checksum(self, buffer):

# Calculate checksum

checksum = 0

for buf in buffer[0:4]:

checksum += buf

if checksum & 0xFF != buffer[4]:

raise InvalidChecksum()

main.py

Here is the main code for Raspberry Pi Pico which establishes WiFi Connections and post the DHT11 Sensor Data to Thinspeak Server.

From the following line, change the WiFi SSID, password and also the Thingspeak API key.

THINGSPEAK_WRITE_API_KEY = 'Y4VSS02J3VFSY0UK'

ssid = 'BELL685'

password = '644642755D2F'

Here is the final code for the project. You can save this file with any name like main.py.

import machine

import urequests

from machine import Pin

import network, time

from dht import DHT11, InvalidChecksum

HTTP_HEADERS = {'Content-Type': 'application/json'}

THINGSPEAK_WRITE_API_KEY = 'Y4VSS02J3VFSY0UK'

ssid = 'BELL685'

password = '644642755D2F'

# Configure Pico W as Station

sta_if=network.WLAN(network.STA_IF)

sta_if.active(True)

if not sta_if.isconnected():

print('connecting to network...')

sta_if.connect(ssid, password)

while not sta_if.isconnected():

pass

print('network config:', sta_if.ifconfig())

while True:

time.sleep(5)

pin = Pin(0, Pin.OUT, Pin.PULL_DOWN)

sensor = DHT11(pin)

t = (sensor.temperature)

h = (sensor.humidity)

print("Temperature: {}".format(sensor.temperature))

print("Humidity: {}".format(sensor.humidity))

dht_readings = {'field1':t, 'field2':h}

request = urequests.post( 'http://api.thingspeak.com/update?api_key=' + THINGSPEAK_WRITE_API_KEY, json = dht_readings, headers = HTTP_HEADERS )

request.close()

print(dht_readings)

Monitor DHT11 Sensor Data on Thingspeak with Raspberry Pi Pico W

Run the library and also the main code.

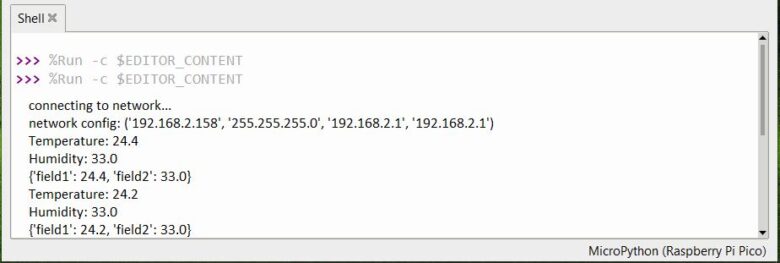

The Raspberry Pi Pico W will connect to the WiFi network and establish connection with the Thingspeak Server. The Python Shell will display the event.

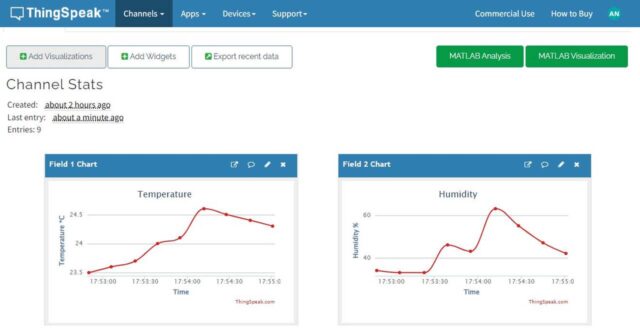

To have a visual representation of Temperature Humidity Data, you can go to the private view of Thingspeak Server Dashboard. The dashboard will have an entry of humidity temperature latest data after an interval of every 15 seconds.

This is how you can upload any sensor data to Thingspeak Server using Raspberry Pi Pico W, WiFi chip.
