Overview:
In this tutorial, we learn about the PWM Based DC Motor Speed Control using 555 Timer IC. We will using a Potentiometer to vary the pulse & hence speed can be controlled. The PWM waveform can also be observed in oscilloscope.
A PWM (Pulse Width Modulation) DC Motor Controller is a vital tool for industries such as textile, mechanical, and electrical. It provides the capability to precisely regulate the speed and direction of DC motors. Being able to adjust the rotational speed (RPM) and direction of DC drives is paramount for numerous factory processes, ensuring efficiency and accuracy in production lines.
The underlying technique of PWM is an analog control method that produces a variable square wave signal. This is achieved by swiftly toggling power on and off to an electronic device, with the average voltage determined by the signal’s duty cycle. In designing a PWM DC Motor Controller, the NE555 precision timer IC is essential. Operating in its astable mode, the IC is instrumental in generating a consistent PWM signal, facilitating smooth motor operations.
Hardware Components Required
We need following components for 555 Timer PWM Based Motor Speed Control tutorial.
- NE555 Timer IC – 1
- MOSFET IRFZ44N – 1
- Diode 1N4007 – 3
- LED – 1
- Resistor 1K – 2
- Potentiometer 100K – 1
- Capacitor 100uF – 1
- Capacitor 10nF – 1
- Capacitor 100nF – 1
- 9-12V DC Motor – 1
- 12V Power Supply (Battery) – 1
- Jumper Wires
- Breadboard – 1

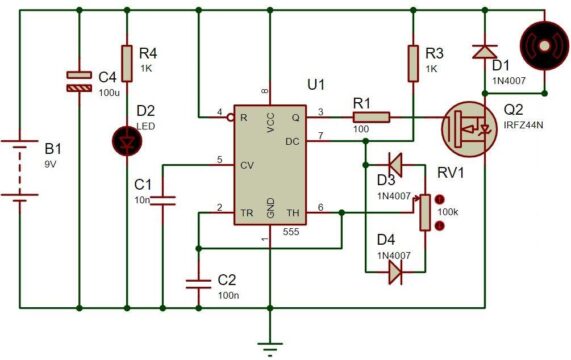

Circuit for PWM Based Motor Speed Control using 555 IC
The following is the circuit diagram of a PWM (Pulse Width Modulation) based DC Motor Speed Controller using a 555 Timer IC.
The heart of the circuit is the 555 Timer IC, which is a versatile integrated circuit used for generating time delays or oscillations. In this circuit, the 555-Timer IC is used in its astable mode to generate a PWM signal.
The resistor R1 & R3 determine the frequency and duty cycle of the PWM signal. The potentiometer RV1 allows for manual adjustment of the PWM duty cycle, effectively controlling the speed of the DC motor. The capacitors C1 & C2 help in the timing and stabilization of the circuit. The diodes D1, D3 & D4 are used for direction control and protection of the circuit.
A MOSFET IRFZ44N acts as a switch to control the current flow to the DC motor. The LED connected with resistor R4 is used as a power indicator. The circuit is powered with a 9-12V DC Source. The DC motor (9-12V) is connected across the diode D1.

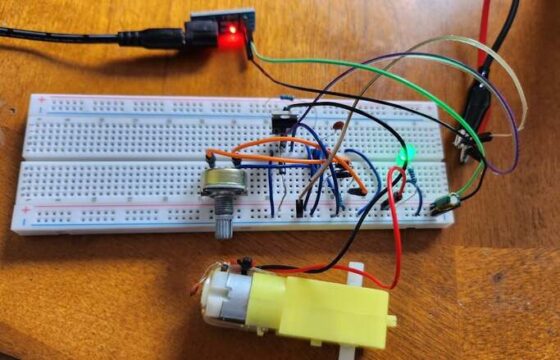

For testing, the circuit can be assembled on a breadboard.
Working of the PWM Based DC Motor Speed Controller
The 555 Timer is configured in its astable mode, which means it will oscillate continuously between its high and low states, producing a square wave output. The frequency and duty cycle of this square wave (PWM signal) are determined by the resistors (R1, R3) and capacitors (C1, C2) connected to the 555 Timer.
The next step is the PWM generation. PWM stands for Pulse Width Modulation. It’s a technique where the width of the pulse (or the duration the signal is high) is varied to control power delivery. In this circuit, the potentiometer (RV1) allows you to adjust the duty cycle of the PWM signal. Turning the potentiometer changes the resistance, which in turn changes the width of the pulses. A higher duty cycle (longer pulse width) means the motor will run faster, while a lower duty cycle (shorter pulse width) means the motor will run slower.
The PWM signal from the 555 Timer is fed to the gate of the MOSFET IRFZ44N. The transistor acts as a switch for the DC motor. When the PWM signal is high, the transistor allows current to flow, powering the motor. When the PWM signal is low, the transistor cuts off the current, stopping the motor. By rapidly switching on and off (as per the PWM signal), the effective power delivered to the motor is controlled, which in turn controls the speed of the motor.
Diodes (D1, D3, D4) are used in the circuit for multiple purposes. They can protect the circuit from voltage spikes (which can occur when the motor is turned off) and can also be used for direction control of the motor.
Circuit Simulation

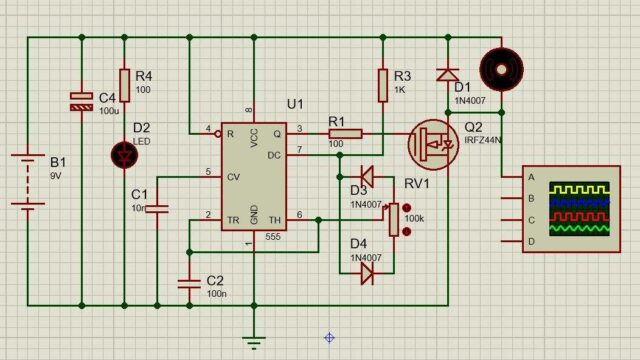

For initial testing, the circuit can be drawn on Proteus Software. To check the waveform an oscilloscope can be connected at the output terminal.
When the circuit is simulated, following is the result shown in the oscilloscope.

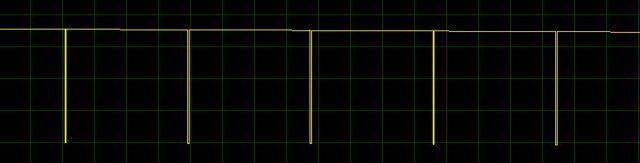

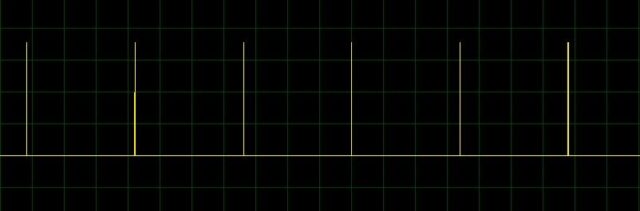

At 0% Duty Cycle, the spikes are almost 0.

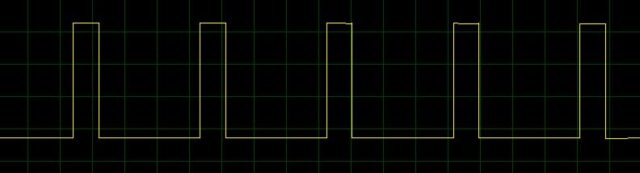

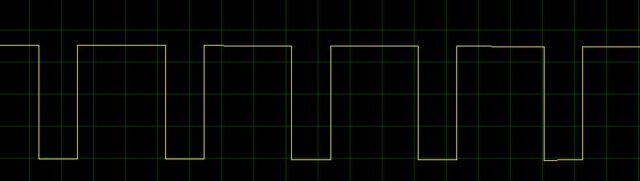

When the Duty Cycle is increased to 25%, the following is the result.

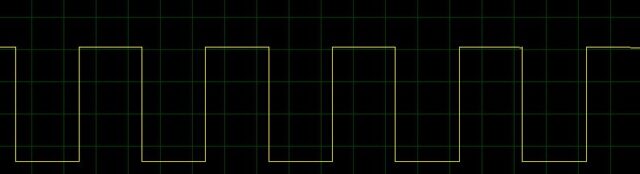

At half stage, i.e. at 50% Duty Cycle, the waveform looks like an inverter.
When the Duty Cycle is 75%, the waveform narrows.
At 100% duty cycle the motor rotates at full speed.
Real-Time Circuit Testing & Controlling DC Motor Speed
Once, the simulation is done the breadboard circuit can be tested.
Power the circuit with 9-12V DC Power Supply and connect the output terminal to DC Motor and also to the Oscilloscope. The LED will indicate, the circuit is powered ON.

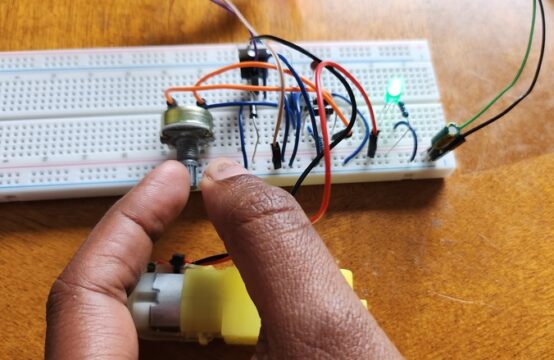

Now you can rotate the potentiometer to vary the speed of the Motor.

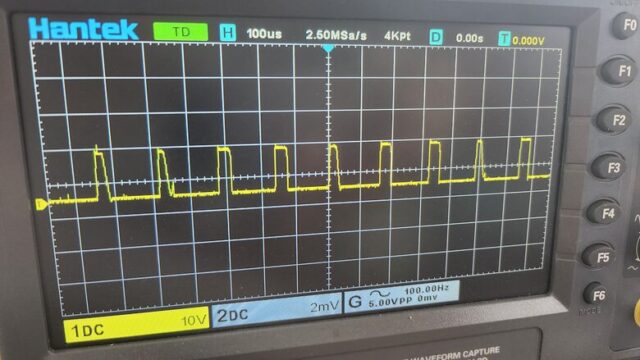

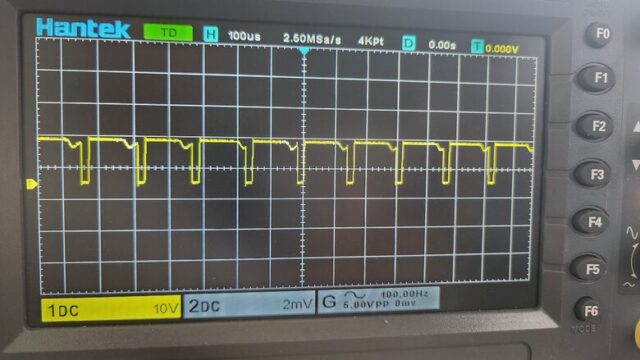

The Oscilloscope will show the variation in waveform as potentiometer is rotated.
Test the Motor speed by variying potentiometer as many times also observe the waveform in oscilloscope.
Applications of this Project
The PWM Based DC Motor Speed Control using 555 Timer has many applications in modern electronics. Some of the useful applications are as follows:
- Speed Control: Precise control of the speed of DC motors in toys, robots, and other electronic devices.
- Fan Speed Regulation: Adjusting the speed of cooling fans in electronic devices or home appliances.
- Pump Control: Regulating the speed of water or fluid pumps in aquariums, fountains, or hydroponic systems.
- Light Dimming: Adjusting the brightness of LED or incandescent lights using PWM signals.
- Model Railways: Controlling the speed of trains in model railway setups.
- Battery-Powered Devices: Efficiently using battery power by adjusting motor speeds as per requirement, extending battery life.
- Laboratory Experiments: Used in educational setups and labs to demonstrate the principles of PWM and motor control.
- Robotic Arms: Adjusting the speed of motors in robotic arms for precise movement and tasks.
- Automotive Applications: Controlling the speed of windshield wipers, electric windows, or seat adjusters.
- Energy Savings: Reducing energy consumption in devices by running motors only at the required speeds.
