KAIWEETS KTI-W01 Thermal Imaging Camera: In-Depth Review

Overview

The KAIWEETS KTI-W01 Thermal Imaging Camera delivers a high-resolution and versatile thermal imaging experience, ideal for both professionals and DIY enthusiasts. With an impressive 256×192 IR resolution, a fast 25 Hz refresh rate, and three distinct image modes, this device offers a blend of performance and ease of use. In this article, we review its unboxing, technical specifications, operating features, and real-world testing results.

Traditional DIY thermal imaging projects often rely on modules like Panasonic’s AMG8833 or Melexis’s MLX90640, which can be limited by low resolution and slow refresh rates. After extensive research for a cost-effective yet professional solution, the KAIWEETS KTI-W01 emerged as a top contender. It stands out with its high infrared resolution, broad temperature range, and multiple imaging modes, making it a reliable tool for early problem detection and precise diagnostics.

Unboxing Experience

Unboxing the KAIWEETS thermal camera is a gratifying experience, marked by careful design and comprehensive packaging:

• Packaging:

  • Comes in a sturdy box with a sleek red and black design.

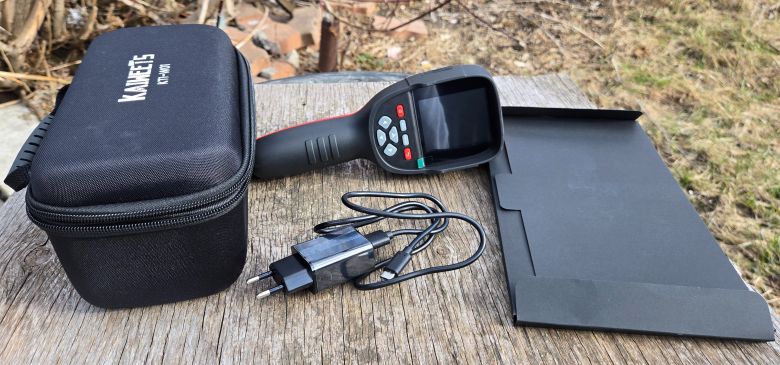

  • Includes the thermal imager, a data cable, a protective bag, a manual, and a 5V charger.

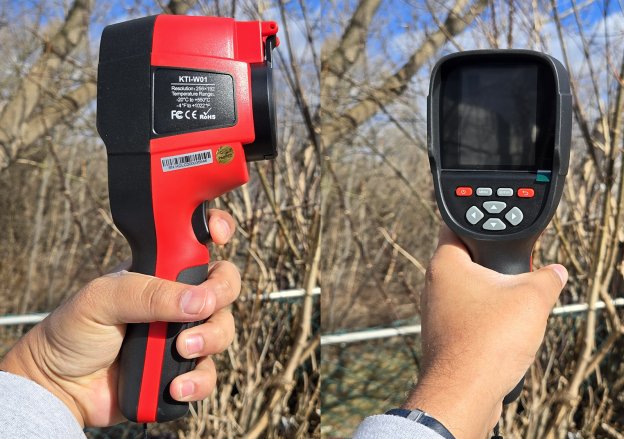

• Device Design:

  • Features a 3.2-inch color TFT LCD display that shows a 640×480 visible light image, helping you quickly check fault areas.

  • Equipped with clearly marked power, back, menu, and OK buttons along with intuitive direction keys.

  • A secure plastic lock protects the sensor until the device is ready for use.

This well-thought-out packaging not only ensures safe delivery but also sets the stage for a smooth user experience.

Technical Specifications

The KAIWEETS KTI-W01 packs advanced technical features that set it apart in the thermal imaging market:

High Resolution & Accurate Measurement

• Infrared Resolution: 256×192 pixels

• Thermal Sensitivity: ≤50 mK

• Refresh Rate: 25 Hz

• Temperature Range: -20°C to 550°C (-4°F to 1022°F)

• Measurement Accuracy: ±2°C or ±2%

• Auto Temperature Capture: Automatically identifies center, highest, and lowest temperatures to help pinpoint abnormal points swiftly.

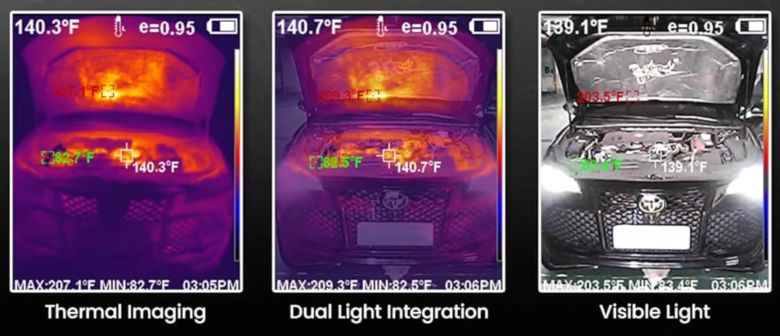

Versatile Image Modes and Display

• Image Modes:

  • Infrared Mode: Standard thermal imaging.

  • Visible Light Mode: Uses a 3.2-inch display to show a full visible image (640×480 resolution) for contextual analysis.

  • Fusion Mode: Combines infrared and visible light for enhanced image detail and accurate identification of issues.

• Display: The 3.2-inch color TFT screen offers crisp and clear imagery, which is vital for accurate diagnostics.

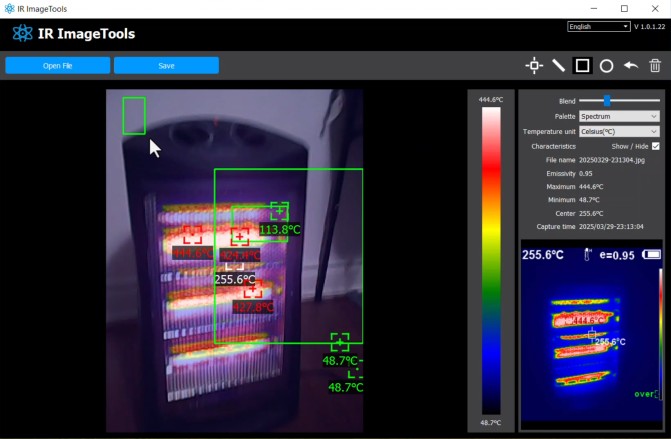

Connectivity and Data Analysis

• PC Integration:



  • Connects to a Windows PC via USB.

  • Free PC software upgrade supports online analysis, real-time temperature monitoring, and precise point-line surface measurement.

• Memory:

  • Up to 32GB eMMC memory that can store over 300,000 images.

  • Facilitates offline analysis, image export, and comprehensive data reporting.

Video Recording & Color Palettes

• Video Recording:

  • One-touch video capture function enables seamless recording of thermal videos.

• Color Palettes:

  • Five customizable palettes help highlight temperature differences and are ideal for high thermal contrast applications.

Battery Life and Durability

• Battery:

  • Built-in 3500 mAh rechargeable Li-ion battery supports 6–8 hours of continuous operation.

  • Auto power-off feature conserves battery during inactivity.

• Durability:

  • Ergonomic grip design for comfortable handling.

  • Rated IP54 for waterproof and dustproof performance.

• After-Sale Service:

  • Comes with 3 years of after-sale service and technical support.

Operating the Camera

The KAIWEETS thermal camera is designed for ease of use, ensuring both beginners and professionals can operate it efficiently:

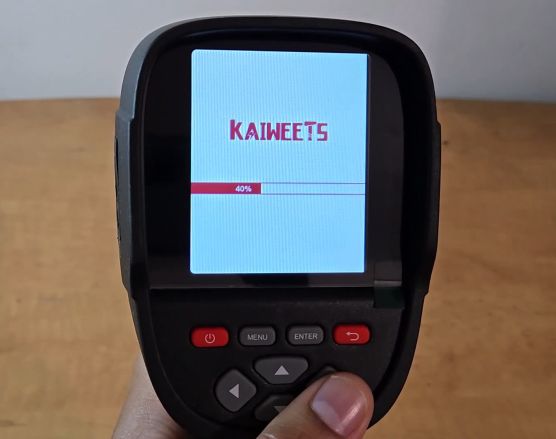

1. Power On and Boot-Up:



   • Press and hold the power button; the camera will take a few seconds to boot up and display the thermal image.

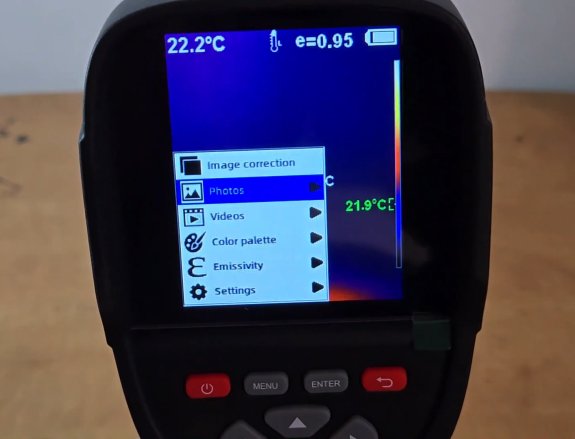

2. Navigating the Menu:



   • The intuitive menu allows you to capture photos, record videos, and adjust settings such as brightness, temperature range, and language.

   • Easily switch between infrared, visible, and fusion image modes to suit your analysis needs.

3. Image and Video Capture:



   • One-touch functions enable quick image capture and video recording.

   • Adjust emissivity settings to match different materials for precise temperature measurement.

4. PC Connectivity:

   • Connect to your PC via USB for real-time analysis and to export data reports, enhancing your diagnostic capabilities.

Real-World Testing and Applications

Extensive testing reveals the camera’s robust performance across various scenarios:

• Dynamic Temperature Detection:

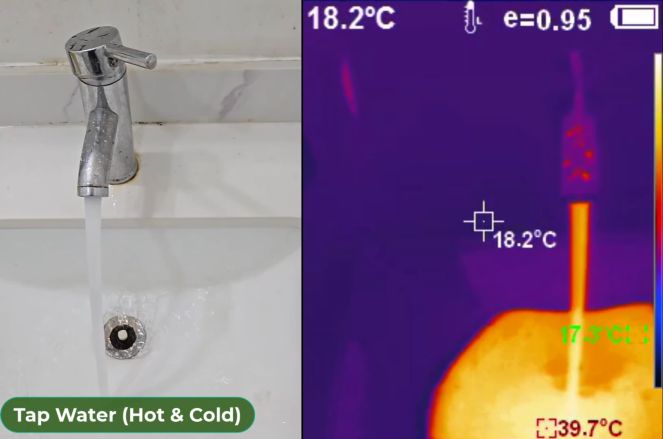

  • Captures real-time changes such as tap water heating, where color transitions from blue to red indicate rising temperatures.

• Household and Industrial Applications:

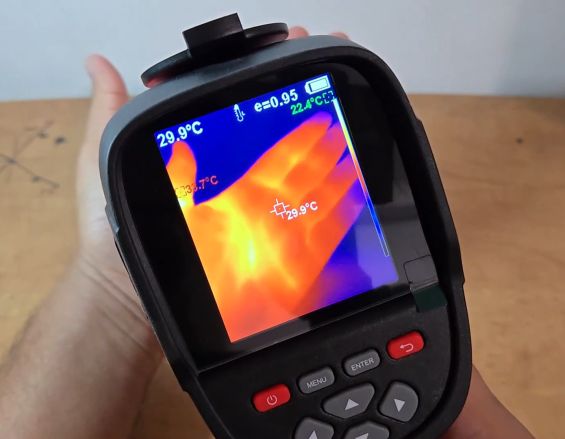

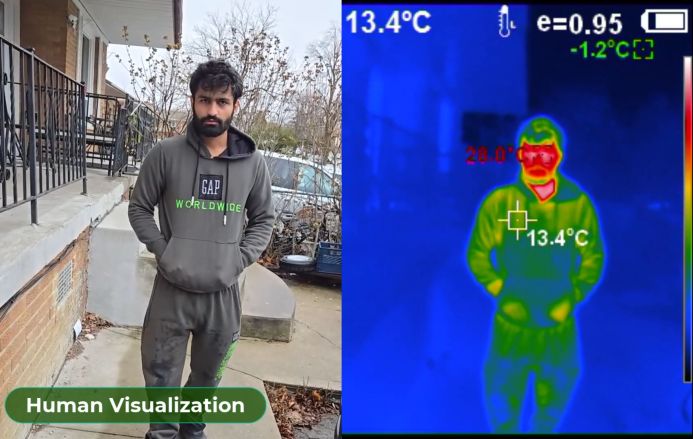

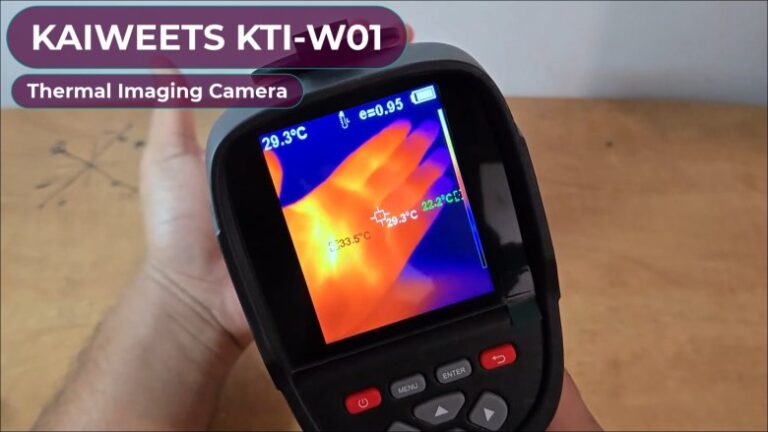

  • Accurately measures the temperature of a human hand (approximately 30°C) and tracks rapid heating of an electric stove, reaching up to 400°C in under a minute.

• Environmental Monitoring:



  • Effective in low-light conditions, the camera distinguishes objects based on thermal signatures even at night.

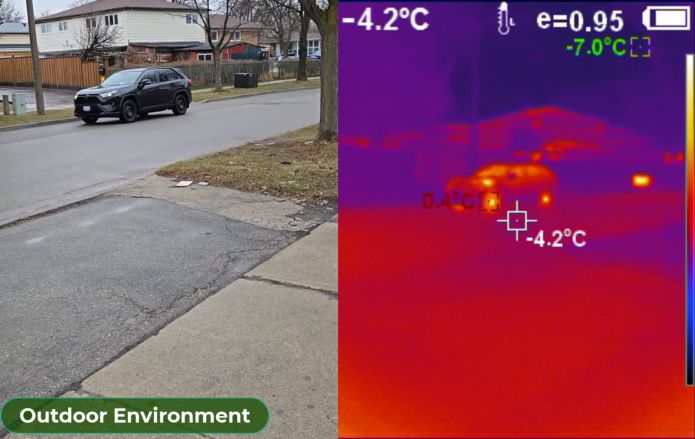

• Automotive and Security Applications:

  • Useful for monitoring vehicle compartments and identifying abnormal heat signatures in various security scenarios.

These capabilities make the KAIWEETS KTI-W01 a versatile tool suitable for house inspections, automotive diagnostics, outdoor hunting, fire detection, industrial inspection, and more.

Video Tutorial & Guide

Conclusion

The KAIWEETS KTI-W01 Thermal Imaging Camera is a remarkable blend of high resolution, speed, and versatility. With its 256×192 IR resolution, 25 Hz refresh rate, and multiple image modes, it delivers precise temperature measurement and clear visual representation in a variety of conditions. Whether you are a professional technician or a DIY enthusiast, its robust features, comprehensive connectivity options, and durable design make it an excellent choice for all your thermal imaging needs.

For more detailed technical information or to purchase the device, visit the Amazon Store. Although currently unavailable, keep an eye out for its restock and upgrade your thermal imaging toolkit with this advanced, reliable camera. Happy imaging!
