Overview: APDS9960 Gesture RGB Proximity Sensor & Arduino Interfacing
In this post, we will learn Interfacing of APDS9960 Gesture, RGB & Proximity Sensor with Arduino and OLED Display. The APDS9960 Sensor offers ambient light and color (as clear, red, green, and blue) measuring as well as proximity detection, and gesture sensing.
The Touchless gestures are the new frontier in the world of human-machine interfaces. By swiping your hand over a sensor, you can control a computer, microcontroller, robot, etc. Earlier we learned about the Gesture Mechanism using Gesture Controlled Robot. Similarly we used TC3200 Color Sensor for RGB Color Detection & also the PAJ7620 sensor for 9 Gesture Detection. The Proximity Sensor can also be used for Distance Sensing.
In this tutorial, we will learn an overview of the APDS9960 sensor and interfacing it with Arduino UNO Board. To begin, we’ll go over each of the pins on the breakout board and their function. Then we will interface the sensor via I2C pins. We will measure the Gestures directions like left, right, up, down, near, and far. We will then use this sensor as an RGB Color Detector and also Proximity Sensing.
Bill of Materials
The following are the components required for making APDS9960 Arduino based project. All the components can be easily purchased from Amazon. The component purchase link is given as well.
| S.N. | Components Name | Quantity | Purchase Links |
|---|---|---|---|
| 1 | Arduino Nano Board | 1 | Amazon | AliExpress |
| 2 | 0.96" I2C OLED Display | 1 | Amazon | AliExpress |
| 3 | APDS9960 Sensor | 1 | Amazon | AliExpress |
| 4 | Connecting Wires | 10 | Amazon | AliExpress |
| 5 | Breadboard | 1 | Amazon | AliExpress |
APDS9960 Proximity, Light, RGB & Gesture Sensor
Overview
The APDS-9960 is a multifunction sensor which can detect gestures, ambient light, RGB Color & values in light.
This sensor consists of four photodiodes. These photodiodes detect the reflected IR energy which is transmitted by an on-board LED. So whenever any gesture is performed then this IR energy gets obstructed and reflects back to the sensor, now the sensor detects the velocity and direction information and converts it into digital information. APDS-9960 also has a detection range of 4 to 8 inches (10 to 20 cm).
Architecture
This sensor works on I2C communication protocol. It consumes 1µA current and powered by 3.3V so be careful and do not connect it with 5V pin. The INT pin here is interrupt pin, which is used to drive the I2C communication.
The architecture of the gesture engine features automatic activation (based on Proximity engine results), ambient light subtraction, cross-talk cancelation, dual 8-bit data converters, power-saving inter-conversion delay, 32-dataset FIFO, and interrupt-driven I2C communication. Power consumption and noise are minimized with adjustable IR LED timing.
Pinouts
The APDS9960 sensor has 6 pins. Following are the function of pins.
Interfacing APDS9960 Sensor with Arduino
We will be using the Arduino UNO Board for interfacing the APDS9960 Sensor. We must use 3.3V to power the sensor. If we try to use a 5V power supply we may risk damaging the APDS-9960.
Connect the SDA Pin to A4 of Arduino & SCL to A5. Connect its INT pin to D2. We are leaving VL on the breakout board unconnected.
Note: The APDS9960 Sensor doesn’t work with few Arduino Boards like Arduino Nano.
Installing APDS9960 on Arduino IDE
The Arduino library for APDS9960 is created by Sparkfun. The library makes the APDS-9960 easy to use.
To install the library, go to the Library Manager in Arduino IDE & install the following Sparkfun library as shown in the image below.
Gesture Sensing Example Code
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 |
#include <Wire.h> #include <SparkFun_APDS9960.h> #define APDS9960_INT 2 // Needs to be an interrupt pin // Global Variables SparkFun_APDS9960 apds = SparkFun_APDS9960(); int isr_flag = 0; void setup() { // Initialize Serial port Serial.begin(9600); Serial.println(); Serial.println(F("--------------------------------")); Serial.println(F("APDS-9960 - GestureTest")); Serial.println(F("--------------------------------")); // Initialize interrupt service routine attachInterrupt(0, interruptRoutine, FALLING); // Initialize APDS-9960 (configure I2C and initial values) if ( apds.init() ) { Serial.println(F("APDS-9960 initialization complete")); } else { Serial.println(F("Something went wrong during APDS-9960 init!")); } // Start running the APDS-9960 gesture sensor engine if ( apds.enableGestureSensor(true) ) { Serial.println(F("Gesture sensor is now running")); } else { Serial.println(F("Something went wrong during gesture sensor init!")); } } void loop() { if( isr_flag == 1 ) { detachInterrupt(0); handleGesture(); isr_flag = 0; attachInterrupt(0, interruptRoutine, FALLING); } } void interruptRoutine() { isr_flag = 1; } void handleGesture() { if ( apds.isGestureAvailable() ) { switch ( apds.readGesture() ) { case DIR_UP: Serial.println("UP"); break; case DIR_DOWN: Serial.println("DOWN"); break; case DIR_LEFT: Serial.println("LEFT"); break; case DIR_RIGHT: Serial.println("RIGHT"); break; case DIR_NEAR: Serial.println("NEAR"); break; case DIR_FAR: Serial.println("FAR"); break; default: Serial.println("NONE"); } } } |
After uploading the code swipe your hand to left, right, forward, backward, near, far. The Serial Monitor will display the Gesture data whenever an interrupt is detected.
Color Sensing Example Code
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 |
#include <Wire.h> #include <SparkFun_APDS9960.h> // Global Variables SparkFun_APDS9960 apds = SparkFun_APDS9960(); uint16_t ambient_light = 0; uint16_t red_light = 0; uint16_t green_light = 0; uint16_t blue_light = 0; void setup() { // Initialize Serial port Serial.begin(9600); Serial.println(); Serial.println(F("--------------------------------")); Serial.println(F("APDS-9960 - ColorSensor")); Serial.println(F("--------------------------------")); // Initialize APDS-9960 (configure I2C and initial values) if ( apds.init() ) { Serial.println(F("APDS-9960 initialization complete")); } else { Serial.println(F("Something went wrong during APDS-9960 init!")); } // Start running the APDS-9960 light sensor (no interrupts) if ( apds.enableLightSensor(false) ) { Serial.println(F("Light sensor is now running")); } else { Serial.println(F("Something went wrong during light sensor init!")); } // Wait for initialization and calibration to finish delay(500); } void loop() { // Read the light levels (ambient, red, green, blue) if ( !apds.readAmbientLight(ambient_light) || !apds.readRedLight(red_light) || !apds.readGreenLight(green_light) || !apds.readBlueLight(blue_light) ) { Serial.println("Error reading light values"); } else { Serial.print("Ambient: "); Serial.print(ambient_light); Serial.print(" Red: "); Serial.print(red_light); Serial.print(" Green: "); Serial.print(green_light); Serial.print(" Blue: "); Serial.println(blue_light); } // Wait 1 second before next reading delay(1000); } |
Now in order to see the change in color frequency, keep different color objects in front of the Sensor. The Serial Monitor will display the value of Red, Green, Blue Color along with the Ambient Color value.
Proximity Sensing Example Code
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 |
#include <Wire.h> #include <SparkFun_APDS9960.h> // Global Variables SparkFun_APDS9960 apds = SparkFun_APDS9960(); uint8_t proximity_data = 0; void setup() { // Initialize Serial port Serial.begin(9600); Serial.println(); Serial.println(F("------------------------------------")); Serial.println(F("APDS-9960 - ProximitySensor")); Serial.println(F("------------------------------------")); // Initialize APDS-9960 (configure I2C and initial values) if ( apds.init() ) { Serial.println(F("APDS-9960 initialization complete")); } else { Serial.println(F("Something went wrong during APDS-9960 init!")); } // Adjust the Proximity sensor gain if ( !apds.setProximityGain(PGAIN_2X) ) { Serial.println(F("Something went wrong trying to set PGAIN")); } // Start running the APDS-9960 proximity sensor (no interrupts) if ( apds.enableProximitySensor(false) ) { Serial.println(F("Proximity sensor is now running")); } else { Serial.println(F("Something went wrong during sensor init!")); } } void loop() { // Read the proximity value if ( !apds.readProximity(proximity_data) ) { Serial.println("Error reading proximity value"); } else { Serial.print("Proximity: "); Serial.println(proximity_data); } // Wait 250 ms before next reading delay(250); } |
Now you can use the sensor as Proximity Distance Detection as well. For that, put your hand near and far and at a particular distance from the Sensor, the distance will be displayed on the Serial Monitor.
Interfacing APDS9960 Gesture Sensor with Arduino OLED Display

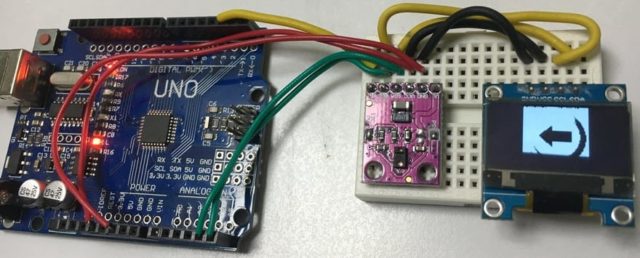

Now let us add an extra I2C OLED Display to the circuit, so that we can view the Gesture Data on OLED Screen. So make a connection as shown in the figure below.
Source Code
Before uploading code add these two library for OLED Display.
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 218 219 220 221 222 223 224 225 226 227 228 229 230 231 232 233 234 235 236 237 238 239 240 241 242 243 244 245 246 247 248 249 250 251 252 253 254 255 256 257 258 259 260 261 262 263 264 265 266 267 268 269 270 271 272 273 274 275 276 277 278 279 280 281 282 283 284 285 286 287 288 289 290 291 292 293 294 295 296 297 298 299 300 301 302 303 304 305 306 307 308 309 310 311 312 313 314 315 316 317 318 319 320 321 322 323 324 325 326 327 328 329 330 331 332 333 334 335 336 337 338 339 340 341 342 343 344 345 346 347 348 349 350 351 352 353 354 355 356 357 358 359 360 361 362 363 364 365 366 367 368 369 370 371 372 373 374 375 376 377 378 379 380 381 382 383 384 385 386 387 388 389 390 391 392 393 394 395 396 397 398 399 400 401 402 403 404 405 406 407 408 409 410 411 412 413 414 415 416 417 418 419 420 421 422 423 424 425 426 427 428 429 430 431 432 433 434 435 436 437 438 439 440 441 442 443 444 445 446 447 448 449 450 451 452 453 454 455 456 457 458 459 460 461 462 463 464 465 466 467 468 469 470 471 472 473 474 475 476 477 478 479 480 481 482 483 484 485 486 487 488 489 490 491 492 493 494 495 496 497 498 499 500 501 502 503 504 505 506 507 508 509 510 511 512 513 514 515 516 517 518 519 520 521 522 523 524 525 526 527 528 529 530 531 532 533 534 535 536 537 538 539 540 541 542 543 544 545 546 547 548 549 550 551 552 553 554 555 556 557 558 559 560 561 562 563 564 565 566 567 568 569 570 571 |
#include <Wire.h> #include <SparkFun_APDS9960.h> #include <Adafruit_GFX.h> #include <Adafruit_SSD1306.h> #define APDS9960_INT 2 // Needs to be an interrupt pin #define SCREEN_WIDTH 128 // OLED display width, in pixels #define SCREEN_HEIGHT 64 // OLED display height, in pixels #define OLED_RESET 4 // Reset pin # (or -1 if sharing Arduino reset pin) Adafruit_SSD1306 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET); #define LOGO_HEIGHT 64 #define LOGO_WIDTH 64 static const unsigned char PROGMEM myleft[] = { 0x45, 0x45, 0x45, 0xff, /*Color of index 0*/ 0xe9, 0xea, 0xe9, 0xff, /*Color of index 1*/ 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xdf, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xef, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xe7, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xe3, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xe1, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xe0, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xd0, 0x7f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xe0, 0x7f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xf0, 0x3f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xf0, 0x3f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xf8, 0x1f, 0xff, 0xff, 0xff, 0xe7, 0xff, 0xff, 0xf8, 0x1f, 0xff, 0xff, 0xff, 0xc7, 0xff, 0xff, 0xfc, 0x0f, 0xff, 0xff, 0xff, 0x87, 0xff, 0xff, 0xfc, 0x0f, 0xff, 0xff, 0xff, 0x07, 0xff, 0xff, 0xfe, 0x0f, 0xff, 0xff, 0xfe, 0x07, 0xff, 0xff, 0xfe, 0x07, 0xff, 0xff, 0xf8, 0x00, 0x00, 0x00, 0xfe, 0x07, 0xff, 0xff, 0xf0, 0x00, 0x00, 0x00, 0xfe, 0x07, 0xff, 0xff, 0xe0, 0x00, 0x00, 0x00, 0xfe, 0x07, 0xff, 0xff, 0xc0, 0x00, 0x00, 0x00, 0xff, 0x03, 0xff, 0xff, 0x80, 0x00, 0x00, 0x00, 0xff, 0x03, 0xff, 0xff, 0x00, 0x00, 0x00, 0x00, 0xff, 0x03, 0xff, 0xff, 0x00, 0x00, 0x00, 0x00, 0xff, 0x03, 0xff, 0xff, 0x80, 0x00, 0x00, 0x00, 0xff, 0x03, 0xff, 0xff, 0xc0, 0x00, 0x00, 0x00, 0xff, 0x03, 0xff, 0xff, 0xe0, 0x00, 0x00, 0x00, 0xfe, 0x03, 0xff, 0xff, 0xf0, 0x00, 0x00, 0x00, 0xfe, 0x03, 0xff, 0xff, 0xf8, 0x00, 0x00, 0x00, 0xfe, 0x07, 0xff, 0xff, 0xfc, 0x07, 0xff, 0xff, 0xfe, 0x07, 0xff, 0xff, 0xfe, 0x07, 0xff, 0xff, 0xfc, 0x07, 0xff, 0xff, 0xff, 0x87, 0xff, 0xff, 0xfc, 0x07, 0xff, 0xff, 0xff, 0xc7, 0xff, 0xff, 0xfc, 0x07, 0xff, 0xff, 0xff, 0xe7, 0xff, 0xff, 0xf8, 0x0f, 0xff, 0xff, 0xff, 0xf7, 0xff, 0xff, 0xf8, 0x0f, 0xff, 0xef, 0xff, 0xff, 0xff, 0xff, 0xf0, 0x1f, 0xff, 0xef, 0xff, 0xff, 0xff, 0xff, 0xe0, 0x1f, 0xff, 0xf7, 0xff, 0xff, 0xff, 0xff, 0xe0, 0x1f, 0xff, 0xf3, 0xff, 0xff, 0xff, 0xff, 0xc0, 0x3f, 0xff, 0xf9, 0xff, 0xff, 0xff, 0xff, 0x80, 0x7f, 0xff, 0xfc, 0xff, 0xff, 0xff, 0xff, 0x00, 0x7f, 0xff, 0x7c, 0x7f, 0xff, 0xff, 0xfe, 0x00, 0xff, 0xff, 0xbe, 0x1f, 0xff, 0xff, 0xf8, 0x01, 0xff, 0xff, 0xdf, 0x0f, 0xff, 0xff, 0xf0, 0x01, 0xff, 0xff, 0xe0, 0x03, 0xff, 0xff, 0xc0, 0x03, 0xff, 0xff, 0xf0, 0x00, 0x7f, 0xfe, 0x00, 0x07, 0xff, 0xff, 0xf8, 0x00, 0x03, 0xc0, 0x00, 0x0f, 0xff, 0xff, 0xfc, 0x00, 0x00, 0x00, 0x00, 0x3f, 0xff, 0xff, 0xfe, 0x00, 0x00, 0x00, 0x00, 0x7f, 0xff, 0xff, 0xff, 0x80, 0x00, 0x00, 0x01, 0xff, 0xff, 0xff, 0xff, 0xc0, 0x00, 0x00, 0x03, 0xff, 0xff, 0xff, 0xff, 0xf8, 0x00, 0x00, 0x0f, 0xff, 0xff, 0xff, 0xff, 0xfe, 0x00, 0x00, 0x7f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xe0, 0x0f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, }; static const unsigned char PROGMEM myright[] = { 0x33, 0x34, 0x33, 0xff, /*Color of index 0*/ 0xec, 0xed, 0xec, 0xff, /*Color of index 1*/ 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xf0, 0x07, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0x00, 0x00, 0x7f, 0xff, 0xff, 0xff, 0xff, 0xf8, 0x00, 0x00, 0x0f, 0xff, 0xff, 0xff, 0xff, 0xe0, 0x00, 0x00, 0x03, 0xff, 0xff, 0xff, 0xff, 0x80, 0x00, 0x00, 0x00, 0xff, 0xff, 0xff, 0xfe, 0x00, 0x0f, 0xf0, 0x00, 0x7f, 0xff, 0xff, 0xfc, 0x00, 0xff, 0xff, 0x00, 0x1f, 0xff, 0xff, 0xf8, 0x03, 0xff, 0xff, 0xc6, 0x0f, 0xff, 0xff, 0xf0, 0x0f, 0xff, 0xff, 0xf0, 0x07, 0xff, 0xff, 0xe0, 0x1f, 0xff, 0xff, 0xfc, 0x03, 0xff, 0xff, 0xc0, 0x3f, 0xff, 0xff, 0xfe, 0x01, 0xff, 0xff, 0x80, 0xff, 0xff, 0xff, 0xff, 0x00, 0xff, 0xff, 0x01, 0xff, 0xff, 0xff, 0xff, 0x80, 0x7f, 0xff, 0x03, 0xff, 0xff, 0xff, 0xff, 0xc0, 0x7f, 0xfe, 0x03, 0xff, 0xff, 0xff, 0xff, 0xe0, 0x3f, 0xfc, 0x07, 0xff, 0xff, 0xff, 0xff, 0xf0, 0x3f, 0xfc, 0x0f, 0xff, 0xff, 0xff, 0xff, 0xf0, 0x1f, 0xf8, 0x0f, 0xff, 0xff, 0xef, 0xff, 0xf8, 0x1f, 0xf8, 0x1f, 0xff, 0xff, 0xe7, 0xff, 0xf8, 0x0f, 0xf0, 0x3f, 0xff, 0xff, 0xe3, 0xff, 0xfc, 0x0f, 0xf0, 0x3f, 0xff, 0xff, 0xe1, 0xff, 0xfc, 0x07, 0xf0, 0x3f, 0xff, 0xff, 0xe0, 0xff, 0xfc, 0x07, 0xf0, 0x7f, 0xff, 0xff, 0xe0, 0x3f, 0xfe, 0x07, 0xe0, 0x7f, 0x00, 0x00, 0x00, 0x1f, 0xfe, 0x07, 0xe0, 0x7f, 0x00, 0x00, 0x00, 0x0f, 0xfe, 0x03, 0xe0, 0x7f, 0x00, 0x00, 0x00, 0x07, 0xfe, 0x03, 0xe0, 0xff, 0x00, 0x00, 0x00, 0x03, 0xfe, 0x03, 0xe0, 0xff, 0x00, 0x00, 0x00, 0x01, 0xff, 0x03, 0xe0, 0xff, 0x00, 0x00, 0x00, 0x00, 0xff, 0x03, 0xe0, 0xff, 0x00, 0x00, 0x00, 0x00, 0xff, 0x03, 0xe0, 0xff, 0x00, 0x00, 0x00, 0x01, 0xff, 0x03, 0xe0, 0xff, 0x00, 0x00, 0x00, 0x03, 0xfe, 0x03, 0xe0, 0x7f, 0x00, 0x00, 0x00, 0x07, 0xfe, 0x03, 0xe0, 0x7f, 0x00, 0x00, 0x00, 0x0f, 0xfe, 0x03, 0xe0, 0x7f, 0x00, 0x00, 0x00, 0x1f, 0xfe, 0x03, 0xe0, 0x7f, 0xff, 0xff, 0xe0, 0x7f, 0xfe, 0x03, 0xe0, 0x3f, 0xff, 0xff, 0xe0, 0xff, 0xfc, 0x07, 0xe0, 0x3f, 0xff, 0xff, 0xe1, 0xff, 0xfc, 0x07, 0xf0, 0x1f, 0xff, 0xff, 0xe3, 0xff, 0xf8, 0x07, 0xf0, 0x1f, 0xff, 0xff, 0xe7, 0xff, 0xf8, 0x07, 0xf0, 0x0f, 0xff, 0xff, 0xef, 0xff, 0xf0, 0x0f, 0xf8, 0x0f, 0xff, 0xff, 0xff, 0xff, 0xf0, 0x0f, 0xf8, 0x07, 0xff, 0xff, 0xff, 0xff, 0xe0, 0x1f, 0xfc, 0x83, 0xff, 0xff, 0xff, 0xff, 0xc0, 0x1f, 0xfc, 0x41, 0xff, 0xff, 0xff, 0xff, 0xc0, 0x3f, 0xfe, 0x80, 0xff, 0xff, 0xff, 0xff, 0x80, 0x3f, 0xfe, 0x00, 0x7f, 0xff, 0xff, 0xff, 0x00, 0x7f, 0xff, 0x00, 0x3f, 0xff, 0xff, 0xfc, 0x00, 0xff, 0xff, 0x80, 0x1f, 0xff, 0xff, 0xf8, 0x00, 0xff, 0xff, 0xc0, 0x07, 0xff, 0xff, 0xe0, 0x01, 0xff, 0xff, 0xe0, 0x01, 0xff, 0xff, 0x80, 0x03, 0xff, 0xff, 0xf0, 0x00, 0x3f, 0xfc, 0x00, 0x07, 0xff, 0xff, 0xf8, 0x00, 0x00, 0x00, 0x00, 0x0f, 0xff, 0xff, 0xfc, 0x00, 0x00, 0x00, 0x00, 0x1f, 0xff, 0xff, 0xfe, 0x00, 0x00, 0x00, 0x00, 0x3f, 0xff, 0xff, 0xff, 0x80, 0x00, 0x00, 0x00, 0xff, 0xff, 0xff, 0xff, 0xe0, 0x00, 0x00, 0x03, 0xff, 0xff, 0xff, 0xff, 0xf8, 0x00, 0x00, 0x0f, 0xff, 0xff, 0xff, 0xff, 0xfe, 0x00, 0x00, 0x3f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xf0, 0x07, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, }; static const unsigned char PROGMEM myup[] = { 0x2d, 0x2d, 0x2d, 0xff, /*Color of index 0*/ 0xf5, 0xf6, 0xf5, 0xff, /*Color of index 1*/ 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xf0, 0x3f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xfe, 0x00, 0x01, 0xff, 0xff, 0xff, 0xff, 0xff, 0xf0, 0x00, 0x00, 0x3f, 0xff, 0xff, 0xff, 0xff, 0xc0, 0x00, 0x00, 0x0f, 0xff, 0xff, 0xff, 0xff, 0x00, 0x00, 0x00, 0x03, 0xff, 0xff, 0xff, 0xfc, 0x00, 0x00, 0x00, 0x00, 0xff, 0xff, 0xff, 0xf8, 0x00, 0x7f, 0xf8, 0x00, 0x7f, 0xff, 0xff, 0xf0, 0x03, 0xff, 0xff, 0x00, 0x3f, 0xff, 0xff, 0xc0, 0x0f, 0xff, 0xff, 0xc0, 0x1f, 0xff, 0xff, 0x80, 0x3f, 0xff, 0xff, 0xf0, 0x07, 0xff, 0xff, 0x80, 0x7f, 0xff, 0xff, 0xf8, 0x03, 0xff, 0xff, 0x00, 0xff, 0xff, 0xff, 0xfc, 0x03, 0xff, 0xfe, 0x01, 0xff, 0xff, 0xff, 0xfe, 0x01, 0xff, 0xfc, 0x03, 0xff, 0xfc, 0xff, 0xff, 0x00, 0xff, 0xfc, 0x07, 0xff, 0xf8, 0x7f, 0xff, 0x80, 0xff, 0xf8, 0x0f, 0xff, 0xf0, 0x3f, 0xff, 0xc0, 0x7f, 0xf0, 0x1f, 0xff, 0xf0, 0x3f, 0xff, 0xe0, 0x3f, 0xf0, 0x1f, 0xff, 0xe0, 0x1f, 0xff, 0xe0, 0x3f, 0xe0, 0x3f, 0xff, 0xc0, 0x0f, 0xff, 0xf0, 0x1f, 0xe0, 0x3f, 0xff, 0x80, 0x07, 0xff, 0xf0, 0x1f, 0xe0, 0x7f, 0xff, 0x00, 0x03, 0xff, 0xf8, 0x1f, 0xc0, 0x7f, 0xfe, 0x00, 0x01, 0xff, 0xf8, 0x0f, 0xc0, 0x7f, 0xfc, 0x00, 0x00, 0xff, 0xf8, 0x0f, 0xc0, 0xff, 0xf8, 0x00, 0x00, 0x7f, 0xfc, 0x0f, 0xc0, 0xff, 0xf0, 0x00, 0x00, 0x3f, 0xfc, 0x0f, 0x80, 0xff, 0xe0, 0x00, 0x00, 0x1f, 0xfc, 0x07, 0x80, 0xff, 0xff, 0x80, 0x07, 0xff, 0xfc, 0x07, 0x80, 0xff, 0xff, 0x80, 0x07, 0xff, 0xfc, 0x07, 0x80, 0xff, 0xff, 0x80, 0x07, 0xff, 0xfc, 0x07, 0x80, 0xff, 0xff, 0x80, 0x07, 0xff, 0xfc, 0x07, 0x80, 0xff, 0xff, 0x80, 0x07, 0xff, 0xfc, 0x07, 0x80, 0xff, 0xff, 0x80, 0x07, 0xff, 0xfc, 0x07, 0x80, 0xff, 0xff, 0x80, 0x07, 0xff, 0xfc, 0x07, 0x80, 0xff, 0xff, 0x80, 0x07, 0xff, 0xfc, 0x07, 0x80, 0xff, 0xff, 0x80, 0x07, 0xff, 0xfc, 0x07, 0xc0, 0xff, 0xff, 0x80, 0x07, 0xff, 0xfc, 0x07, 0xc0, 0x7f, 0xff, 0x80, 0x07, 0xff, 0xf8, 0x0f, 0xc0, 0x7f, 0xff, 0x80, 0x07, 0xff, 0xf8, 0x0f, 0xc0, 0x7f, 0xff, 0x80, 0x07, 0xff, 0xf8, 0x0f, 0xe0, 0x3f, 0xff, 0x80, 0x07, 0xff, 0xf0, 0x1f, 0xe0, 0x3f, 0xff, 0x80, 0x07, 0xff, 0xf0, 0x1f, 0xe0, 0x1f, 0xff, 0x80, 0x07, 0xff, 0xe0, 0x1f, 0xf0, 0x0f, 0xff, 0x80, 0x07, 0xff, 0xc0, 0x3f, 0xf0, 0x0f, 0xff, 0x80, 0x07, 0xff, 0xc0, 0x3f, 0xf8, 0x07, 0xff, 0x80, 0x07, 0xff, 0x80, 0x7f, 0xf8, 0x03, 0xff, 0x80, 0x07, 0xff, 0x00, 0x7f, 0xfc, 0x01, 0xff, 0xff, 0xff, 0xfe, 0x00, 0xff, 0xfe, 0x00, 0xff, 0xff, 0xff, 0xfc, 0x01, 0xff, 0xfe, 0x00, 0x3f, 0xff, 0xff, 0xf0, 0x01, 0xff, 0xff, 0x00, 0x1f, 0xff, 0xff, 0xe0, 0x03, 0xff, 0xff, 0x80, 0x07, 0xff, 0xff, 0x80, 0x07, 0xff, 0xff, 0xc0, 0x00, 0xff, 0xfc, 0x00, 0x0f, 0xff, 0xff, 0xe0, 0x00, 0x0f, 0xc0, 0x00, 0x1f, 0xff, 0xff, 0xf0, 0x00, 0x00, 0x00, 0x00, 0x3f, 0xff, 0xff, 0xf8, 0x00, 0x00, 0x00, 0x00, 0x7f, 0xff, 0xff, 0xfe, 0x00, 0x00, 0x00, 0x01, 0xff, 0xff, 0xff, 0xff, 0x80, 0x00, 0x00, 0x07, 0xff, 0xff, 0xff, 0xff, 0xe0, 0x00, 0x00, 0x1f, 0xff, 0xff, 0xff, 0xff, 0xf8, 0x00, 0x00, 0x7f, 0xff, 0xff, 0xff, 0xff, 0xff, 0x00, 0x03, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, }; static const unsigned char PROGMEM mydown[] = { 0x3f, 0x3f, 0x3f, 0xff, /*Color of index 0*/ 0xea, 0xeb, 0xea, 0xff, /*Color of index 1*/ 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0x9f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xe7, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xf1, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xf0, 0x7f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xb8, 0x1f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xe4, 0x0f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xfa, 0x07, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xfc, 0x03, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xfe, 0x01, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0x80, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xc0, 0x7f, 0xff, 0xff, 0xff, 0xe0, 0x01, 0xff, 0xc0, 0x7f, 0xff, 0xff, 0xff, 0xc0, 0x01, 0xff, 0xe0, 0x3f, 0xff, 0xff, 0xff, 0xc0, 0x01, 0xff, 0xf0, 0x1f, 0xff, 0xff, 0xff, 0xc0, 0x01, 0xff, 0xf8, 0x1f, 0xff, 0xff, 0xff, 0xc0, 0x01, 0xff, 0xf8, 0x0f, 0xff, 0xff, 0xff, 0xc0, 0x01, 0xff, 0xfc, 0x0f, 0xff, 0xff, 0xff, 0xc0, 0x01, 0xff, 0xfc, 0x0f, 0xff, 0xff, 0xff, 0xc0, 0x01, 0xff, 0xfe, 0x07, 0xff, 0xff, 0xff, 0xc0, 0x01, 0xff, 0xfe, 0x07, 0xff, 0xff, 0xff, 0xc0, 0x01, 0xff, 0xfe, 0x03, 0xff, 0xff, 0xff, 0xc0, 0x01, 0xff, 0xff, 0x03, 0xff, 0xff, 0xff, 0xc0, 0x01, 0xff, 0xff, 0x03, 0xff, 0xff, 0xff, 0xc0, 0x01, 0xff, 0xff, 0x03, 0xff, 0xff, 0xff, 0xc0, 0x01, 0xff, 0xff, 0x03, 0xff, 0xff, 0xff, 0xc0, 0x01, 0xff, 0xff, 0x03, 0xff, 0xff, 0xff, 0xc0, 0x01, 0xff, 0xff, 0x03, 0xff, 0xff, 0xff, 0xc0, 0x01, 0xff, 0xff, 0x01, 0xff, 0xff, 0xff, 0xc0, 0x01, 0xff, 0xff, 0x01, 0xff, 0xff, 0xff, 0xc0, 0x01, 0xff, 0xff, 0x01, 0xff, 0xff, 0xf8, 0x00, 0x00, 0x0f, 0xff, 0x03, 0xff, 0xff, 0xfc, 0x00, 0x00, 0x0f, 0xff, 0x03, 0xff, 0xff, 0xfc, 0x00, 0x00, 0x1f, 0xff, 0x03, 0xff, 0xff, 0xfe, 0x00, 0x00, 0x3f, 0xfe, 0x03, 0xff, 0xff, 0xff, 0x00, 0x00, 0x7f, 0xfe, 0x03, 0xf7, 0xff, 0xff, 0x80, 0x00, 0xff, 0xfe, 0x03, 0xff, 0xdf, 0xff, 0xc0, 0x01, 0xff, 0xfc, 0x07, 0xff, 0xdf, 0xff, 0xe0, 0x03, 0xff, 0xfc, 0x07, 0xfb, 0xef, 0xff, 0xf0, 0x07, 0xff, 0xf8, 0x07, 0xf9, 0xef, 0xff, 0xf8, 0x07, 0xff, 0xf8, 0x0f, 0xfd, 0xe7, 0xff, 0xfc, 0x0f, 0xff, 0xf0, 0x0f, 0xfc, 0x13, 0xff, 0xfc, 0x1f, 0xff, 0xe0, 0x1f, 0xfe, 0x01, 0xff, 0xfe, 0x3f, 0xff, 0xc0, 0x1f, 0xfe, 0x00, 0xff, 0xff, 0xff, 0xff, 0x80, 0x3f, 0xff, 0x00, 0x7f, 0xff, 0xff, 0xff, 0x00, 0x3f, 0xff, 0x80, 0x3f, 0xff, 0xff, 0xfe, 0x00, 0x7f, 0xff, 0x80, 0x1f, 0xff, 0xff, 0xfc, 0x00, 0xff, 0xff, 0xc0, 0x07, 0xff, 0xff, 0xf0, 0x01, 0xff, 0xff, 0xe0, 0x01, 0xff, 0xff, 0xc0, 0x01, 0xff, 0xff, 0xf0, 0x00, 0x7f, 0xff, 0x00, 0x03, 0xff, 0xff, 0xf8, 0x00, 0x03, 0xe0, 0x00, 0x07, 0xff, 0xff, 0xfc, 0x00, 0x00, 0x00, 0x00, 0x1f, 0xff, 0xff, 0xff, 0x00, 0x00, 0x00, 0x00, 0x3f, 0xff, 0xff, 0xff, 0x80, 0x00, 0x00, 0x00, 0x7f, 0xff, 0xff, 0xff, 0xe0, 0x00, 0x00, 0x01, 0xff, 0xff, 0xff, 0xff, 0xf8, 0x00, 0x00, 0x07, 0xff, 0xff, 0xff, 0xff, 0xfe, 0x00, 0x00, 0x3f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xe0, 0x03, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, }; static const unsigned char PROGMEM mynear[] = { 0x59, 0x59, 0x59, 0xff, /*Color of index 0*/ 0xf8, 0xf9, 0xf8, 0xff, /*Color of index 1*/ 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xe7, 0xef, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xe3, 0xcf, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xe1, 0x8f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xe0, 0x0f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xe0, 0x0f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xe0, 0x0f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xe0, 0x0f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xe0, 0x0f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xe0, 0x0f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xe0, 0x07, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0x00, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0x00, 0x01, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0x80, 0x03, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xc0, 0x07, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xf0, 0x0f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xf0, 0x1f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xf8, 0x3f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xf8, 0x1f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xe0, 0x03, 0xff, 0xff, 0xff, 0xff, 0xf7, 0xff, 0x80, 0x01, 0xff, 0xef, 0xff, 0xff, 0xf3, 0xff, 0x00, 0x00, 0xff, 0xcf, 0xff, 0xff, 0xf1, 0xfe, 0x00, 0x00, 0x7f, 0x8f, 0xff, 0xff, 0xf0, 0xfe, 0x00, 0x00, 0x3f, 0x0f, 0xff, 0xc0, 0x00, 0x7c, 0x00, 0x00, 0x3e, 0x00, 0x03, 0xc0, 0x00, 0x3c, 0x00, 0x00, 0x1c, 0x00, 0x03, 0xe0, 0x00, 0x18, 0x00, 0x00, 0x18, 0x00, 0x0f, 0xf0, 0x00, 0x08, 0x00, 0x00, 0x10, 0x00, 0x1f, 0xf8, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x1f, 0xf8, 0x00, 0x08, 0x00, 0x00, 0x00, 0x00, 0x1f, 0xf0, 0x00, 0x18, 0x00, 0x00, 0x10, 0x00, 0x0f, 0xe0, 0x00, 0x38, 0x00, 0x00, 0x18, 0x00, 0x07, 0xc0, 0x00, 0x7c, 0x00, 0x00, 0x1c, 0x00, 0x03, 0xff, 0xf0, 0xfc, 0x00, 0x00, 0x3e, 0x0f, 0xff, 0xff, 0xf1, 0xfc, 0x00, 0x00, 0x3f, 0x0f, 0xff, 0xff, 0xf3, 0xfe, 0x00, 0x00, 0x7f, 0x8f, 0xff, 0xff, 0xf7, 0xff, 0x00, 0x00, 0xff, 0xcf, 0xff, 0xff, 0xff, 0xff, 0x80, 0x01, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xc0, 0x03, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xf0, 0x0f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xfc, 0x3f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xf8, 0x1f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xf0, 0x0f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xe0, 0x07, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xc0, 0x03, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0x80, 0x01, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0x00, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xe0, 0x07, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xe0, 0x0f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xe0, 0x0f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xe0, 0x0f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xe0, 0x0f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xe0, 0x0f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xe0, 0x0f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xe1, 0x8f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xe3, 0xcf, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xe7, 0xef, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, }; static const unsigned char PROGMEM myfar[] = { 0x63, 0x64, 0x63, 0xff, /*Color of index 0*/ 0xf8, 0xfa, 0xf8, 0xff, /*Color of index 1*/ 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xfe, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xfc, 0x7f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xf8, 0x3f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xf0, 0x1f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xe0, 0x0f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xc0, 0x07, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0x80, 0x03, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0x00, 0x01, 0xff, 0xff, 0xff, 0xff, 0xff, 0xfe, 0x00, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xe0, 0x0f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xe0, 0x0f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xe0, 0x0f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xe0, 0x0f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xe0, 0x0f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xe0, 0x0f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xe0, 0x0f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xe1, 0x0f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xe3, 0x8f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xe7, 0xcf, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xef, 0xef, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xf0, 0x0f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xc0, 0x03, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0x80, 0x01, 0xff, 0xff, 0xff, 0xff, 0xbf, 0xff, 0x00, 0x00, 0xff, 0xfd, 0xff, 0xff, 0x3f, 0xfe, 0x00, 0x00, 0x7f, 0xfc, 0xff, 0xfe, 0x3f, 0xfc, 0x00, 0x00, 0x3f, 0xfc, 0x7f, 0xfc, 0x3f, 0xfc, 0x00, 0x00, 0x3f, 0xfc, 0x3f, 0xf8, 0x00, 0x00, 0x00, 0x00, 0x10, 0x00, 0x1f, 0xf0, 0x00, 0x08, 0x00, 0x00, 0x10, 0x00, 0x0f, 0xe0, 0x00, 0x18, 0x00, 0x00, 0x18, 0x00, 0x07, 0xc0, 0x00, 0x38, 0x00, 0x00, 0x1c, 0x00, 0x03, 0x80, 0x00, 0x78, 0x00, 0x00, 0x1e, 0x00, 0x01, 0xc0, 0x00, 0x38, 0x00, 0x00, 0x1c, 0x00, 0x03, 0xe0, 0x00, 0x18, 0x00, 0x00, 0x18, 0x00, 0x07, 0xf0, 0x00, 0x08, 0x00, 0x00, 0x10, 0x00, 0x0f, 0xf8, 0x00, 0x0c, 0x00, 0x00, 0x30, 0x00, 0x1f, 0xfc, 0x3f, 0xfc, 0x00, 0x00, 0x3f, 0xfc, 0x3f, 0xfe, 0x3f, 0xfe, 0x00, 0x00, 0x7f, 0xfc, 0x7f, 0xff, 0x3f, 0xff, 0x00, 0x00, 0x7f, 0xfc, 0xff, 0xff, 0xbf, 0xff, 0x00, 0x00, 0xff, 0xfd, 0xff, 0xff, 0xff, 0xff, 0xc0, 0x03, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xf0, 0x07, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xf7, 0xe7, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xf3, 0xc7, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xf1, 0x87, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xf0, 0x07, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xf0, 0x07, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xf0, 0x07, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xf0, 0x07, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xf0, 0x07, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xf0, 0x07, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xe0, 0x07, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0x00, 0x00, 0x7f, 0xff, 0xff, 0xff, 0xff, 0xff, 0x00, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0x80, 0x01, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xc0, 0x03, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xe0, 0x07, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xf0, 0x0f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xf8, 0x1f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xfc, 0x3f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, }; // Global Variables SparkFun_APDS9960 apds = SparkFun_APDS9960(); int isr_flag = 0; void setup() { // Initialize Serial port Serial.begin(9600); Serial.println(); Serial.println(F("--------------------------------")); Serial.println(F("APDS-9960 - GestureTest")); Serial.println(F("--------------------------------")); display.begin(SSD1306_SWITCHCAPVCC, 0x3C); //initialize with the I2C addr 0x3C (128x64) // Initialize interrupt service routine attachInterrupt(0, interruptRoutine, FALLING); // Initialize APDS-9960 (configure I2C and initial values) if ( apds.init() ) { Serial.println(F("APDS-9960 initialization complete")); display.clearDisplay(); display.setCursor(0,0); display.setTextSize(1); display.setTextColor(WHITE); display.println("ADPS Initialization"); display.println(""); display.setTextSize(2); display.println("Success! "); display.display(); } else { Serial.println(F("Something went wrong during APDS-9960 init!")); display.clearDisplay(); display.setCursor(0,0); display.setTextSize(1); display.setTextColor(WHITE); display.println("ADPS Initialization"); display.println(""); display.setTextSize(2); display.println("Failed! "); display.display(); } // Start running the APDS-9960 gesture sensor engine if ( apds.enableGestureSensor(true) ) { Serial.println(F("Gesture sensor is now running")); display.clearDisplay(); display.setCursor(0,0); display.setTextSize(1); display.setTextColor(WHITE); display.println("ADPS Initialization"); display.println(""); display.setTextSize(2); display.println("Success! "); display.display(); } else { Serial.println(F("Something went wrong during gesture sensor init!")); display.clearDisplay(); display.setCursor(0,0); display.setTextSize(1); display.setTextColor(WHITE); display.println("ADPS Initialization"); display.println(""); display.setTextSize(2); display.println("Failed! "); display.display(); } } void loop() { if( isr_flag == 1 ) { detachInterrupt(0); handleGesture(); isr_flag = 0; attachInterrupt(0, interruptRoutine, FALLING); } } void interruptRoutine() { isr_flag = 1; } void handleGesture() { if ( apds.isGestureAvailable() ) { switch ( apds.readGesture() ) { case DIR_UP: Serial.println("UP"); display.clearDisplay(); display.drawBitmap(31, 0, myup, LOGO_WIDTH, LOGO_HEIGHT, 1); display.display(); break; case DIR_DOWN: Serial.println("DOWN"); display.clearDisplay(); display.drawBitmap(31, 0, mydown, LOGO_WIDTH, LOGO_HEIGHT, 1); display.display(); break; case DIR_LEFT: Serial.println("LEFT"); display.clearDisplay(); display.drawBitmap(31, 0, myleft, LOGO_WIDTH, LOGO_HEIGHT, 1); display.display(); break; case DIR_RIGHT: Serial.println("RIGHT"); display.clearDisplay(); display.drawBitmap(31, 0, myright, LOGO_WIDTH, LOGO_HEIGHT, 1); display.display(); break; case DIR_NEAR: Serial.println("NEAR"); display.clearDisplay(); display.drawBitmap(31, 0, mynear, LOGO_WIDTH, LOGO_HEIGHT, 1); display.display(); break; case DIR_FAR: Serial.println("FAR"); display.clearDisplay(); display.drawBitmap(31, 0, myfar, LOGO_WIDTH, LOGO_HEIGHT, 1); display.display(); break; default: Serial.println("NONE"); } } } |
After uploading the code the OLED will display the following message on OLED Screen.
Now try moving your hands in left, right, up, down, far, near directions. The OLED display will indicate the directions by some arrow sign in OLED Screen. For example for the Left gesture, it shows the left arrow.
Video Tutorial & Guide
APDS9960 Gesture, Proximity, Light & RGB Sensor Tutorial with Arduino
