What is the PCB?
Printed circuit boards, sometimes known as PCBs, are an essential part of most contemporary electronic gadgets. All other electronic components are assembled on top of printed circuit boards, which range from simple single-layered boards used in your garage door opener to the six-layer board in your smartwatch to the 60-layer, incredibly high-density, and high-speed circuit boards used in supercomputers and servers. For radio equipment, resistors, diodes, capacitors, connections, semiconductors, and other parts that might “speak” to one another, the PCB serves as a mounting platform.
PCBs are the most suitable choice for these applications because of their excellent mechanical and electrical characteristics. Rigid PCBs are the most common type of PCB in use today, accounting for about 90% of all PCB production. The circuitry can be bent and stretched into place because some PCBs are flexible. In situations where they can withstand millions of bend cycles without breaking, flexible circuits are also utilized. Ten percent or so of the market is made up of these flexible PCBs. The term “rigid-flex circuits” refers to a small subset of these types of circuits that contain stiff board portions that are ideal for mounting and connecting components and flexible portions that provide the advantages of flexible circuits that were previously described. if you are still unable to know what is the PCB, you can have look at the electronic platform Easybom, which owns many electronic parts and many excellent blog posts.
What is PCB design?
The printed circuit board, sometimes known as PCB, is one of the fundamental ideas in electronics. Because it’s so basic, people frequently overlook defining what a PCB is. This course will define several keywords and describe the components of a printed circuit board (PCB). Your electronic circuits come to physical life through printed circuit board (PCB) design. Companies like FS Circuits combine component placement and routing with layout software throughout the PCB design process to specify electrical connectivity on a printed circuit board.
The composition of PCB material
A. FR4 material
One of the most popular and likely easiest-to-comprehend components on PCBs are resistors. But today we talk about other materials. Typically, fiberglass serves as the substrate or base material. Historically, “FR4″ has been used to designate this fiberglass the most frequently. The rigidity and thickness of the PCB are a result of this solid core. Additionally, flexible PCBs constructed from flexible high-temperature plastic exist (Kapton or the equivalent). There are many different PCB thicknesses available; 1.6mm is the most typical thickness for SparkFun products (0.063”). A 0.8mm thick board is used in some of our products, including LilyPad and Arduino Pro Micro boards.
Other materials, like as epoxies or phenolics, which are substantially less expensive but lack the endurance of FR4, will be used to make cheaper PCBs and perf boards (seen above). When soldering to this type of PCB, you will be able to tell since they have a distinctively foul smell. These substrates are frequently used in budget consumer electronics. Phenolics delaminate, smoke, and burn when the soldering iron is held on the board for an excessive amount of time since they have a low thermal decomposition temperature. There are many product parts about the resistor on the Easybom electronic platform such as TAJB106K016RNJ and so on.
B. Copper material
The board is laminated with a thin layer of copper foil as the following layer using heat and adhesive. Copper is applied to the substrate on both sides of standard double-sided PCBs. The PCB in cheaper electronic devices might only have copper on one side. When we talk about a double-sided or two-layer board, we’re talking about the two copper layers that make up our lasagna. There may be just 1 layer or up to 16 layers or more.
Weight, expressed in ounces per square foot, is used to specify the copper thickness, which can vary. The majority of printed circuit boards (PCBs) include 1 ounce of copper per square foot, however certain PCBs that handle extremely high power may utilize 2 or 3 ounces of copper. Copper is approximately 35 micrometers thick, or 1.4 thousandths of an inch, per square ounce.
C. Soldermask material
The solder mask layer is the one that sits on top of the copper foil. The PCB’s green (or red, at SparkFun) color comes from this layer. To protect the copper traces from unintentional contact with other metal, solder, or conductive bits, it is layered over the copper layer. This layer aids the user in soldering in the appropriate locations and eliminates solder jumpers. The majority of the PCB in the example below has the green solder mask applied, masking the small traces while leaving the silver rings and SMD pads visible for soldering.
D. Silkscreen material
On top of the solder mask layer is put the white silkscreen layer. The PCB is given letters, numbers, and symbols on the silkscreen that make assembly simpler and serve as markers for people to better comprehend the board. Silkscreen labels are frequently used to specify each pin’s or LED’s purpose.
Although any ink color can be utilized, white silkscreen is most frequently employed. Silkscreen hues like black, gray, red, and even yellow are readily accessible; nonetheless, it is unusual to see more than one color on a single board.

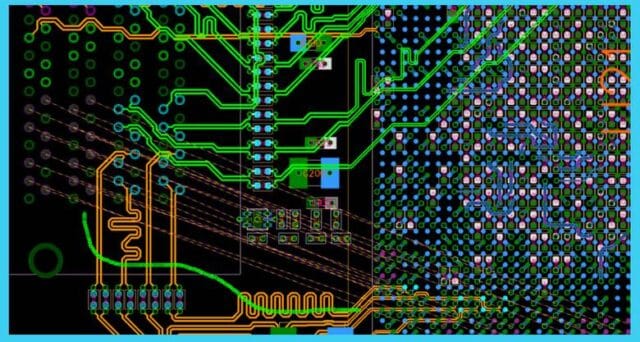

The process of PCB design
- Component alternative
- Soldering
- ECAD-MCAD integration
A. Component placement
Electrical components are precisely positioned on printed circuit boards (PCBs) during the component placement phase in the electronics manufacturing process to establish electrical connections between functional components and the interconnecting circuitry in the PCBs (leads-pads). The solder paste that has been previously applied to the PCB pads must be precisely inserted into the component leads. Soldering comes next following component installation.
B. Soldering
- Wave Soldering
- Reflow Soldering
- Selective Soldering
Wave Soldering
Printed circuit boards (PCBs) are assembled from electronic components using the large-scale soldering method called wave soldering. The name refers to the technique of applying waves of hot solder to the PCB to attach metal components. The PCB is then passed across a pumped wave or cascade of solder after the components have been fitted into or placed on it.
The method uses a tank to hold a quantity of molten solder. When the exposed metallic components of the board are moistened by the solder, a trustworthy mechanical and electrical connection is created (those not covered by a solder mask, a protective layer that stops the solder from bridging across connections). Compared to manual soldering of components, the technique is faster and can produce a product of superior quality.
Reflow Soldering
Reflow soldering is still the most popular technique for attaching surface mount components to a circuit board even though it differs slightly from wave soldering. Wave soldering is more typically used to solder through-hole components. Reflow soldering is an option for this, however wave soldering is more common because it is less expensive.
Reflow soldering is the method of joining parts to contact pads by combining flux and solder powder to make a solder paste. The junction is then linked and the solder is melted by heating the entire assembly under an infrared lamp or reflow oven. If necessary, you might solder each individual link with a hot air pencil.
Selective Soldering
Selective soldering, often known as mini-wave soldering, offers affordable, dependable results for THT and mixed technology soldering applications. Flux amounts and soldering times are controlled using individually programmable and monitored soldering locations. Additionally, it is the only method for soldering THT components onto a two-sided PCB assembly that is repeatable.
C. Integration between ECAD and MCAD
An electrical designer can use ECAD software to build a printed circuit board (PCB) layout from a schematic of their circuit design, construct a virtual representation of their PCB that illustrates a component arrangement with 3D models, and create/display 2D circuit board manufacturing documentation. Software packages vary in their capabilities, and some require the usage of many tools to complete different design tasks.
The designer can produce physical structures including mechanical parts, device enclosures, and mounting components using MCAD software. The program can create a virtual 3D image of the parts and produce 2D manufacturing documentation.
Altium Designercomprehensive ®’s suite of ECAD to MCAD (and vice versa) software collaboration and integration solutions are trusted by circuit designers, PCB layout engineers, and simulation engineers. The Altium 365TM platform makes it simple to collaborate and share your projects after a design is complete and prepared to be released to manufacturing.
