ESP32 with BMI160 Accelerometer & Gyroscope Sensor

Overview

In this tutorial, we will be Interfacing the BMI160 Accelerometer & Gyroscope with ESP32. Earlier we used BMI160 with Arduino and also BMI160 with Raspberry Pi Pico. The BMI160 is a small, low-power, low-noise 16-bit inertial measurement unit (IMU) that integrates a 3-axis accelerometer and 3-axis gyroscope. It provides precise motion sensing for applications like augmented reality, fitness tracking, and indoor navigation.

This tutorial provides detailed information about the BMI160 Accelerometer Gyroscope Module, including its specifications and technical details. First, we will interface the BMI160 with an ESP32 board to read the raw acceleration and gyroscope values. Next, we will write an auto-calibration code to use with the acceleration measurement code to measure acceleration across all three axes. Finally, in the third example, we will use the gyroscope data to measure tilt angles such as pitch and roll. You can make a project called Flight Black-Box Motion Recorder using ESP32 and BMI160.

Bill of Materials

We will need the following components for this tutorial. You can purchase all the components from the given links.

S.N.	Components Name	Quantity	Purchase Link
1	ESP32 Board	1	Amazon \| AliExpress
2	BMI160 Accelerometer Gyroscope	1	Amazon \| AliExpress
3	Connecting Wires	10	Amazon \| AliExpress
4	Breadboard	1	Amazon \| AliExpress

BMI160 3 Axis Accelerometer & Gyroscope

The BMI160 is a high-performance, small, and ultra-low-power 16-bit Inertial Measurement Unit (IMU) that combines a 3-axis accelerometer and a 3-axis gyroscope in a single package.

BMI160 Gyroscope Accelerometer — Fig: Front & Back of BMI160

It is designed to deliver accurate and reliable motion sensing for a wide range of applications, such as augmented reality, indoor navigation, wearable devices, and gaming. The sensor offers advanced features like motion detection, step counting, and gesture recognition, making it versatile for modern technology needs.

The BMI160 supports both I2C and SPI interfaces for communication, making it compatible with a variety of microcontrollers and processors. It has a compact footprint of just 2.5 x 3.0 x 0.8 mm³, which is smaller than many competing IMUs, such as the MPU6050, and is well-suited for space-constrained devices like wearables. Refer to Bosch BMI160 Datasheet for more information.

Technical Specifications of BMI160

Operating Voltage: 1.71 – 3.6 V (Breakout Board operates between 3.2V~6V)
Power Consumption:
- Gyroscope: 900 µA (full operation)
- Gyroscope + Accelerometer: 950 µA (full operation)
- Accelerometer: 180 µA (full operation)
- Suspend Mode: 3 µA
- Motion Detection: 200 µA
Acceleration Range: ±2g/±4g/±8g/±16g
Gyroscopes Range: ±125°/s,±250°/s,±500°/s,±1000°/s,±2000°/s
Acceleration Zero-g Offset: ±40mg
Gyroscopes Zero-g Offset: ±10°/s
Interfaces:
- Primary: I2C or SPI
- Secondary: High-speed SPI for optical image stabilization
Noise Density:
- Accelerometer: 180 µg/√Hz
- Gyroscope: 0.008 °/s/√Hz
Programmable Frequency: 25/32Hz~1600Hz
6D Detection and Location
16-bit Data Output
Shock Resistance: 1000gx 200us
2 Independent Programmable Interrupt Generators
In-built 1024 Byte FIFO

Applications of BMI160

Augmented Reality: Tracks motion for virtual environments.
Indoor Navigation: Supports step counting and positioning.
Mobile Devices: For smartphones and smartwatches.
Wearables: Powers fitness and health devices.
Gaming: Tracks motion in controllers.
Cameras: Stabilizes images.
Drones & Toys: Enables motion sensing.

Pinout of BMI160

BMI160 Gyroscope Accelerometer Pinout — Fig: Pinout of BMI160 Gyroscope Accelerometer Module

Pin	Name	Description
VIN	VIN	Power input pin. Accepts 3.3V to 5V and steps it down for the BMI160 using an onboard regulator.
3.3V	3.3V	Regulated 3.3V output pin.
GND	GND	Ground pin. Connect to the ground of your system.
OCS	OCS	Optional Chip Select for secondary SPI interface (used in optical image stabilization).
INT1	INT1	Interrupt pin 1. Used for motion events or data-ready notifications.
INT2	INT2	Interrupt pin 2. An additional interrupt pin for more advanced use cases.
SCL/SCX	SCL or SCX	I2C clock line when using I2C communication. Acts as SPI clock (SCX) in SPI mode.
SDA/SDX	SDA or SDX	I2C data line when using I2C communication. Acts as SPI data (SDX) in SPI mode.
CS	CS	Chip Select pin for SPI communication. Used to select the BMI160 during SPI transactions.
SA0	SA0	I2C address selection pin. Connect to GND for address `0x68` or to 3.3V for `0x69`.

Interfacing BMI160 Accelerometer & Gyroscope with ESP32

Let us interface the BMI160 Gyroscope Accelerometer module with ESP32 Microcontroller Board. We can either use the module in SPI Mode or in I2C Mode. For this tutorial, we are using the I2C Mode as it is very easy to configure and requires less wiring as well.

Here is an interfacing circuit diagram for the connection between BMI160 and ESP32 Board.

Figure: Interfacing BMI160 Accelerometer & Gyroscope with ESP32

BMI160 Pin	ESP32 Pin	Description
3.3V	3.3V	Power input for the BMI160.
GND	GND	Ground connection.
SCL	22	I2C Clock line.
SDA	21	I2C Data line.
SA0	GND	Sets I2C address to `0x68`.

Here we have connected the SA0 Pin to the GND. Connecting SA0 to GND sets the I2C address to 0x68. If connected to 3.3V, the I2C address would change to 0x69.

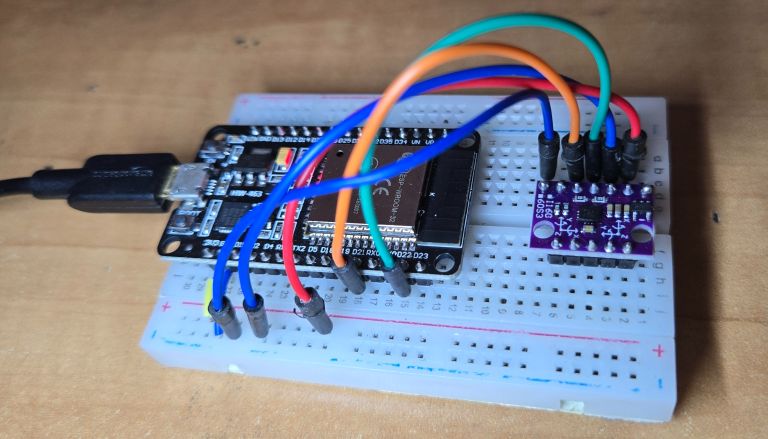

ESP32 BMI160 Circuit Connections — Figure: Breadboard Assembly of BMI160 & ESP32

Use a simple breadboard and connect as shown in the circuit diagram above.

Code: Reading the BMI160 Raw Acceleration and Gyroscope Data

After hardware connection is done, now lets write an C++ Code to read the Raw Acceleration and Gyroscope Data from BMI160 Module & ESP32.

To get the BMI160 readings, a very well-written library is available. Download the BMI160 Library maintained by Hanyazou and add it to Arduino IDE via library manager.

The following code initializes the BMI160 sensor over I2C, reads raw accelerometer and gyroscope data and prints them to the Serial Monitor for real-time monitoring.

#include <BMI160Gen.h> //https://github.com/hanyazou/BMI160-Arduino

#include <Wire.h>

// I2C Configuration for ESP32

const int i2c_addr = 0x68; // Default I2C address for BMI160

const int sda_pin = 21; // I2C SDA Pin for ESP32 (default GPIO 21)

const int scl_pin = 22; // I2C SCL Pin for ESP32 (default GPIO 22)

void setup() {

// Initialize Serial communication at 115200 baud rate

Serial.begin(115200);

while (!Serial); // Wait for Serial Monitor to connect (not required on ESP32)

// Initialize I2C with custom SDA and SCL pins

Wire.begin(sda_pin, scl_pin);

// Initialize the BMI160 device in I2C mode

if (!BMI160.begin(BMI160GenClass::I2C_MODE, i2c_addr)) {

Serial.println("BMI160 initialization failed!");

while (1); // Halt if initialization fails

}

Serial.println("BMI160 initialized successfully in I2C mode!");

}

void loop() {

int gx, gy, gz; // Raw gyroscope values

int ax, ay, az; // Raw accelerometer values

// Read raw gyroscope measurements from the BMI160

BMI160.readGyro(gx, gy, gz);

// Read raw accelerometer measurements from the BMI160

BMI160.readAccelerometer(ax, ay, az);

// Display the gyroscope values (X, Y, Z) on the Serial Monitor

Serial.print("Gyroscope Data (X, Y, Z): ");

Serial.print(gx);

Serial.print(", ");

Serial.print(gy);

Serial.print(", ");

Serial.println(gz);

// Display the accelerometer values (X, Y, Z) on the Serial Monitor

Serial.print("Accelerometer Data (X, Y, Z): ");

Serial.print(ax);

Serial.print(", ");

Serial.print(ay);

Serial.print(", ");

Serial.println(az);

delay(100); // Delay for readability (500ms)

}

Copy the above code and paste it into your Arduino IDE. From the Board Manager, select the ESP32 Board and also the COM port. Then, upload the code to the ESP32.

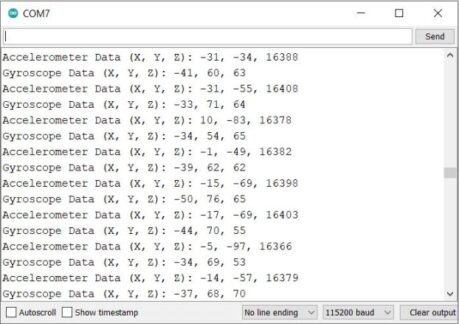

After the code upload is complete, open the Serial Monitor. The Serial Monitor will display the raw acceleration and gyroscope data from the BMI160 Module.

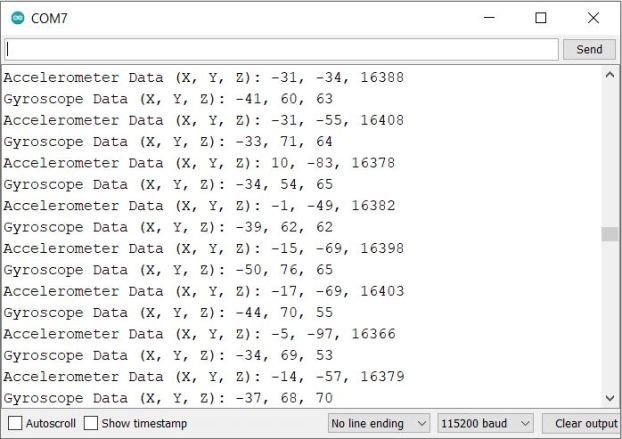

The values shown are when the BMI160 is placed on a flat surface without any movement or vibration.

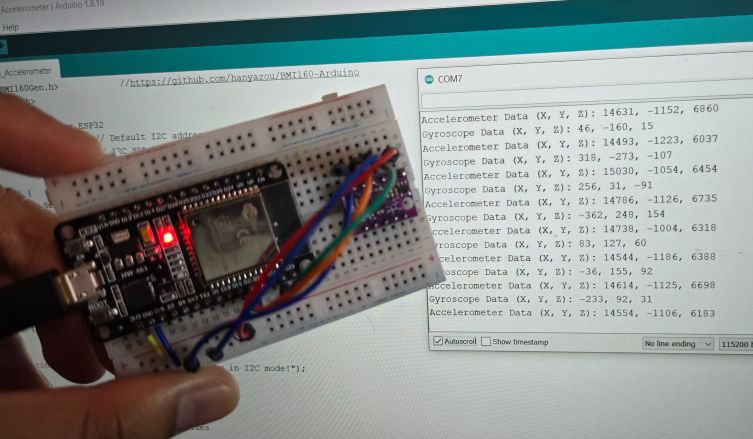

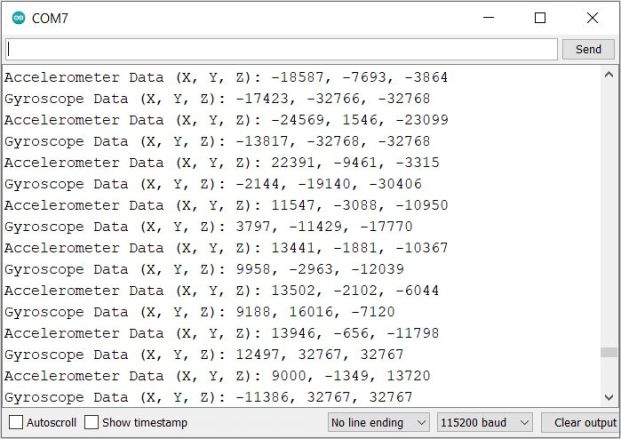

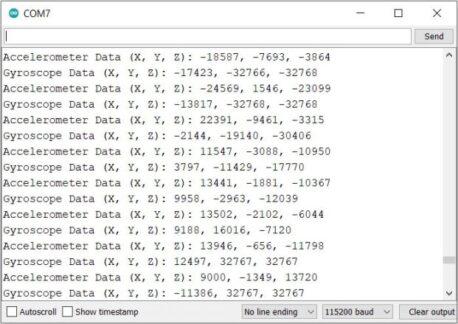

When the sensor is shaken, moved, or tilted, you will observe significant changes in the values, as shown in the image below.

You can rotate or shake the BMI160 Module to observe the variations in the readings.

This demonstrates how you can use the BMI160 Accelerometer Gyroscope Module with ESP32 to read raw values effectively.

Code: Acceleration Measurement with BMI160 & ESP32

Using the ESP32 & BMI160 Accelerometer and Gyroscope Module, we can develop a C++ Code to read the Acceleration values. We have converted the raw readings into acceleration using the mathematical equations.

The following code initializes the BMI160 sensor using I2C communication. It sets the accelerometer to normal mode. The code performs auto-calibration to reduce noise and errors. It calculates offsets for the accelerometer during calibration.

After calibration, it reads raw accelerometer data from the X, Y, and Z axes. The raw values are converted to acceleration in m/s² and displayed on the Serial Monitor.

Raw values are converted to 𝑚/𝑠^2 using the formula:

Sensitivity for ±2g is 16384 LSB/g. Adjust if you use a different range.

The Z-axis also accounts for the effect of gravity during calibration. The final corrected acceleration values are displayed on the Serial Monitor.

#include <Wire.h>

#define BMI160_I2C_ADDRESS 0x68

#define ACCEL_SENSITIVITY 16384.0 // Sensitivity for ±2g in LSB/g (adjust based on your configuration)

void setup() {

Serial.begin(115200); // Initialize Serial communication

Wire.begin(); // Initialize I2C communication

// Initialize BMI160 accelerometer

Wire.beginTransmission(BMI160_I2C_ADDRESS);

Wire.write(0x7E); // Command register

Wire.write(0x11); // Set accelerometer to normal mode

Wire.endTransmission();

delay(100);

// Perform accelerometer auto-calibration

autoCalibrateAccelerometer();

Serial.println("BMI160 Initialized and Calibrated");

}

void loop() {

int16_t ax, ay, az;

// Read accelerometer data

Wire.beginTransmission(BMI160_I2C_ADDRESS);

Wire.write(0x12); // Start register for accelerometer data

Wire.endTransmission(false);

Wire.requestFrom(BMI160_I2C_ADDRESS, 6);

if (Wire.available() == 6) {

ax = (Wire.read() | (Wire.read() << 8));

ay = (Wire.read() | (Wire.read() << 8));

az = (Wire.read() | (Wire.read() << 8));

}

// Convert raw accelerometer values to m/s^2

float ax_mps2 = ax * (9.81 / ACCEL_SENSITIVITY);

float ay_mps2 = ay * (9.81 / ACCEL_SENSITIVITY);

float az_mps2 = az * (9.81 / ACCEL_SENSITIVITY);

// Print accelerometer values in m/s^2

Serial.print("Accel (m/s^2): ");

Serial.print(ax_mps2, 2);

Serial.print(", ");

Serial.print(ay_mps2, 2);

Serial.print(", ");

Serial.println(az_mps2, 2);

delay(100);

}

void autoCalibrateAccelerometer() {

// Configure accelerometer for auto-calibration

Wire.beginTransmission(BMI160_I2C_ADDRESS);

Wire.write(0x7E); // Command register

Wire.write(0x37); // Start accelerometer offset calibration

Wire.endTransmission();

delay(100);

// Wait for calibration to complete

delay(1000);

Serial.println("Accelerometer Auto-Calibration Complete");

}

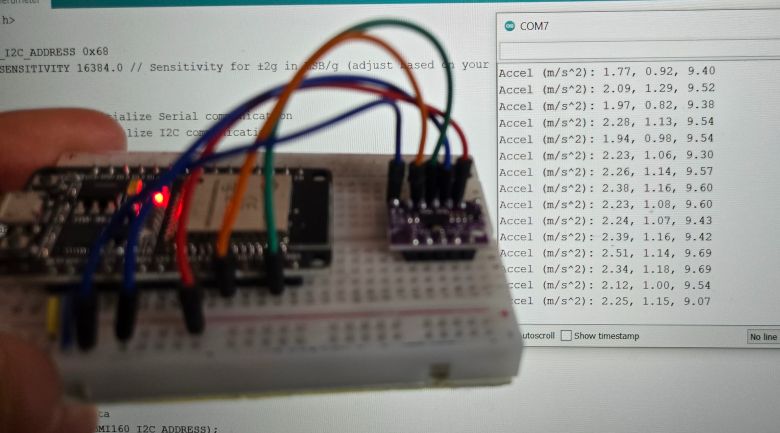

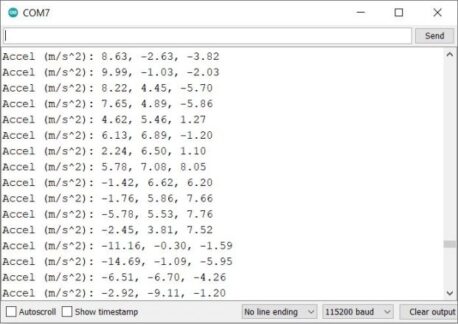

After uploading the code, the ESP32 is ready for testing. Open your Serial Monitor to see the results. The device will first calculate the offsets and perform auto-calibration. Once calibration is complete, it will start printing the acceleration values for the X, Y, and Z axes.

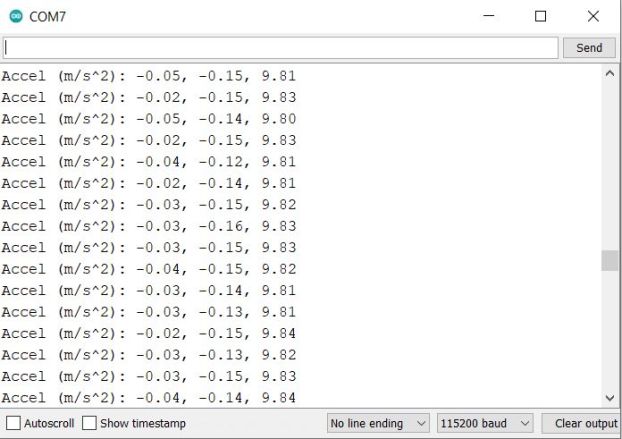

When the sensor is at rest, with no shaking or trembling movements, the acceleration in the X and Y axes will be close to zero, while the Z axis acceleration will be approximately 9.8 m/s² due to gravity.

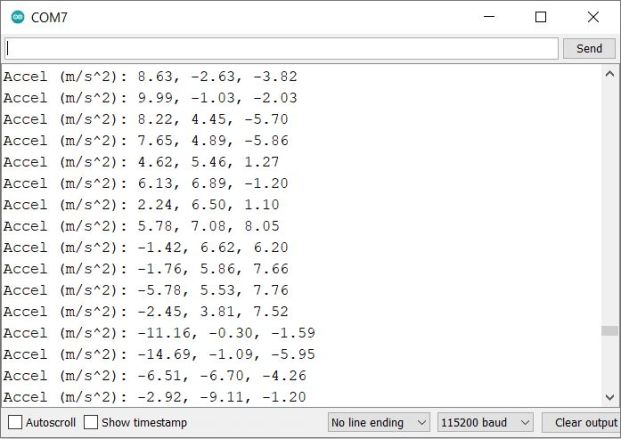

When you rotate, shake, tremble, or move the BMI160 Sensor, the acceleration values will change drastically.

The readings are quick and highly sensitive, providing real-time feedback.

This is how you can use the BMI160 Accelerometer Gyroscope Module with ESP32 to measure acceleration.

Code: Tilt Angle Measurement with BMI160 & ESP32

As we measured acceleration above, we can also use the BMI160 Module with ESP32 to measure the tilt angles also called as Pitch, Roll, Yaw. But in the code, we are only measuring the Pitch and Roll. The Yaw measurement requires magnetometer.

The following code initializes the BMI160 sensor using I2C communication. It sets the accelerometer to normal mode. The code performs auto-calibration to calculate offsets and reduce noise. This helps improve the accuracy of tilt angle measurements.

After calibration, it reads accelerometer data from the X, Y, and Z axes. It calculates the tilt angles (pitch, roll, and yaw) based on the accelerometer readings.

The angle of rotation around the X-axis is called as Pitch which is calculated using the following formula:

The angle of rotation around the Y-axis is called as Roll which is calculated using the following formula:

Finally, the pitch and roll values are printed to the Serial Monitor in degrees.

#include <Wire.h>

#define BMI160_I2C_ADDRESS 0x68

#define ACCEL_SENSITIVITY 16384.0 // Sensitivity for ±2g in LSB/g (adjust based on your configuration)

void setup() {

Serial.begin(115200); // Initialize Serial communication

Wire.begin(); // Initialize I2C communication

// Initialize BMI160 accelerometer

Wire.beginTransmission(BMI160_I2C_ADDRESS);

Wire.write(0x7E); // Command register

Wire.write(0x11); // Set accelerometer to normal mode

Wire.endTransmission();

delay(100);

// Perform accelerometer auto-calibration

autoCalibrateAccelerometer();

Serial.println("BMI160 Initialized and Calibrated");

}

void loop() {

int16_t ax, ay, az;

// Read accelerometer data

Wire.beginTransmission(BMI160_I2C_ADDRESS);

Wire.write(0x12); // Start register for accelerometer data

Wire.endTransmission(false);

Wire.requestFrom(BMI160_I2C_ADDRESS, 6);

if (Wire.available() == 6) {

ax = (Wire.read() | (Wire.read() << 8));

ay = (Wire.read() | (Wire.read() << 8));

az = (Wire.read() | (Wire.read() << 8));

}

// Convert raw accelerometer values to g

float ax_g = ax / ACCEL_SENSITIVITY;

float ay_g = ay / ACCEL_SENSITIVITY;

float az_g = az / ACCEL_SENSITIVITY;

// Calculate tilt angles (pitch and roll) in degrees

float pitch = atan2(ay_g, sqrt(ax_g * ax_g + az_g * az_g)) * 180.0 / PI;

float roll = atan2(-ax_g, az_g) * 180.0 / PI;

// Print tilt angles

Serial.print("Pitch: ");

Serial.print(pitch, 2);

Serial.print("°, Roll: ");

Serial.print(roll, 2);

Serial.println("°");

delay(100);

}

void autoCalibrateAccelerometer() {

// Configure accelerometer for auto-calibration

Wire.beginTransmission(BMI160_I2C_ADDRESS);

Wire.write(0x7E); // Command register

Wire.write(0x37); // Start accelerometer offset calibration

Wire.endTransmission();

delay(100);

// Wait for calibration to complete

delay(1000);

Serial.println("Accelerometer Auto-Calibration Complete");

}

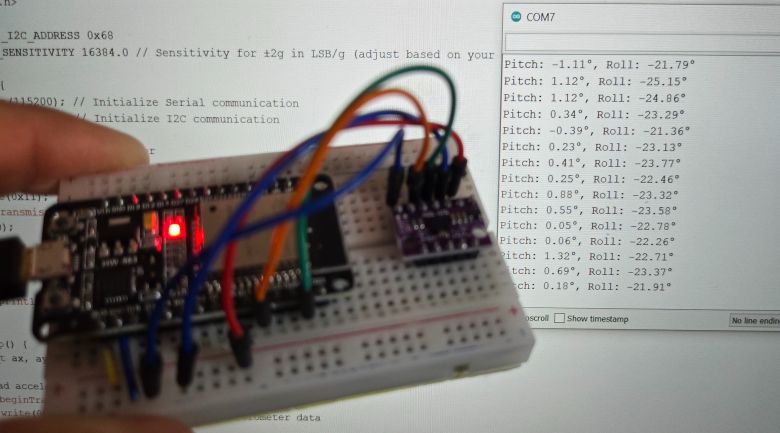

Upload the code to the ESP32 board and open the Serial Monitor.

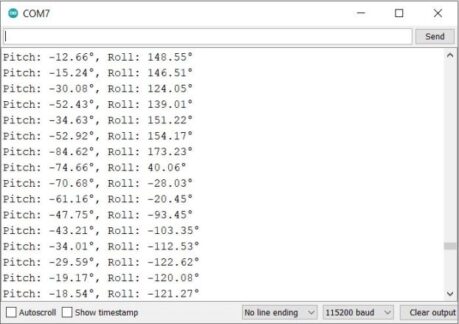

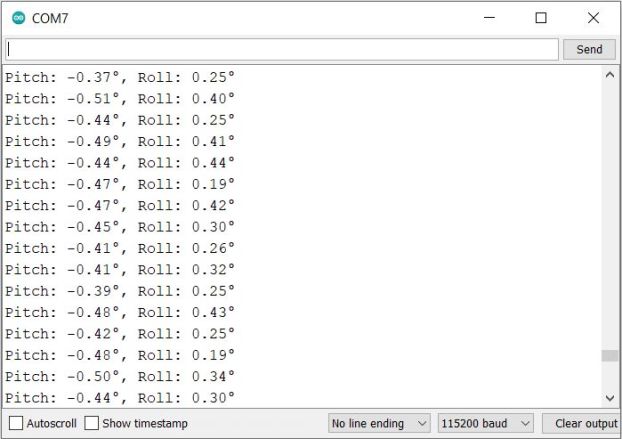

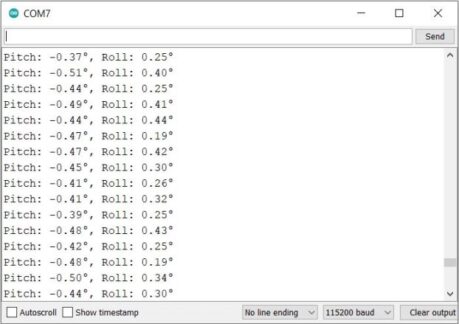

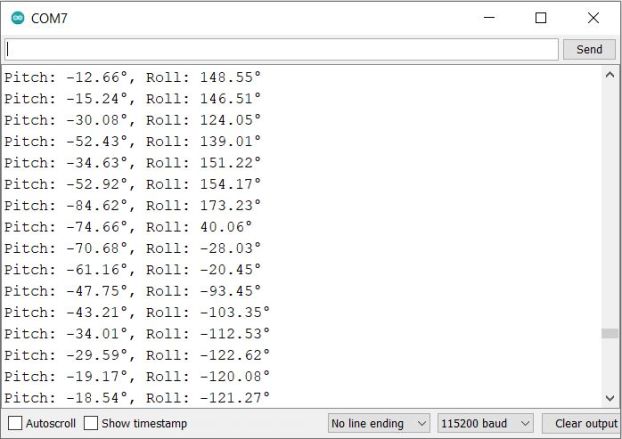

Once the Serial Monitor is opened, the code initializes the BMI160, performs auto-calibration to calculate accelerometer offsets, and continuously prints the calculated pitch and roll angles in degrees.
