Make an Automatic Grass Cutting Robot using Arduino

Mamtaz AlamBy Mamtaz AlamUpdated:October 7, 20232 Comments6 Mins Read
Share Facebook Twitter LinkedIn Telegram Reddit WhatsApp
Grass Cutting Robot Arduino or Lawn mower
Share
Facebook Twitter LinkedIn Pinterest Email Reddit Telegram WhatsApp

Overview

In this Robotic project, we will build an Automatic Grass Cutter Robot or a Lawn mower robot using Arduino. The Robot can cut the excess grass in the garden automatically. If there is an obstacle in the garden then it will automatically change its direction. It helps to reduce human efforts.

The article provides a basic overview of the project with the components required for making an Arduino Grass Cutter Robot. The circuit schematic along with Arduino Source code is provided so that the assembly process and programming process can be made easier.

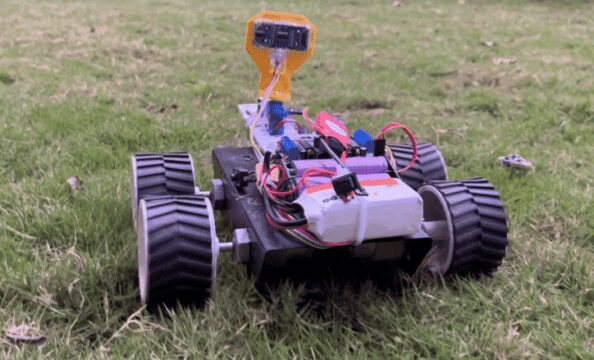

Lawn mower robot using Arduino

WARNING: This project is not a toy, it contains sharp blades which can cause serious injuries if it is not used carefully. Do not leave it unattended. The blades should be correctly fixed. Check before operating the Robot.



Bill of Materials

We need the following components to build an Arduino Automatic Grass Cutting Robot. You can purchase all the components from the given links.

S.N.ComponentsQuantityPurchase Links
1Arduino UNO Board1Amazon | AliExpress
2L293D Motor Driver Shield1Amazon | AliExpress
3Ultrasonic Sensor HC-SR041Amazon | AliExpress
4Ultrasonic Sensor Case/Holder1Amazon | AliExpress
6DC Gear Motors4Amazon | AliExpress
7BLDC Motor 100KV1Amazon | AliExpress
8Servo Motor SG-901Amazon | AliExpress
9ESC Module1Amazon | AliExpress
10Servo Motor Tester1Amazon | AliExpress
113-Pin Slide Switch1-
12X Type Cross Holder1-
13Robot Chasis1Amazon | AliExpress
1411.1V Lipo Battery1Amazon | AliExpress

What is a Grass Cutting Robot (Lawn Mower)?

A grass-cutting robot, also known as a lawn mower robot, is a robotic device designed to automatically cut and maintain a lawn. These robots use sensors and algorithms to navigate and mow the lawn and can be programmed to cut the grass on a specific schedule or in response to the growth rate of the grass. Some grass-cutting robots are also equipped with features such as obstacle detection, anti-theft protection, and remote control via a smartphone app. They are becoming more popular in recent years as a way to save time and effort on lawn maintenance.

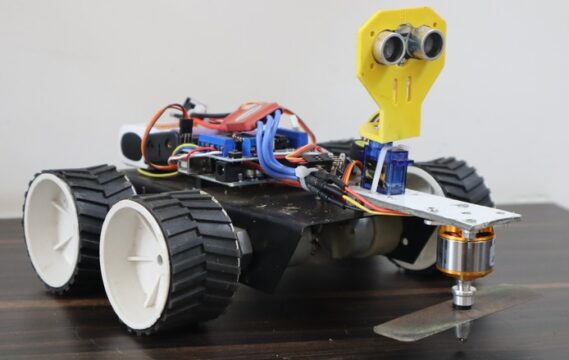

Grass Cutting Robot

Grass-cutting robots use a variety of technologies to navigate and cut the lawn. Some use a random pattern to cover the entire lawn, while others use more advanced algorithms such as spiral patterns to ensure that the entire lawn is evenly cut. The robots typically have sensors that help them detect obstacles such as trees, rocks, and gardens, and they will adjust their path accordingly to avoid damaging these areas.

The robots are usually equipped with a cutting mechanism, which can be a reel of cutting blades or a rotary blade. The cutting height can be adjusted to suit the length of the grass and the robot can be programmed to cut the lawn at a specific height. Some robots also have a mulching function, which finely cuts the grass clippings and returns them to the lawn as a natural fertilizer.

Overall, grass-cutting robots are a convenient and efficient way to maintain a lawn. They can save time, effort, and energy compared to manual lawn mowing and can help ensure that the lawn is kept in good condition all year round.



Block Diagram: Automatic Grass Cutting Robot using Arduino

The block diagram of Arduino Automatic Grass Cutting Robot shows how the different components are connected and how they interact with one another to perform the task of cutting grass automatically.

Block Diagram Arduino Grass Cutting Robot

The Arduino board acts as the brain of the robot, controlling all the other components and executing the programmed instructions. The ultrasonic sensor is used to detect the location of grass and obstacles in the robot’s path.

The L293D motor driver Shield is used to control the movement of the robot and is connected to the microcontroller. The 4 DC Gear motors are used to power the movement of the robot. And Servo Motor SG90 is attached at the head so pan motion to look for an obstacle on the left, right, and front.

For the cutting mechanism, a 100KV BLDC motor is used which rotates at a very high speed. This motor is connected to a cutting blade, which is used to cut the grass. The on/off mechanism and speed of the motor is controlled using the Servo Motor tester. You can use BLDC Motor Controller for this application.

The robot requires a power source to operate, which can be a rechargeable battery or a power cord. In our case, we are using an 11.1V Lipo Battery.


Circuit Diagram & Connections

A circuit diagram of an automatic grass cutting robot using Arduino would show the connections between the different components of the robot. Here’s an example of what the circuit diagram used for this project.

Arduino Lawn Mower Robot Circuit

The L293D Motor Driver Shield is connected to the top of the Arduino UNO Board. The 4 DC motors are connected to the Motor Driver shield which is controlled via digital pins D1, D2, D3, and D4 of the Arduino UNO Board. The Servo Motor is controlled via PWM Pin D10 of Arduino. The Ultrasonic Sensor HC-SR04 has TRIGN & ECHO Pins which are connected to A0 & A1 of the Arduino Board.

To control the BLDC Motor an ESC Module Servo Tester is used. The entire circuit is powered by an 11.1V Lithium-Ion Battery. The Arduino has a 5V regulator which converts the 11.1V to 5V Supply. The BLDC Motor directly operates at 11.1V.




Source Code/Program

The program for Grass Cutting Lawn Mower Robot is written on Arduino IDE. We need to add few libraries to the Arduino IDE.

  1. AFMotor Library: https://github.com/adafruit/Adafruit-Motor-Shield-library

  2. NewPing Library: https://github.com/microflo/NewPing

Copy the following code and upload it to the Arduino UNO Board.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
#include <AFMotor.h>
#include <NewPing.h>
#include <Servo.h>

#define TRIG_PIN A0
#define ECHO_PIN A1
#define MAX_DISTANCE 200
#define MAX_SPEED 190
#define MAX_SPEED_OFFSET 20

NewPing sonar(TRIG_PIN, ECHO_PIN, MAX_DISTANCE);

AF_DCMotor motor1(1, MOTOR12_1KHZ);
AF_DCMotor motor2(2, MOTOR12_1KHZ);
AF_DCMotor motor3(3, MOTOR34_1KHZ);
AF_DCMotor motor4(4, MOTOR34_1KHZ);
Servo myservo;

boolean goesForward=false;
int distance = 100;
int speedSet = 0;

void setup() {

  myservo.attach(10);
  myservo.write(115);
  delay(2000);
  distance = readPing();
  delay(100);
  distance = readPing();
  delay(100);
  distance = readPing();
  delay(100);
  distance = readPing();
  delay(100);
}

void loop() {
int distanceR = 0;
int distanceL =  0;
delay(40);
if(distance<=15)
{
  moveStop();
  delay(100);
  moveBackward();
  delay(300);
  moveStop();
  delay(200);
  distanceR = lookRight();
  delay(200);
  distanceL = lookLeft();
  delay(200);

  if(distanceR>=distanceL)
  {
    turnRight();
    moveStop();
  }else
  {
    turnLeft();
    moveStop();
  }
}else
{
  moveForward();
}
distance = readPing();
}

int lookRight()
{
    myservo.write(50);
    delay(500);
    int distance = readPing();
    delay(100);
    myservo.write(115);
    return distance;
}

int lookLeft()
{
    myservo.write(170);
    delay(500);
    int distance = readPing();
    delay(100);
    myservo.write(115);
    return distance;
    delay(100);
}

int readPing() {
  delay(70);
  int cm = sonar.ping_cm();
  if(cm==0)
  {
    cm = 250;
  }
  return cm;
}

void moveStop() {
  motor1.run(RELEASE);
  motor2.run(RELEASE);
  motor3.run(RELEASE);
  motor4.run(RELEASE);
  }

void moveForward() {

if(!goesForward)
  {
    goesForward=true;
    motor1.run(FORWARD);
    motor2.run(FORWARD);
    motor3.run(FORWARD);
    motor4.run(FORWARD);
   for (speedSet = 0; speedSet < MAX_SPEED; speedSet +=2)
   {
    motor1.setSpeed(speedSet);
    motor2.setSpeed(speedSet);
    motor3.setSpeed(speedSet);
    motor4.setSpeed(speedSet);
    delay(5);
   }
  }
}

void moveBackward() {
    goesForward=false;
    motor1.run(BACKWARD);
    motor2.run(BACKWARD);
    motor3.run(BACKWARD);
    motor4.run(BACKWARD);
  for (speedSet = 0; speedSet < MAX_SPEED; speedSet +=2)
  {
    motor1.setSpeed(speedSet);
    motor2.setSpeed(speedSet);
    motor3.setSpeed(speedSet);
    motor4.setSpeed(speedSet);
    delay(5);
  }
}

void turnRight() {
  motor1.run(FORWARD);
  motor2.run(FORWARD);
  motor3.run(BACKWARD);
  motor4.run(BACKWARD);
  delay(500);
  motor1.run(FORWARD);
  motor2.run(FORWARD);
  motor3.run(FORWARD);
  motor4.run(FORWARD);
}
void turnLeft() {
  motor1.run(BACKWARD);
  motor2.run(BACKWARD);
  motor3.run(FORWARD);
  motor4.run(FORWARD);
  delay(500);
  motor1.run(FORWARD);
  motor2.run(FORWARD);
  motor3.run(FORWARD);
  motor4.run(FORWARD);
}



Testing Arduino Lawn Mower Robot

After uploading the code, you can take the Robot to the field and maybe in high grass areas. The tall grass region area can be a good choice for testing.

Turn on the Switch on the Robot & make sure that the power source is providing the correct voltage to the Arduino board and that all the components are properly connected. Test the motors of the robot by manually controlling the movement of the robot and ensuring that it moves smoothly and accurately.

Test the sensors of the robot by placing obstacles in its path and ensuring that it avoids them. Also, check the sensor range and sensitivity to ensure that the robot can detect grass.

Now using the Servo tester activate the BLDC Motor. Then test the cutting mechanism by manually activating it and ensuring that it cuts the grass effectively.

Finally, test the robot’s navigation and autonomy as it moves around a test area and cut the grass. Check that the robot can navigate around obstacles and that it cuts the grass to the desired height.


Video Tutorial & Guide

Make an Automatic Grass Cutting (Lawn Mower) Robot using Arduino
Watch this video on YouTube.

Share. Facebook Twitter Pinterest LinkedIn Tumblr Email Reddit Telegram WhatsApp
Previous ArticleMoon Phase Calculator With OLED Display Using Arduino
Next Article Bluetooth Low Energy Basics: Classic Bluetooth Vs. Bluetooth LE

Related Posts

DC Energy Meter using Arduino

Build a DC Energy Meter using Arduino – 32V/5A

Updated:August 26, 20252K
Interfacing ADXL375 Accelerometer with Arduino

Interfacing ADXL375 Accelerometer with Arduino (±200g)

Updated:June 28, 2025
PZEM-004T Arduino Energy Meter

DIY AC Energy Meter using PZEM-004T & Arduino

Updated:March 6, 20258K
Interfacing BMI160 Accelerometer & Gyroscope with Arduino

Interfacing BMI160 Accelerometer & Gyroscope with Arduino

Updated:February 2, 20259K
Password Based Door Lock Security System Using Arduino & Keypad

Password Based Door Lock Security System Using Arduino & Keypad

Updated:February 2, 20252436K
Earthquake Detector Alarm with with Accelerometer & Arduino

Earthquake Detector Alarm with Accelerometer & Arduino

Updated:February 2, 2025661K
View 2 Comments

2 Comments

  1. koushik on February 6, 2023 6:07 AM

    Can you please give me detailed description for connections and circuit diagram i mean arduino connections

    Reply
  2. Matt on September 11, 2023 6:17 AM

    This project is a fantastic example of how technology can make our lives easier. Creating an Automatic Grass Cutting Robot using Arduino not only saves time but also ensures a well-maintained lawn. One tip to enhance this project is to consider adding a rain sensor. This way, the robot won’t operate when it’s raining, preserving both energy and the quality of your lawn.

    How often do you think a grass-cutting robot should be scheduled to mow the lawn for optimal maintenance?

    Thanks,
    Matt

    Reply

CommentsCancel reply

Latest Posts
ESP32 Fingerprint Attendance System with Live Web Dashboard

ESP32 Fingerprint Attendance System with Live Web Dashboard

June 21, 2026
IoT Based PM & Air Quality Monitoring System using ESP32

IoT Based PM & Air Quality Monitoring System using ESP32

June 14, 2026
DIY ESP32 MLX90640 IR Thermal Camera with Live Web Display

DIY ESP32 MLX90640 IR Thermal Camera with Live Web Display

May 10, 2026
IoT Activity Tracker with ESP32 & Accelerometer Gyroscope

IoT Activity Tracker with ESP32 & Accelerometer/Gyroscope

May 2, 2026
A Guide to Sourcing Obsolete ICs for Vintage Projects

Beyond AliExpress: A Guide to Sourcing Obsolete ICs for Vintage Projects

April 21, 2026

ESP32 IoT Vehicle Motion Analyzer with MPU6050 & LIS3MDL

April 27, 2026
Building a Smart Sensor Node with a BLE Microcontroller

Building a Smart Sensor Node with a BLE Microcontroller

February 26, 2026
High-Accuracy Pitch, Roll, Yaw with ESP32 & BNO08x IMU

High-Accuracy Pitch, Roll, Yaw with ESP32 & BNO08x IMU

April 27, 2026
Top Posts & Pages
  • ESP32 Fingerprint Attendance System with Live Web Dashboard
    ESP32 Fingerprint Attendance System with Live Web Dashboard
  • IoT AC Energy Meter with PZEM-004T & ESP32 WebServer
    IoT AC Energy Meter with PZEM-004T & ESP32 WebServer
  • 12V DC to 220V AC Inverter Circuit & PCB
    12V DC to 220V AC Inverter Circuit & PCB
  • ESP32 CAN Bus Tutorial | Interfacing MCP2515 CAN Module with ESP32
    ESP32 CAN Bus Tutorial | Interfacing MCP2515 CAN Module with ESP32
  • How to use Modbus RTU with ESP32 to read Sensor Data
    How to use Modbus RTU with ESP32 to read Sensor Data
  • IoT Based ECG Monitoring with AD8232 ECG Sensor & ESP32
    IoT Based ECG Monitoring with AD8232 ECG Sensor & ESP32
  • MAX30102 & Arduino: Heart Rate + Blood Oxygen Monitoring
    MAX30102 & Arduino: Heart Rate + Blood Oxygen Monitoring
  • Buck Converter: Basics, Working, Design & Application
    Buck Converter: Basics, Working, Design & Application
Categories
  • Arduino Projects (197)
  • Articles (60)
    • Learn Electronics (19)
    • Product Review (15)
    • Tech Articles (28)
  • Electronics Circuits (46)
    • 555 Timer Projects (21)
    • Op-Amp Circuits (7)
    • Power Electronics (13)
  • IoT Projects (205)
    • ESP32 MicroPython (7)
    • ESP32 Projects (82)
    • ESP32-CAM Projects (15)
    • ESP8266 Projects (76)
    • LoRa/LoRaWAN Projects (22)
  • Microcontrollers (38)
    • AMB82-Mini IoT AI Camera (4)
    • BLE Projects (18)
    • STM32 Projects (19)
  • Raspberry Pi (93)
    • Raspberry Pi Pico Projects (57)
    • Raspberry Pi Pico W Projects (12)
    • Raspberry Pi Projects (24)
Follow Us
  • Facebook
  • Twitter
  • Pinterest
  • Instagram
  • YouTube
About Us

“‘How to Electronics’ is a vibrant community for electronics enthusiasts and professionals. We deliver latest insights in areas such as Embedded Systems, Power Electronics, AI, IoT, and Robotics. Our goal is to stimulate innovation and provide practical solutions for students, organizations, and industries. Join us to transform learning into a joyful journey of discovery and innovation.

Copyright © How To Electronics. All rights reserved.
  • About Us
  • Disclaimer
  • Privacy Policy
  • Contact Us
  • Advertise With Us

Type above and press Enter to search. Press Esc to cancel.

Ad Blocker Enabled!
Ad Blocker Enabled!
Looks like you're using an ad blocker. Please allow ads on our site. We rely on advertising to help fund our site.
