Smart Notice Board with ESP8266 & Dot Matrix LED Display

Overview

In this tutorial, we will learn how to make a Web Controlled Smart Notice Board with ESP8266 & Dot Matrix LED Display.

The traditional methods of writing the notice on paper, and having a person deliver the information to the respective groups, or having him paste the notice on the notice board, are prone to errors. The person delivering could deliver it to the wrong group, or tamper with the information being sent, etc.

With the electronics industry moving at a fast pace, we are able to solve many such problems with digital replacements. Our project, Smart Notice Board, aims at eliminating the use of paper in offices, schools & colleges, and other institutions. It also minimizes the risk of errors, by replacing paper with Dot Matrix LED displays.

In our project, the ESP8266 WiFi Module can be interfaced with an 8-in-1 MAX7219 Dot Matrix LED Display. The ESP8266 connects to a WiFi Network and generates a Web page. We can access the web page using the local IP Address of NodeMCU ESP8266. Using the Web Dashboard, we can send any message and display it on Dot Matrix LED Display.

Before moving ahead you can check some of our previous post to get started with Dot Matrix LED Display:

Bill of Materials

We need the following components to make the Smart Notice Board Project.

S.N.	Components Name	Quantity	Purchase Links
1	NodeMCU ESP8266 Board	1	Amazon \| AliExpress
2	8-in-1 MAX7219 Dot Matrix LED Display	1	Amazon \| AliExpress
3	Jumper Wires	5	Amazon \| AliExpress
4	Breadboard	1	Amazon \| AliExpress
5	Micro-USB Data Cable	1	Amazon \| AliExpress

Dot Matrix LED Display

LED matrices are available in different styles like single color, dual color, multi-color, or RGB LED matrix. They are also available in different dimensions like 5 x 7, 8 x 8, 16 x 16, 8 x 32, 32 x 32 etc.

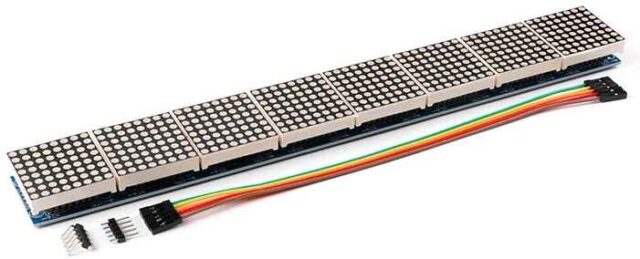

This 8×64 LED Matrix Display is a cluster of 8 single modules, internally connected. These modules can also be separated, because every module carries the same Maxim MAX7219 chip, and comes with the same power and data connection.

Pin Configuration

The 8×8 LED matrix have 8 positive terminal & 8 negative terminals. The 8 negative terminals are 8 columns & 8 positive terminal are 8 rows.

The 8-in-1 8X8 LED Matrix are connected to each other via the MAX7219 Pins.

MAX7219 LED Driver IC

The LED matrix can be driven in two ways. They are parallel (where each row or column is sent with parallel data) and serial (where the data is sent serially and an IC is used to convert this serial data into parallel data).

MAX7219 is a common cathode display driver with serial input and parallel output. It is used to interface microprocessors and microcontrollers with 64 individual LEDs. The 8 x 8 LED matrix is connected to the MAX 7219. The data input is received from the Arduino board to the MAX7219.

Smart Notice Board with ESP8266 & Dot Matrix LED Display

Let us take a look at the hardware of the project. The hardware part is a combination of an 8-in-1 Dot Matrix LED Display and ESP8266 WiFi Module.

The left side of the display is basically for the input port which is connected to any GPIO pins of a Microcontroller. Similarly, the right side of the display is the output port which is used for expanding or adding additional LED Display.

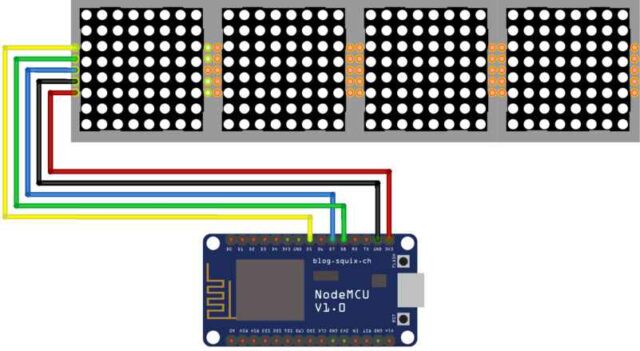

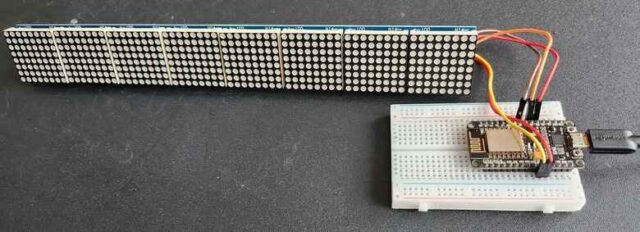

From the left side, connect the VCC, GND of Dot Matrix Display to 3.3V & GND of NodeMCU Board. The default SPI GPIO pins of ESP8266 are being used to connect with each of the remaining SPI terminals of the MAX7219 module. Therefore, connect the DIN, CS, and CLK pin to the NodeMCU D7, D8 & D5 Pin.

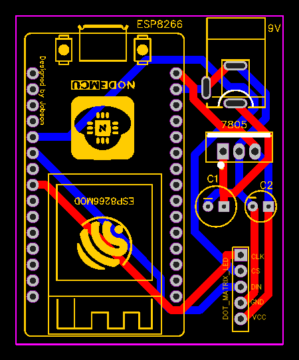

Project PCB Gerber File & PCB Ordering Online

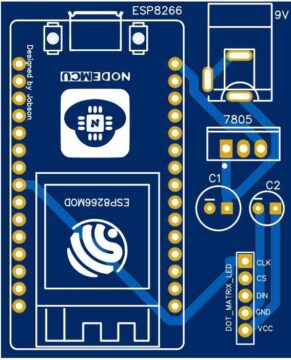

If you don’t want to assemble the circuit on a zero PCB and you want PCB for the project, then here is the PCB for you. I used EasyEDA to draw the schematic first. Then I converted the schematic to PCB. The PCB Board for this project looks something like below.

The Gerber File for the PCB is given below. You can simply download the Gerber File and order the PCB from ALLPCB at 1$ only.

Download Gerber File: ESP8266 Smart Notice Board

You can use this Gerber file to order high quality PCB for this project. To do that visit the ALLPCB official website by clicking here: https://www.allpcb.com/.

You can now upload the Gerber File by choosing the Quote Now option. From these options, you can choose the Material Type, Dimensions, Quantity, Thickness, Solder Mask Color and other required parameters.

After filling all details, select your country and shipping method. Finally you can place the order.

You can assemble the components on the PCB Board.

Source Code/program

The program for the Smart Notice Board is taken from the library example. This code includes the WiFi Library for enabling the Nodemcu to create a webserver over a Wifi network. It also include the MD_MAX72xx & Parola Library for controlling the Led matrix & generating various LED Effect.

MD_MAX72xx Library: Download
MD_Parola Library: Download

You can also change the design and appearance of the web page by changing the HTML and CSS part of the code. Only do this if you have prior knowledge of web development and design otherwise the web page may not be displayed.

From the following lines, change the WiFi SSID & Password.

// WiFi login parameters - network name and password

const char* ssid = "***********";

const char* password = "***********";

Connect a Micro-USB Cable to your NodeMCU ESP8266 Board and upload the following code to it.

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

256

257

258

259

260

261

262

263

264

265

266

267

268

269

270

271

272

273

274

275

276

277

278

279

280

281

282

283

284

285

286

287

288

289

290

291

292

293

294

295

296

297

298

299

300

301

302

303

304

305

306

307

308

309

310

311

312

313

314

315

316

#include <ESP8266WiFi.h>

#include <MD_Parola.h>

#include <MD_MAX72xx.h>

#include <SPI.h>

// Turn on debug statements to the serial output

#define DEBUG 0

#if DEBUG

#define PRINT(s, x) { Serial.print(F(s)); Serial.print(x); }

#define PRINTS(x) Serial.print(F(x))

#define PRINTX(x) Serial.println(x, HEX)

#else

#define PRINT(s, x)

#define PRINTS(x)

#define PRINTX(x)

#endif

#define HARDWARE_TYPE MD_MAX72XX::FC16_HW

#define MAX_DEVICES 8

#define CS_PIN 15 // or SS

// HARDWARE SPI

MD_Parola P = MD_Parola(HARDWARE_TYPE, CS_PIN, MAX_DEVICES);

// WiFi login parameters - network name and password

const char* ssid = "***********";

const char* password = "***********";

// WiFi Server object and parameters

WiFiServer server(80);

// Scrolling parameters

uint8_t frameDelay = 25; // default frame delay value

textEffect_t scrollEffect = PA_SCROLL_LEFT;

// Global message buffers shared by Wifi and Scrolling functions

#define BUF_SIZE 512

char curMessage[BUF_SIZE];

char newMessage[BUF_SIZE];

bool newMessageAvailable = false;

const char WebResponse[] = "HTTP/1.1 200 OK\nContent-Type: text/html\n\n";

const char WebPage[] =

"<!DOCTYPE html>" \

"<html>" \

"<head>" \

"<title>MajicDesigns Test Page</title>" \

"<script>" \

"strLine = \"\";" \

"function SendData()" \

"{" \

" nocache = \"/&nocache=\" + Math.random() * 1000000;" \

" var request = new XMLHttpRequest();" \

" strLine = \"&MSG=\" + document.getElementById(\"data_form\").Message.value;" \

" strLine = strLine + \"/&SD=\" + document.getElementById(\"data_form\").ScrollType.value;" \

" strLine = strLine + \"/&I=\" + document.getElementById(\"data_form\").Invert.value;" \

" strLine = strLine + \"/&SP=\" + document.getElementById(\"data_form\").Speed.value;" \

" request.open(\"GET\", strLine + nocache, false);" \

" request.send(null);" \

"}" \

"</script>" \

"</head>" \

"<body>" \

"<p><b>Smart Notice Board</b></p>" \

"<form id=\"data_form\" name=\"frmText\">" \

"<label>Message:<br><input type=\"text\" name=\"Message\" maxlength=\"255\"></label>" \

"<br><br>" \

"<input type = \"radio\" name = \"Invert\" value = \"0\" checked> Normal" \

"<input type = \"radio\" name = \"Invert\" value = \"1\"> Inverse" \

"<br>" \

"<input type = \"radio\" name = \"ScrollType\" value = \"L\" checked> Left Scroll" \

"<input type = \"radio\" name = \"ScrollType\" value = \"R\"> Right Scroll" \

"<br><br>" \

"<label>Speed:<br>Fast<input type=\"range\" name=\"Speed\"min=\"10\" max=\"200\">Slow"\

"<br>" \

"</form>" \

"<br>" \

"<input type=\"submit\" value=\"Send Data\" onclick=\"SendData()\">" \

"</body>" \

"</html>";

const char *err2Str(wl_status_t code)

{

switch (code)

{

case WL_IDLE_STATUS: return("IDLE"); break; // WiFi is in process of changing between statuses

case WL_NO_SSID_AVAIL: return("NO_SSID_AVAIL"); break; // case configured SSID cannot be reached

case WL_CONNECTED: return("CONNECTED"); break; // successful connection is established

case WL_CONNECT_FAILED: return("CONNECT_FAILED"); break; // password is incorrect

case WL_DISCONNECTED: return("CONNECT_FAILED"); break; // module is not configured in station mode

default: return("??");

}

uint8_t htoi(char c)

{

c = toupper(c);

if ((c >= '0') && (c <= '9')) return(c - '0');

if ((c >= 'A') && (c <= 'F')) return(c - 'A' + 0xa);

return(0);

}

void getData(char *szMesg, uint16_t len)

// Message may contain data for:

// New text (/&MSG=)

// Scroll direction (/&SD=)

// Invert (/&I=)

// Speed (/&SP=)

{

char *pStart, *pEnd; // pointer to start and end of text

// check text message

pStart = strstr(szMesg, "/&MSG=");

if (pStart != NULL)

{

char *psz = newMessage;

pStart += 6; // skip to start of data

pEnd = strstr(pStart, "/&");

if (pEnd != NULL)

{

while (pStart != pEnd)

{

if ((*pStart == '%') && isxdigit(*(pStart + 1)))

{

// replace %xx hex code with the ASCII character

char c = 0;

pStart++;

c += (htoi(*pStart++) << 4);

c += htoi(*pStart++);

*psz++ = c;

}

else

*psz++ = *pStart++;

}

*psz = '\0'; // terminate the string

newMessageAvailable = (strlen(newMessage) != 0);

PRINT("\nNew Msg: ", newMessage);

}

// check scroll direction

pStart = strstr(szMesg, "/&SD=");

if (pStart != NULL)

{

pStart += 5; // skip to start of data

PRINT("\nScroll direction: ", *pStart);

scrollEffect = (*pStart == 'R' ? PA_SCROLL_RIGHT : PA_SCROLL_LEFT);

P.setTextEffect(scrollEffect, scrollEffect);

P.displayReset();

}

// check invert

pStart = strstr(szMesg, "/&I=");

if (pStart != NULL)

{

pStart += 4; // skip to start of data

PRINT("\nInvert mode: ", *pStart);

P.setInvert(*pStart == '1');

}

// check speed

pStart = strstr(szMesg, "/&SP=");

if (pStart != NULL)

{

pStart += 5; // skip to start of data

int16_t speed = atoi(pStart);

PRINT("\nSpeed: ", P.getSpeed());

P.setSpeed(speed);

frameDelay = speed;

}

void handleWiFi(void)

{

static enum { S_IDLE, S_WAIT_CONN, S_READ, S_EXTRACT, S_RESPONSE, S_DISCONN } state = S_IDLE;

static char szBuf[1024];

static uint16_t idxBuf = 0;

static WiFiClient client;

static uint32_t timeStart;

switch (state)

{

case S_IDLE: // initialise

PRINTS("\nS_IDLE");

idxBuf = 0;

state = S_WAIT_CONN;

break;

case S_WAIT_CONN: // waiting for connection

{

client = server.available();

if (!client) break;

if (!client.connected()) break;

#if DEBUG

char szTxt[20];

sprintf(szTxt, "%03d:%03d:%03d:%03d", client.remoteIP()[0], client.remoteIP()[1], client.remoteIP()[2], client.remoteIP()[3]);

PRINT("\nNew client @ ", szTxt);

#endif

timeStart = millis();

state = S_READ;

}

break;

case S_READ: // get the first line of data

PRINTS("\nS_READ ");

while (client.available())

{

char c = client.read();

if ((c == '\r') || (c == '\n'))

{

szBuf[idxBuf] = '\0';

client.flush();

PRINT("\nRecv: ", szBuf);

state = S_EXTRACT;

}

else

szBuf[idxBuf++] = (char)c;

}

if (millis() - timeStart > 1000)

{

PRINTS("\nWait timeout");

state = S_DISCONN;

}

break;

case S_EXTRACT: // extract data

PRINTS("\nS_EXTRACT");

// Extract the string from the message if there is one

getData(szBuf, BUF_SIZE);

state = S_RESPONSE;

break;

case S_RESPONSE: // send the response to the client

PRINTS("\nS_RESPONSE");

// Return the response to the client (web page)

client.print(WebResponse);

client.print(WebPage);

state = S_DISCONN;

break;

case S_DISCONN: // disconnect client

PRINTS("\nS_DISCONN");

client.flush();

client.stop();

state = S_IDLE;

break;

default: state = S_IDLE;

}

void setup()

{

Serial.begin(57600);

PRINTS("\n[MD_Parola WiFi Message Display]\nType a message for the scrolling display from your internet browser");

P.begin();

P.setIntensity(0);

P.displayClear();

P.displaySuspend(false);

P.displayScroll(curMessage, PA_LEFT, scrollEffect, frameDelay);

curMessage[0] = newMessage[0] = '\0';

// Connect to and initialise WiFi network

PRINT("\nConnecting to ", ssid);

WiFi.begin(ssid, password);

while (WiFi.status() != WL_CONNECTED)

{

PRINT("\n", err2Str(WiFi.status()));

delay(500);

}

PRINTS("\nWiFi connected");

// Start the server

server.begin();

PRINTS("\nServer started");

// Set up first message as the IP address

sprintf(curMessage, "%03d:%03d:%03d:%03d", WiFi.localIP()[0], WiFi.localIP()[1], WiFi.localIP()[2], WiFi.localIP()[3]);

PRINT("\nAssigned IP ", curMessage);

}

void loop()

{

handleWiFi();

if (P.displayAnimate())

{

if (newMessageAvailable)

{

strcpy(curMessage, newMessage);

newMessageAvailable = false;

}

P.displayReset();

}

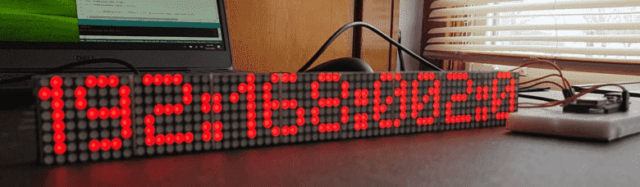

Testing the ESP8266 Smart Notice Board

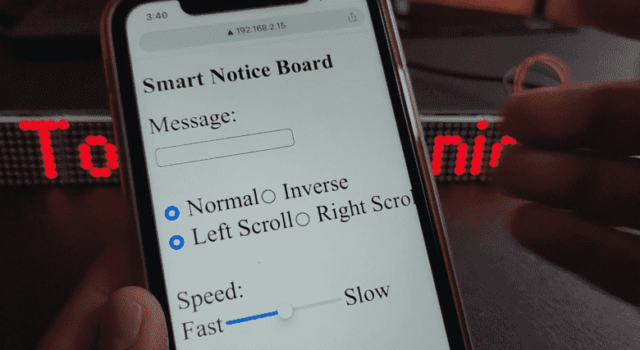

Now let us test the working and demo of Smart Notice Board with ESP8266 & Dot Matrix LED Display. After uploading the code, the ESP8266 will connect to the WiFi Network using the WiFi Credentials. The Dot Matrix LED Display will show the IP Address after a successful connection.

Open your Web Browser and enter the IP Address. The browser will display the following page.

From the Web Page enter any message that you want to display on DoT Matrix Display as a Notice. Then hit send button. The Dot Matrix will show the new message in few seconds.

You can change the scrolling effect from left to right or from right to left. You can also change the scrolling speed and reverse the LED Display.

In conclusion we can say that this display can be easily integrated with all general-purpose display board thus proving its mobility. The message is transferred using wireless technology and is eventually obtained on the LED matrix. Thus we can use modern technology to replace conventional display boards & the Web Server interface can make this system even more user-friendly and popular.
