Overview

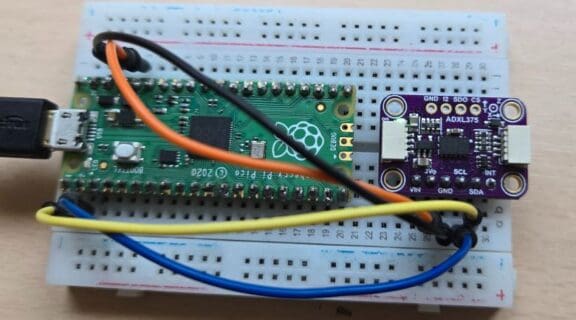

This tutorial explains how to interface the ADXL375 Accelerometer module with the Raspberry Pi Pico using MicroPython Code.
This is the ADXL375 module, which is a digital MEMS accelerometer from Analog Devices. The sensor is small and thin, with ultra-low power consumption as low as 35 µA in measurement mode. The best thing about this sensor is that it can measure acceleration up to ±200 g. Imagine reading such a high gravitational pull of the Earth or measuring the acceleration of a very fast-moving object—here, the ADXL375 is perfect.
In this tutorial, we will first go through the ADXL375 features, capabilities, pinout, and other details. Then, we will show you how you can use the ADXL375 accelerometer with Raspberry Pi Pico using MicroPython code.
Components Required
The following are the components required for making this guide.
| S.N. | Components Name | Quantity | Purchase Link |
|---|---|---|---|
| 1 | Raspberry Pi Pico | 1 | Amazon | AliExpress |
| 2 | ADXL375 Accelerometer | 1 | Amazon | AliExpress |
| 3 | Connecting Wires | 10 | Amazon | AliExpress |
| 4 | Breadboard | 1 | Amazon | AliExpress |
ADXL375 Accelerometer
The ADXL375 is a small, thin, 3-axis accelerometer that provides low power consumption and high resolution measurement up to ±200 g.
The digital output data is formatted as 16-bit, two’s complement data and is accessible through a SPI or I2C digital interface. It supports a bandwidth of up to 1 Kilo Hertz. The bandwidth is selectable via Serial Command. An integrated memory management system with a 32-level FIFO buffer can be used to store data to minimize host processor activity and lower overall system power consumption.
The sensor has the ability to determine shock, even, or could be used in an activity or inactivity monitoring system. One shocking thing to notice about this module is, it has a 10,000g shock survival, which is amazing. According to the datasheet, it could be used for concussion and head trauma detection, and also for high-force event detection. To learn more about the ADXL375 Module, you may go through the ADXL375 Datasheet.
ADXL375 Features & Specifications
- Measurement Range: ±200 g (fixed) with 13-bit two ’s-complement output
- Sensitivity: 49 mg/LSB (0.049 g/LSB) → ~0.4805 mg resolution when converted to m/s²
- Power Consumption:
- Measurement mode: 35 µA typical
- Standby mode: 0.1 µA typical (VS = 2.5 V)
- Note: Supply current varies with output data rate/bandwidth setting
- Output Data Rate / Bandwidth:
- User-selectable via serial registers
- Bandwidth up to 1 kHz (ODR up to 1 kHz)
- FIFO Buffer: 32-sample watermark FIFO reduces host-processor load
- Event Detection:
- Single-tap / double-tap (impulse) detection
- Activity/inactivity monitoring with programmable thresholds & durations
- Digital Interfaces:
- I²C (7-bit address = 0x53 when ALT_ADDRESS = LOW)
- SPI (3- or 4-wire)
- Supply Voltage: 2.0 V to 3.6 V
- I/O Voltage Range: 1.7 V to VS
- Operating Temperature: –40 °C to +85 °C
- Shock Survivability: 10,000 g (non-operating)
- Package / RoHS: 3 × 5 × 1 mm LGA, RoHS-compliant
Hardware Connection between Raspberry Pi Pico & ADXL375 Accelerometer

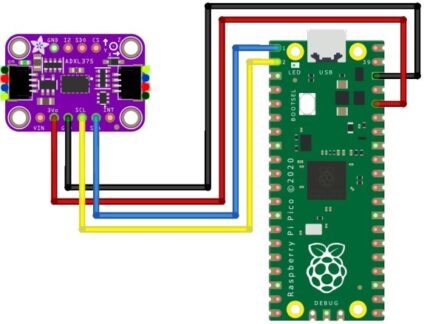

First, let’s perform basic testing of ADXL375 with the Raspberry Pi Pico. Here is the simple schematic
We can connect the ADXL375 to the Raspberry Pi Pico via the I²C interface.
We can simplify the breadboard wiring with jumper cables and ensure the ADXL375 is oriented as shown on the breakout board.
Source Code/Program: Getting Acceleration Readings
Lets develop a basic MicroPython sketch to get Acceleration reading on all the 3-axis for ADXL375 & Raspberry Pi Pico
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 |
from machine import Pin, I2C import time class ADXL375: _REG_BW_RATE = 0x2C _REG_POWER_CTL = 0x2D _REG_DATA = 0x32 _SCALE = 0.049 * 9.80665 # g-scale → m/s² def __init__(self, i2c, addr=0x53): self.i2c = i2c self.addr = addr if addr not in self.i2c.scan(): raise OSError("ADXL375 not found at 0x%02X" % addr) # Standby → 100 Hz → Measure self._write(self._REG_POWER_CTL, 0x00) time.sleep_ms(10) self._write(self._REG_BW_RATE, 0x0A) self._write(self._REG_POWER_CTL, 0x08) time.sleep_ms(10) def _write(self, reg, val): self.i2c.writeto_mem(self.addr, reg, bytes([val])) def _read(self, reg, n): return self.i2c.readfrom_mem(self.addr, reg, n) def _twos_comp(self, val, bits=16): # convert unsigned to signed (two's complement) if val & (1 << (bits - 1)): val -= (1 << bits) return val def read_raw(self): buf = self._read(self._REG_DATA, 6) # little-endian, manual two’s-comp x = buf[0] | (buf[1] << 8) y = buf[2] | (buf[3] << 8) z = buf[4] | (buf[5] << 8) return (self._twos_comp(x), self._twos_comp(y), self._twos_comp(z)) def read_mps2(self): x, y, z = self.read_raw() return (x * self._SCALE, y * self._SCALE, z * self._SCALE) # ——— Example —————————————————————————————— i2c = I2C(0, sda=Pin(0), scl=Pin(1), freq=400000) try: accel = ADXL375(i2c) except OSError as e: print(e) while True: time.sleep(1) print("ADXL375 ready!") while True: x, y, z = accel.read_mps2() print("X:{:+6.2f} Y:{:+6.2f} Z:{:+6.2f} m/s²".format(x, y, z)) time.sleep_ms(500) |

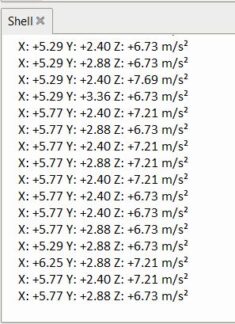

Copy the above code and paste it on the editor window of Thonny IDE. Run this code, you will see the Acceleration data on the terminal window for all the x, y, and z axes.
The x and y data should be almost zero as the sensor is placed on a flat surface. The z-axis data should be almost 9.8 m/s2 due to the gravitational pull of the Earth. But it’s showing some offset readings. That’s why you modified the MicroPython code for auto calibration.
Source Code/Program: Read Acceleration with Auto Calibration
Here is the modified code for reading the correct values of acceleration in the x, y, and z axis.
We first average 100 readings with the board held flat to compute x_offset, y_offset, and z_offset = avg_z – 9.80665 m/s². Then, on each loop, we subtract those offsets from the raw readings so that X/Y read ~0 and Z reads ~9.8 m/s² when the sensor is level.
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 |
from machine import Pin, I2C import time # Standard gravity (m/s²) G = 9.80665 class ADXL375: _REG_BW_RATE = 0x2C _REG_POWER_CTL = 0x2D _REG_DATA = 0x32 # DATAX0..DATAZ1 _SCALE = 0.049 * G # 0.049 g/LSB → m/s² def __init__(self, i2c, addr=0x53): self.i2c = i2c self.addr = addr # calibration offsets (m/s²) self.x_offset = 0.0 self.y_offset = 0.0 self.z_offset = 0.0 # check device present if addr not in self.i2c.scan(): raise OSError("ADXL375 not found at 0x%02X" % addr) # Standby → 100 Hz → Measure self._write(self._REG_POWER_CTL, 0x00) time.sleep_ms(10) self._write(self._REG_BW_RATE, 0x0A) # 100 Hz self._write(self._REG_POWER_CTL, 0x08) # Measure on time.sleep_ms(10) def _write(self, reg, val): self.i2c.writeto_mem(self.addr, reg, bytes([val])) def _read(self, reg, n): return self.i2c.readfrom_mem(self.addr, reg, n) def _twos_comp(self, val, bits=16): if val & (1 << (bits - 1)): val -= (1 << bits) return val def read_raw(self): buf = self._read(self._REG_DATA, 6) x = buf[0] | (buf[1] << 8) y = buf[2] | (buf[3] << 8) z = buf[4] | (buf[5] << 8) return ( self._twos_comp(x), self._twos_comp(y), self._twos_comp(z), ) def read_mps2(self): x, y, z = self.read_raw() return ( x * self._SCALE, y * self._SCALE, z * self._SCALE, ) def calibrate(self, samples=100, delay_ms=20): """Auto-calibrate: assume sensor is flat & still.""" sum_x = sum_y = sum_z = 0.0 for _ in range(samples): x, y, z = self.read_mps2() sum_x += x sum_y += y sum_z += z time.sleep_ms(delay_ms) avg_x = sum_x / samples avg_y = sum_y / samples avg_z = sum_z / samples # X/Y→0, Z→+1 g self.x_offset = avg_x self.y_offset = avg_y self.z_offset = avg_z - G print("Calibration complete:") print(" x_offset = {:.4f} m/s²".format(self.x_offset)) print(" y_offset = {:.4f} m/s²".format(self.y_offset)) print(" z_offset = {:.4f} m/s²".format(self.z_offset)) # ——— Example usage —————————————————————————————————————————— # I2C0: GP0=SDA, GP1=SCL i2c = I2C(0, sda=Pin(0), scl=Pin(1), freq=400000) try: accel = ADXL375(i2c) except OSError as e: print(e) while True: time.sleep(1) # Auto-calibrate (keep Pico + ADXL375 flat & still during this) accel.calibrate() print("\nReading calibrated acceleration (m/s²):\n") while True: x, y, z = accel.read_mps2() # subtract offsets x -= accel.x_offset y -= accel.y_offset z -= accel.z_offset print("X:{:+6.2f} Y:{:+6.2f} Z:{:+6.2f}".format(x, y, z)) time.sleep_ms(500) |

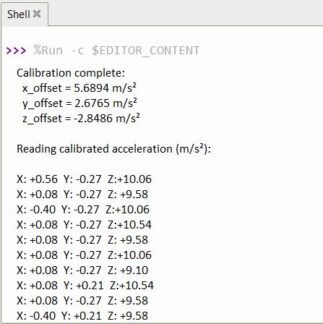

Run this code again. The reading will be correct now.
To observe the change in reading, shake the sensor or move the sensor, or jerk it. You will see a massive change in the reading.
This is how you can interface the ADXL375 accelerometer with Raspberry Pi Pico using the MicroPython code.
